FOSAN
معرفی
ماسفت 20 ولت 2.3 آمپر نوع P با پکیج SOT-23-3
MOSFET 20V, 2.3A P-Channel with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: -20V
- Id - Continuous Drain Current: -2.3A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -400mV
- Vgs - Gate - Source Voltage: ±10V
- Rds On - Drain - Source Resistance: 90mΩ
- Pd - Power Dissipation: 700mW
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت FSS2301S

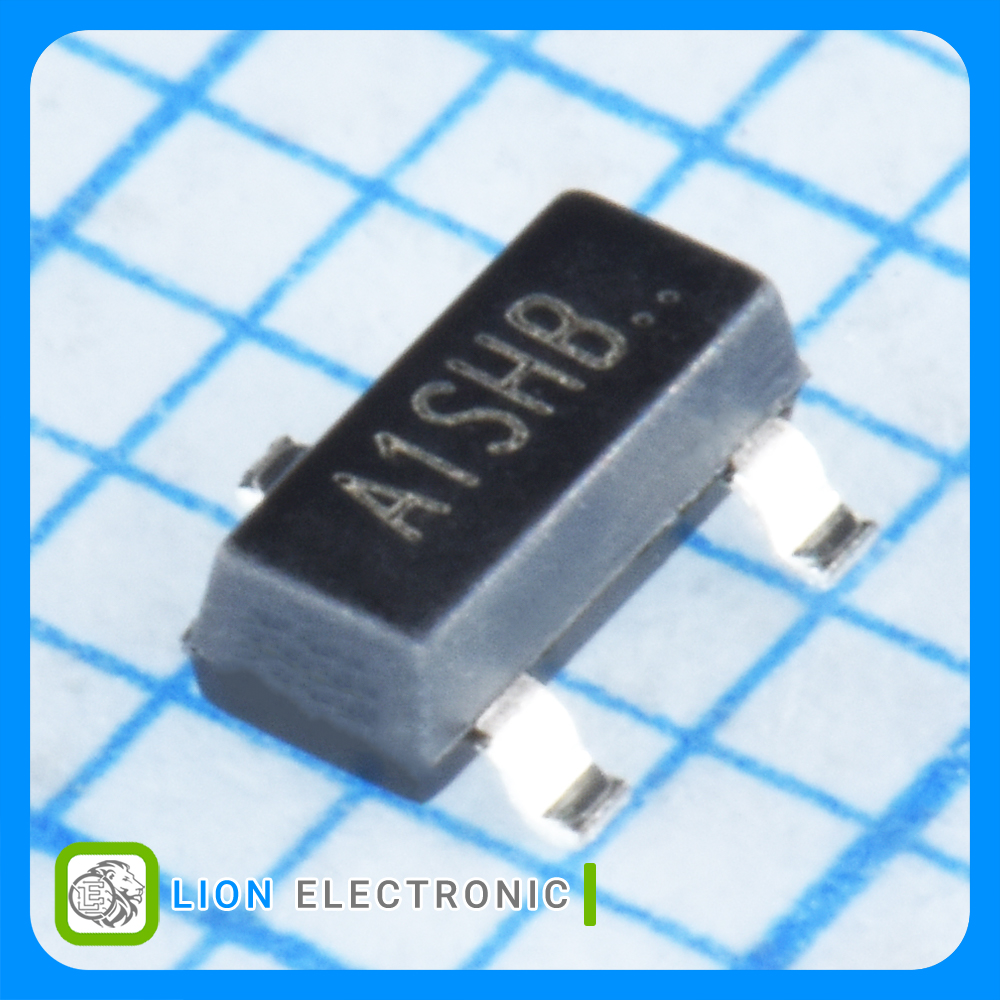

ماسفت FSS2301S
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
±10V
Vgs - Gate - Source Voltage
-20V
Vds - Drain - Source Breakdown Voltage
-400mV
Vgs th - Gate - Source Threshold Voltage
+150C
Maximum Operating Temperature
-2.3A
Id - Continuous Drain Current
700mW
Pd - Power Dissipation
90mΩ
Rds On - Drain - Source Resistance
-
Qg - Gate Charge
SOT-23-3
Package-Case
