TOSHIBA
معرفی

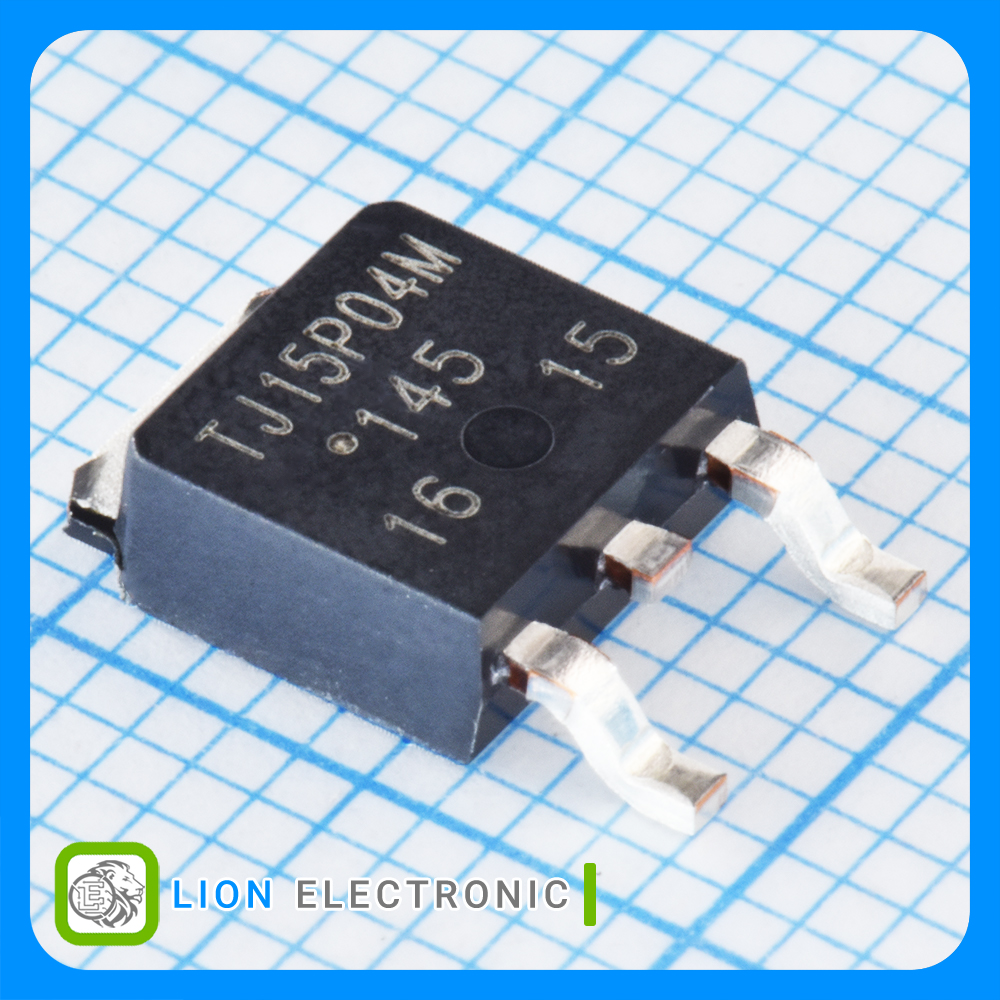

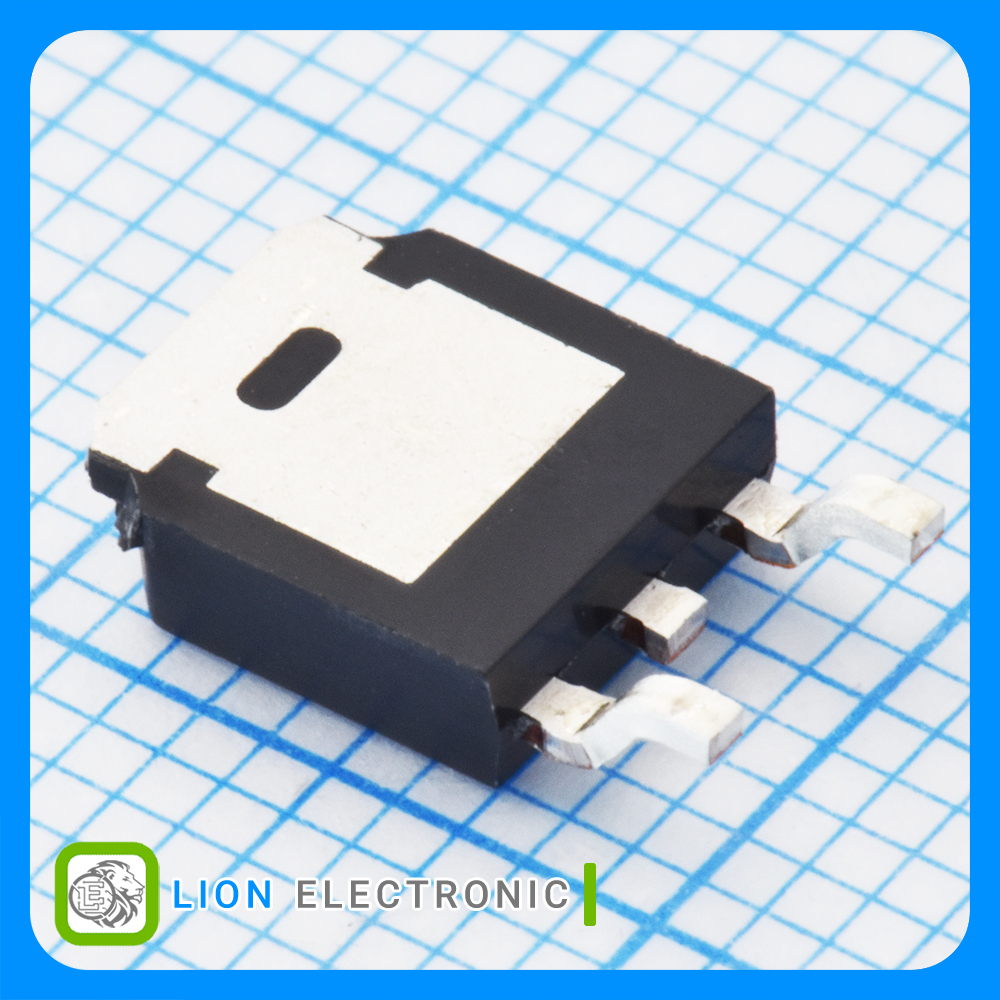

ماسفت 40- ولت 15- آمپر نوع P با پکیج DPAK-3
P-CH MOSFET -40V, -15A with DPAK-3 Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: -40V
- Id - Continuous Drain Current: -15A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -800mV
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 28mΩ
- Pd - Power Dissipation: 29W
- Qg - Gate Charge: 26nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات TJ15P04M3,RQ(S
TJ15P04M3,RQ(S
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
-40V
Vds - Drain - Source Breakdown Voltage
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
-15A
Id - Continuous Drain Current
-800mV
Vgs th - Gate - Source Threshold Voltage
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
26nC
Qg - Gate Charge
28mΩ
Rds On - Drain - Source Resistance
29W
Pd - Power Dissipation
DPAK
Package-Case
