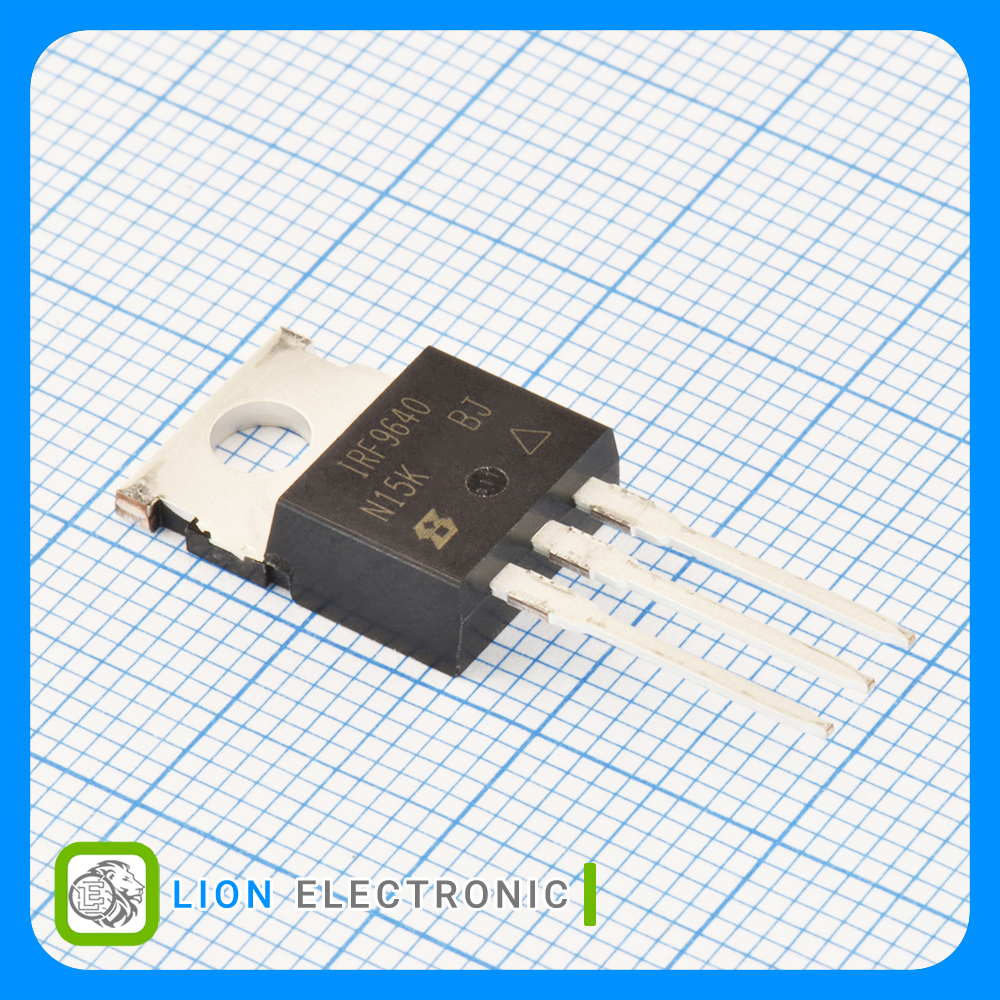

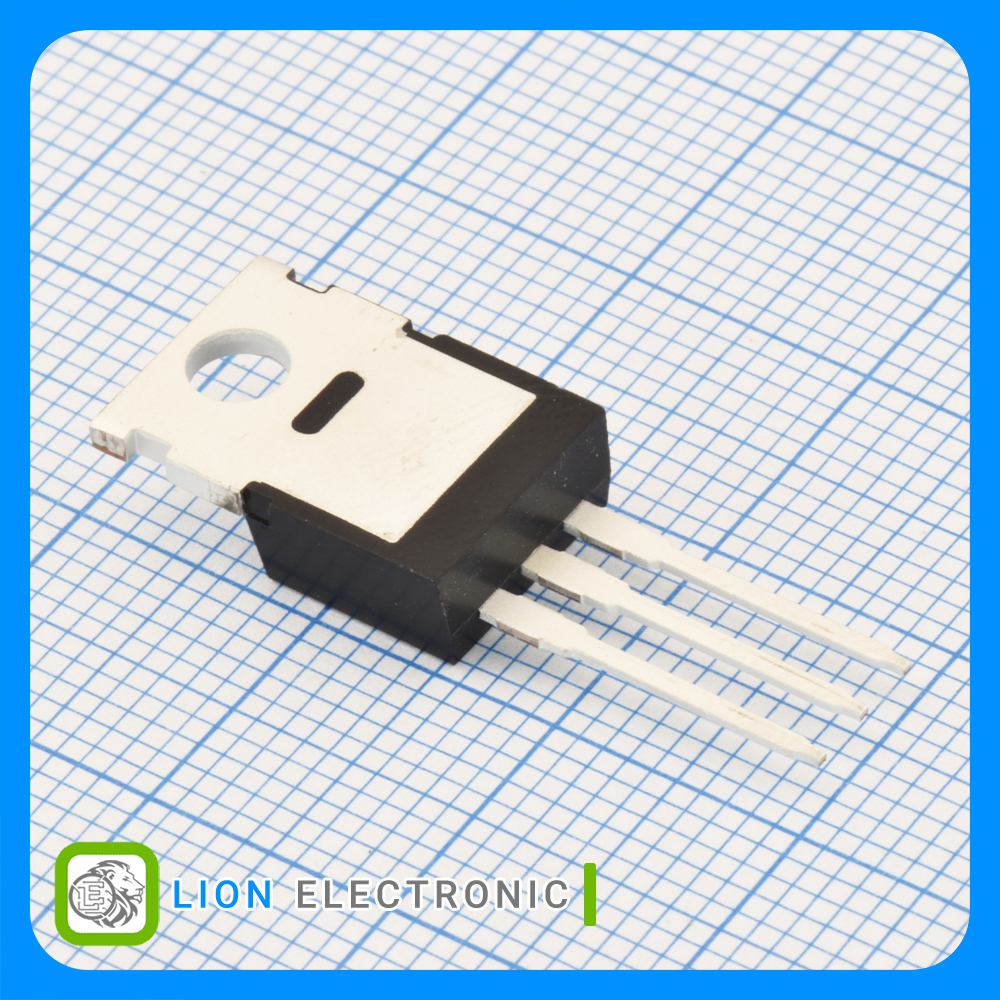

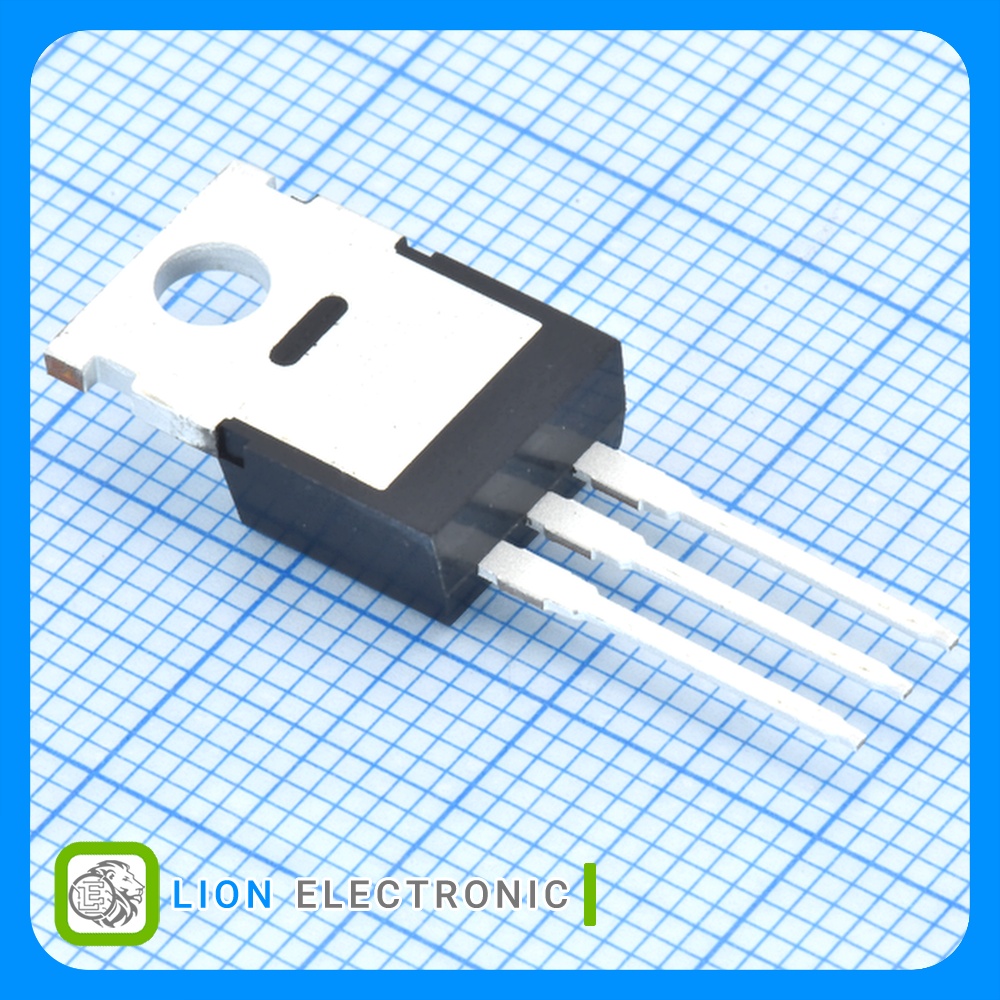

IRF9640PBF
IRF9640PBF
Part Number
201
Lion Part
Datasheet
Vishay Semiconductors Manufacture
ماسفت P-CH با ولتاژ -200 ولت و جریان -11 آمپر با پکیج TO-220-3
P-CH MOSFET -200V, -11A with TO-220-3 Package
معرفی
ماسفت P-CH با ولتاژ -200 ولت و جریان -11 آمپر با پکیج TO-220-3
P-CH MOSFET -200V, -11A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: -200V
- Id - Continuous Drain Current: -11A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 500mΩ
- Pd - Power Dissipation: 125W
- Qg - Gate Charge: 44nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت IRF9640PBF

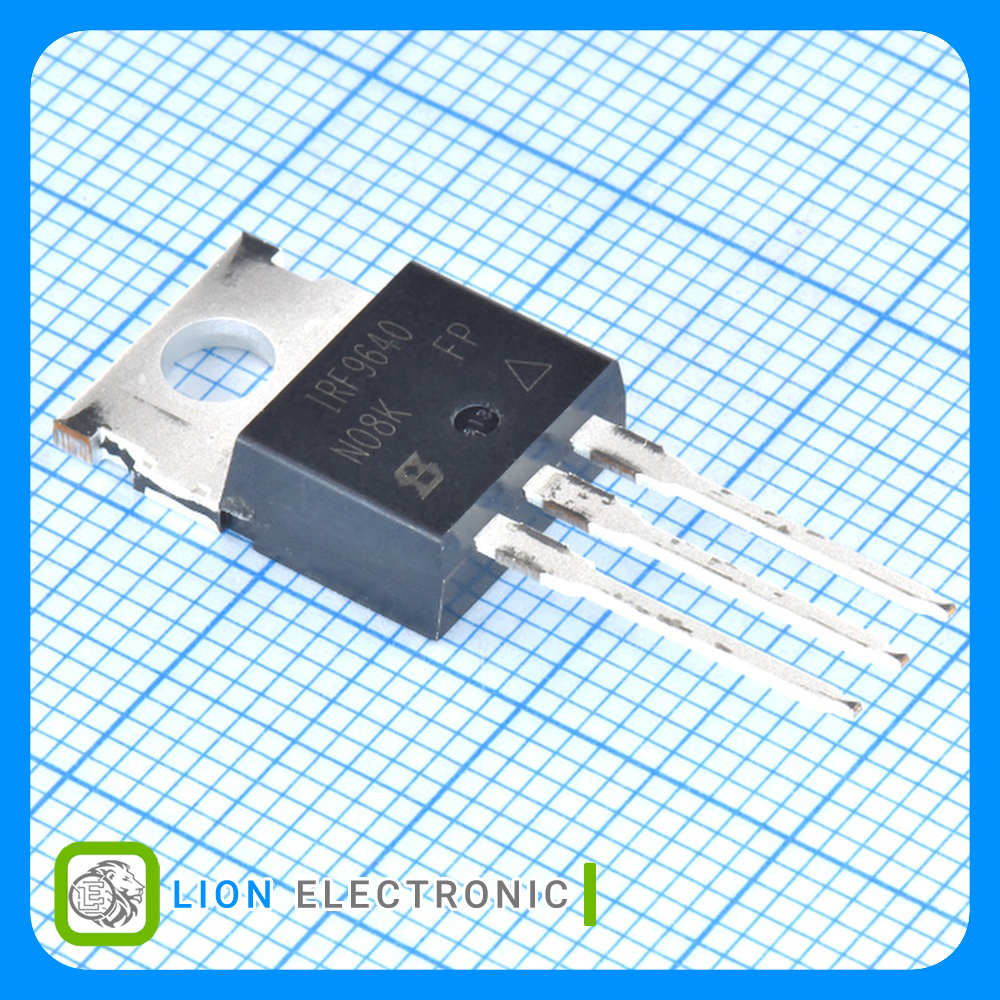

ماسفت IRF9640PBF
Part Number
-200V
Vds - Drain - Source Breakdown Voltage
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
-2V
Vgs th - Gate - Source Threshold Voltage
P-Channel
Transistor Polarity
Tube
Packaging
Through Hole
Mounting Style
-11A
Id - Continuous Drain Current
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
43ns
Rise Time
38ns
Fall Time
44nC
Qg - Gate Charge
500mΩ
Rds On - Drain - Source Resistance
125W
Pd - Power Dissipation
TO-220
Package-Case
