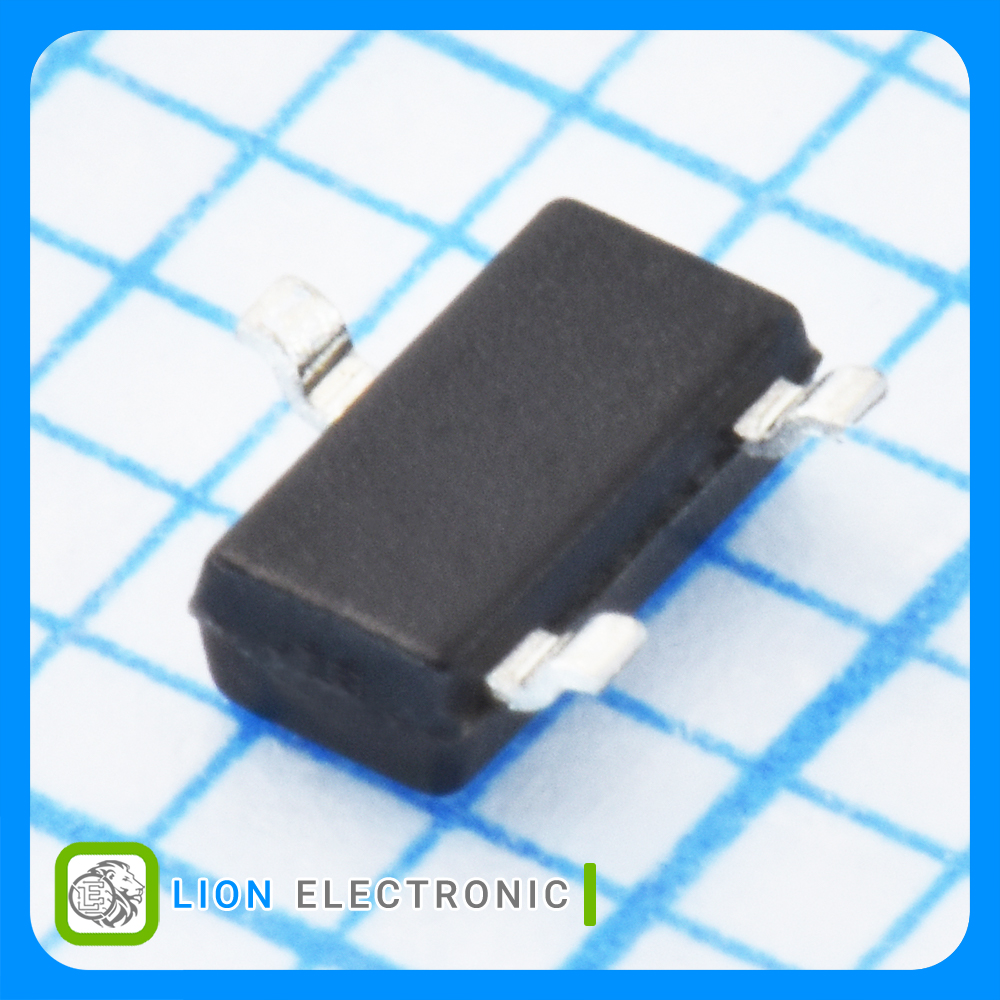

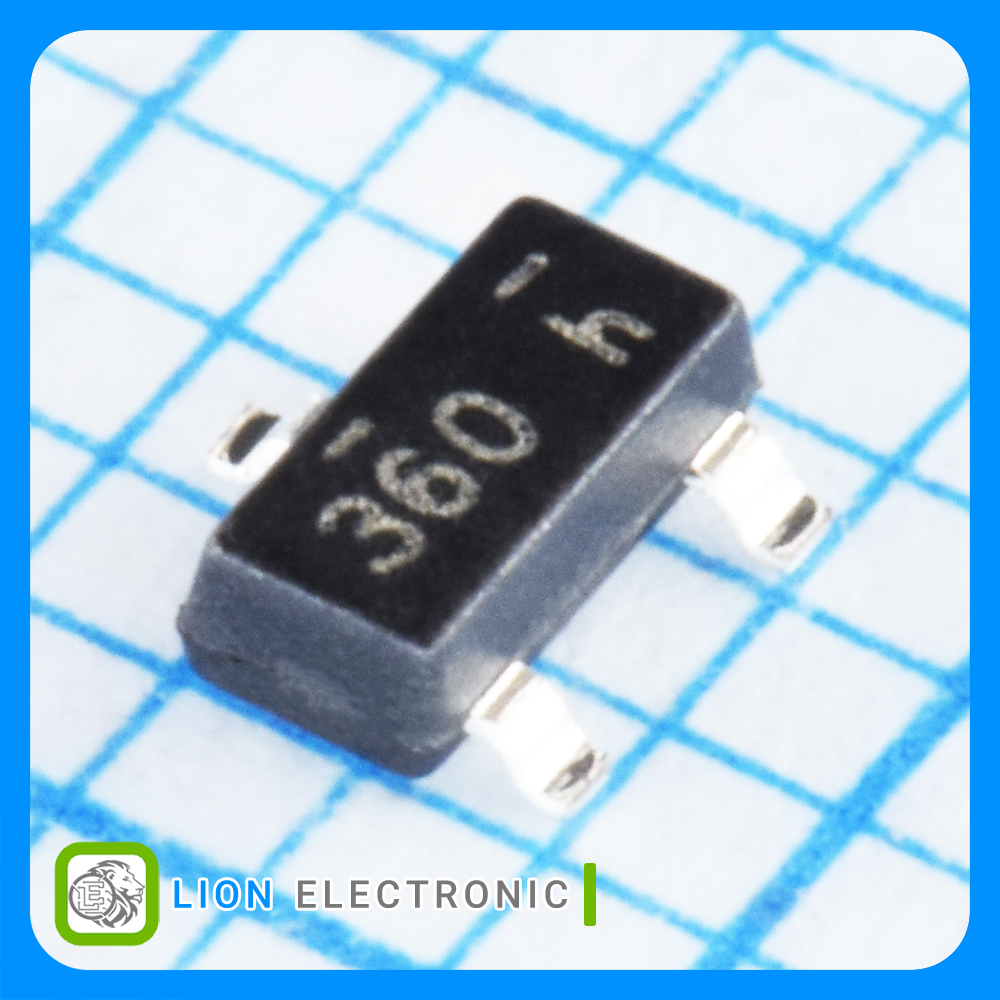

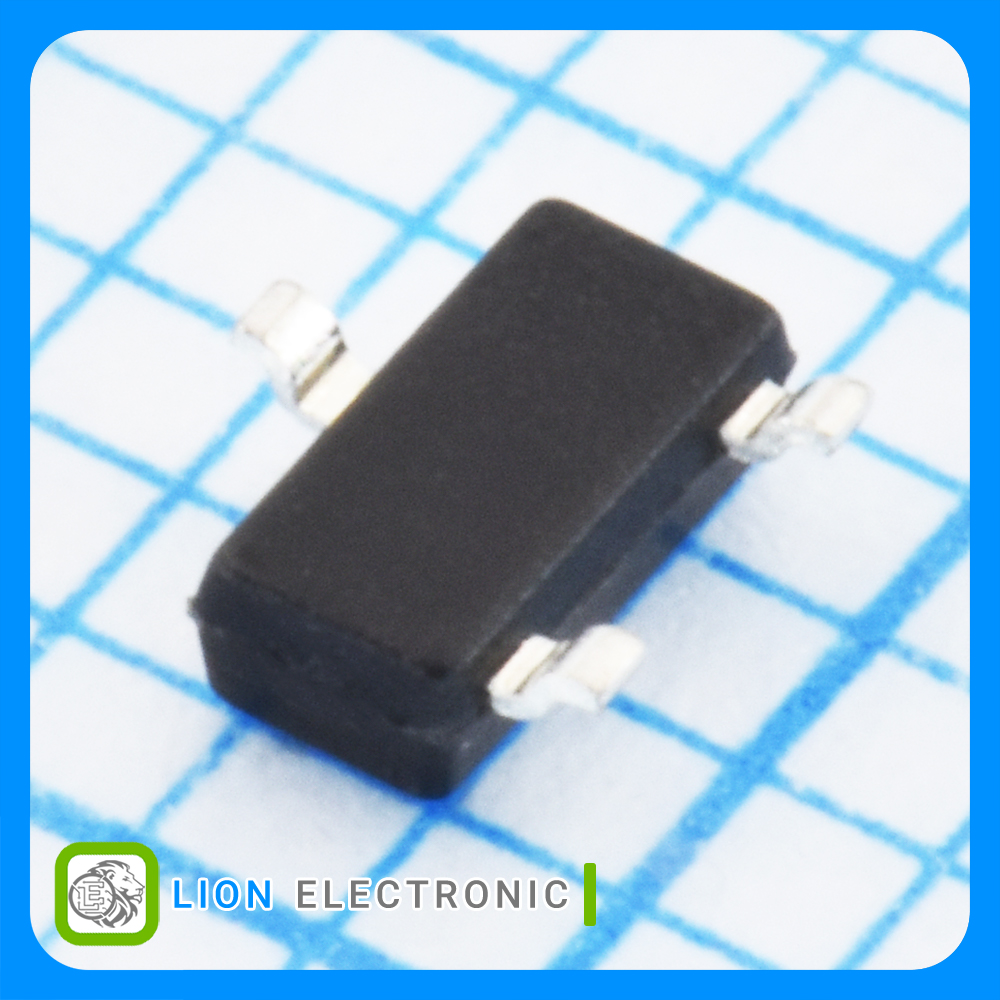

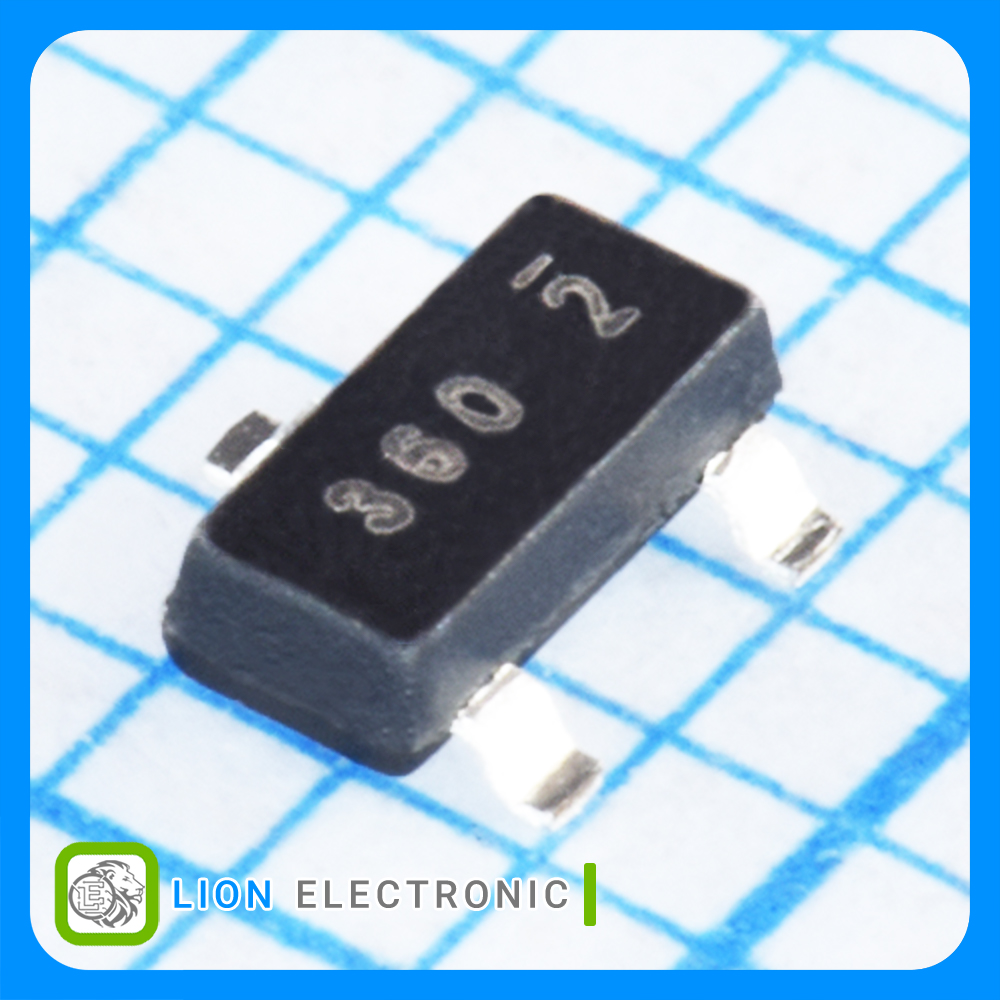

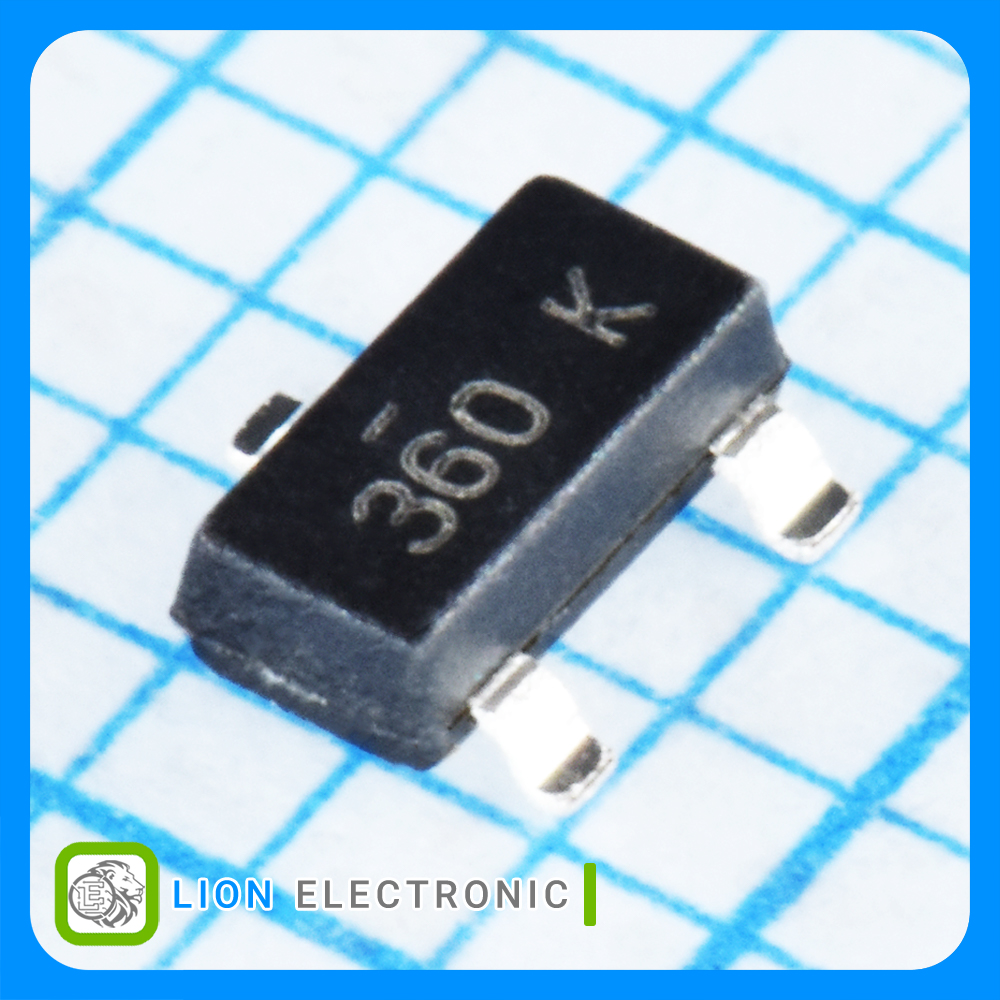

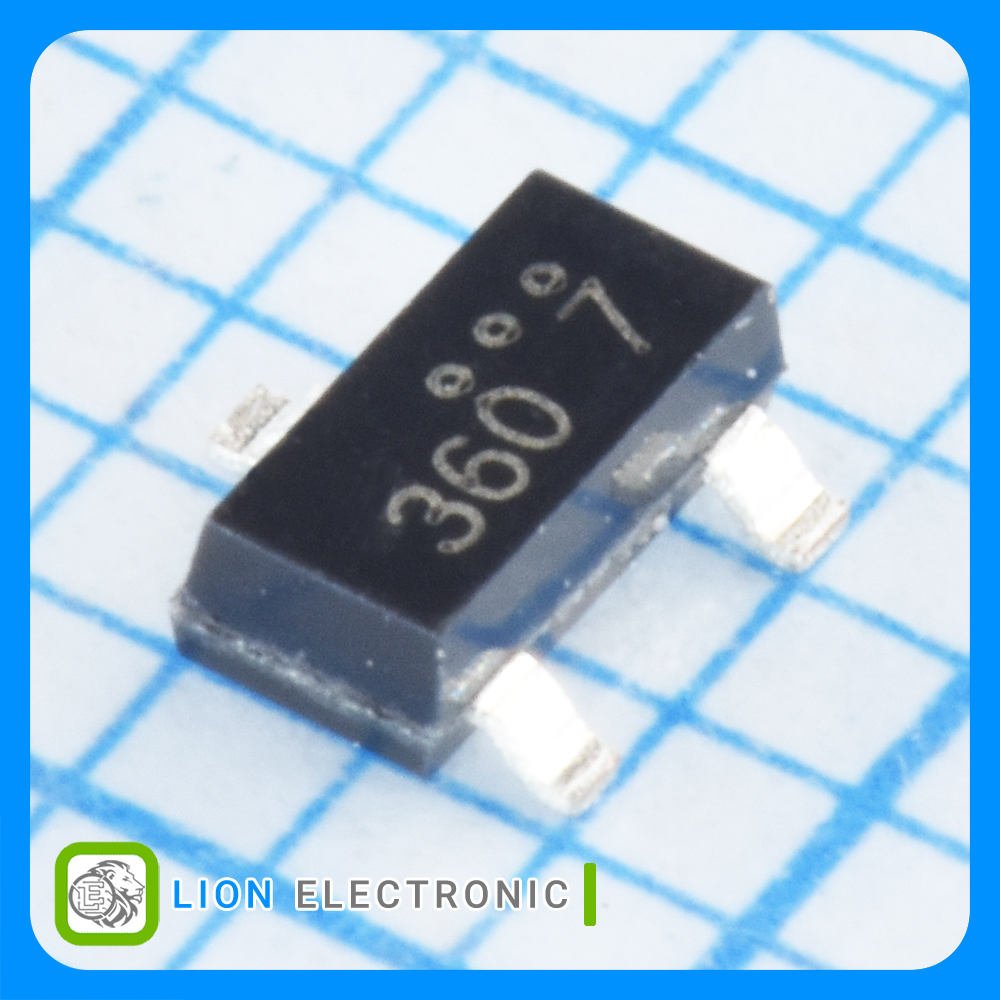

ماسفت FDN360P
FDN360P
Part Number
208
Lion Part
Datasheet
ON Semiconductor Manufacture
ماسفت 30 ولت 2 آمپر نوع P با پکیج SOT-23-3
P-CH MOS 30V 2A SOT-23-3
مشخصات ماسفت FDN360P
ماسفت FDN360P
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
-30V
Vds - Drain - Source Breakdown Voltage
SMD/SMT
Mounting Style
-1V
Vgs th - Gate - Source Threshold Voltage
±20V
Vgs - Gate - Source Voltage
13ns
Fall Time
+150C
Maximum Operating Temperature
6.2nC
Qg - Gate Charge
-2A
Id - Continuous Drain Current
500mW
Pd - Power Dissipation
63mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
