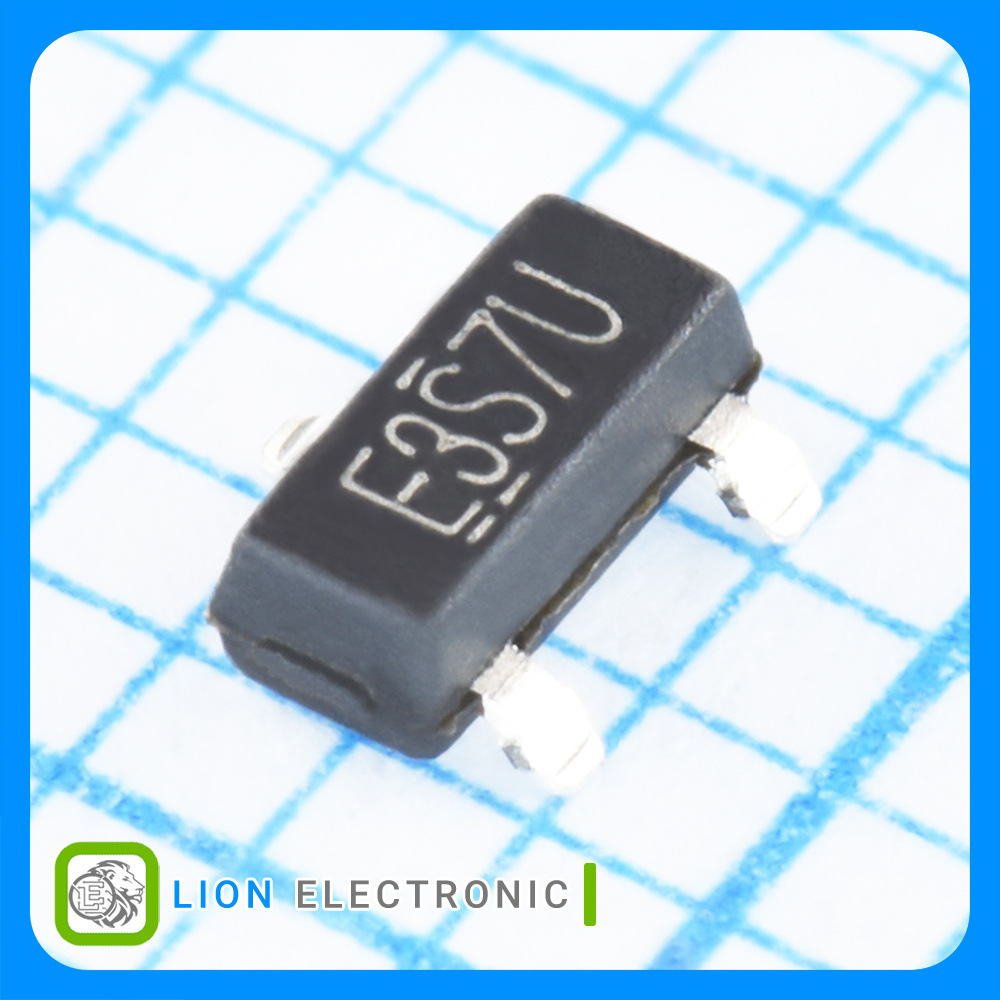

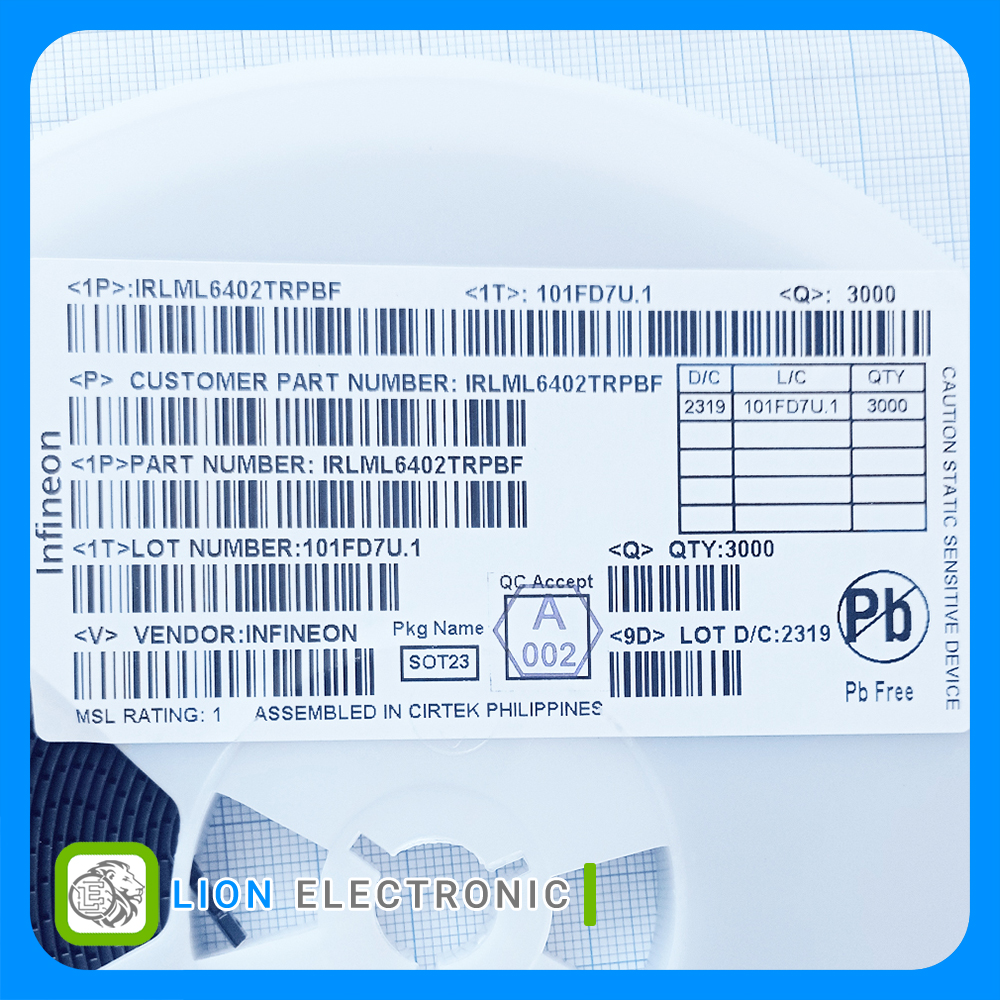

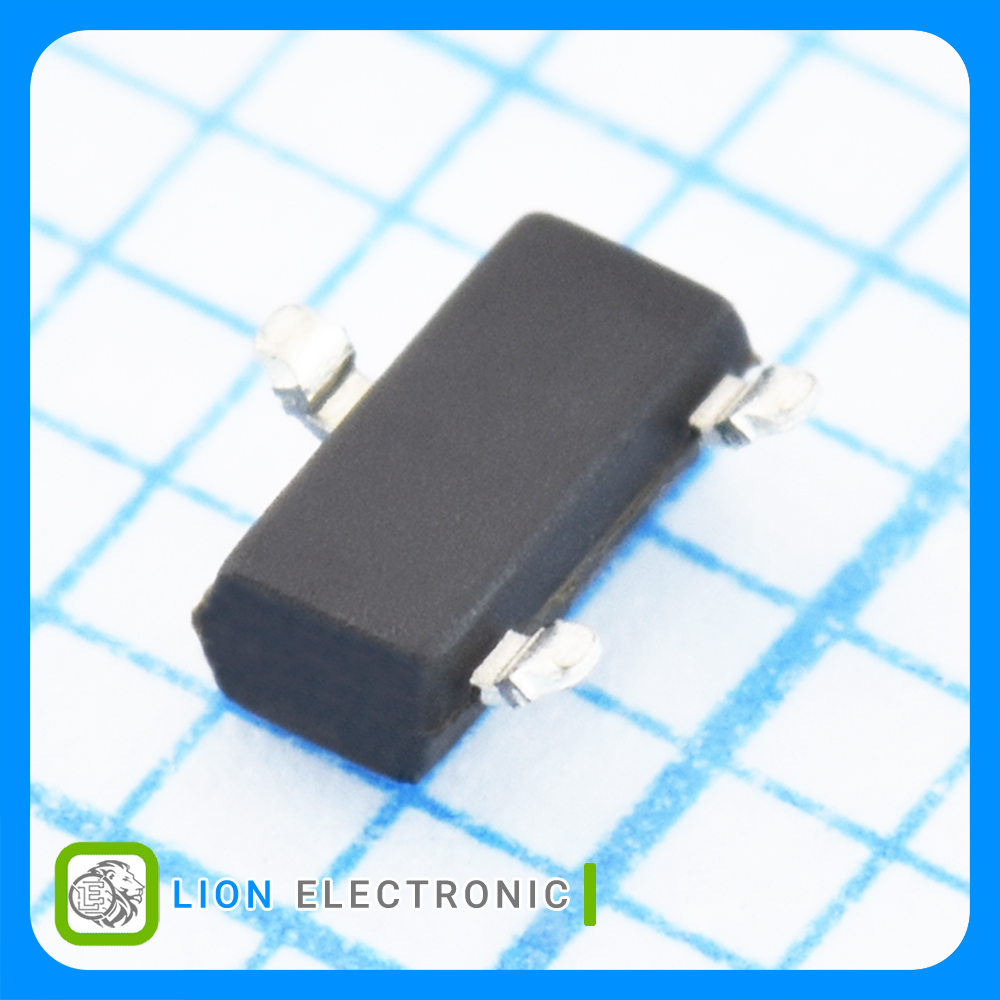

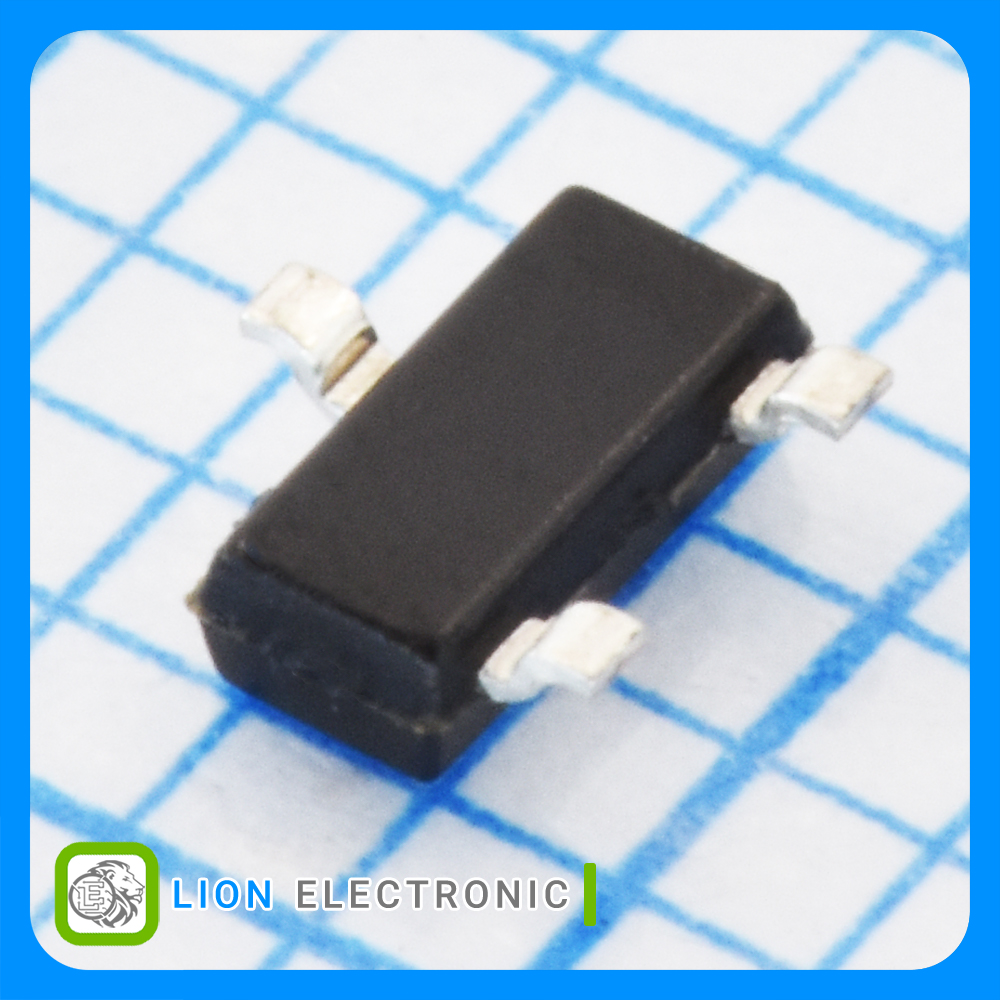

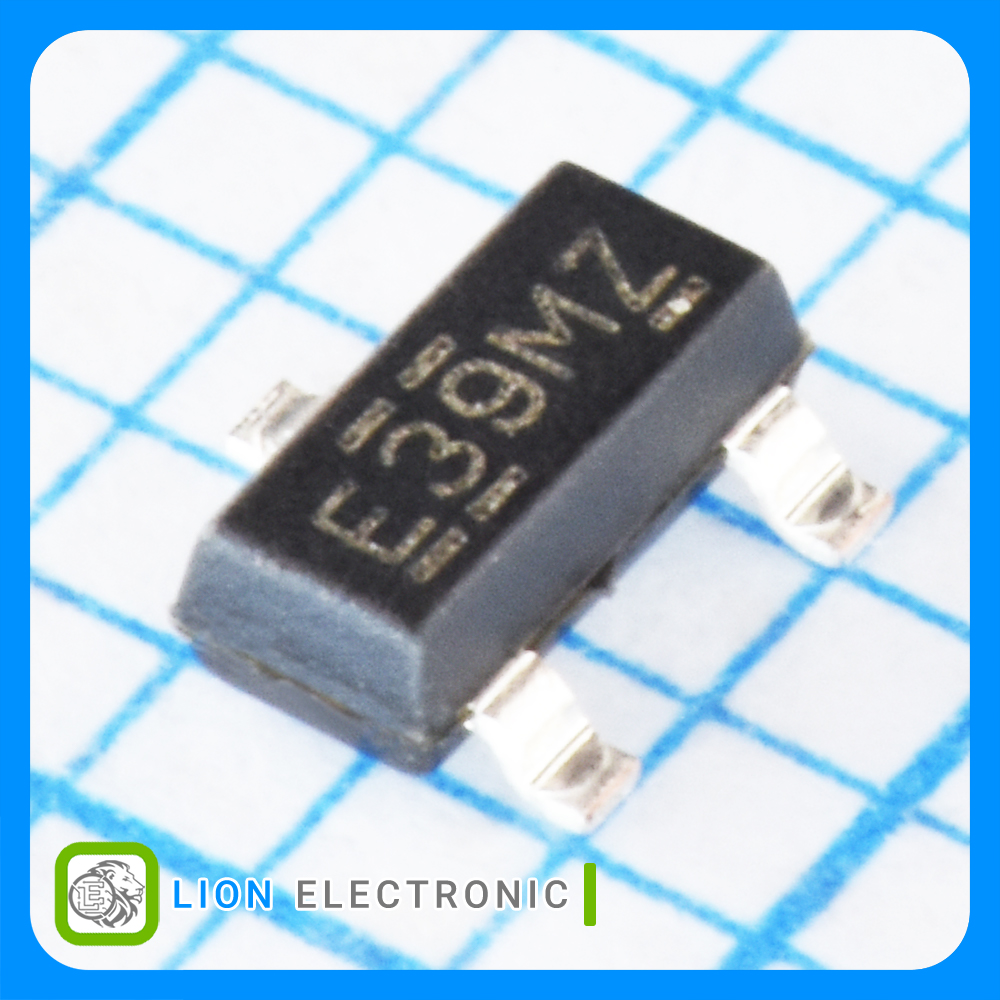

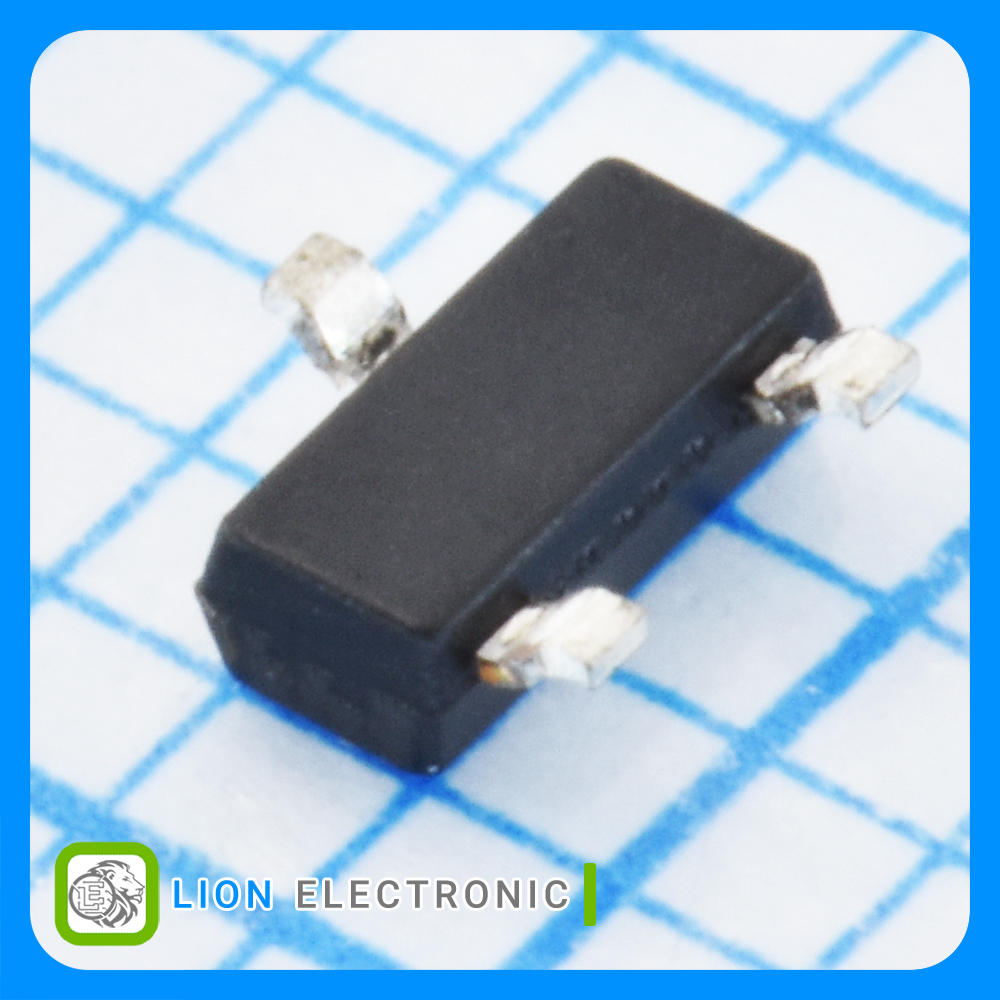

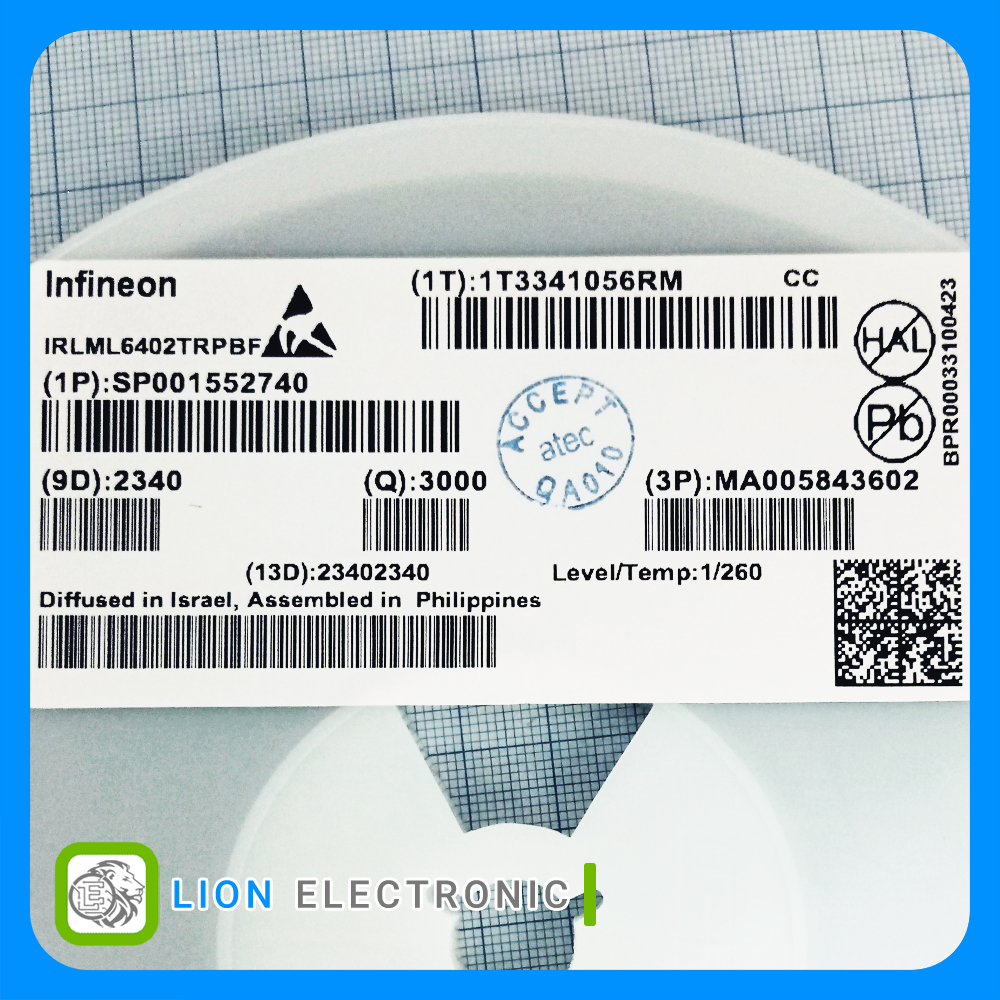

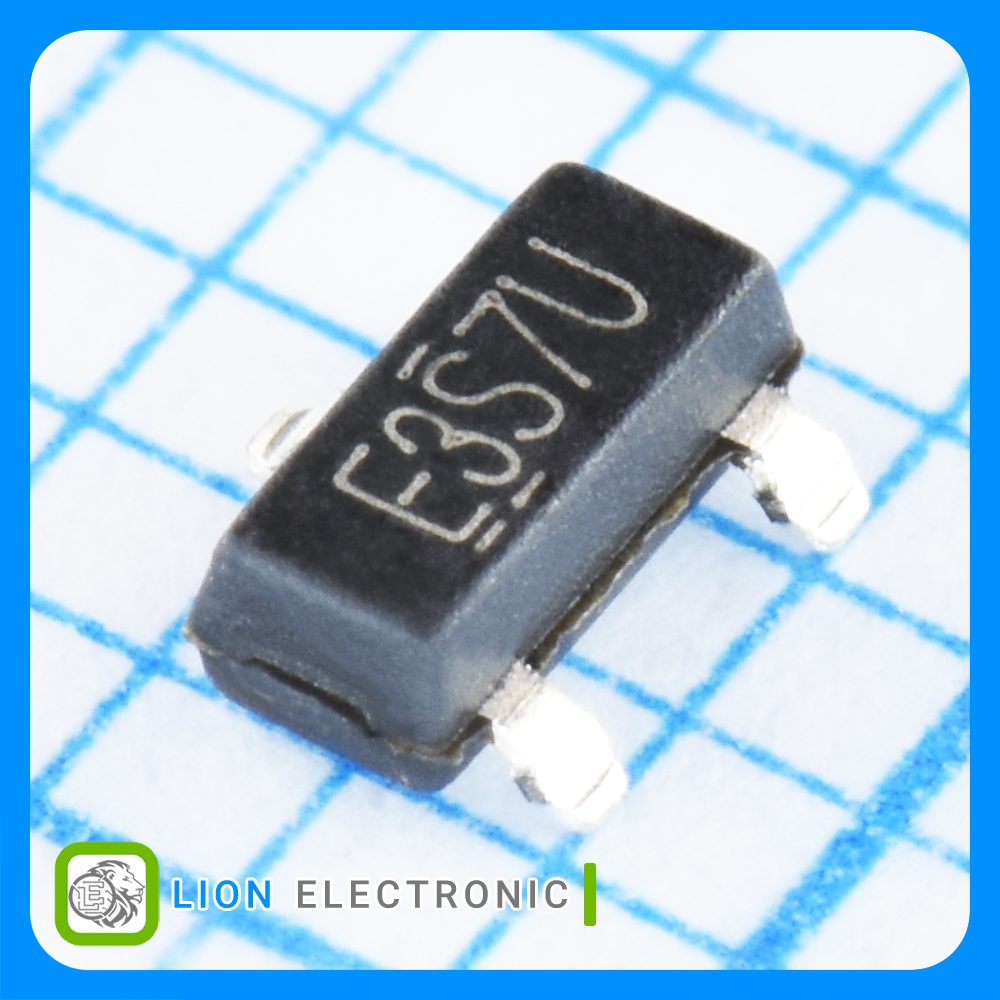

IRLML6402TRPBF
IRLML6402TRPBF
Part Number
211
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت -20 ولت -3.7 آمپر نوع P با پکیج SOT-23-3
MOSFET -20V, -3.7A with SOT-23-3 Package
معرفی
ماسفت -20 ولت -3.7 آمپر نوع P با پکیج SOT-23-3
MOSFET -20V, -3.7A with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: -20V
- Id - Continuous Drain Current: -3.7A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -400mV
- Vgs - Gate - Source Voltage: ±12V
- Rds On - Drain - Source Resistance: 50mΩ
- Pd - Power Dissipation: 1.3W
- Qg - Gate Charge: 8nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت IRLML6402TRPBF

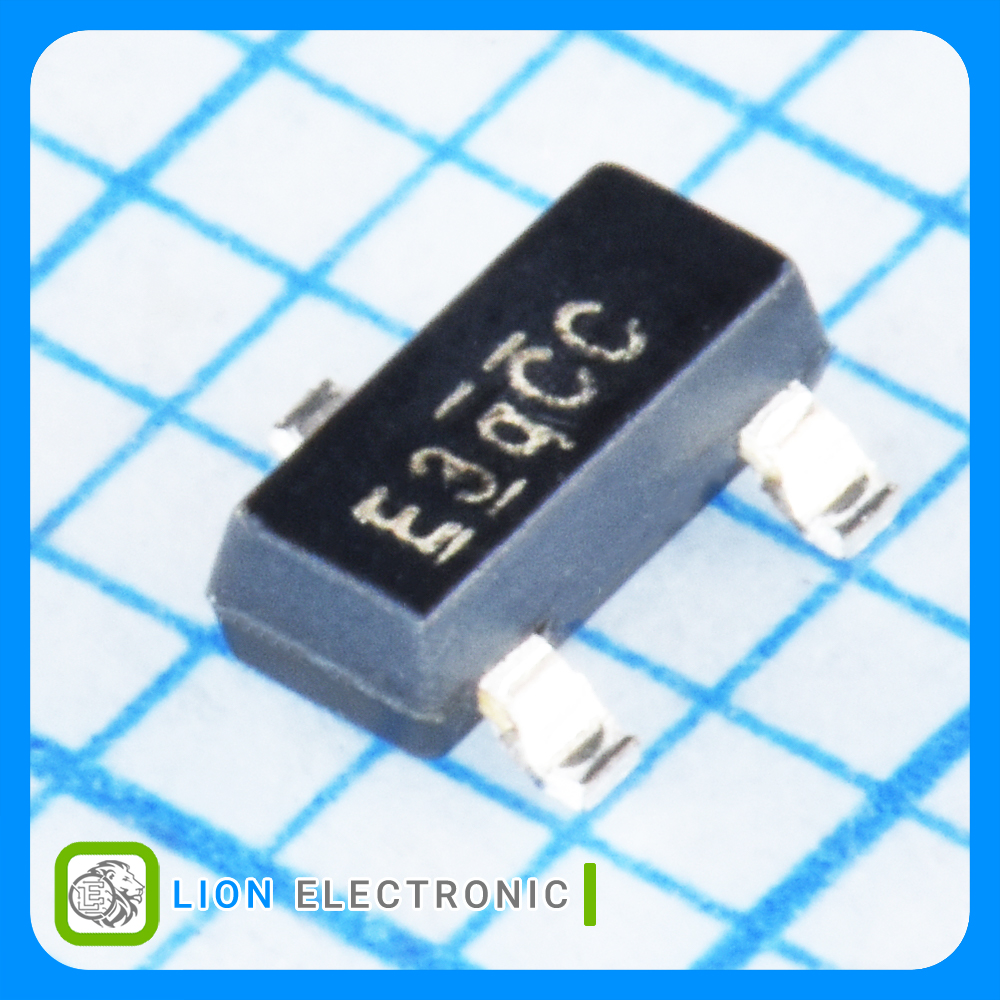

ماسفت IRLML6402TRPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
-20V
Vds - Drain - Source Breakdown Voltage
±12V
Vgs - Gate - Source Voltage
-400mV
Vgs th - Gate - Source Threshold Voltage
+150C
Maximum Operating Temperature
8nC
Qg - Gate Charge
-3.7A
Id - Continuous Drain Current
1.3W
Pd - Power Dissipation
50mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
