M3-RGB
M3-RGB
Part Number
2179
Lion Part
Datasheet
Lattice Power Manufacture
ال ای دی RGB R:625-G:522-B:452nm 1.5 آمپر 4.5 وات با پکیج 3535

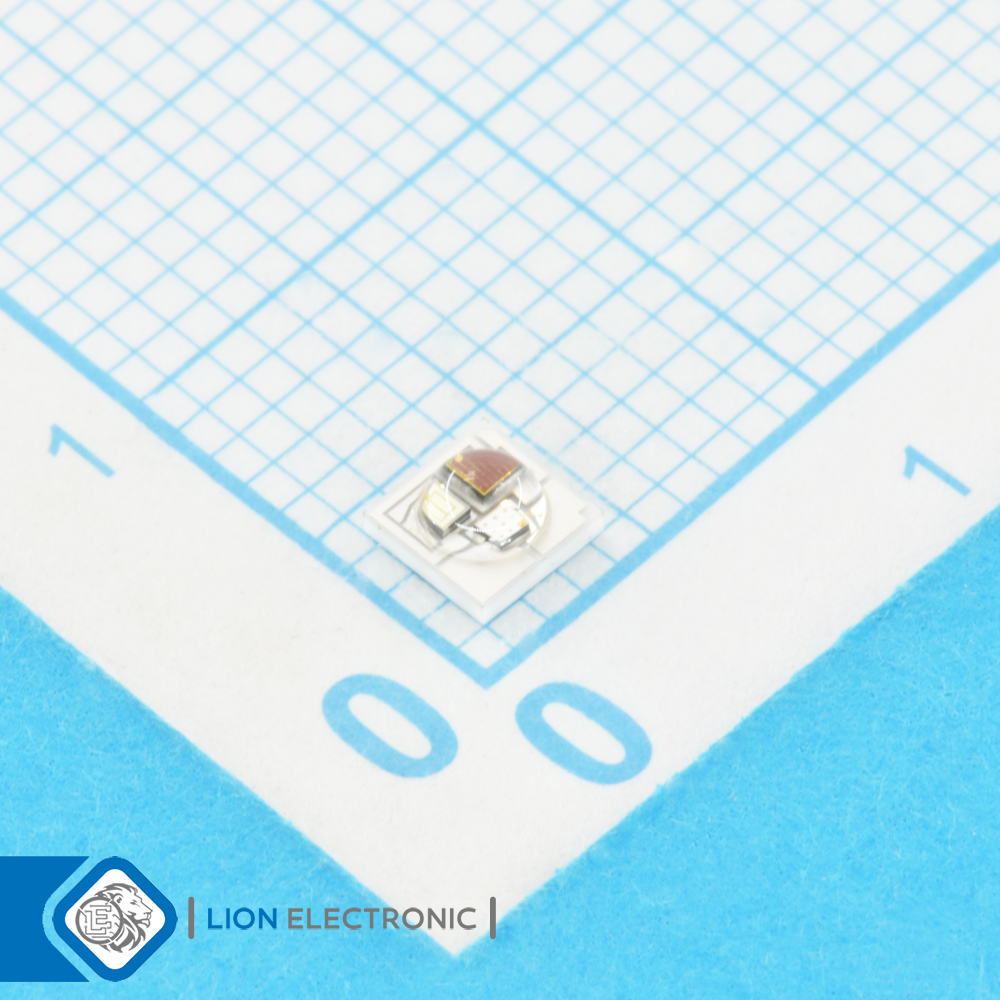

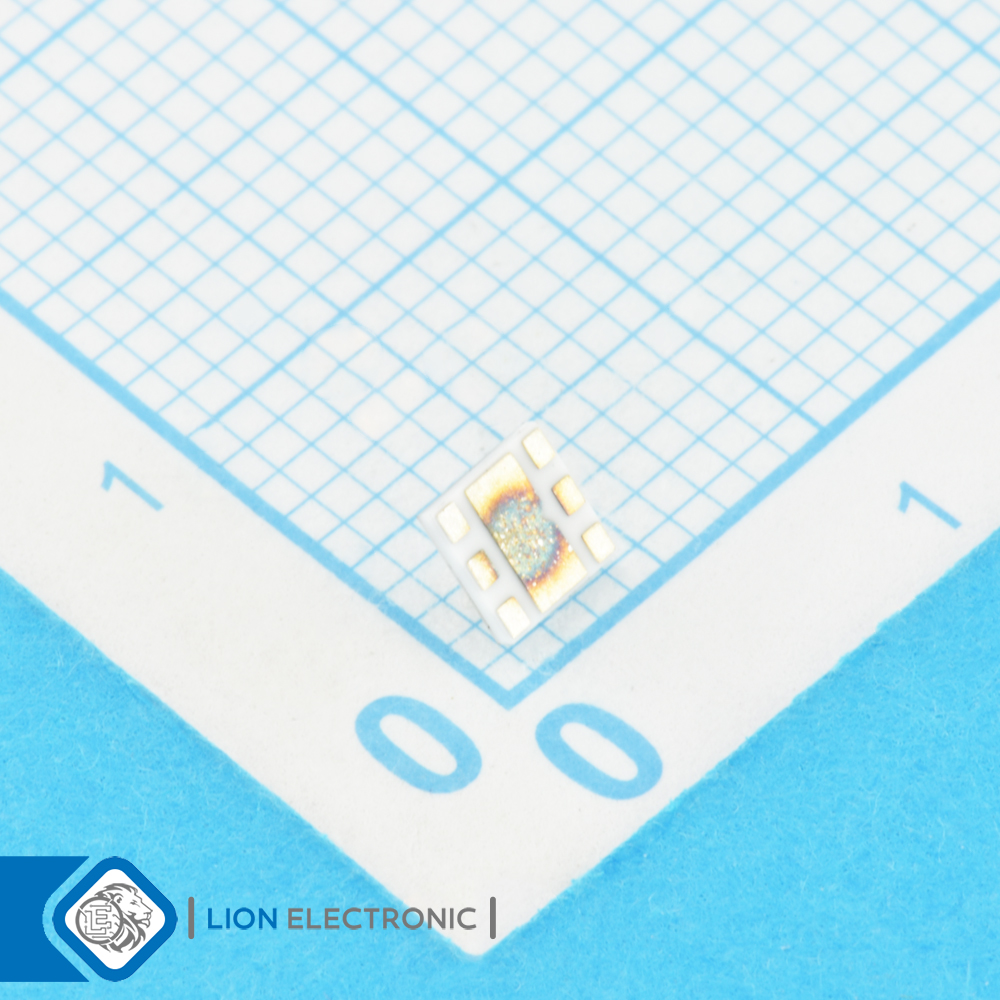

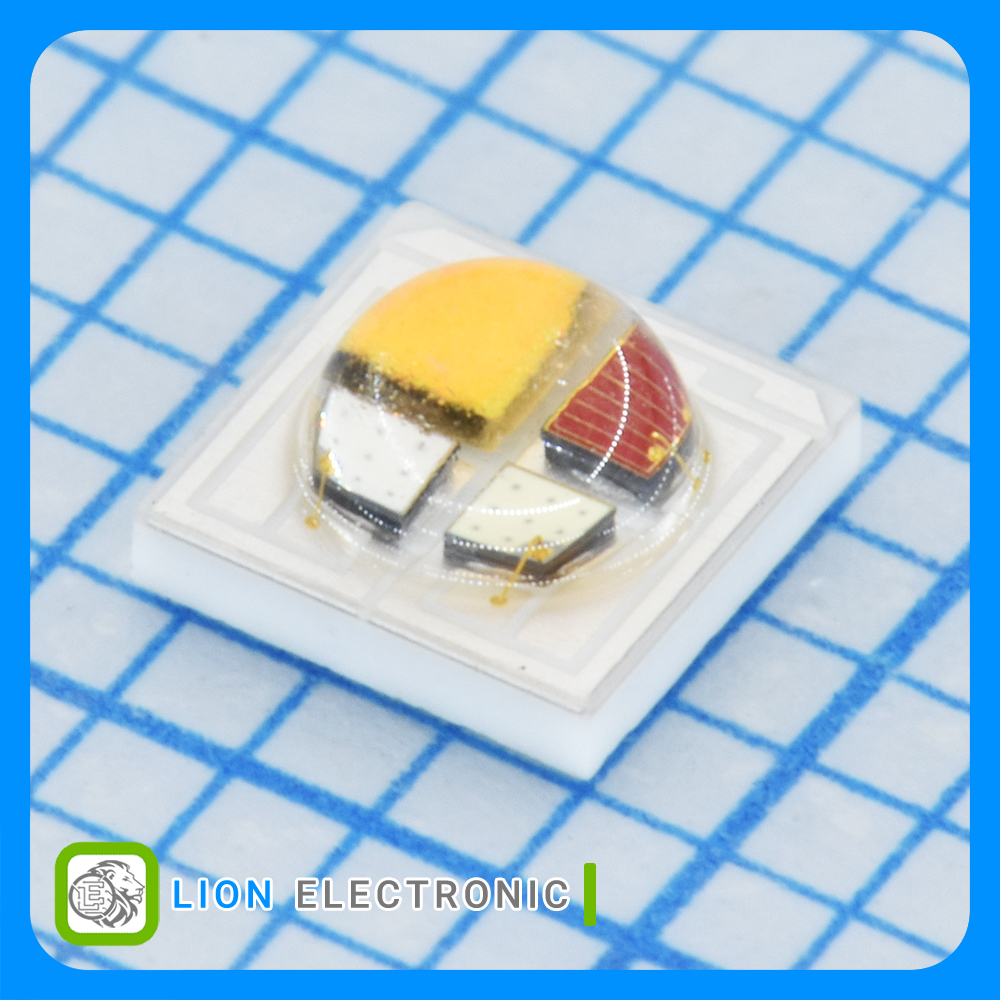

LED RGB R:625-G:522-B:452nm, 1.5A, 4.5W with 3535 Package
معرفی
ال ای دی RGB R:625-G:522-B:452nm 1.5 آمپر 4.5 وات با پکیج 3535
LED RGB R:625-G:522-B:452nm, 1.5A, 4.5W with 3535 Package
Specifications
- Illumination Color: RGB
- Vf - Forward Voltage: R:2.5-G:3-B:3V
- If - Forward Current: 1.5A
- Power Rating: 4.5W
- Wavelength/Color Temperature: R:625-G:522-B:452nm
- Luminous Intensity: R:60-G:85-B:20lm

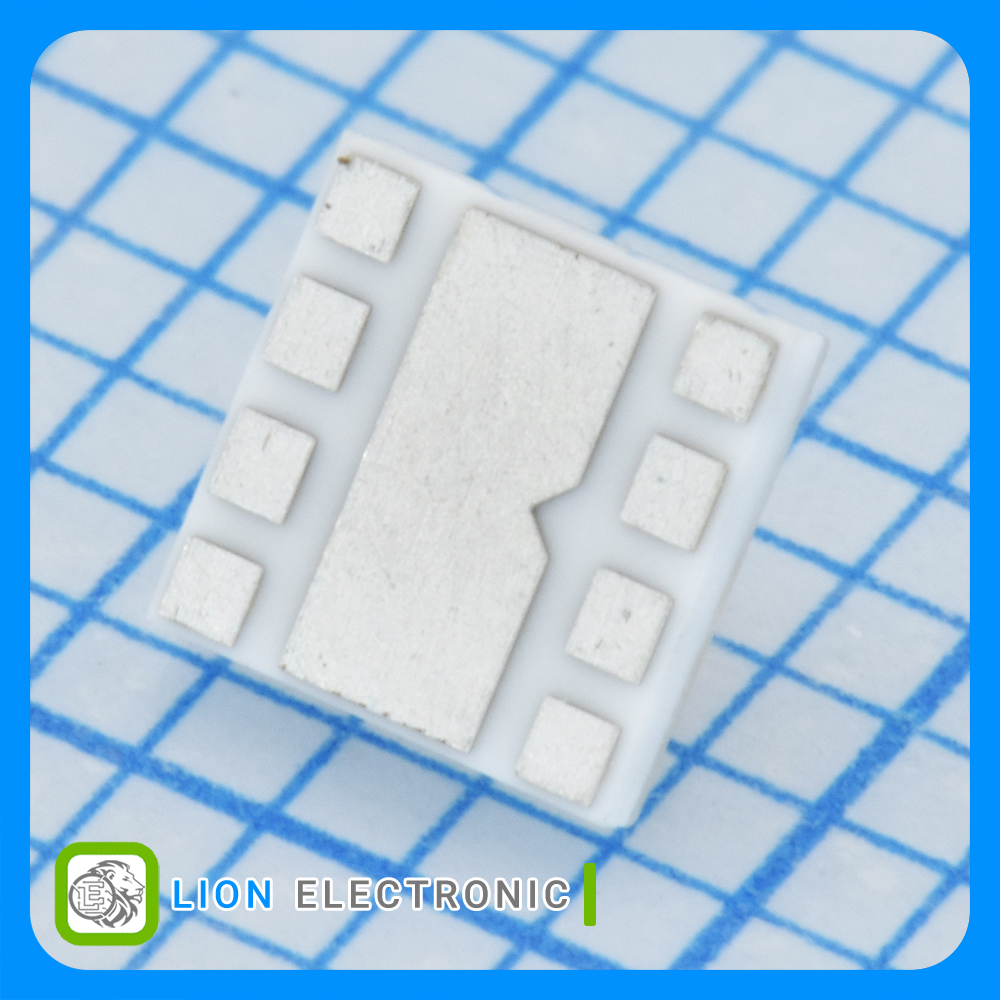

- Package/Case: 3535
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات RGB ال ای دی M3-RGB
RGB ال ای دی M3-RGB
Part Number
120°
Viewing Angle
R:60-G:85-B:20lm
Luminous Intensity
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
RGB
Illumination Color
+105C
Maximum Operating Temperature
4.5W
Power Rating
1.5A
If - Forward Current
R:625-G:522-B:452nm
Wavelength-Color Temperature
3535
Package-Case
R:2.5-G:3-B:3V
Vf - Forward Voltage
