XINGLIGHT
معرفی
ال ای دی قرمز 620-630nm با جریان 25 میلیآمپر و توان 60 میلیوات با پکیج 0603

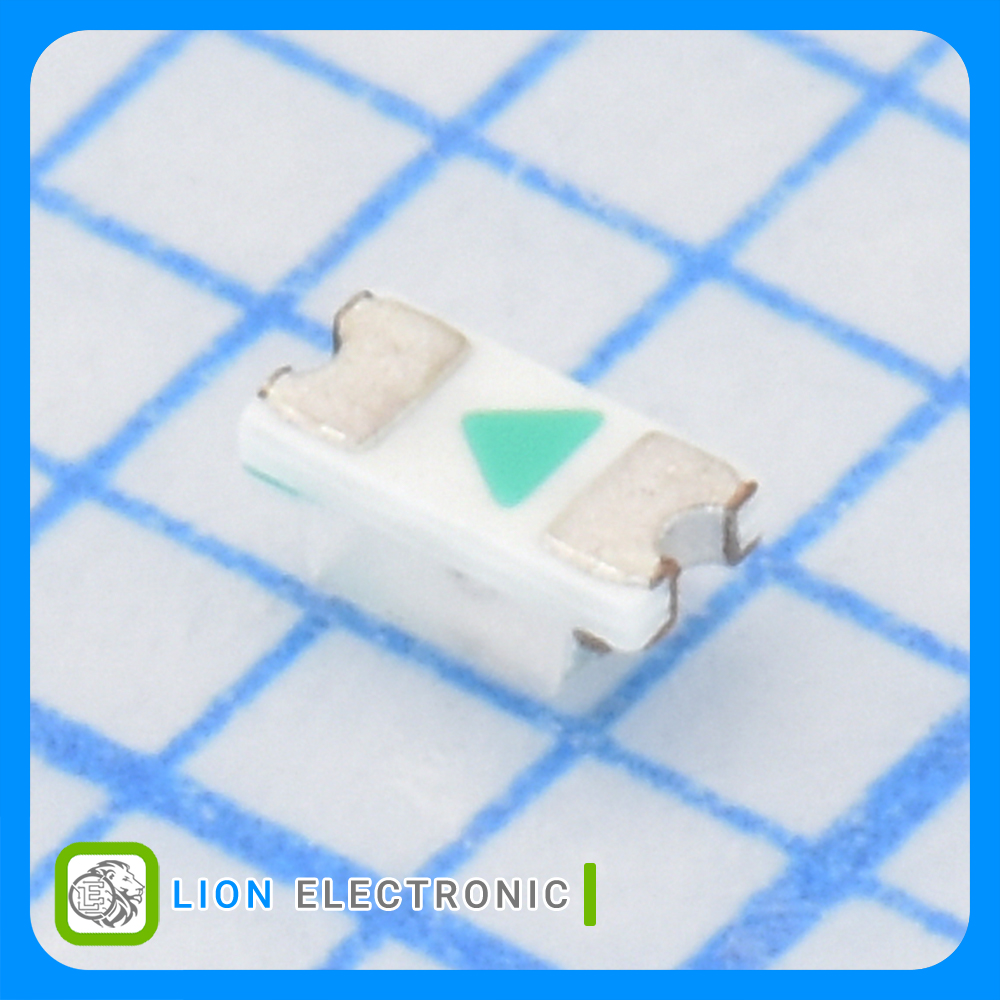

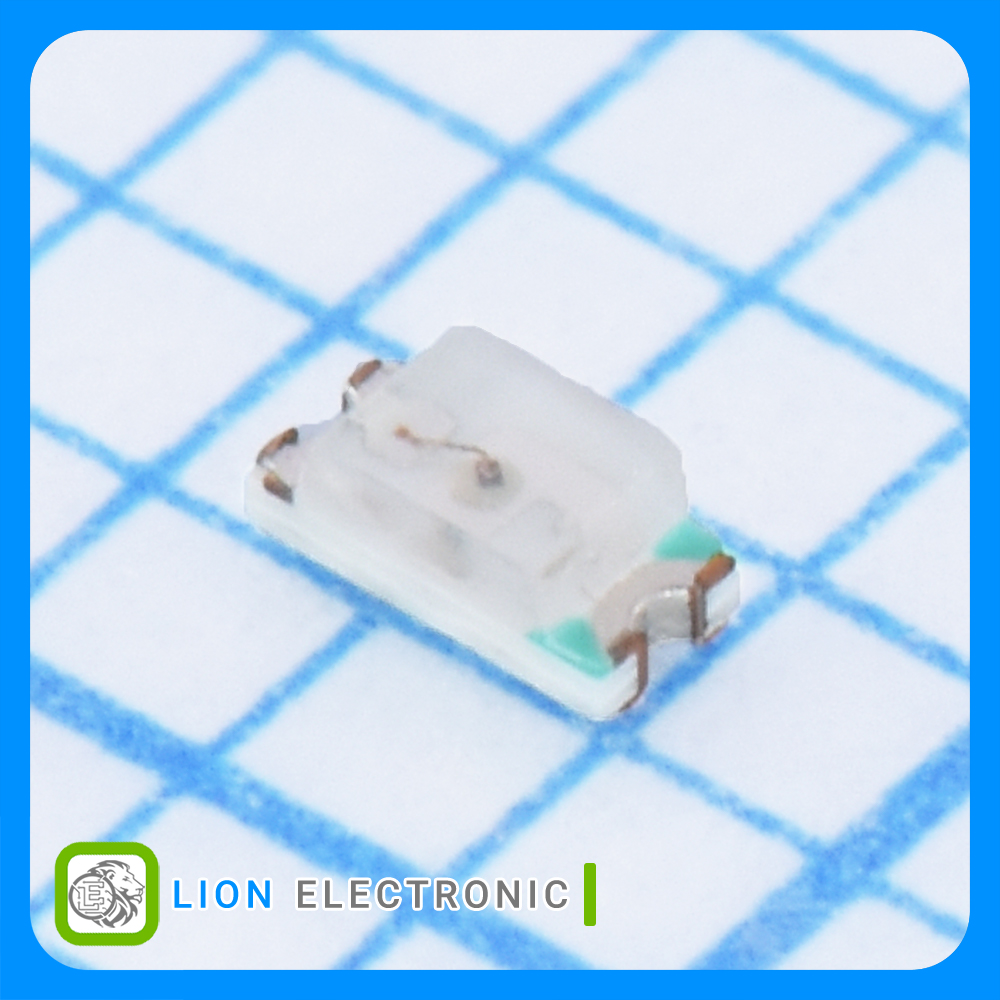

LED Red 620-630nm, 25mA, 60mW with 0603 Package
Specifications
- Illumination Color: Red
- Vf - Forward Voltage: 1.8-2.1V
- If - Forward Current: 25mA
- Power Rating: 60mW
- Wavelength/Color Temperature: 620-630nm
- Luminous Intensity: 38-75mcd
- Package/Case: 0603(1608 metric)
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -30C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات الایدی قرمز XL-1608SURC-06

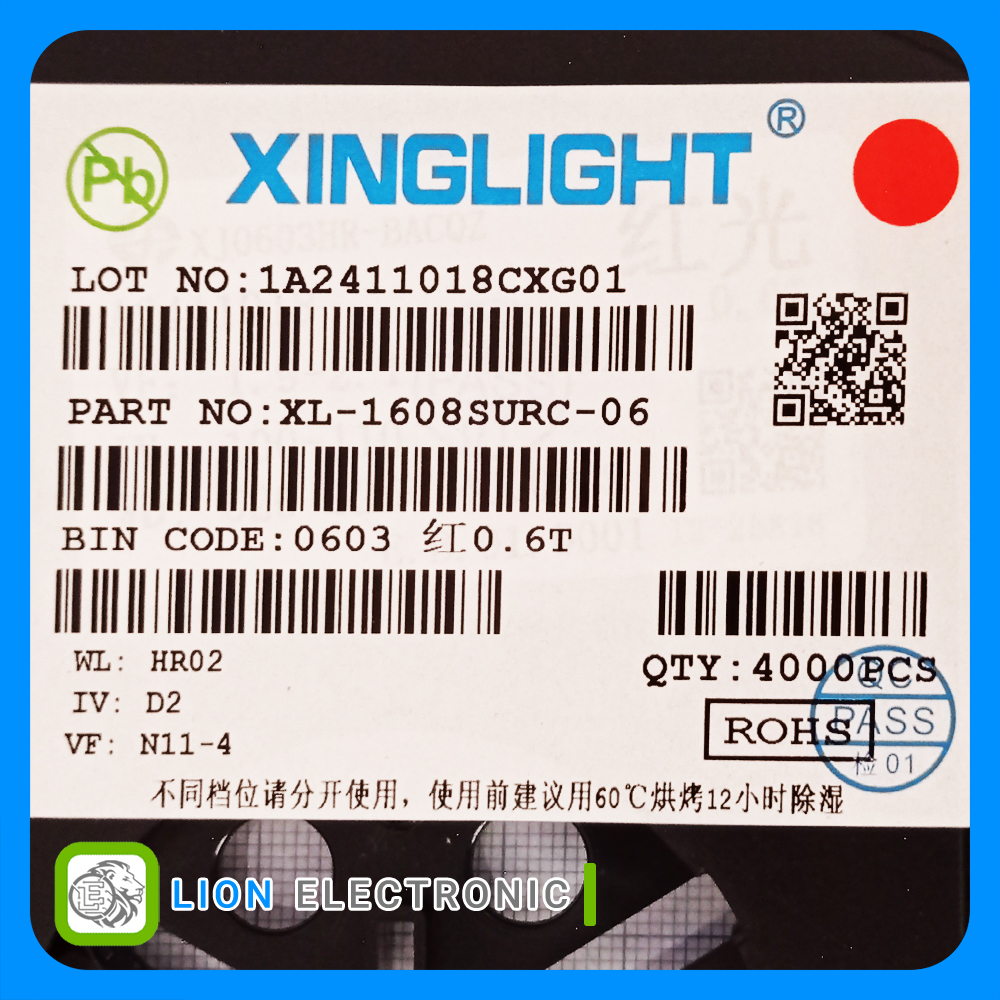

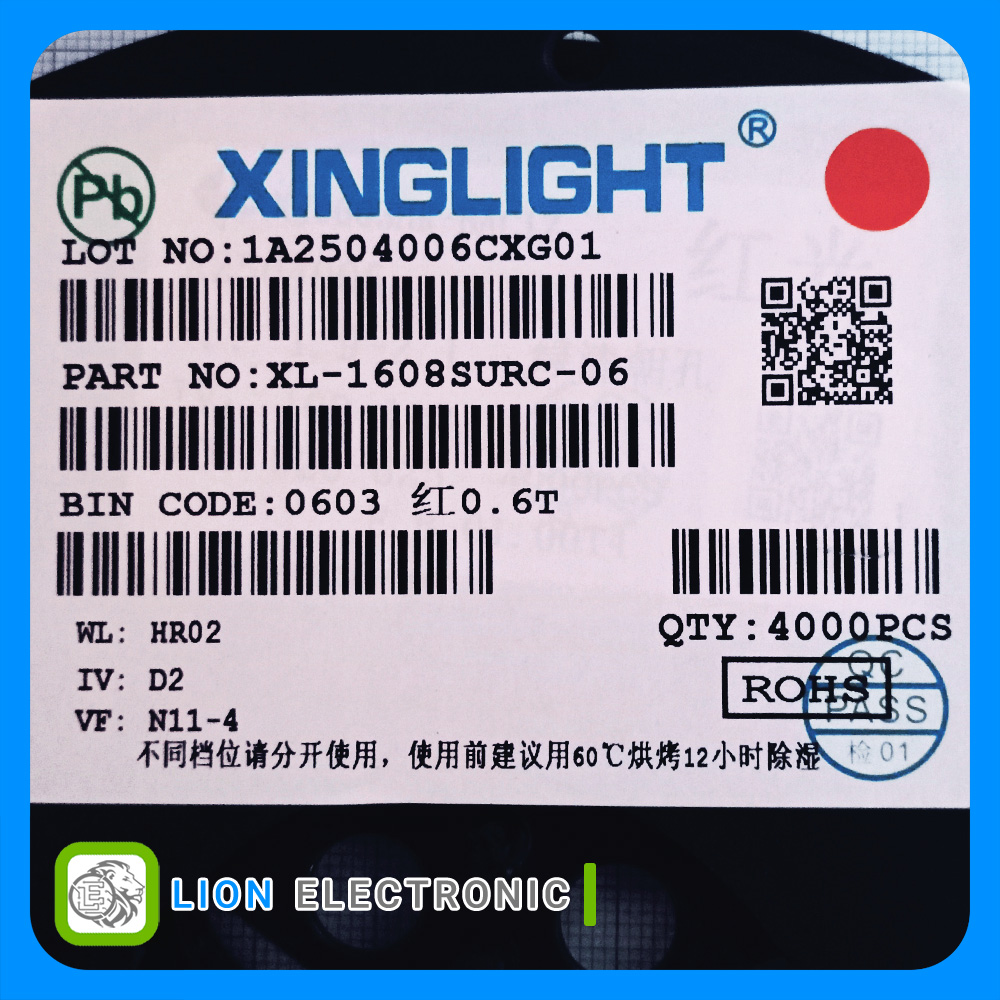

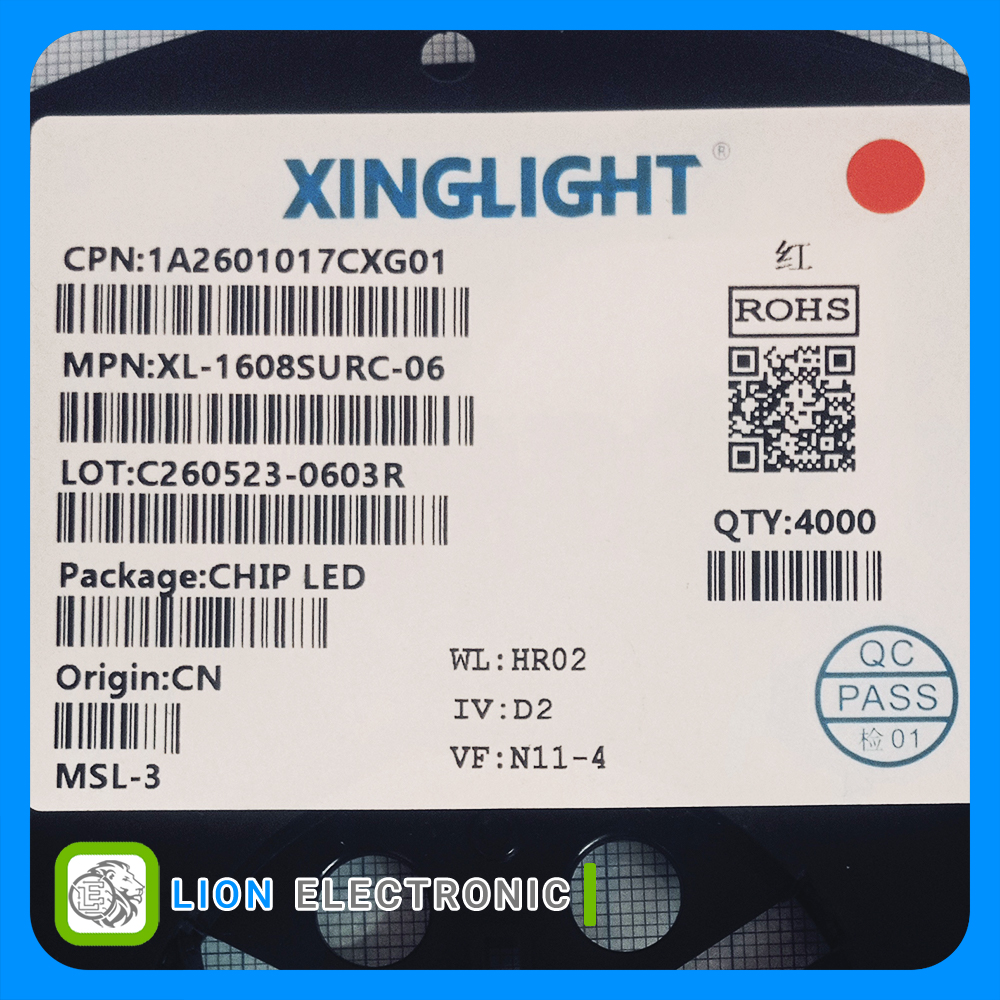

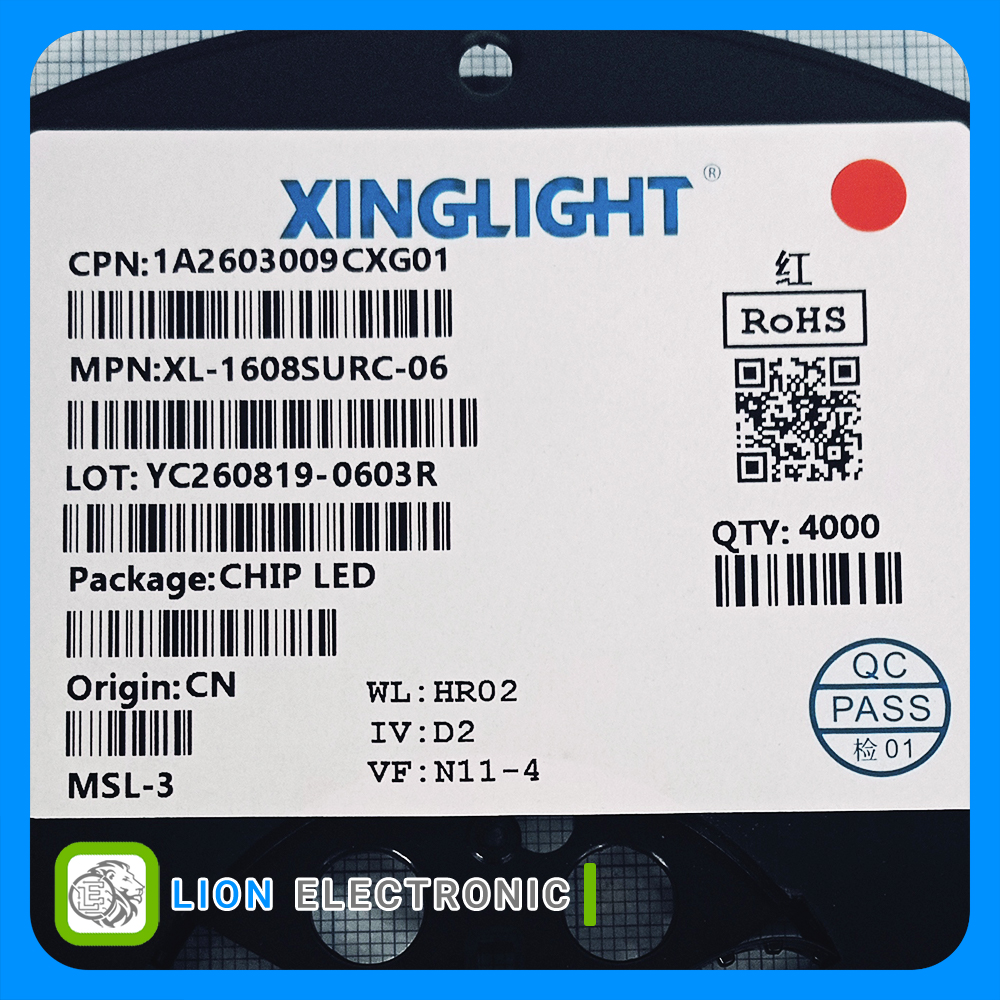

الایدی قرمز XL-1608SURC-06
Part Number
120°
Viewing Angle
60mW
Power Rating
Reel
Packaging
38-75mcd
Luminous Intensity
SMD/SMT
Mounting Style
Red
Illumination Color
-30C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
25mA
If - Forward Current
620-630nm
Wavelength-Color Temperature
0603(1608 metric)
Package-Case
1.8-2.1V
Vf - Forward Voltage
