XINGLIGHT
معرفی
ال ای دی آبی 455-475nm با جریان 25 میلیآمپر و توان 75 میلیوات با پکیج 1206
LED Blue 455-475nm, 25mA, 75mW with 1206 Package
Specifications
- Illumination Color: Blue
- Vf - Forward Voltage: 2.6-3.2V
- If - Forward Current: 25mA
- Power Rating: 75mW
- Wavelength/Color Temperature: 455-475nm
- Luminous Intensity: 42-86mcd
- Package/Case: 1206 (3216 metric)
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -30C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات الایدی آبی XL-3216UBC

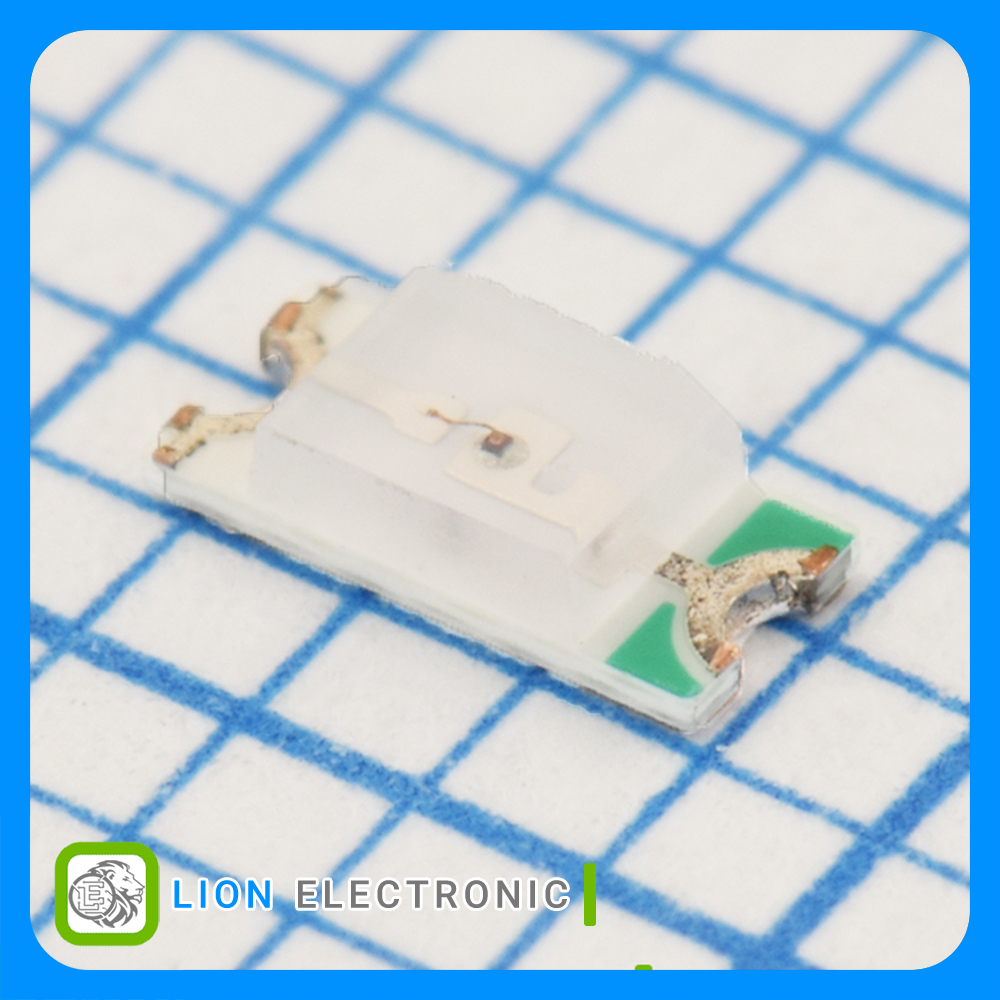

الایدی آبی XL-3216UBC
Part Number
Blue
Illumination Color
120°
Viewing Angle
Reel
Packaging
75mW
Power Rating
-30C
Minimum Operating Temperature
42-86mcd
Luminous Intensity
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
25mA
If - Forward Current
455-475nm
Wavelength-Color Temperature
1206 (3216 metric)
Package-Case
2.6-3.2V
Vf - Forward Voltage
