LED1206 588-590NM 1.9-2.1V 130-150MCD YELLOW
Changfang
معرفی
ال ای دی زرد LED1206 588-590nm با ولتاژ 1.9 تا 2.1 ولت 20 میلیآمپر 130 تا 150 میلیکاندلا با پکیج 1206

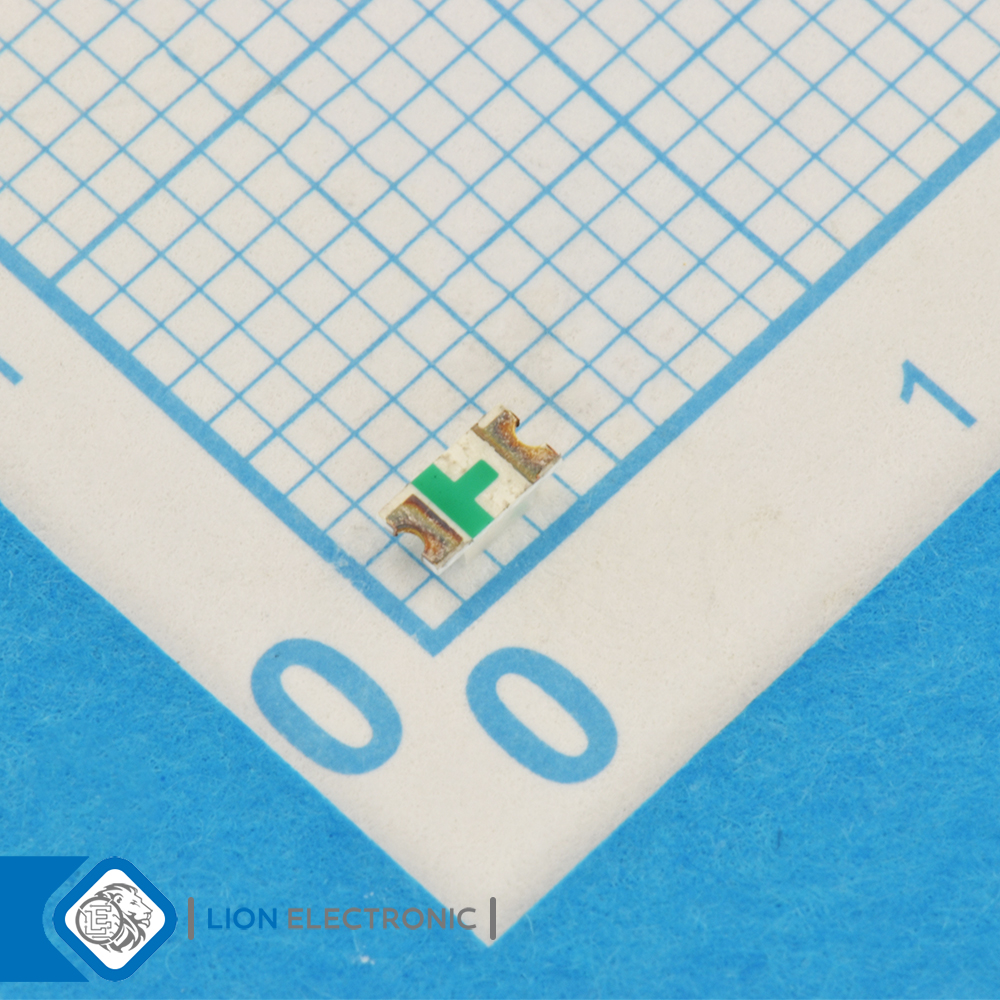

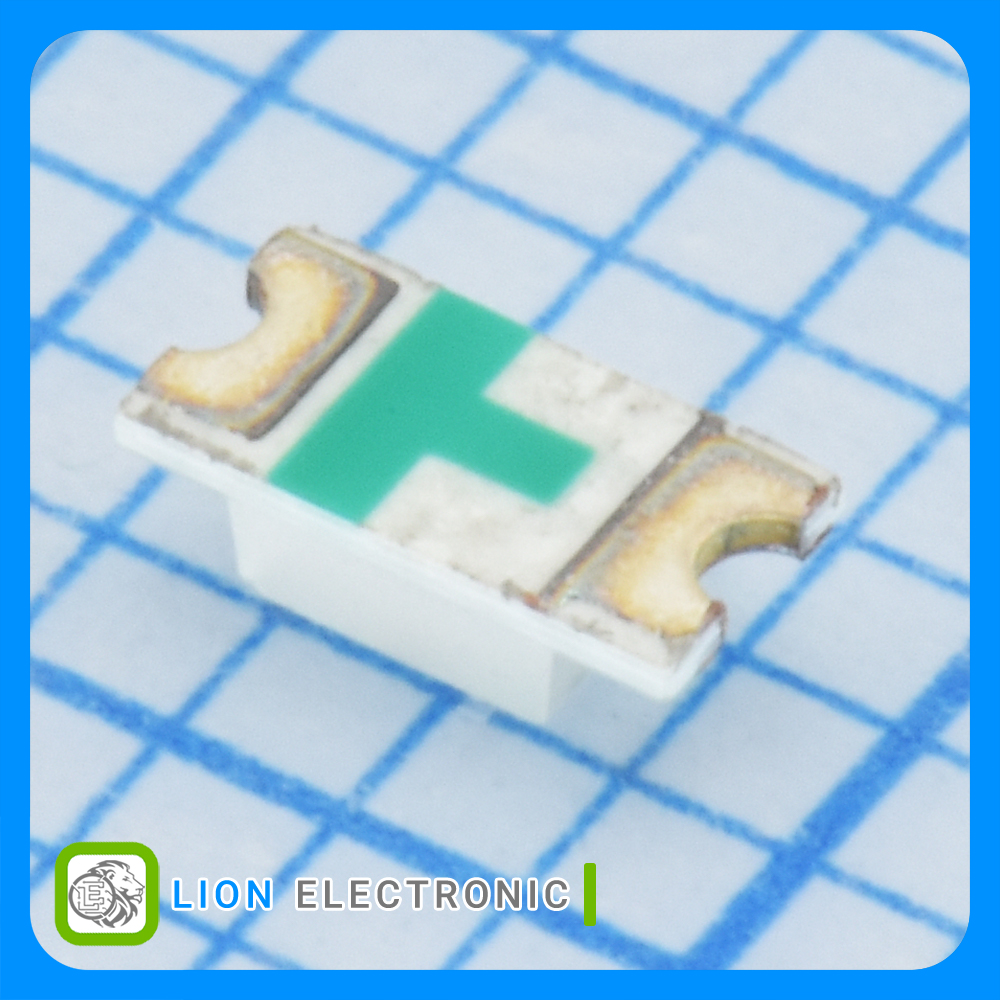

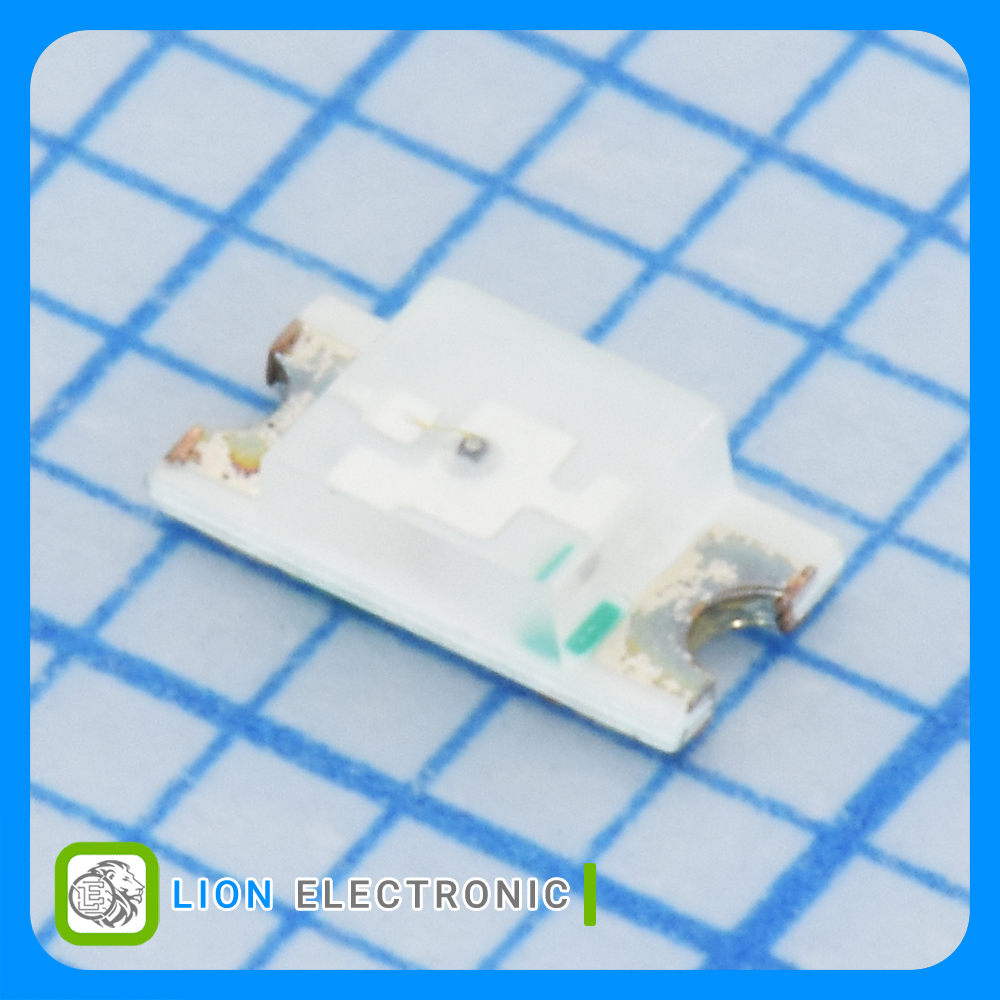

LED Yellow LED1206 588-590nm, 1.9-2.1V, 20mA, 130-150mcd, with 1206 Package
Specifications
- Illumination Color: Yellow
- Vf - Forward Voltage: 2V
- If - Forward Current: 20mA
- Power Rating: 60mW
- Wavelength/Color Temperature: 588-590nm
- Luminous Intensity: 130-150mcd
- Package/Case: 1206 (3216 metric)
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ال ای دی زرد LED1206 588-590NM 1.9-2.1V 130-150MCD YELLOW
ال ای دی زرد LED1206 588-590NM 1.9-2.1V 130-150MCD YELLOW
Part Number
120°
Viewing Angle
60mW
Power Rating
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
20mA
If - Forward Current
Yellow
Illumination Color
130-150mcd
Luminous Intensity
588-590nm
Wavelength-Color Temperature
1206 (3216 metric)
Package-Case
2V
Vf - Forward Voltage
