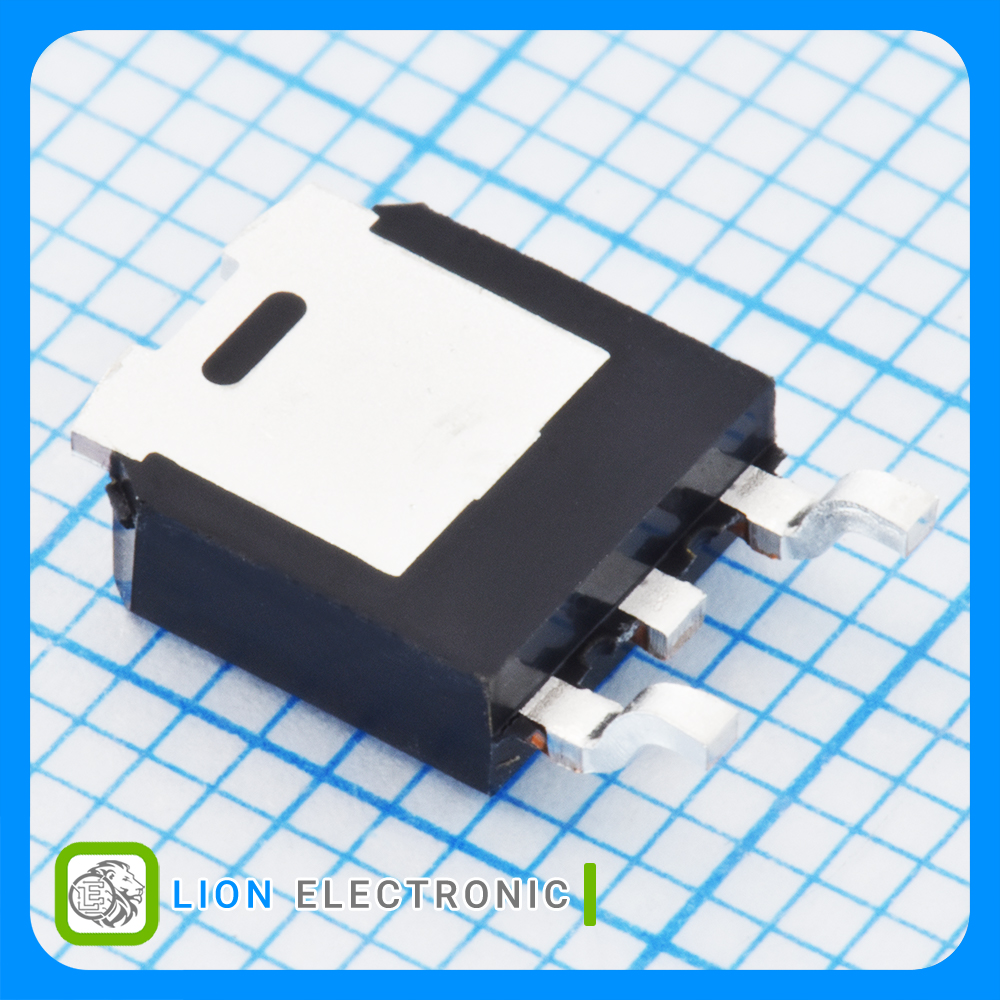

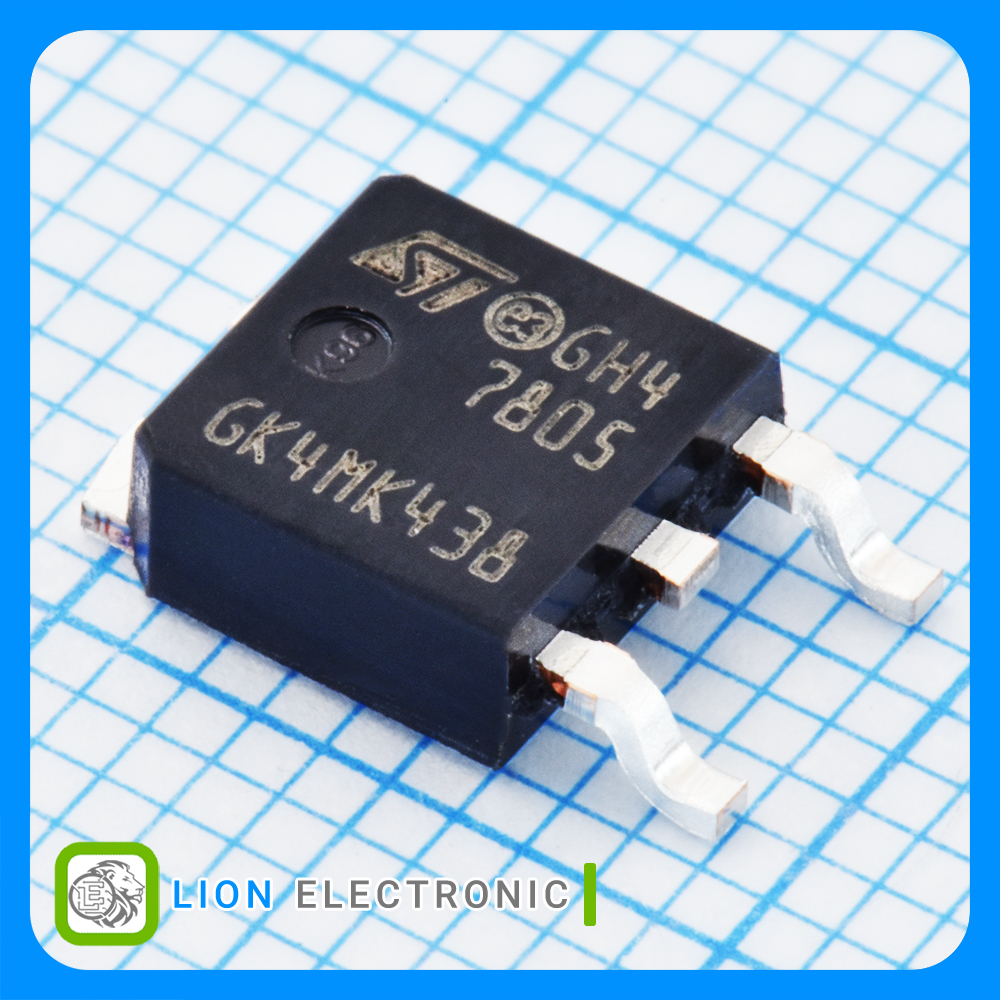

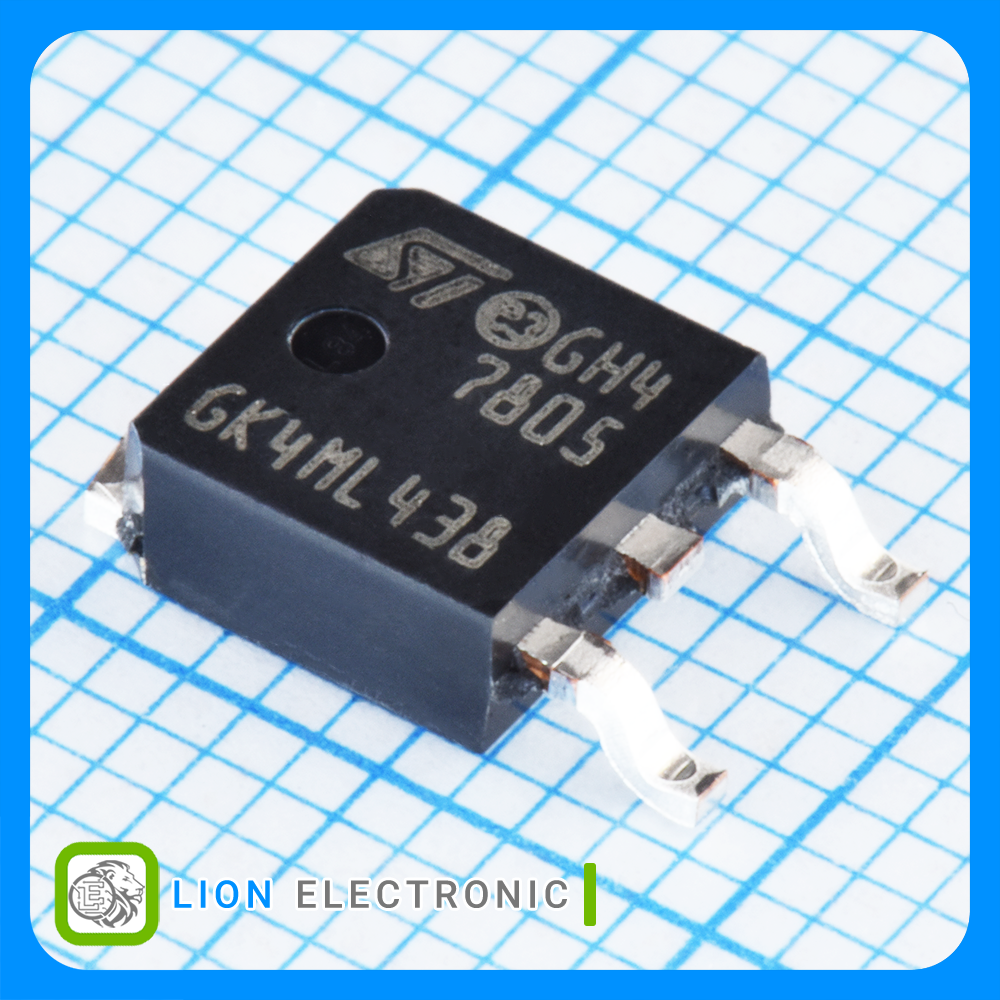

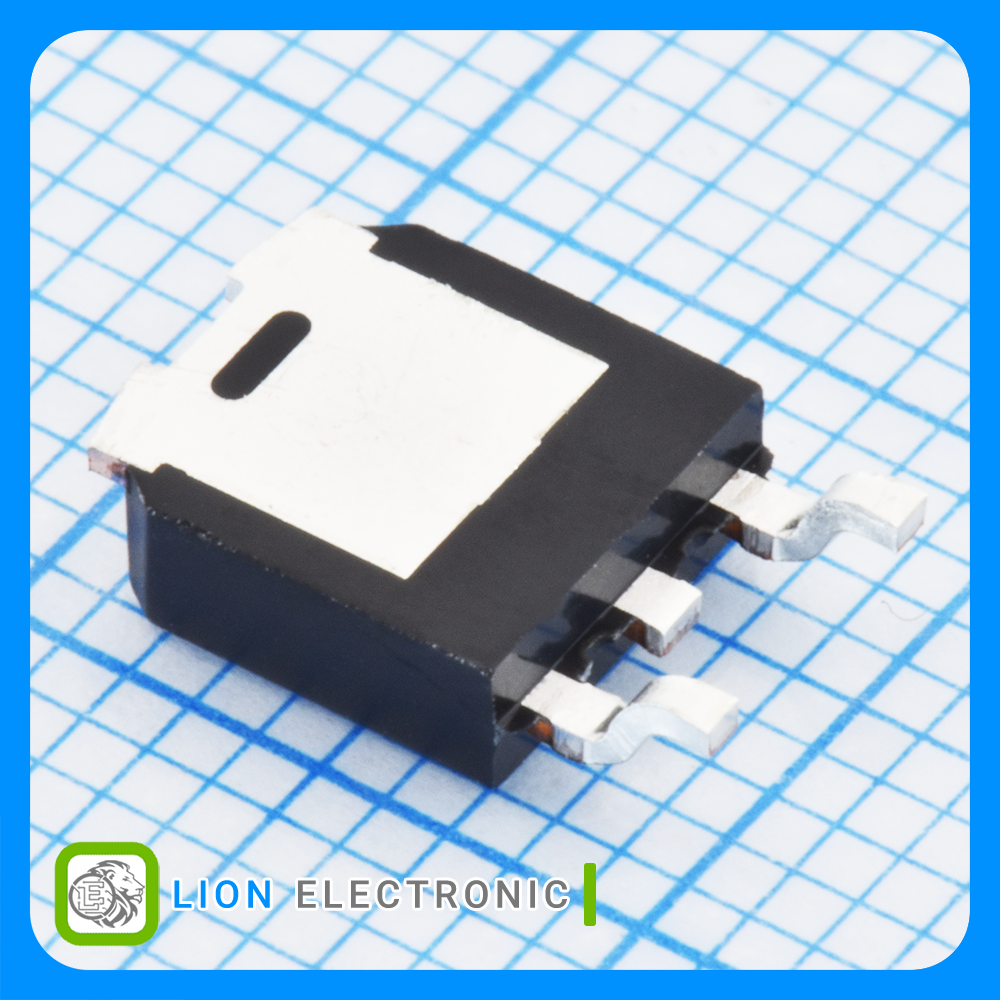

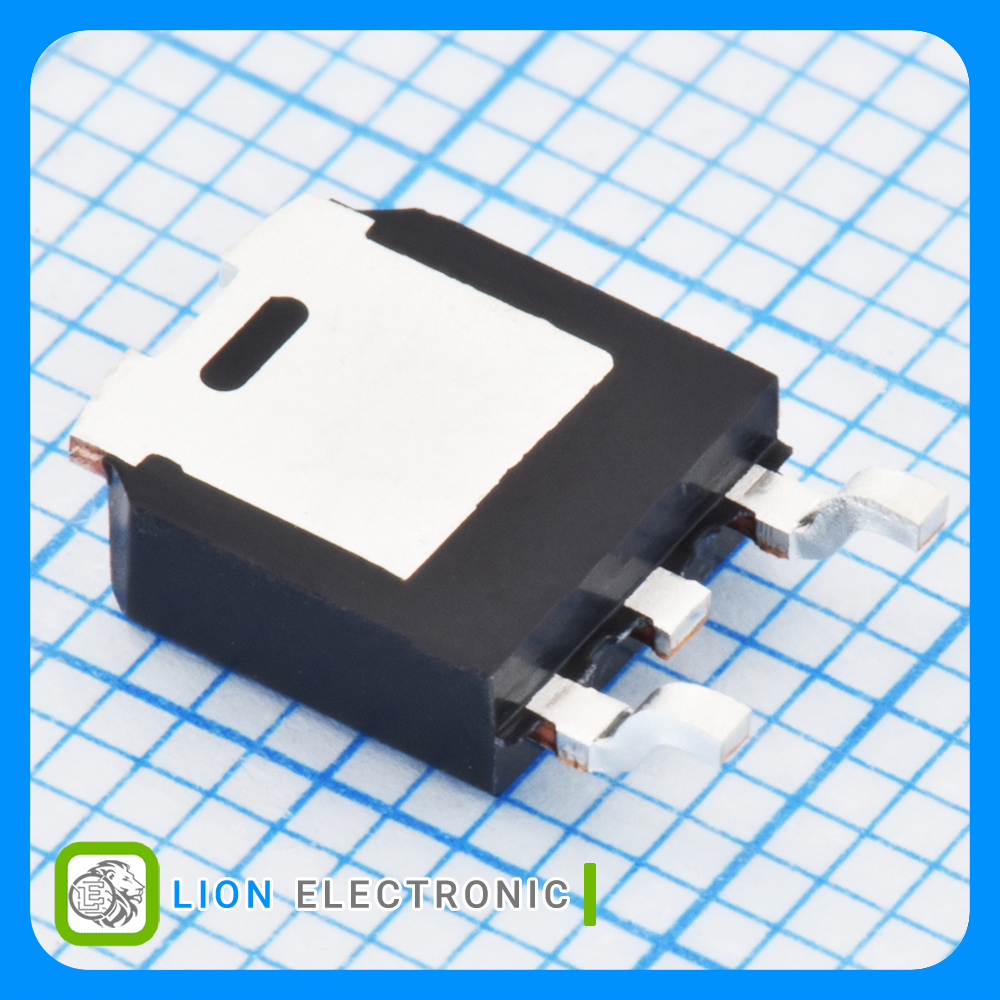

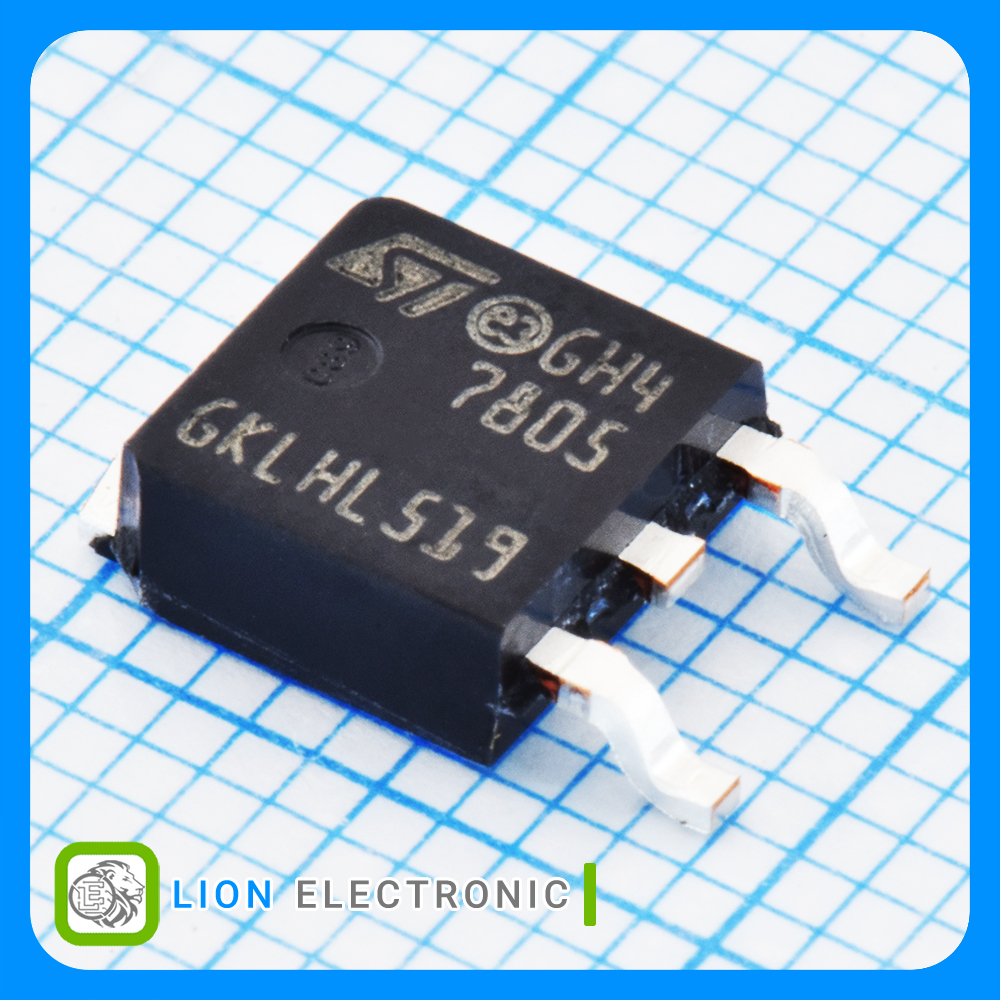

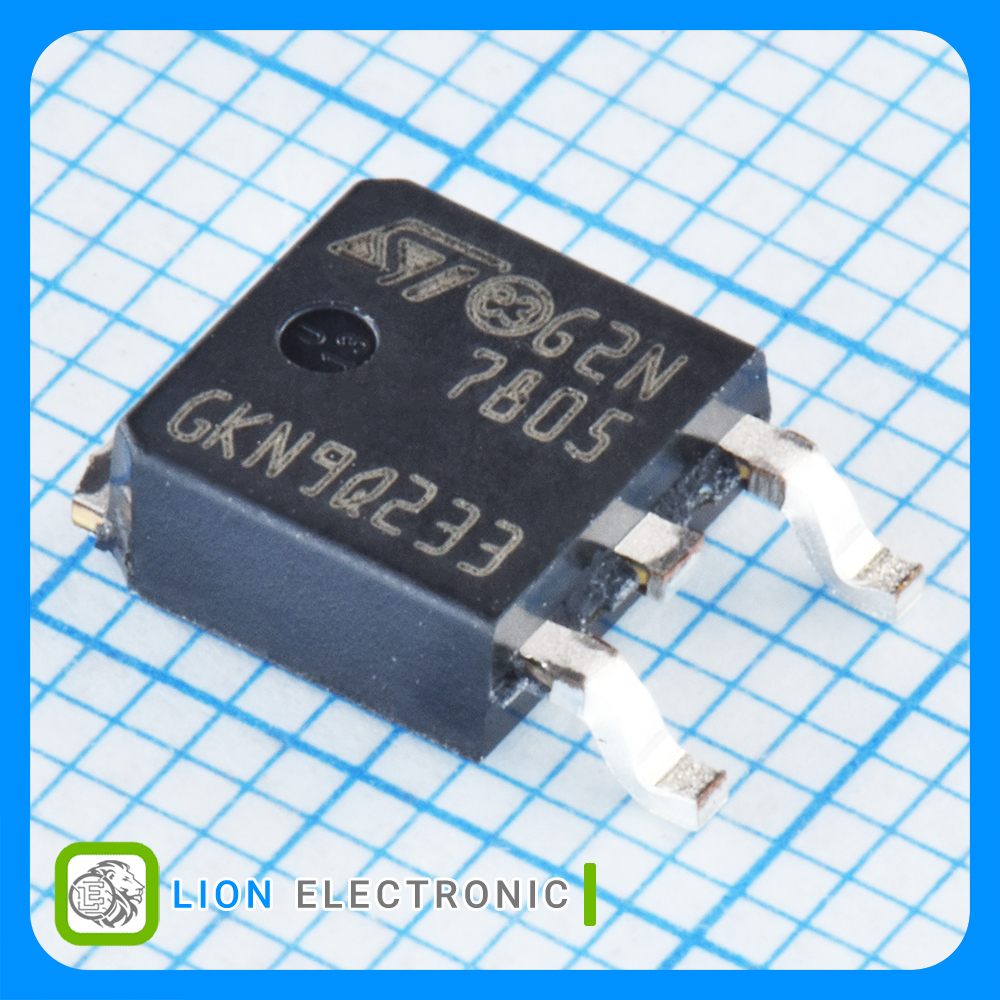

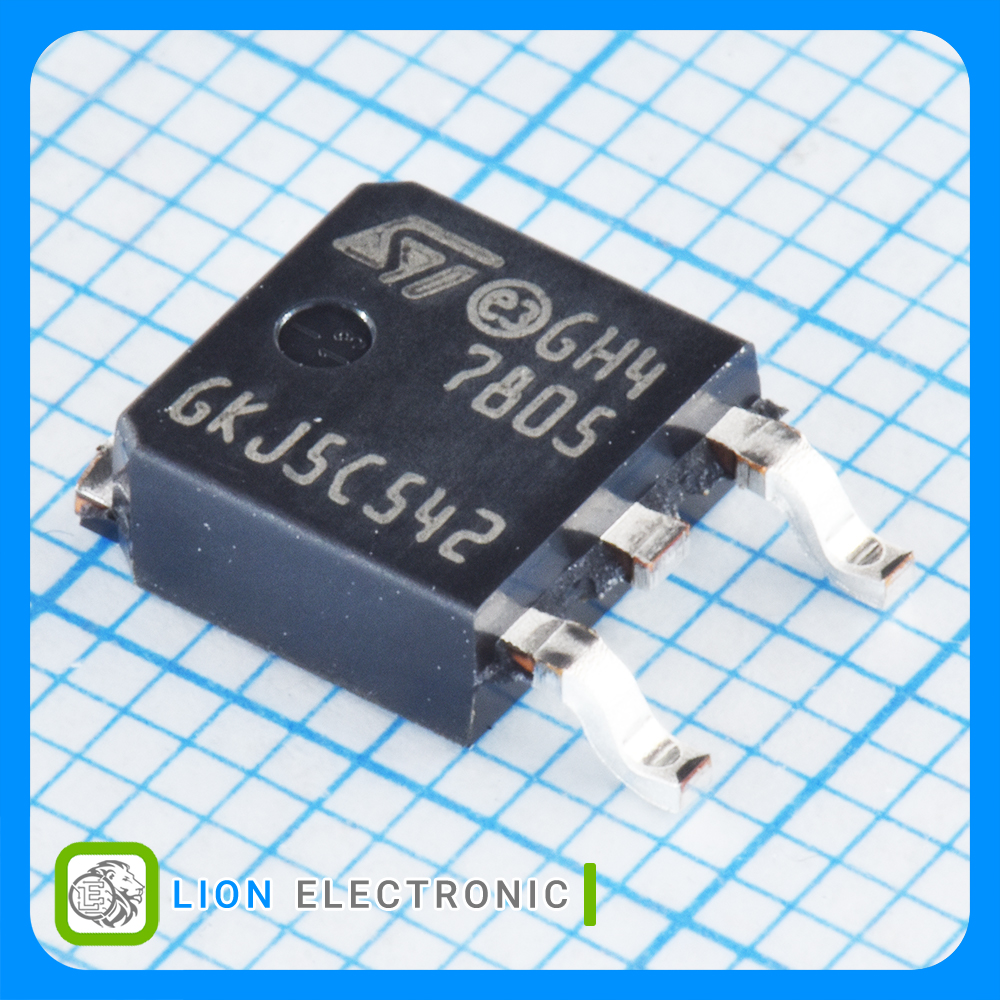

L7805CDT-TR
L7805CDT-TR
Part Number
2266
Lion Part
Datasheet
STMicroelectronics Manufacture
رگولاتور خطی مثبت ثابت 5 ولت 1.5 آمپر با پکیج TO-252-3 (DPAK)
Fixed Linear Voltage Regulator 5V, 1.5A with TO-252-3 (DPAK) Package
معرفی
رگولاتور خطی مثبت ثابت 5 ولت 1.5 آمپر با پکیج TO-252-3 (DPAK)
Fixed Linear Voltage Regulator 5V, 1.5A with TO-252-3 (DPAK) Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Number of Outputs: 1
- Output Voltage: 5V
- Output Current: 1.5A
- Input Voltage Min: 7V
- Input Voltage Max: 35V
- Load Regulation: 100mV
- Line Regulation: 100mV
- Quiescent Current: 4.3mA
- Mounting Style: SMD/SMT
- Package/Case: DPAK
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات L7805CDT-TR
L7805CDT-TR
Part Number
1
Number of Outputs
Reel
Packaging
Positive
Polarity
SMD/SMT
Mounting Style
100mV
Line Regulation
0C
Minimum Operating Temperature
Fixed
Output Type
100mV
Load Regulation
+125C
Maximum Operating Temperature
35V
Input Voltage Max
4.3mA
Quiescent Current
7V
Input Voltage Min
1.5A
Output Current
DPAK
Package-Case
5V
Output Voltage
