Nexperia
معرفی

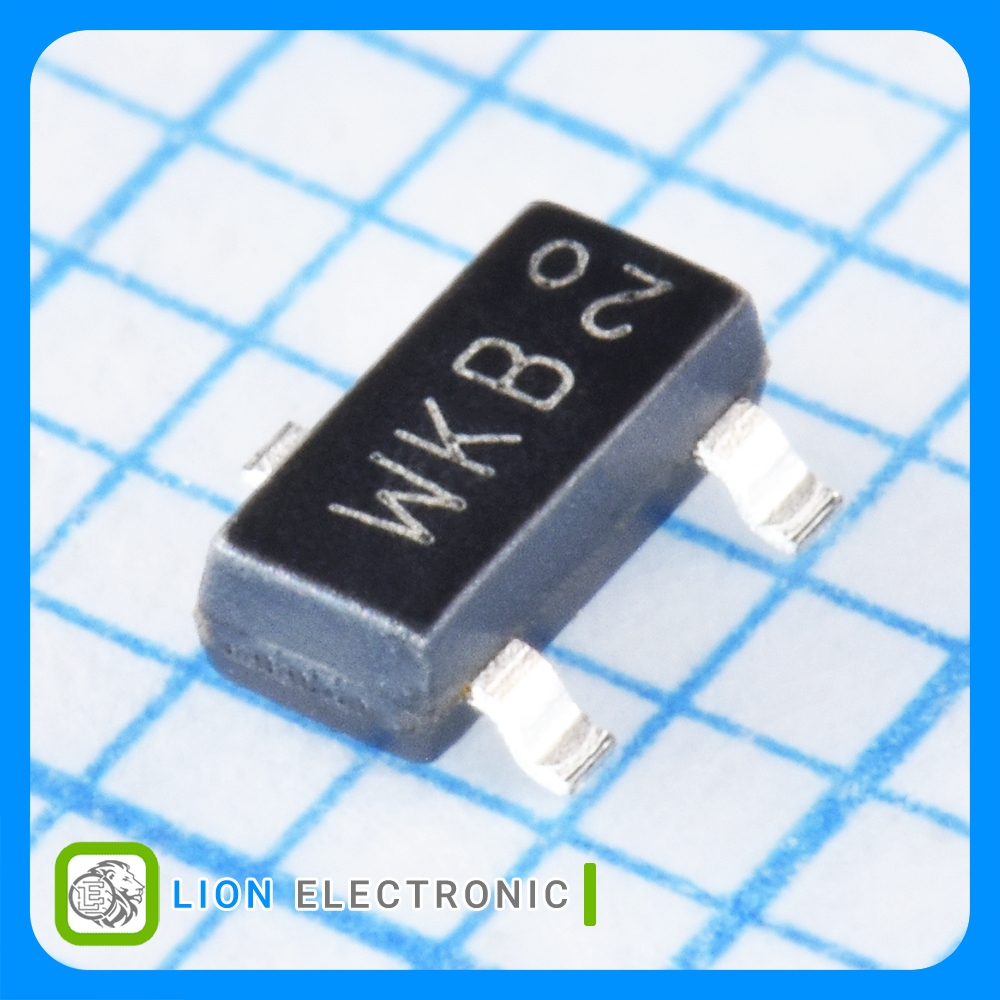

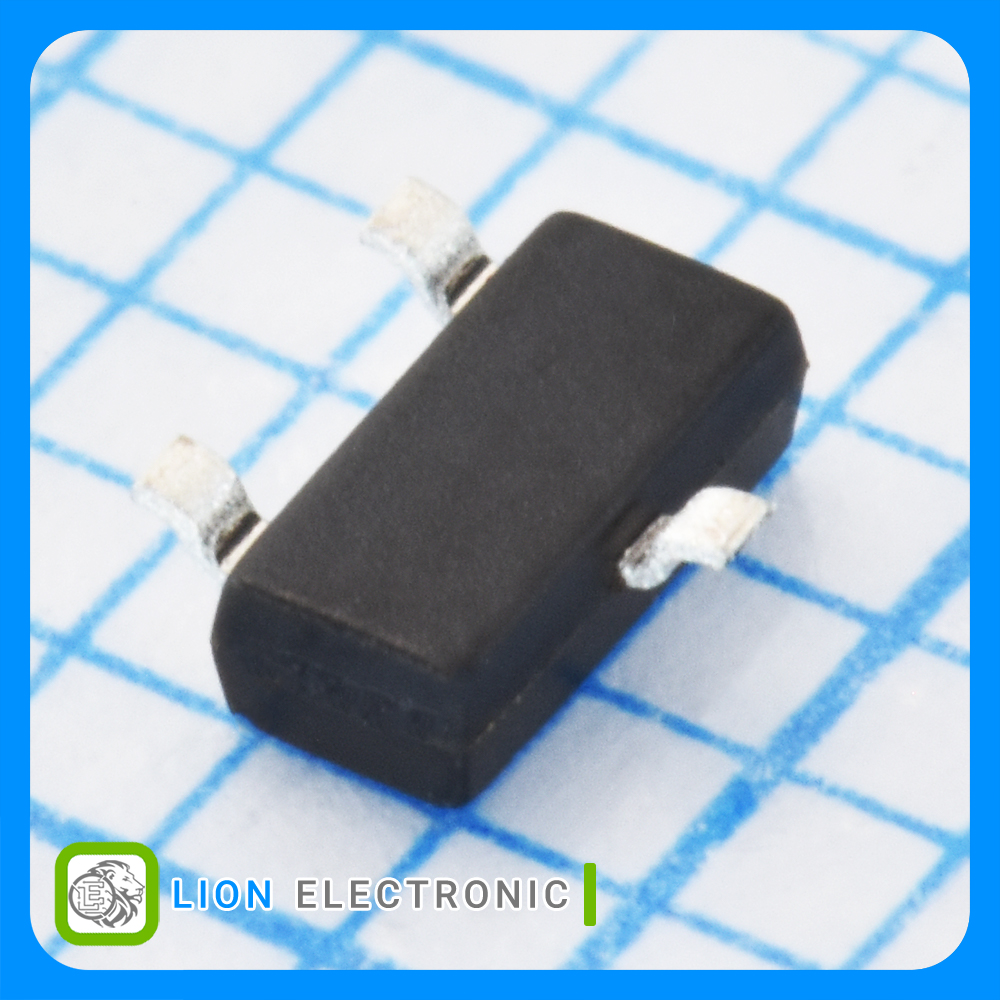

ماسفت 20 ولت 2 آمپر نوع P با پکیج SOT-23-3
P-CH MOSFET 20V, 2A with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: -20V
- Id - Continuous Drain Current: -2A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -450mV
- Vgs - Gate - Source Voltage: ±8V
- Rds On - Drain - Source Resistance: 120mΩ
- Pd - Power Dissipation: 6.25W
- Qg - Gate Charge: 3.7nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت BSH205G2
ماسفت BSH205G2
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
±8V
Vgs - Gate - Source Voltage
-20V
Vds - Drain - Source Breakdown Voltage
3.7nC
Qg - Gate Charge
-450mV
Vgs th - Gate - Source Threshold Voltage
+150C
Maximum Operating Temperature
-2A
Id - Continuous Drain Current
6.25W
Pd - Power Dissipation
120mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
