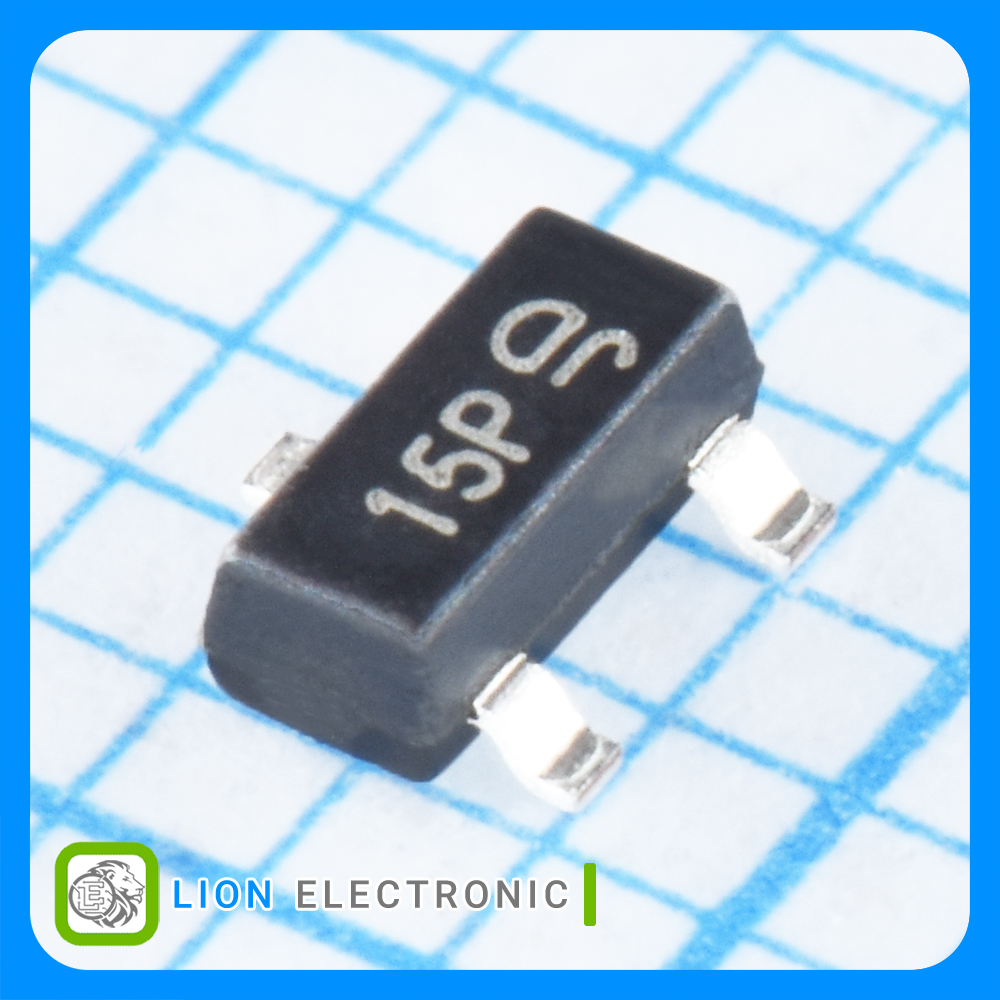

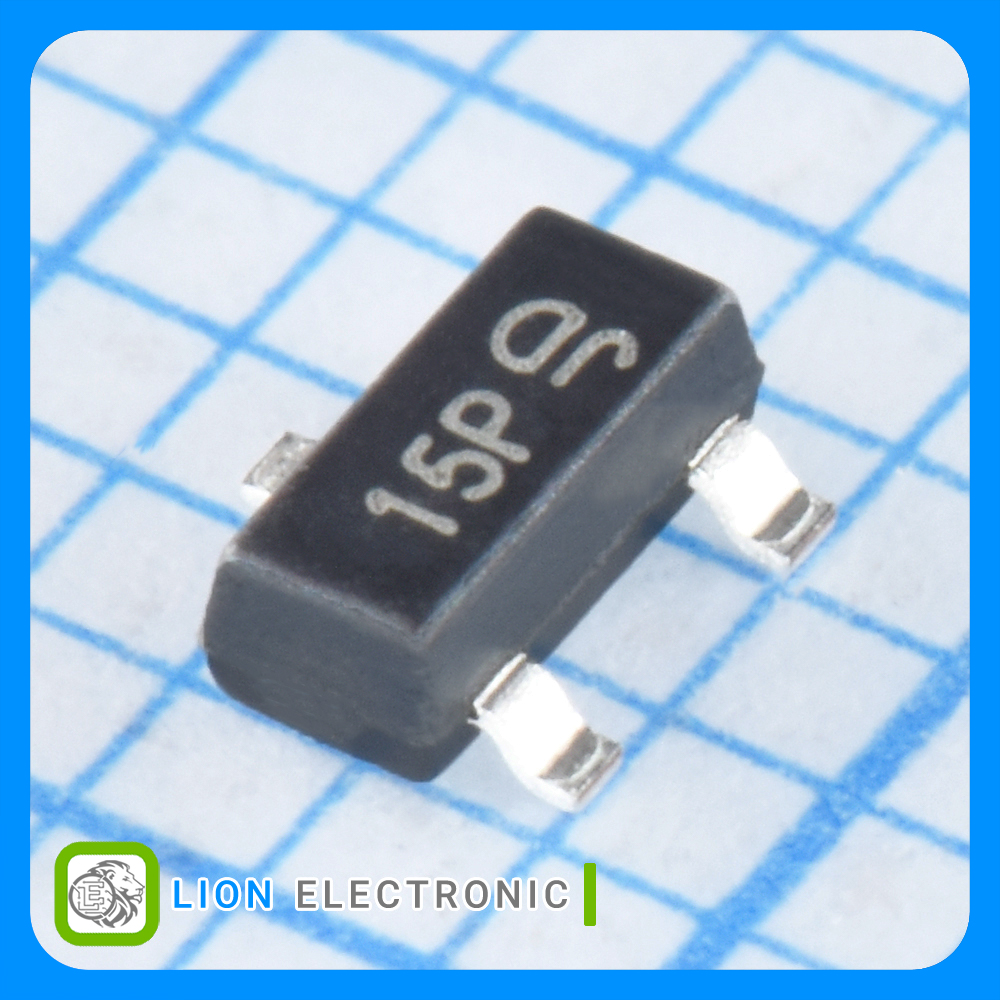

DMP1045U-7
DMP1045U-7
Part Number
228
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت 12 ولت 4.3 آمپر نوع P با پکیج SOT-23-3، جریان درین پیوسته 5.2 آمپر
P-CH MOSFET 12V, 4.3A with SOT-23-3 Package, Continuous Drain Current 5.2A
معرفی
ماسفت 12 ولت 4.3 آمپر نوع P با پکیج SOT-23-3، جریان درین پیوسته 5.2 آمپر
P-CH MOSFET 12V, 4.3A with SOT-23-3 Package, Continuous Drain Current 5.2A
Specifications

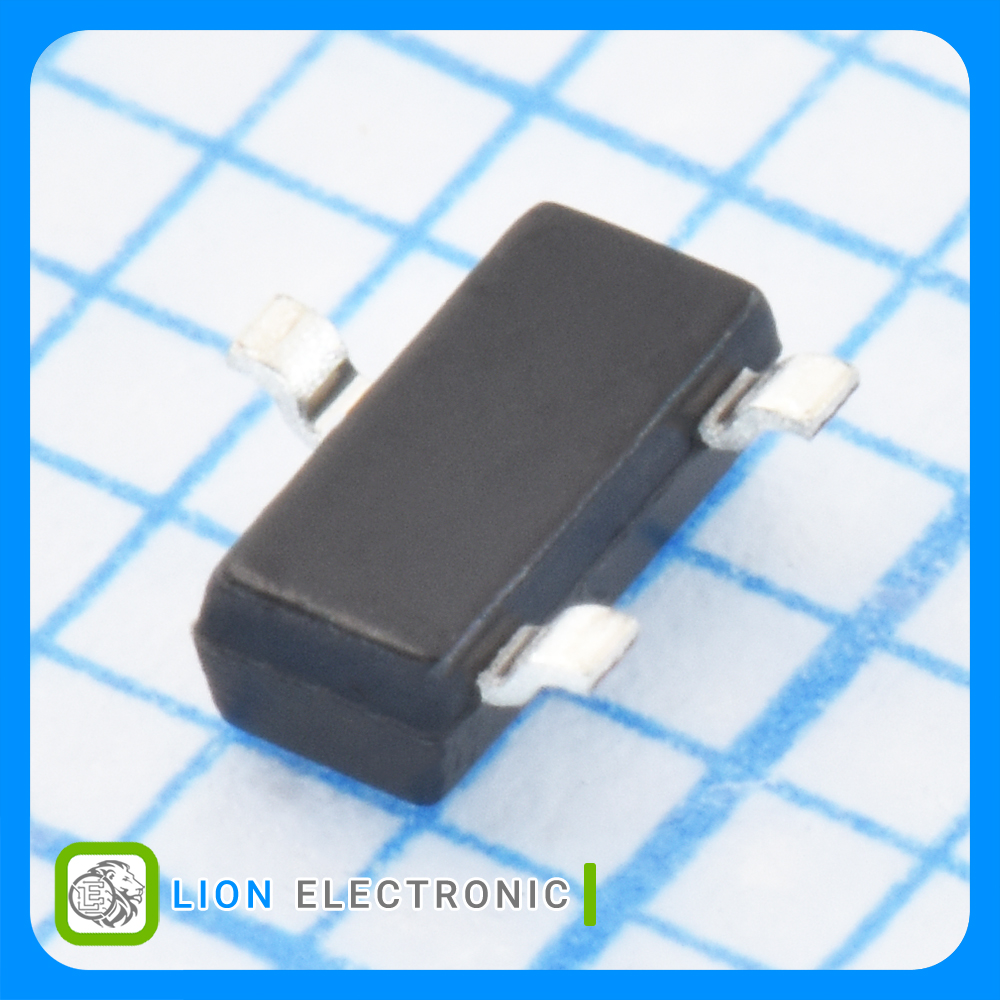

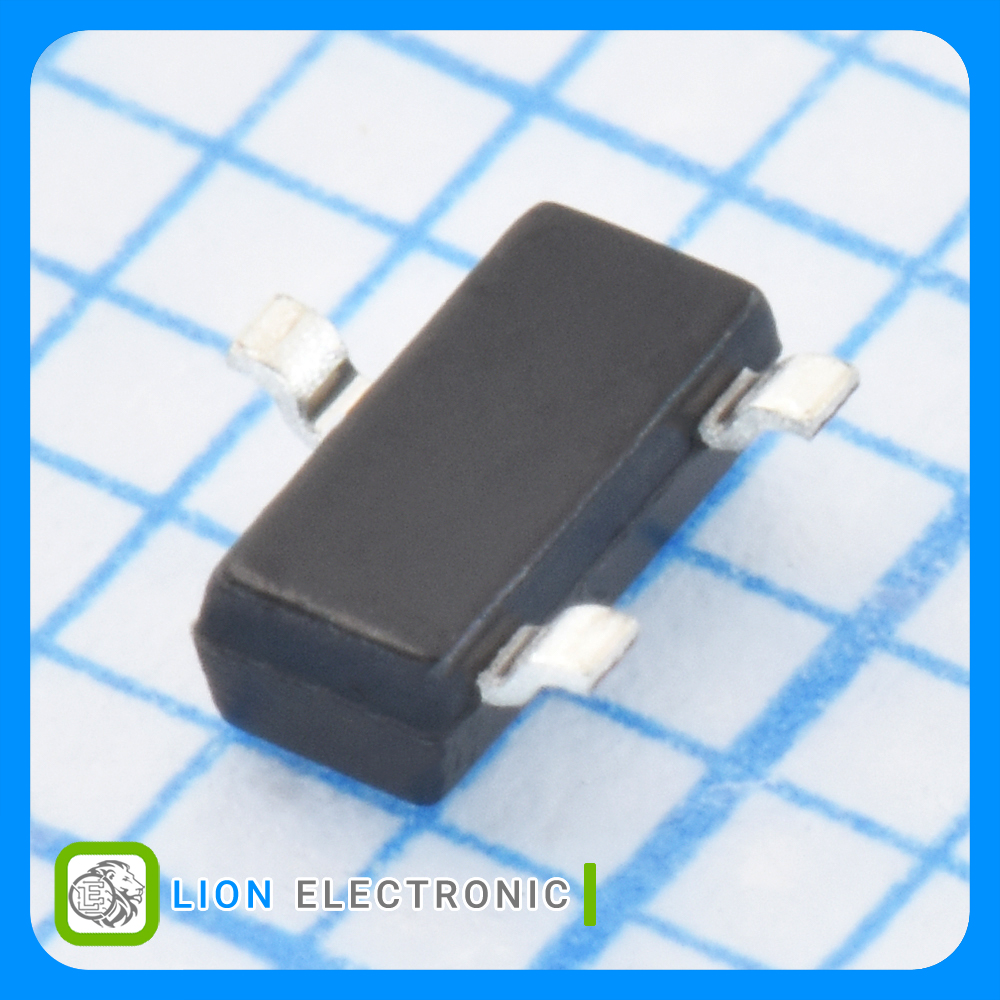

- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: -12V
- Id - Continuous Drain Current: -5.2A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -300mV
- Vgs - Gate - Source Voltage: ±8V
- Rds On - Drain - Source Resistance: 26mΩ
- Pd - Power Dissipation: 1.3W
- Qg - Gate Charge: 15.8nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C

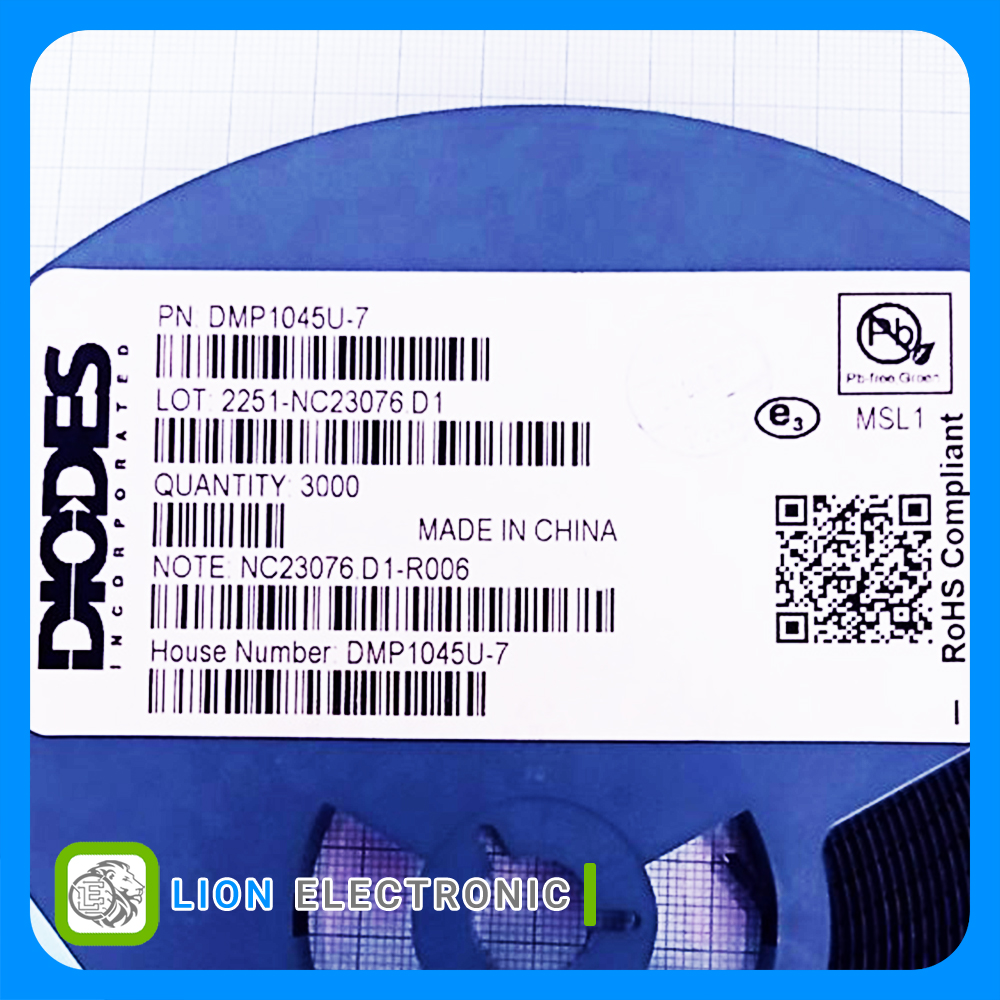

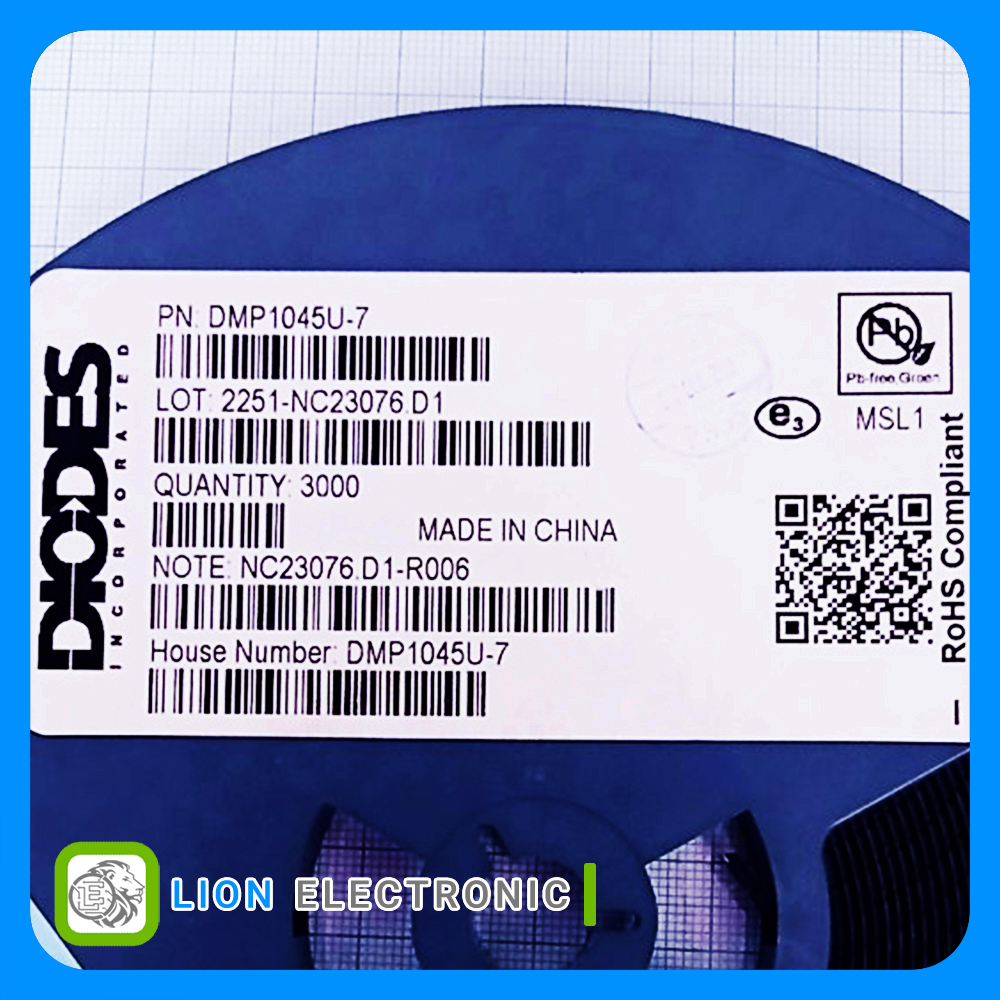

- Packaging: Reel
مشخصات ماسفت DMP1045U-7

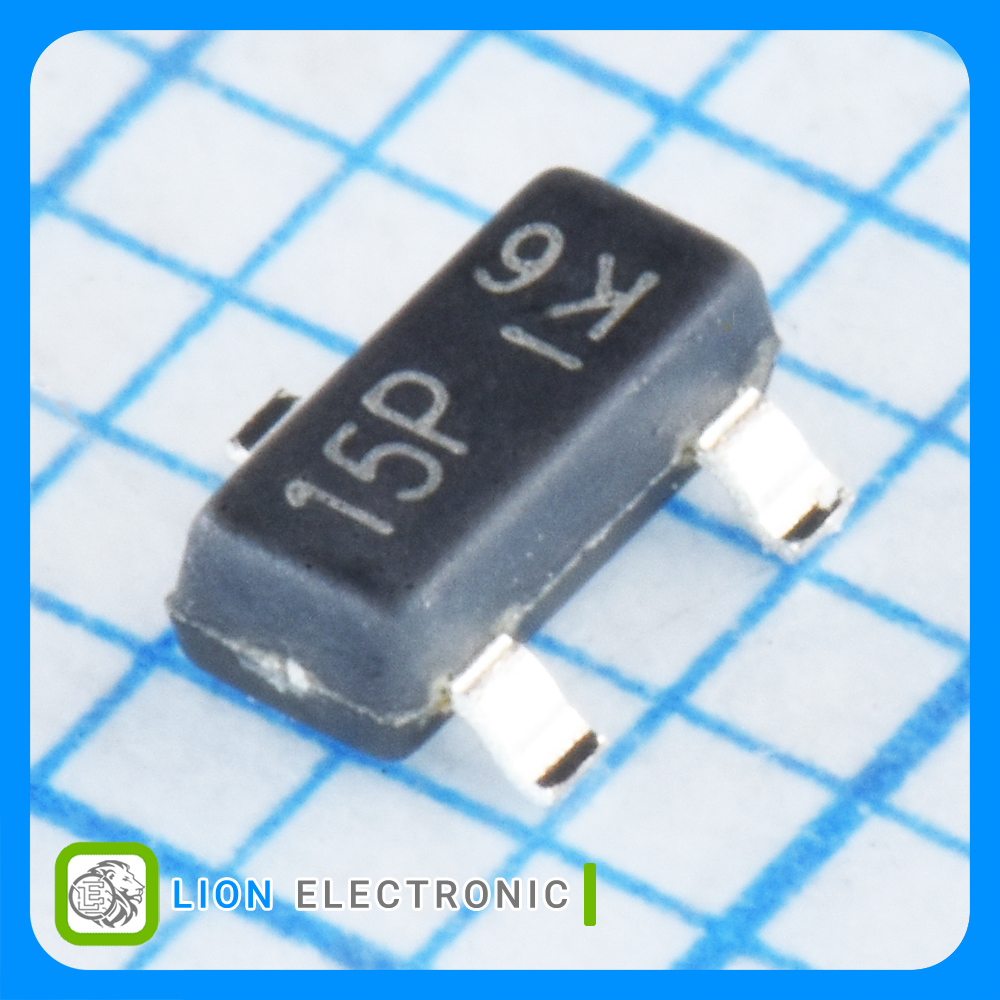

ماسفت DMP1045U-7
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
±8V
Vgs - Gate - Source Voltage
SMD/SMT
Mounting Style
-12V
Vds - Drain - Source Breakdown Voltage
-300mV
Vgs th - Gate - Source Threshold Voltage
23.3ns
Rise Time
+150C
Maximum Operating Temperature
-5.2A
Id - Continuous Drain Current
106.9ns
Fall Time
15.8nC
Qg - Gate Charge
1.3W
Pd - Power Dissipation
26mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
