DMP2100U-7
DMP2100U-7
Part Number
233
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت نوع P با پکیج SOT-23-3، ولتاژ شکست 20- ولت، جریان 4.3- آمپر، ولتاژ 20 ولت، جریان 5.5 آمپر

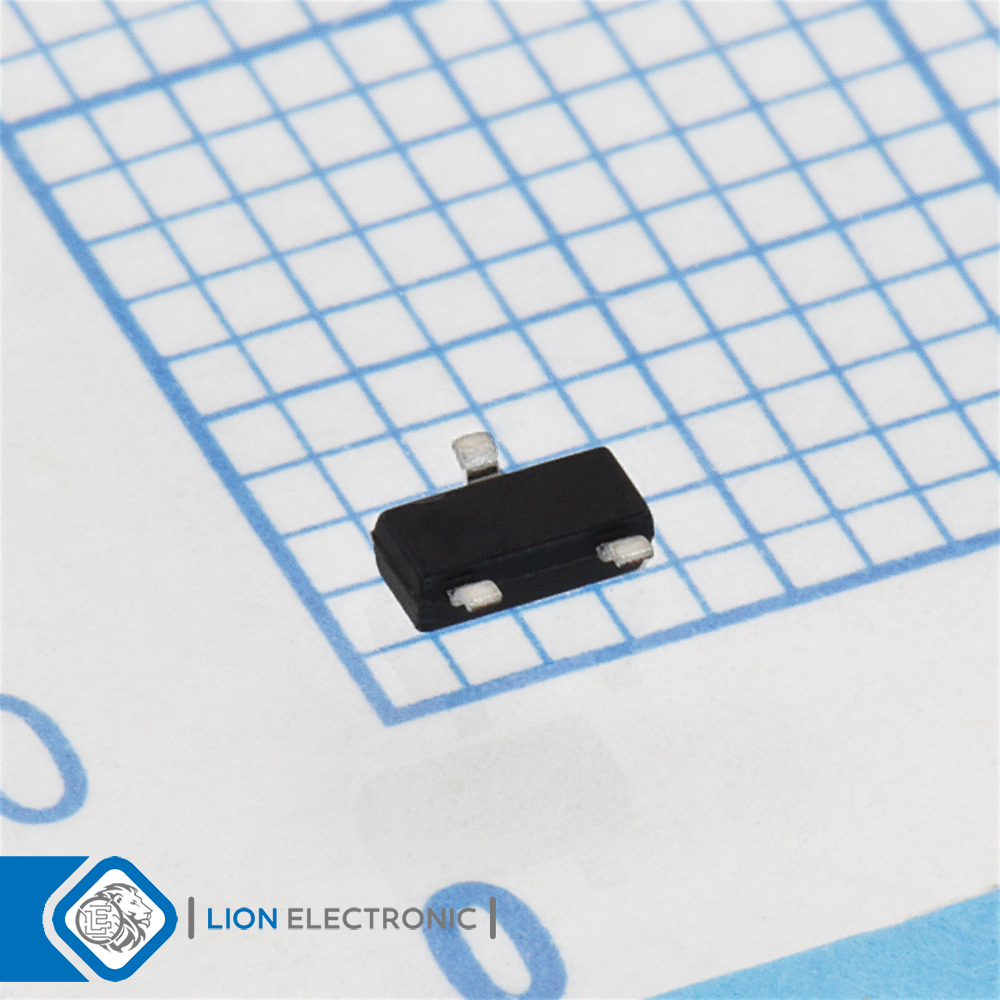

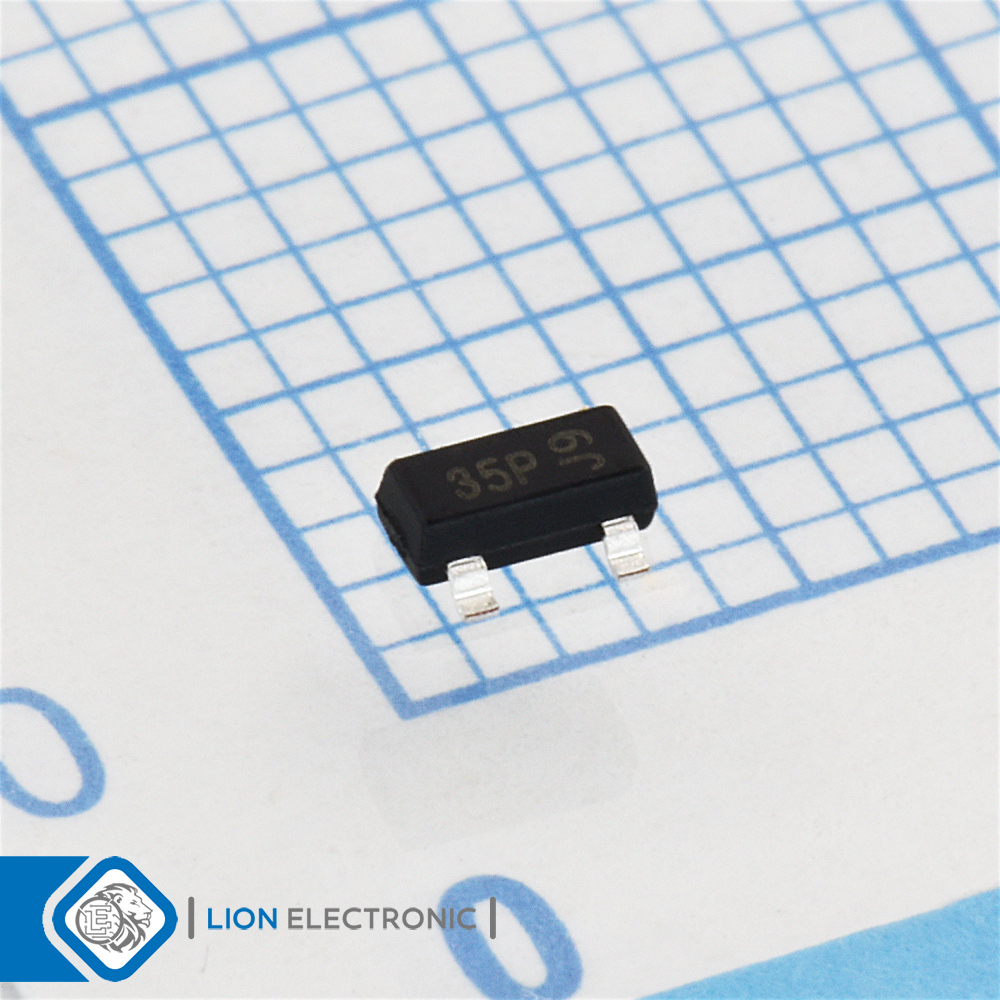

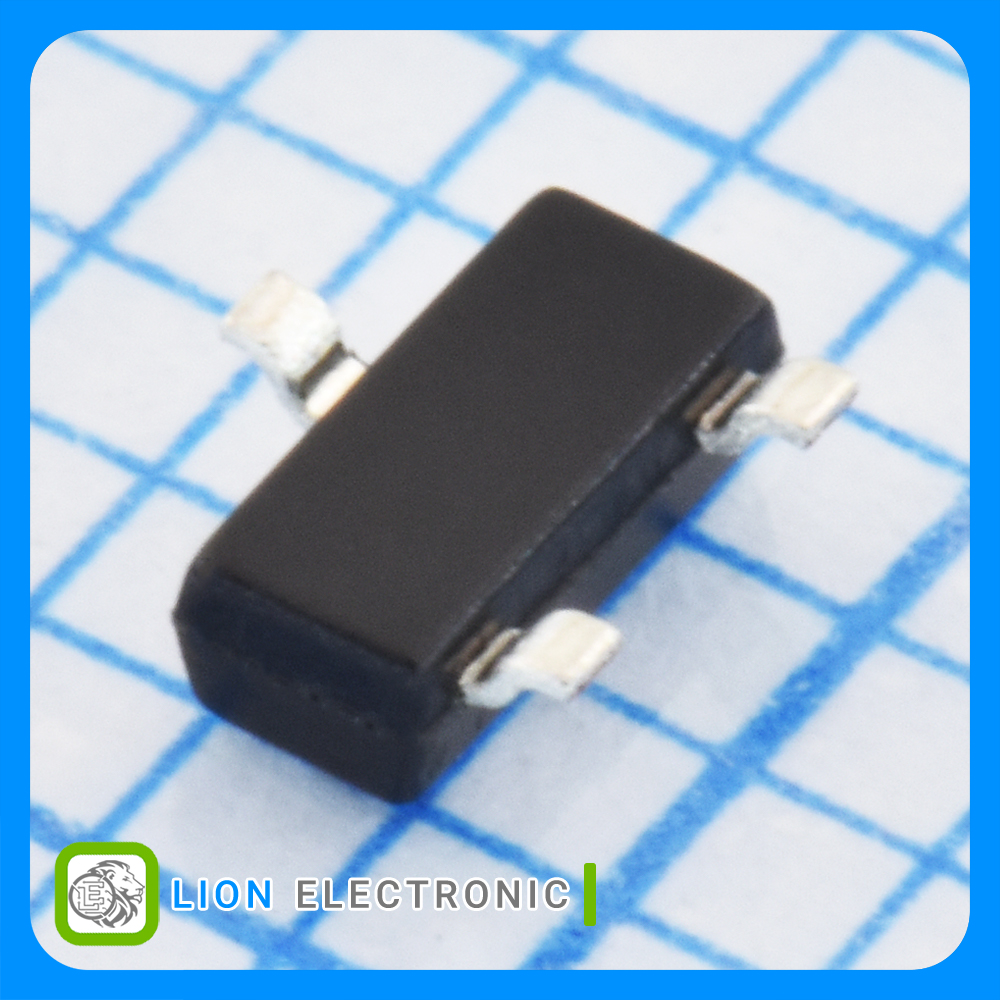

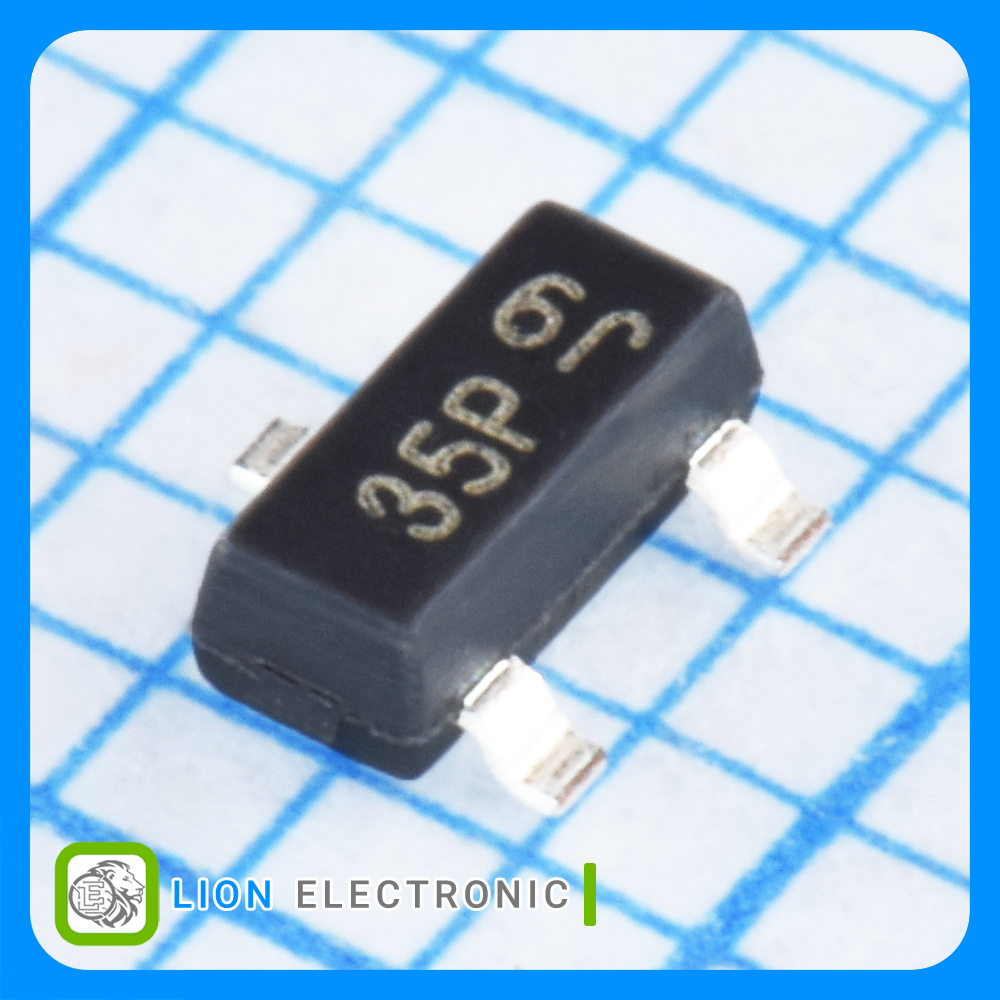

P-Channel MOSFET, -20V Breakdown, -4.3A with SOT-23-3 Package, 20V 5.5A
معرفی
ماسفت نوع P با پکیج SOT-23-3، ولتاژ شکست 20- ولت، جریان 4.3- آمپر، ولتاژ 20 ولت، جریان 5.5 آمپر
P-Channel MOSFET, -20V Breakdown, -4.3A with SOT-23-3 Package, 20V 5.5A
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: -20V
- Id - Continuous Drain Current: -4.3A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -300mV
- Vgs - Gate - Source Voltage: ±10V
- Rds On - Drain - Source Resistance: 38mΩ
- Pd - Power Dissipation: 800mW
- Qg - Gate Charge: 9.1nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +200C
- Packaging: Reel
مشخصات ماسفت DMP2100U-7
ماسفت DMP2100U-7
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
±10V
Vgs - Gate - Source Voltage
-20V
Vds - Drain - Source Breakdown Voltage
-300mV
Vgs th - Gate - Source Threshold Voltage
-4.3A
Id - Continuous Drain Current
+200C
Maximum Operating Temperature
9.1nC
Qg - Gate Charge
155ns
Rise Time
800mW
Pd - Power Dissipation
423ns
Fall Time
38mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
