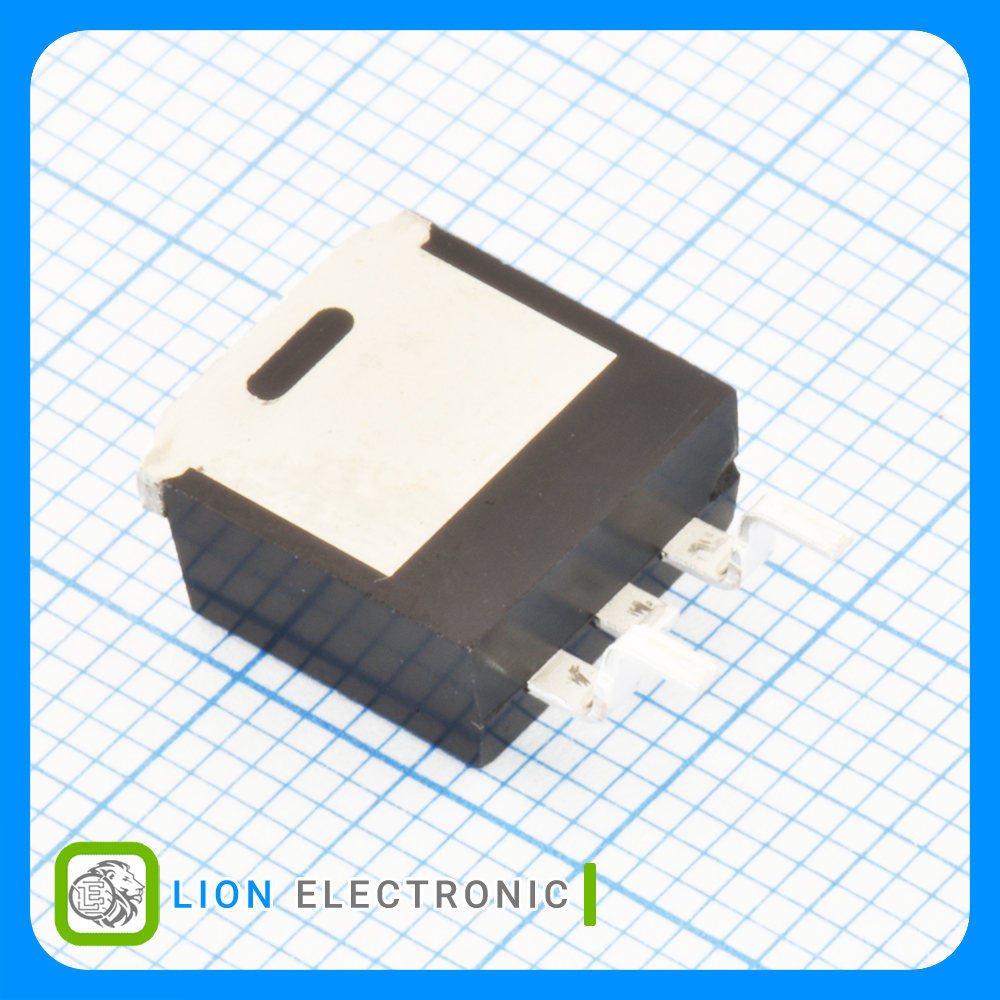

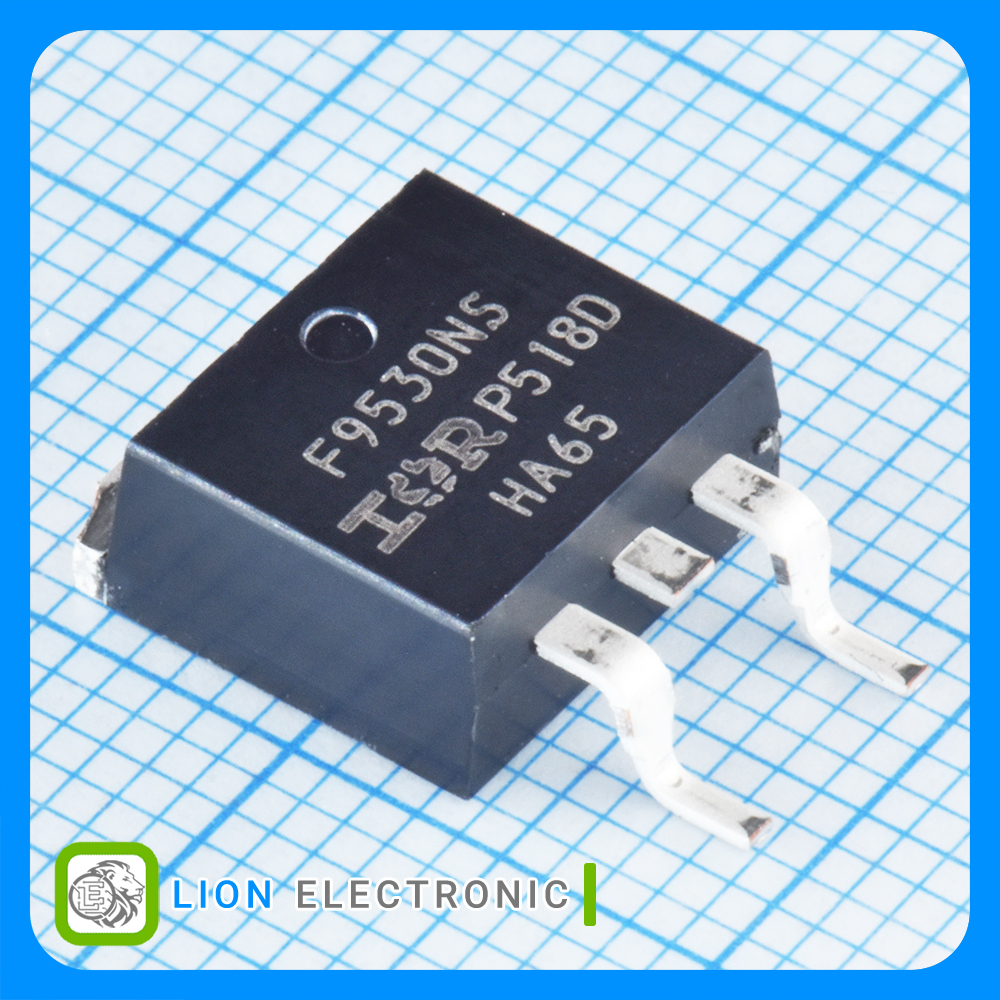

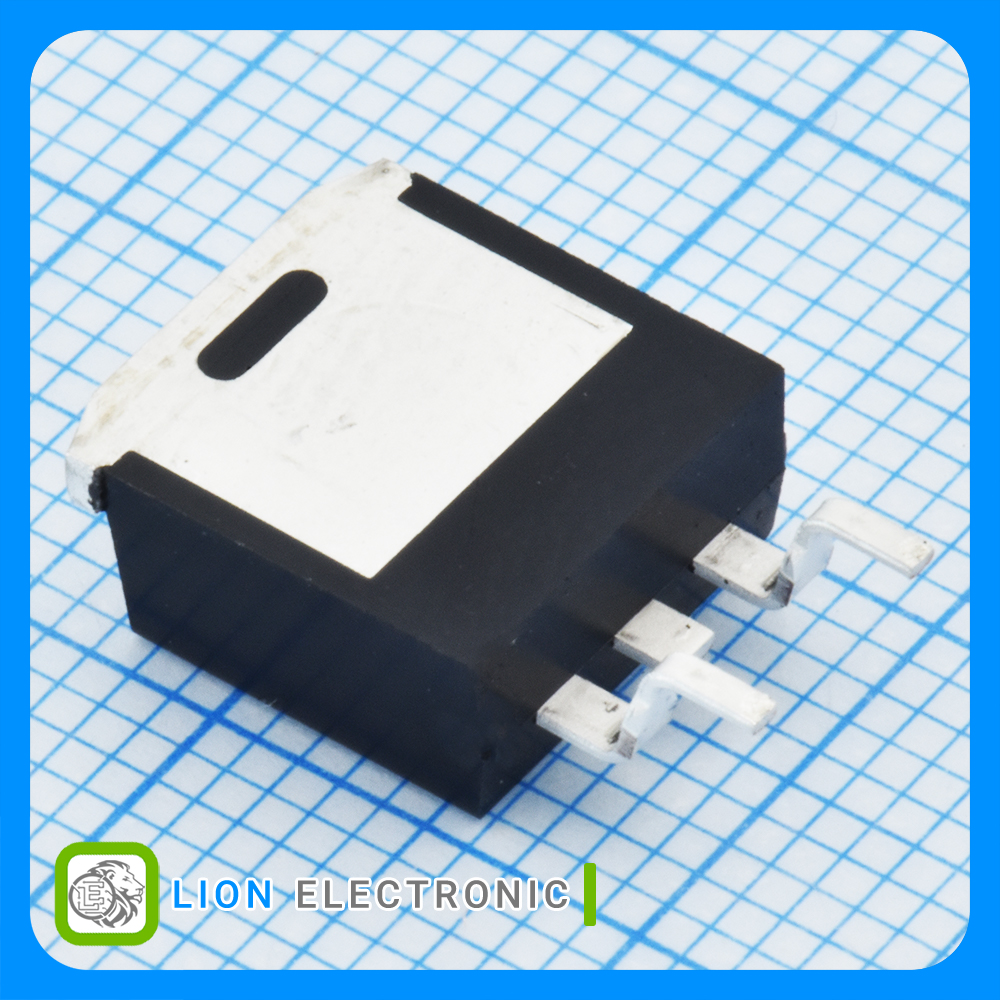

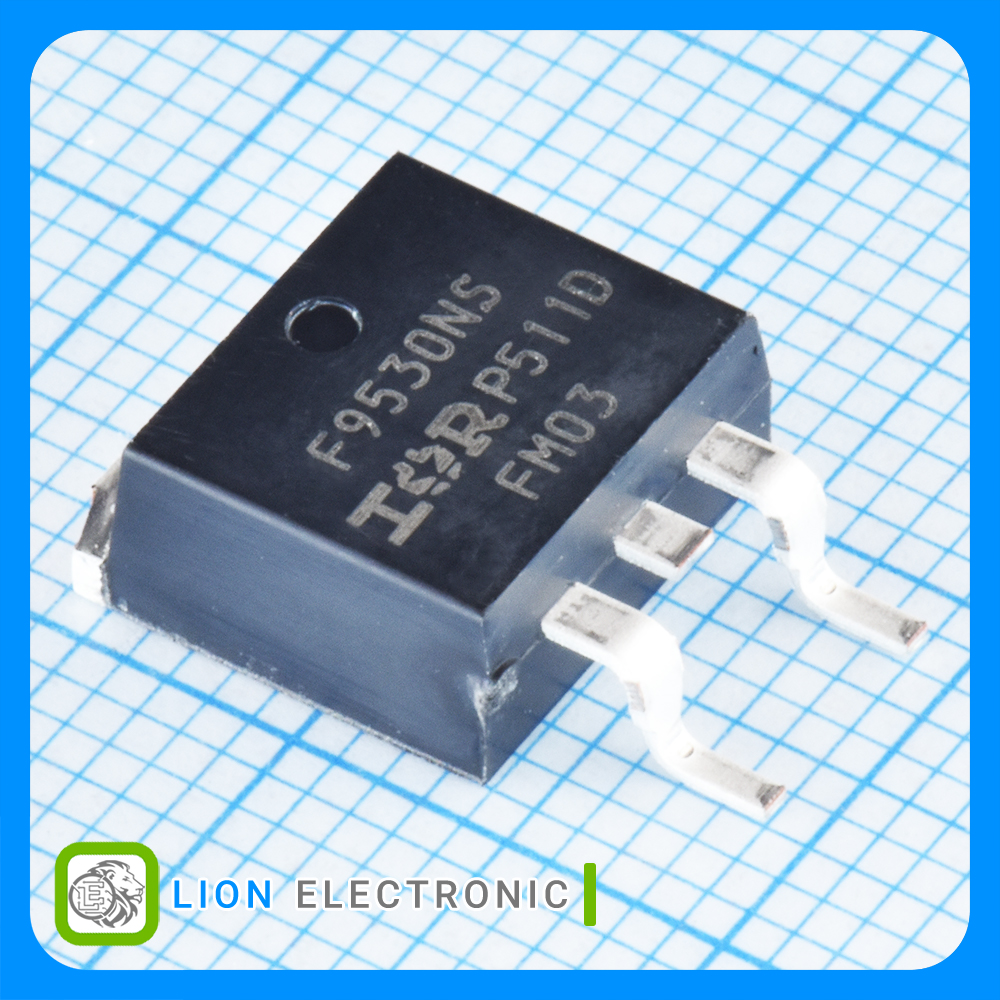

IRF9530NSTRLPBF
IRF9530NSTRLPBF
Part Number
2441
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت -100 ولت -14 آمپر نوع P با پکیج D2PAK
P-Channel MOSFET -100V, -14A with D2PAK Package
معرفی
ماسفت -100 ولت -14 آمپر نوع P با پکیج D2PAK
P-Channel MOSFET -100V, -14A with D2PAK Package
Specifications
- Package/Case: D2PAK
- Vds - Drain - Source Breakdown Voltage: -100V
- Id - Continuous Drain Current: -14A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 200mΩ
- Pd - Power Dissipation: 79W
- Qg - Gate Charge: 58nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت IRF9530NSTRLPBF
ماسفت IRF9530NSTRLPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-100V
Vds - Drain - Source Breakdown Voltage
-55C
Minimum Operating Temperature
-2V
Vgs th - Gate - Source Threshold Voltage
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
-14A
Id - Continuous Drain Current
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
58nC
Qg - Gate Charge
D2PAK
Package-Case
79W
Pd - Power Dissipation
200mΩ
Rds On - Drain - Source Resistance
