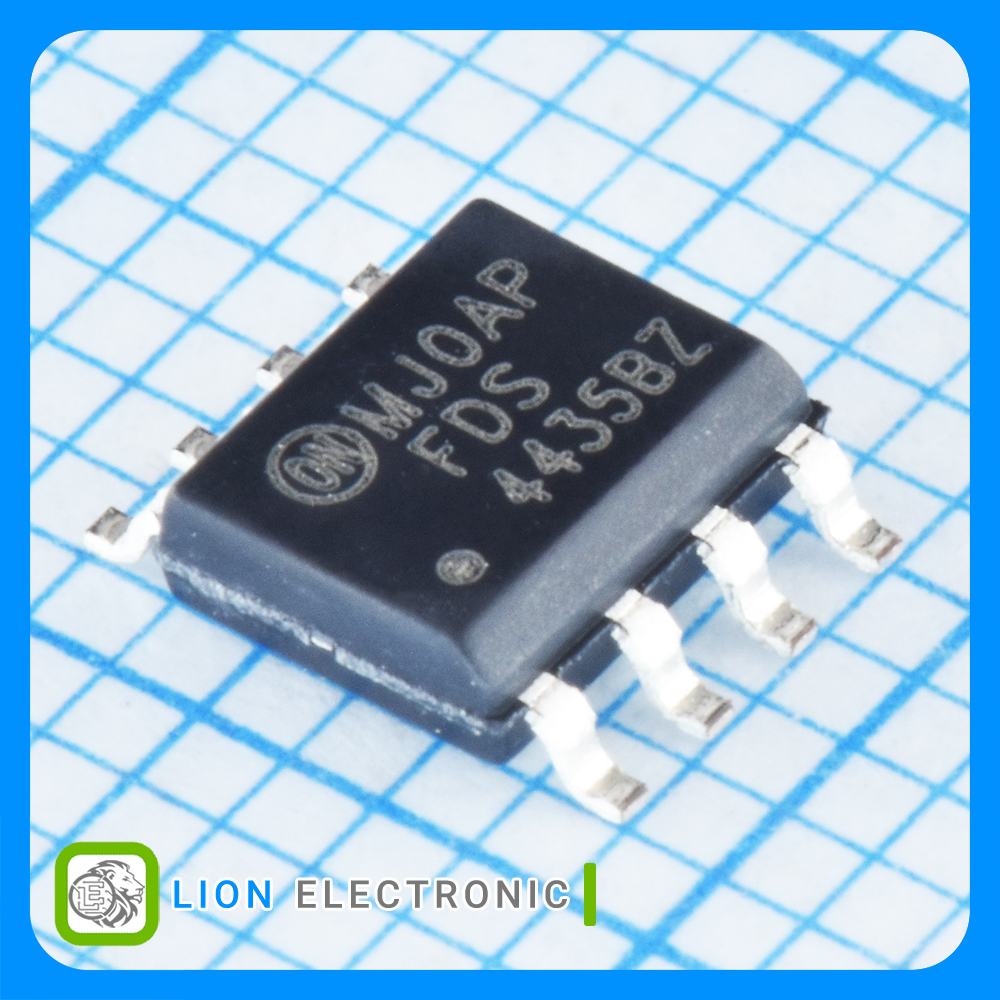

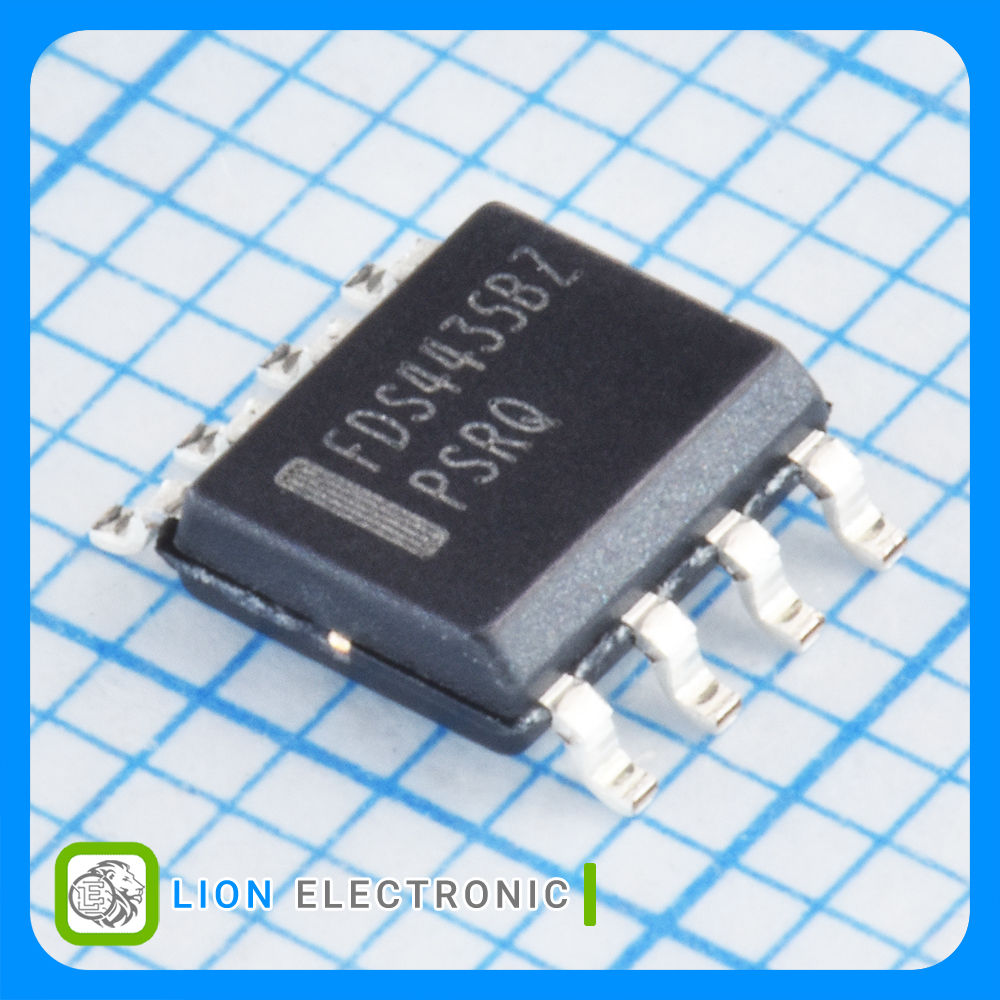

FDS4435BZ
FDS4435BZ
Part Number
2457
Lion Part
Datasheet
ON Semiconductor Manufacture
ماسفت 30- ولت 8.8- آمپر نوع P با پکیج SOIC-8

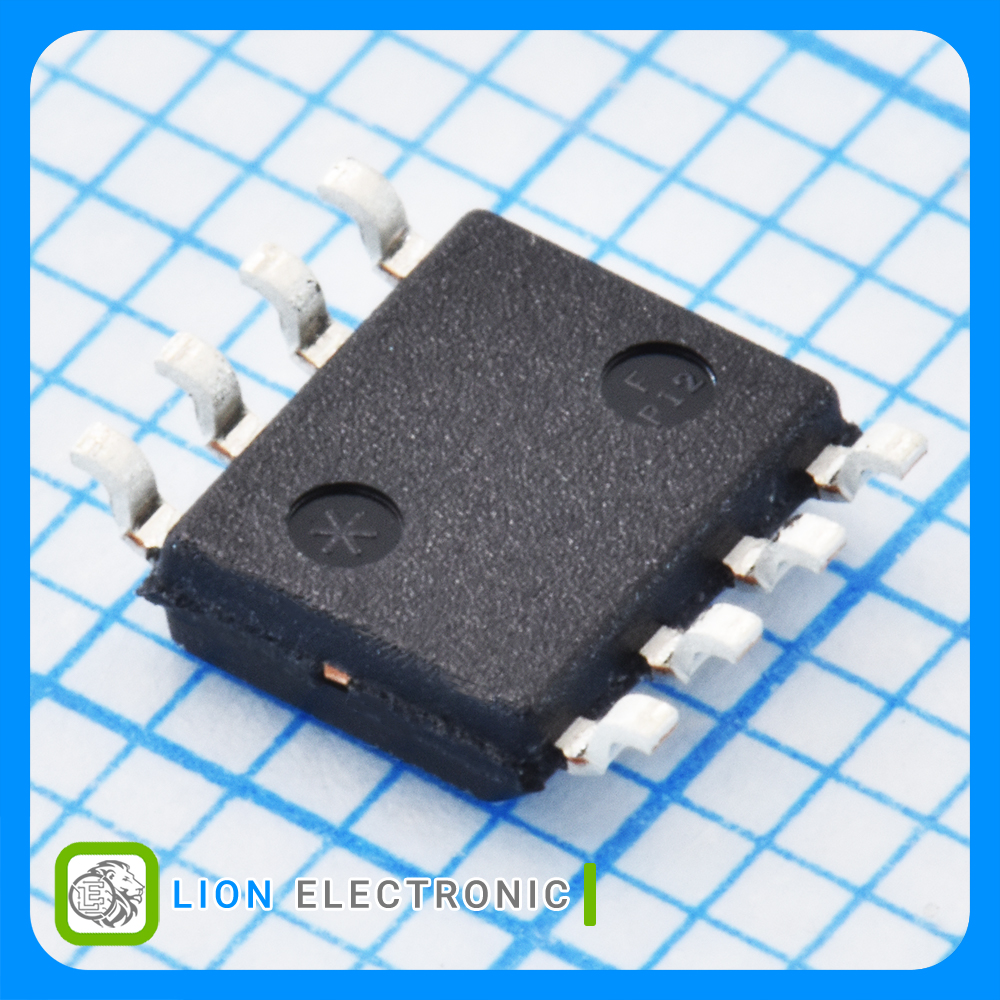

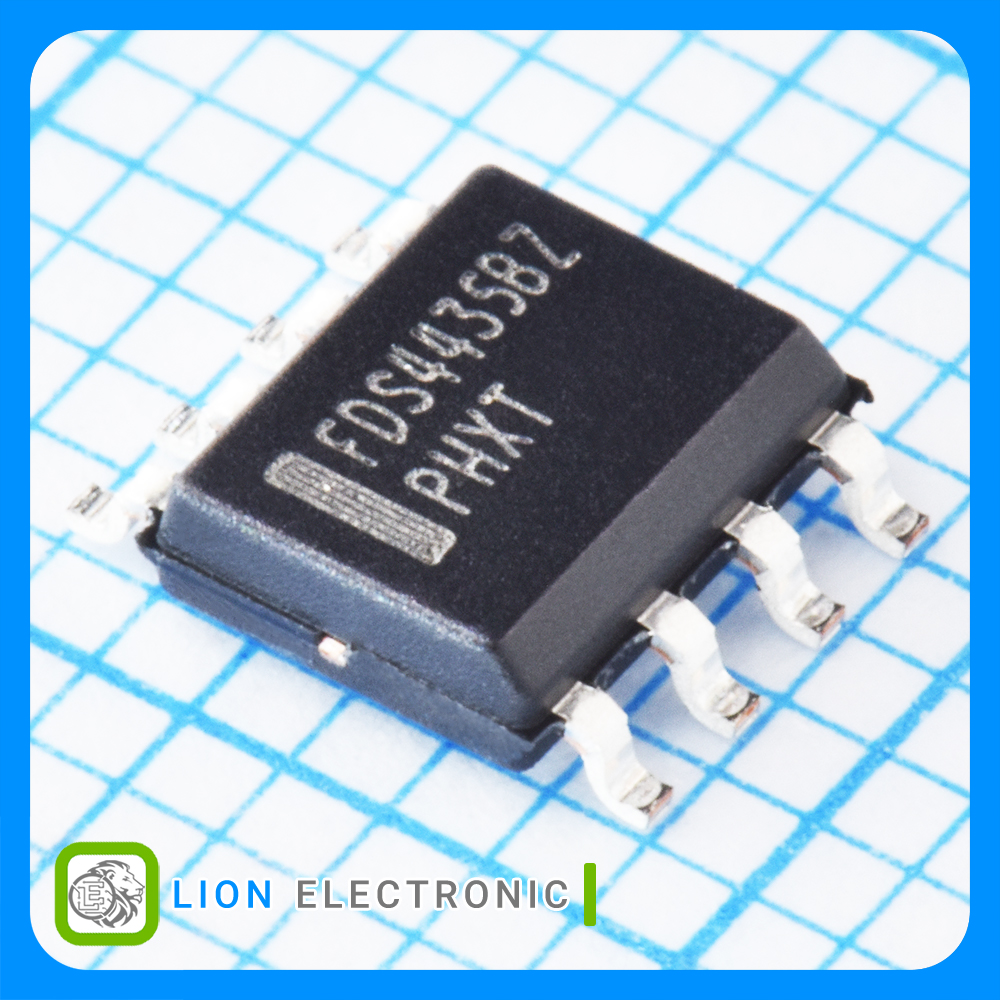

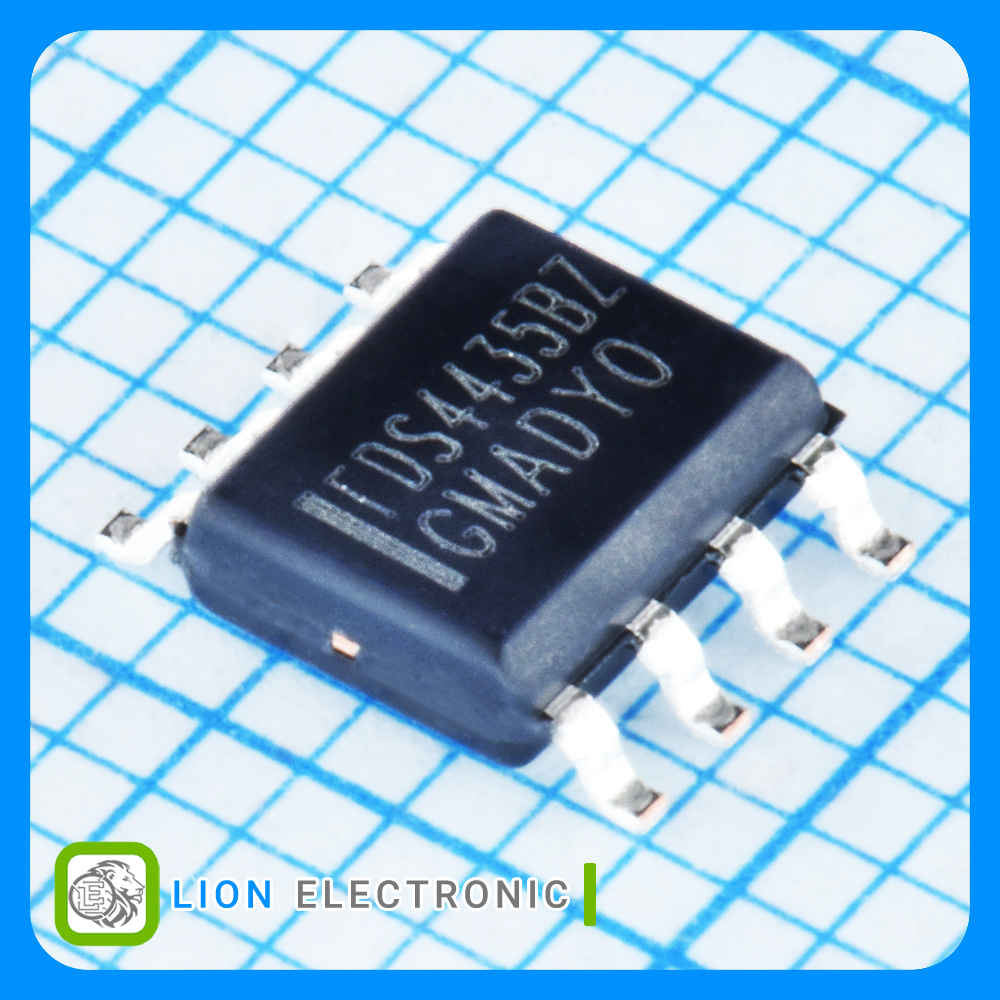

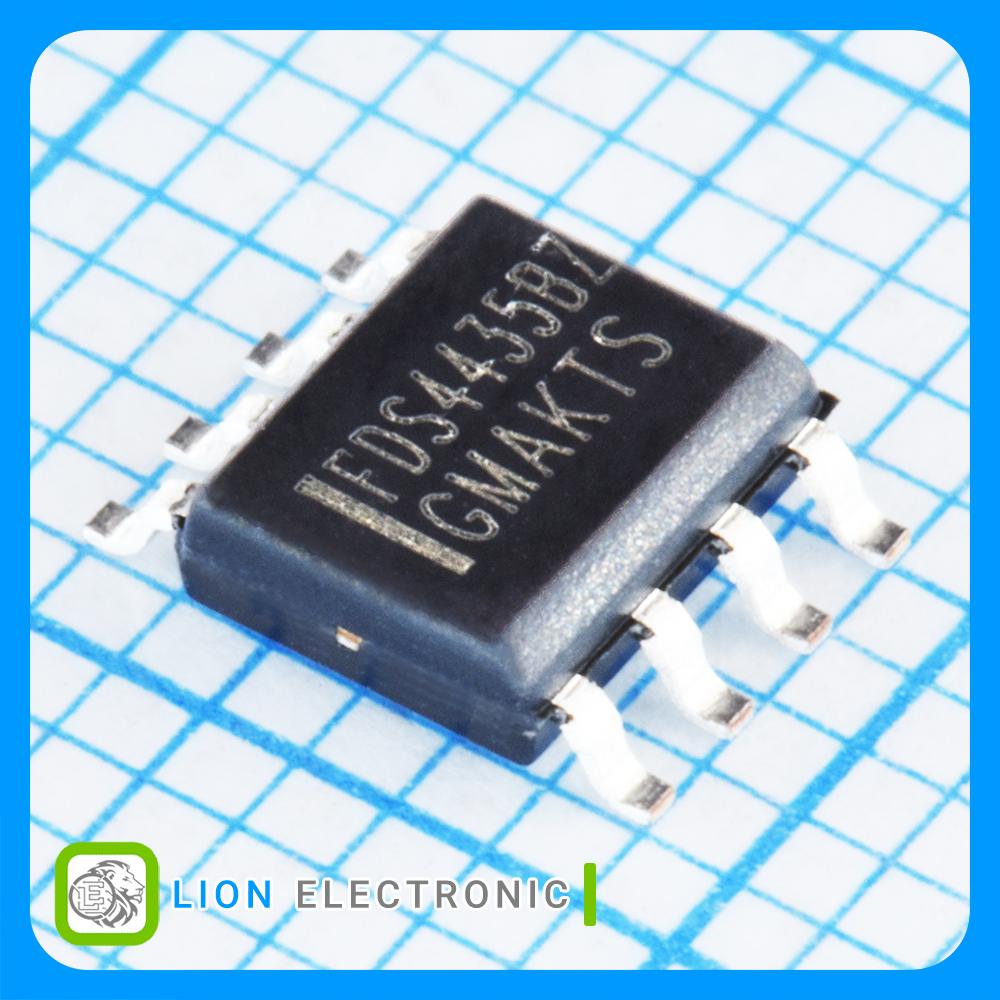

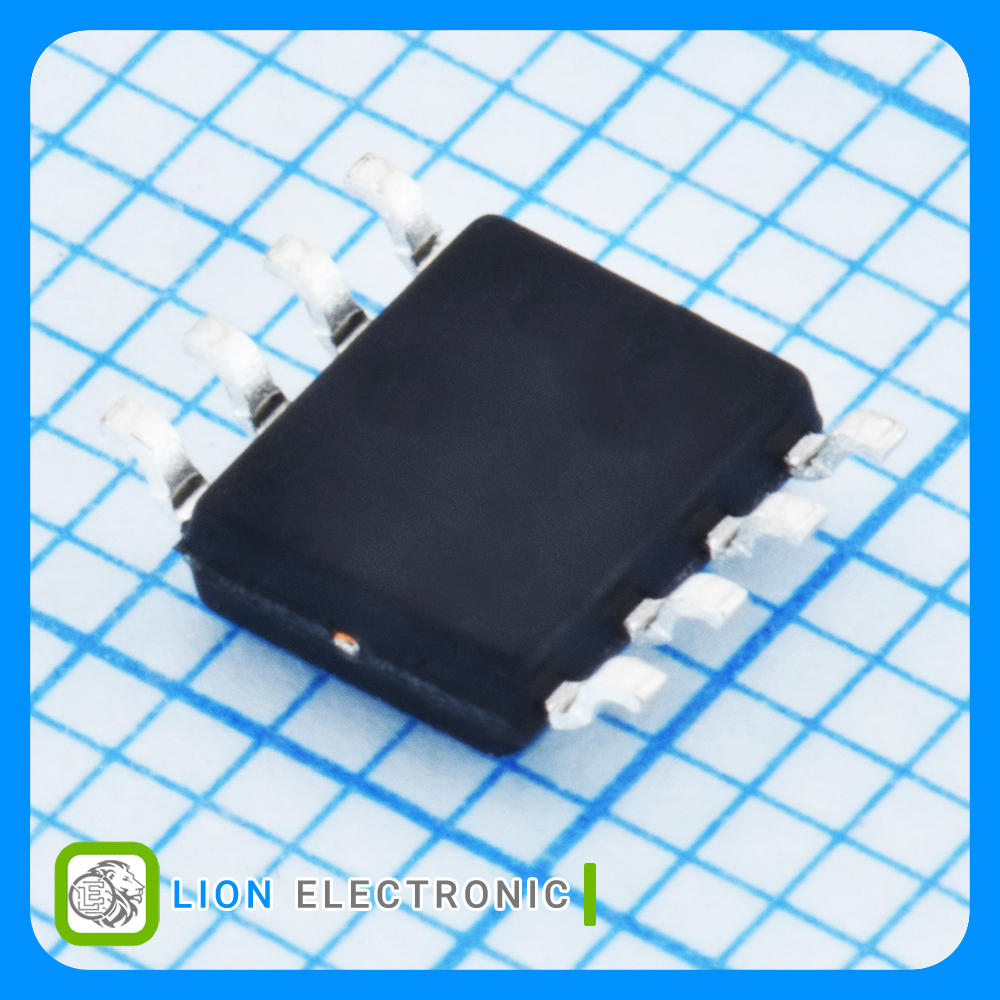

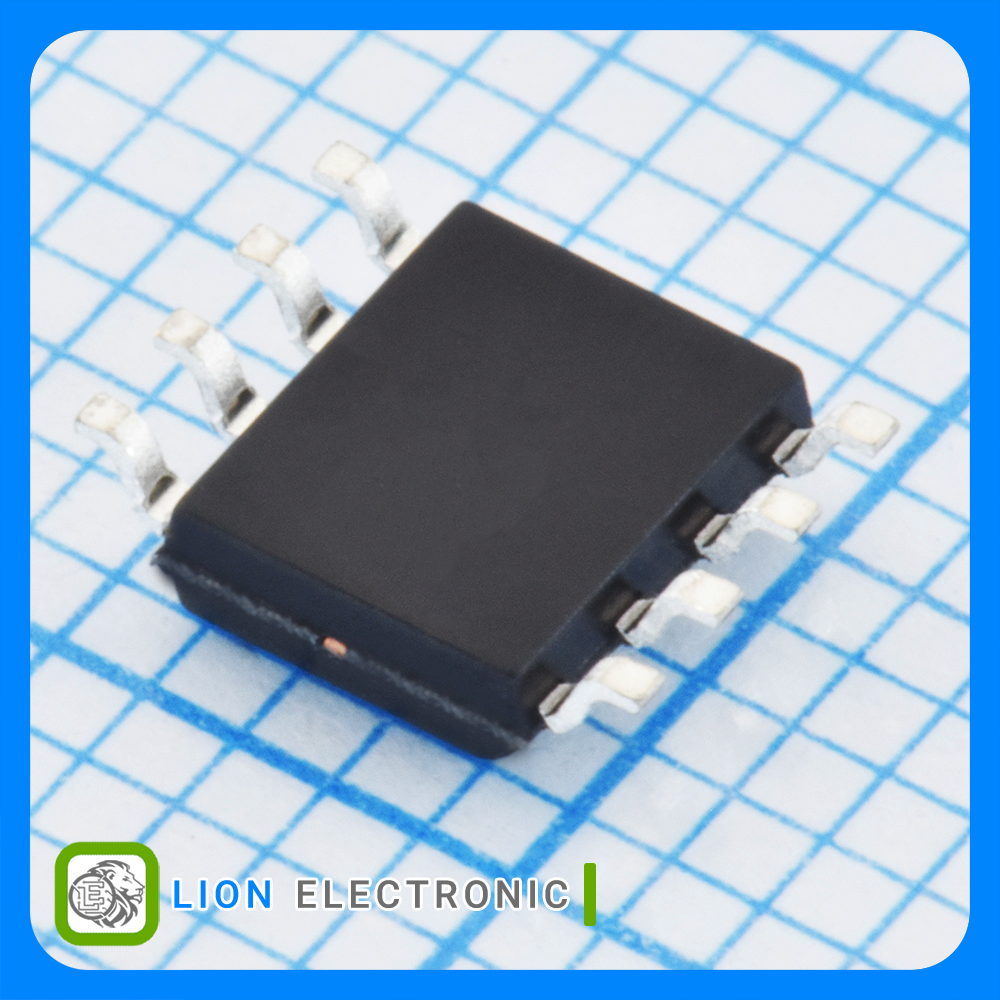

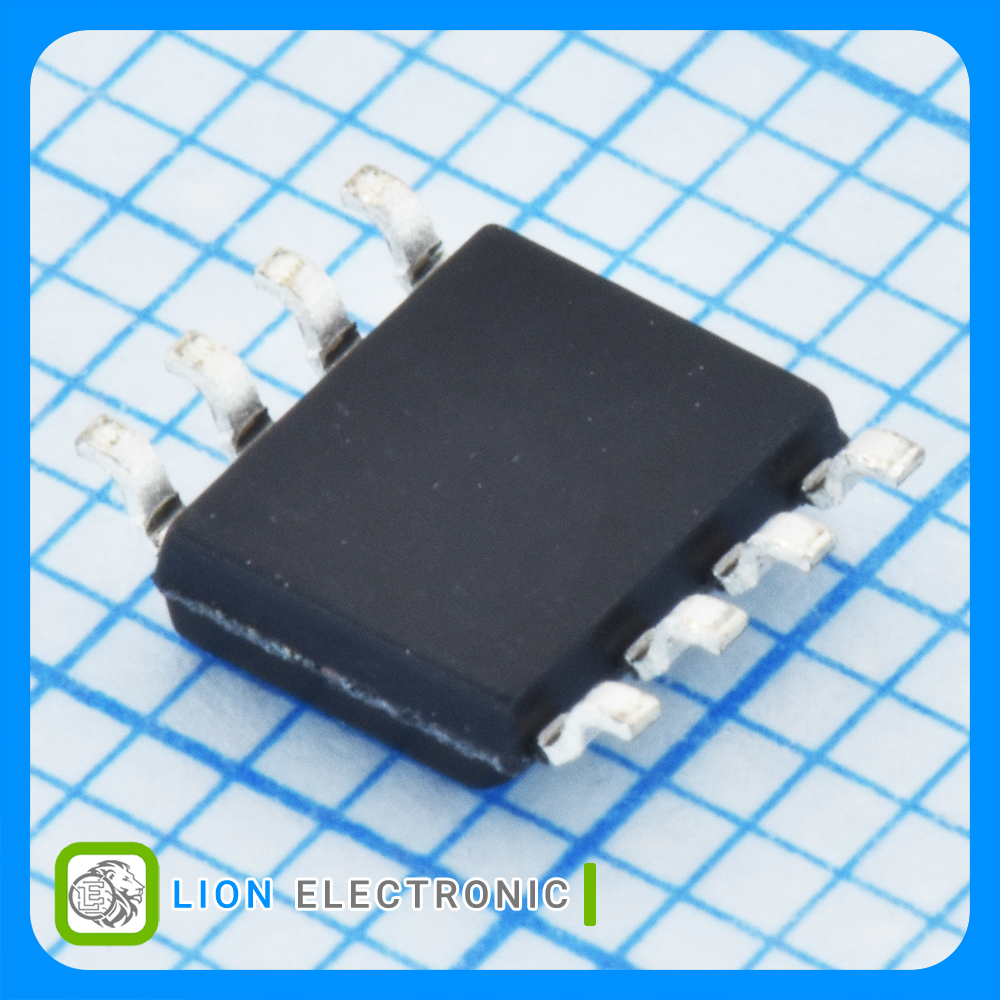

P-CH MOSFET -30V, -8.8A with SOIC-8 Package
معرفی
ماسفت 30- ولت 8.8- آمپر نوع P با پکیج SOIC-8
P-CH MOSFET -30V, -8.8A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: -30V
- Id - Continuous Drain Current: -8.8A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -1V
- Vgs - Gate - Source Voltage: ±25V
- Rds On - Drain - Source Resistance: 16mΩ
- Pd - Power Dissipation: 2.5W
- Qg - Gate Charge: 28nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت FDS4435BZ
ماسفت FDS4435BZ
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
-30V
Vds - Drain - Source Breakdown Voltage
SMD/SMT
Mounting Style
-1V
Vgs th - Gate - Source Threshold Voltage
-8.8A
Id - Continuous Drain Current
±25V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
16mΩ
Rds On - Drain - Source Resistance
28nC
Qg - Gate Charge
2.5W
Pd - Power Dissipation
SOIC-8
Package-Case
