STS4DPF20L
STS4DPF20L
Part Number
2491
Lion Part
Datasheet
STMicroelectronics Manufacture
ماسفت جفت نوع P با ولتاژ -20 ولت و جریان -4 و -4 آمپر با پکیج SOIC-8

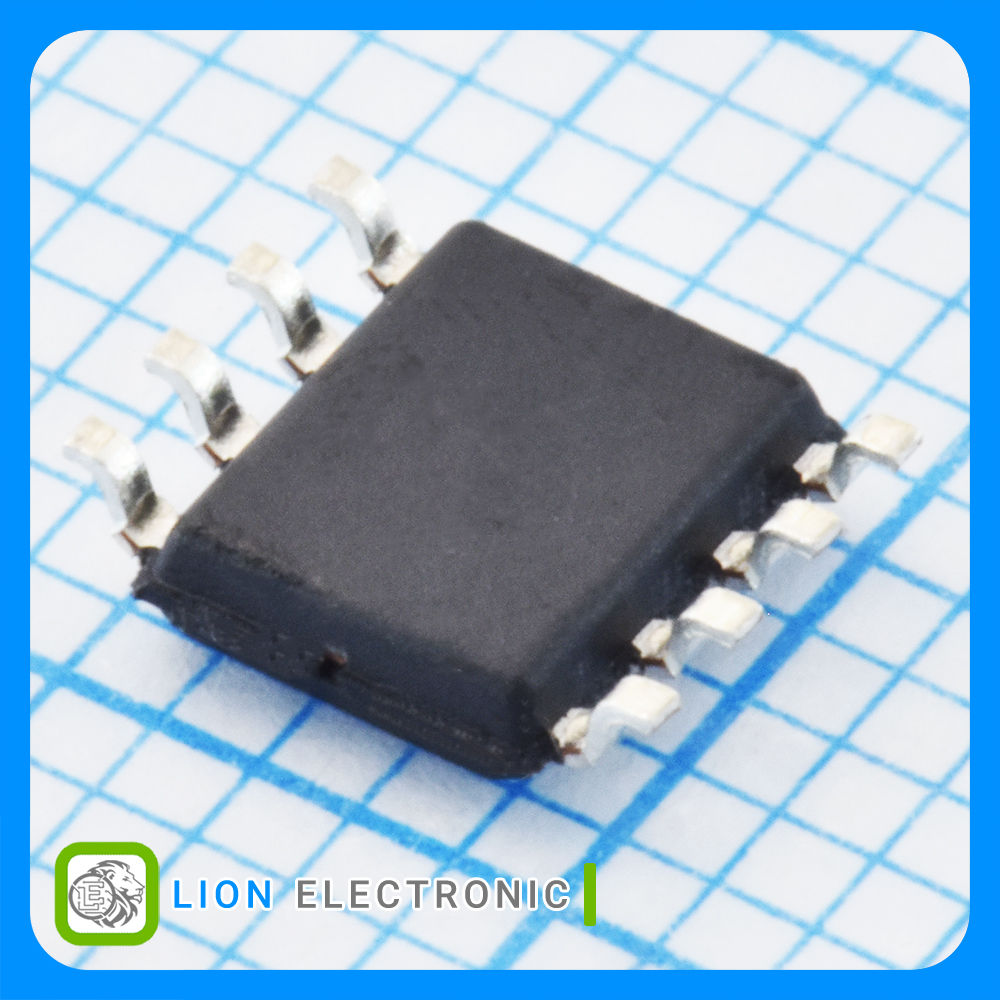

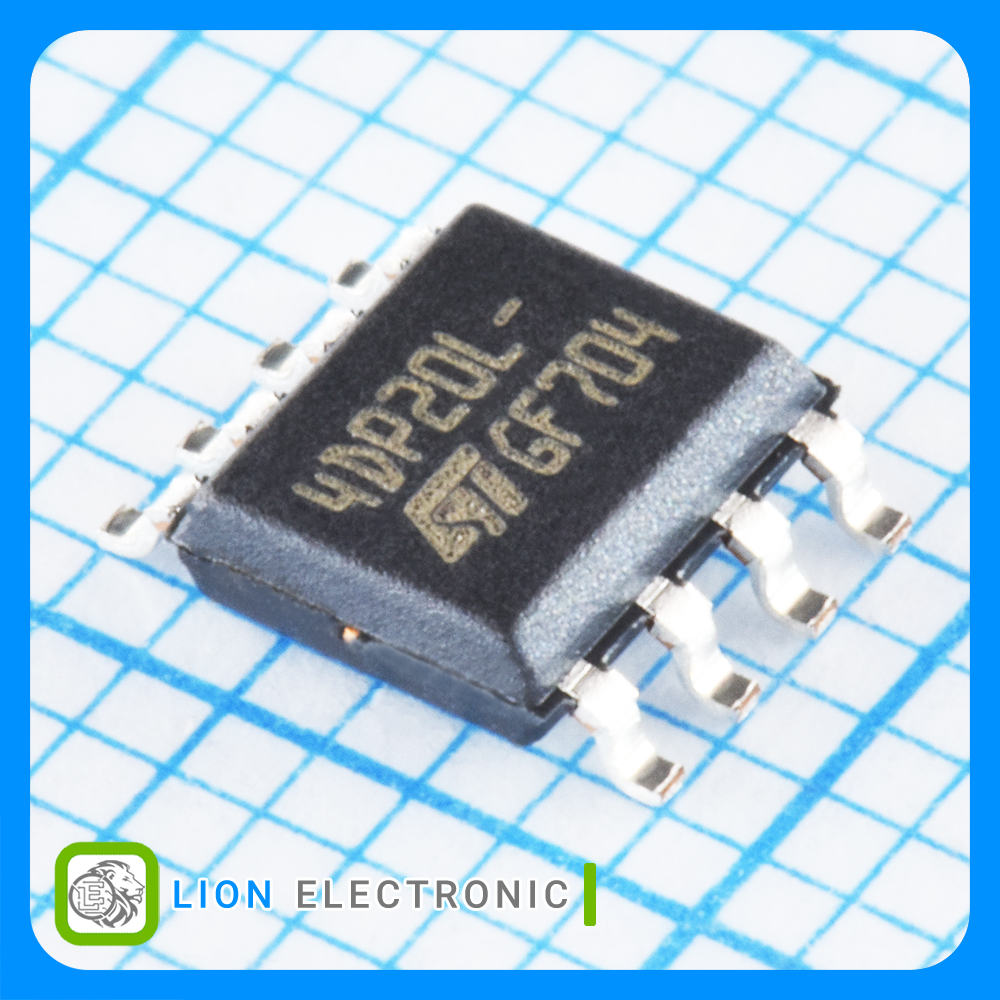

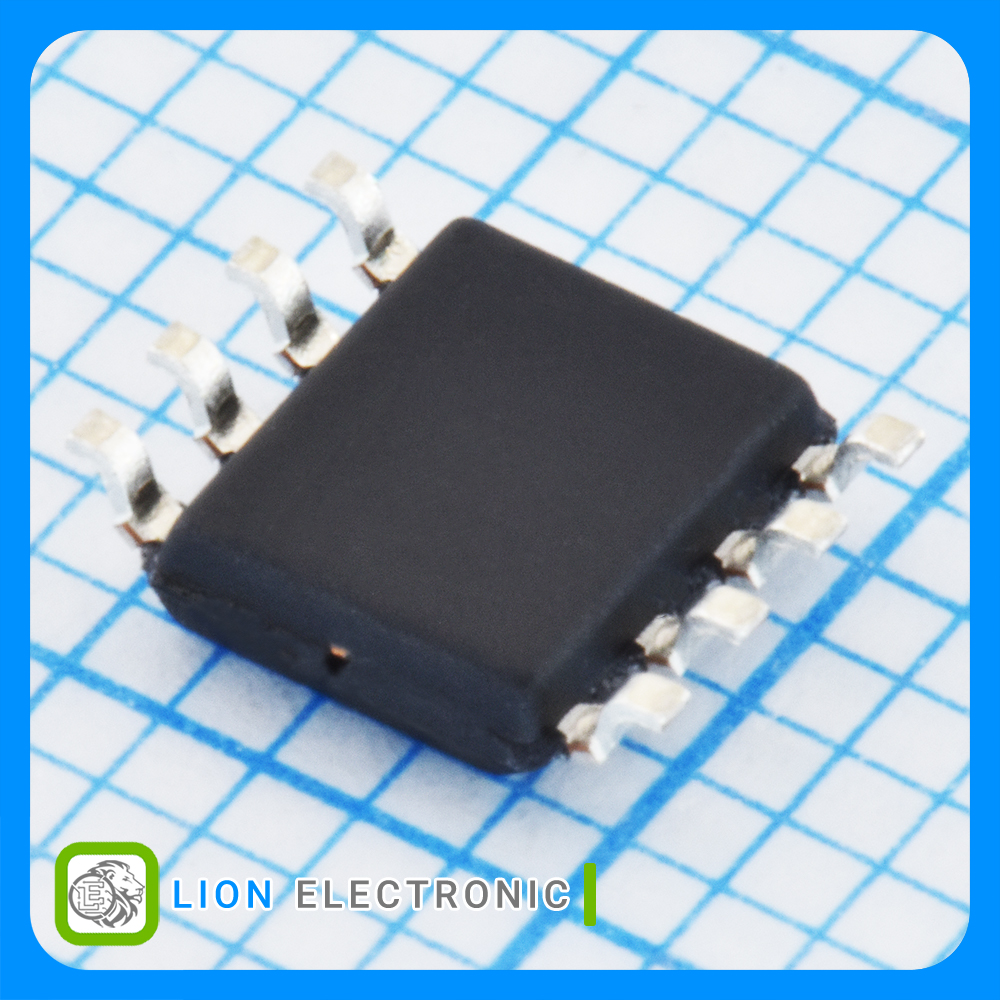

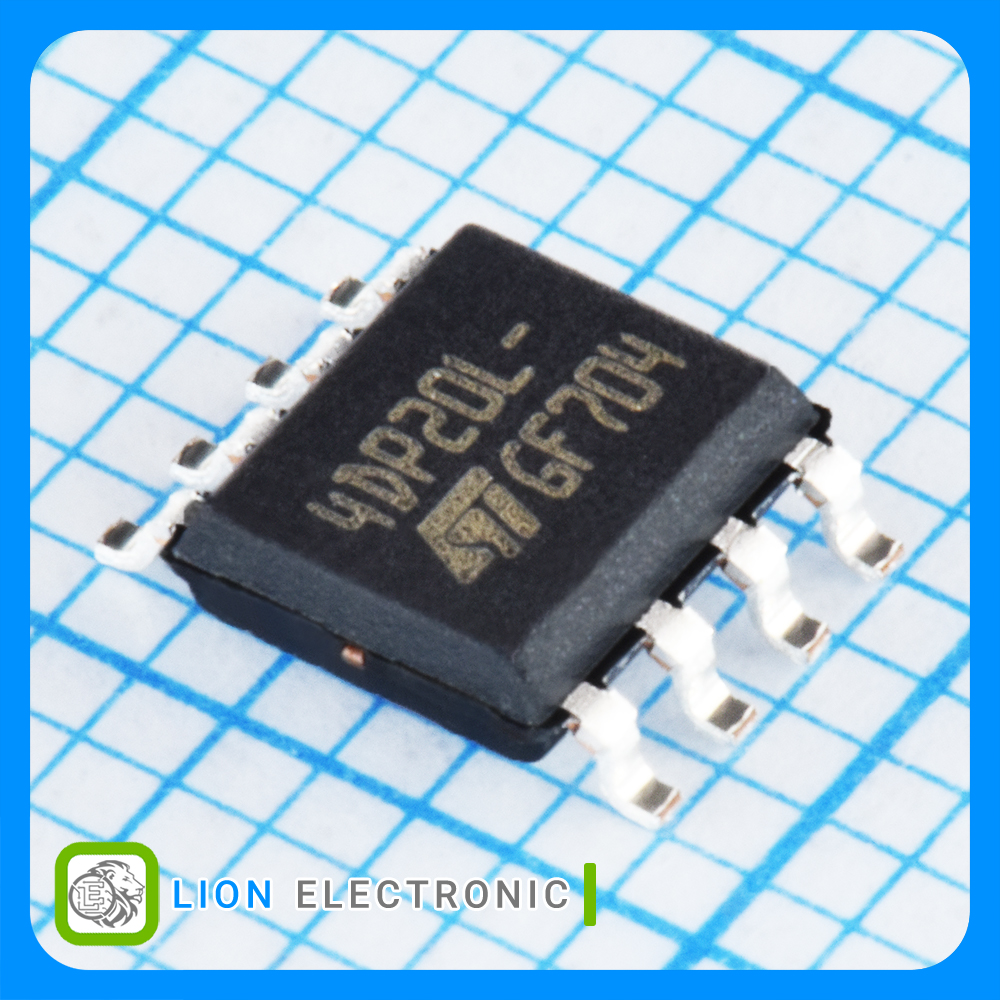

Dual P-Channel MOSFET -20V, 4/4A with SOIC-8 Package
معرفی
ماسفت جفت نوع P با ولتاژ -20 ولت و جریان -4 و -4 آمپر با پکیج SOIC-8
Dual P-Channel MOSFET -20V, 4/4A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: -20V
- Id - Continuous Drain Current: -4A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 2
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±16V
- Rds On - Drain - Source Resistance: 70mΩ
- Pd - Power Dissipation: 2W
- Qg - Gate Charge: 12.5nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت STS4DPF20L
ماسفت STS4DPF20L
Part Number
2
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
-20V
Vds - Drain - Source Breakdown Voltage
±16V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
-4A
Id - Continuous Drain Current
1V
Vgs th - Gate - Source Threshold Voltage
12.5nC
Qg - Gate Charge
2W
Pd - Power Dissipation
70mΩ
Rds On - Drain - Source Resistance
SOIC-8
Package-Case
