TN805-600B
TN805-600B
Part Number
2579
Lion Part
Datasheet
STMicroelectronics Manufacture

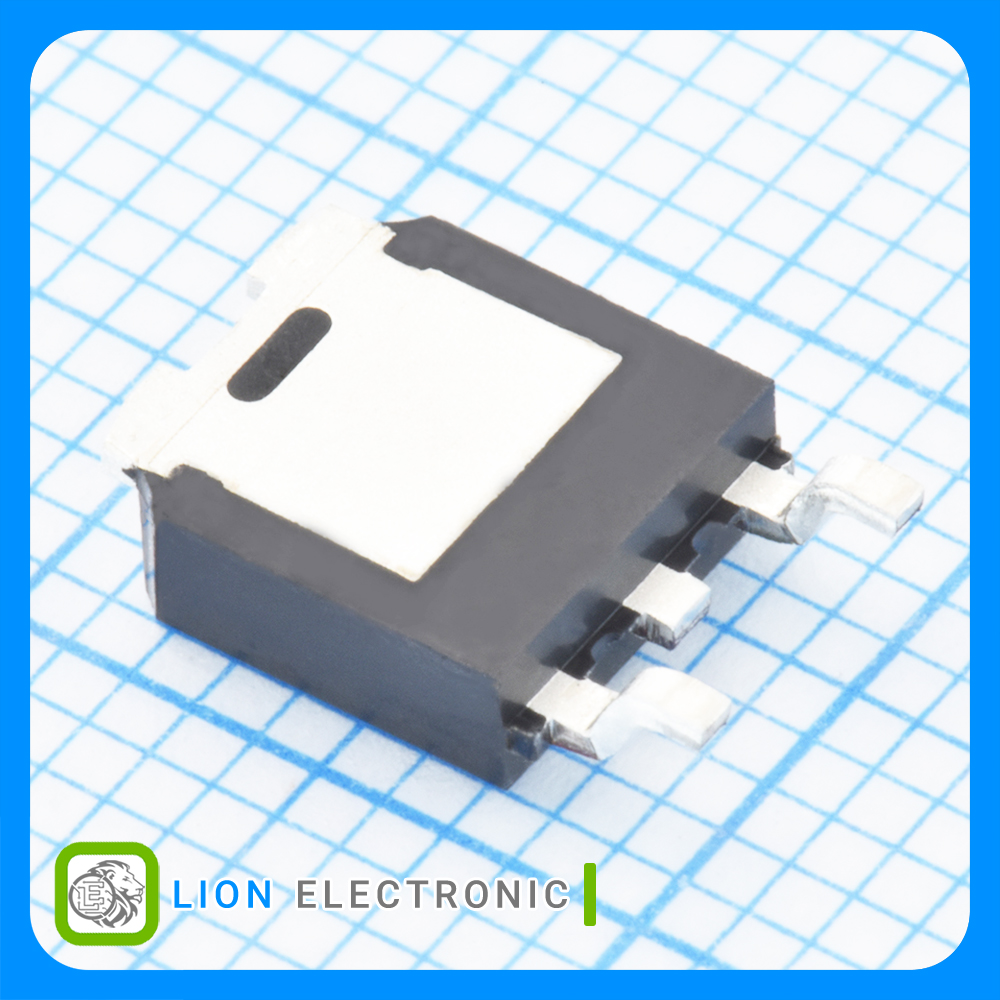

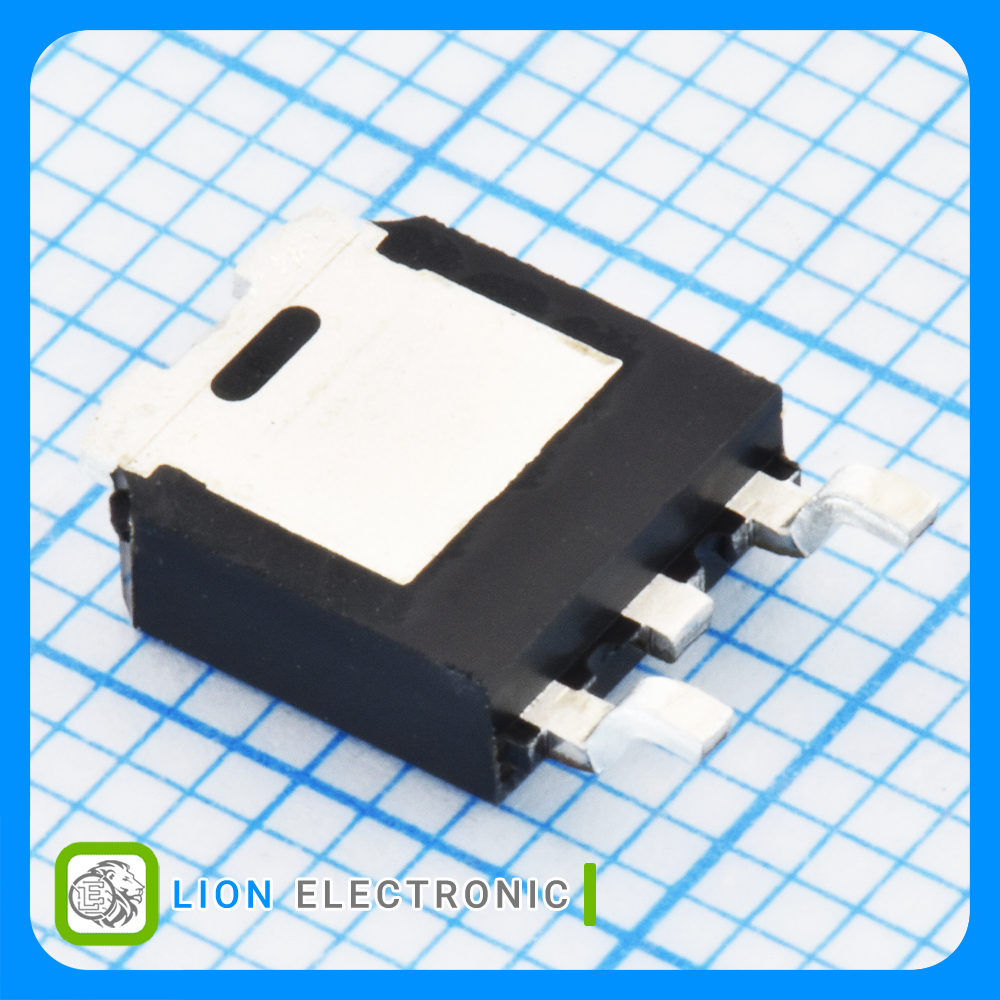

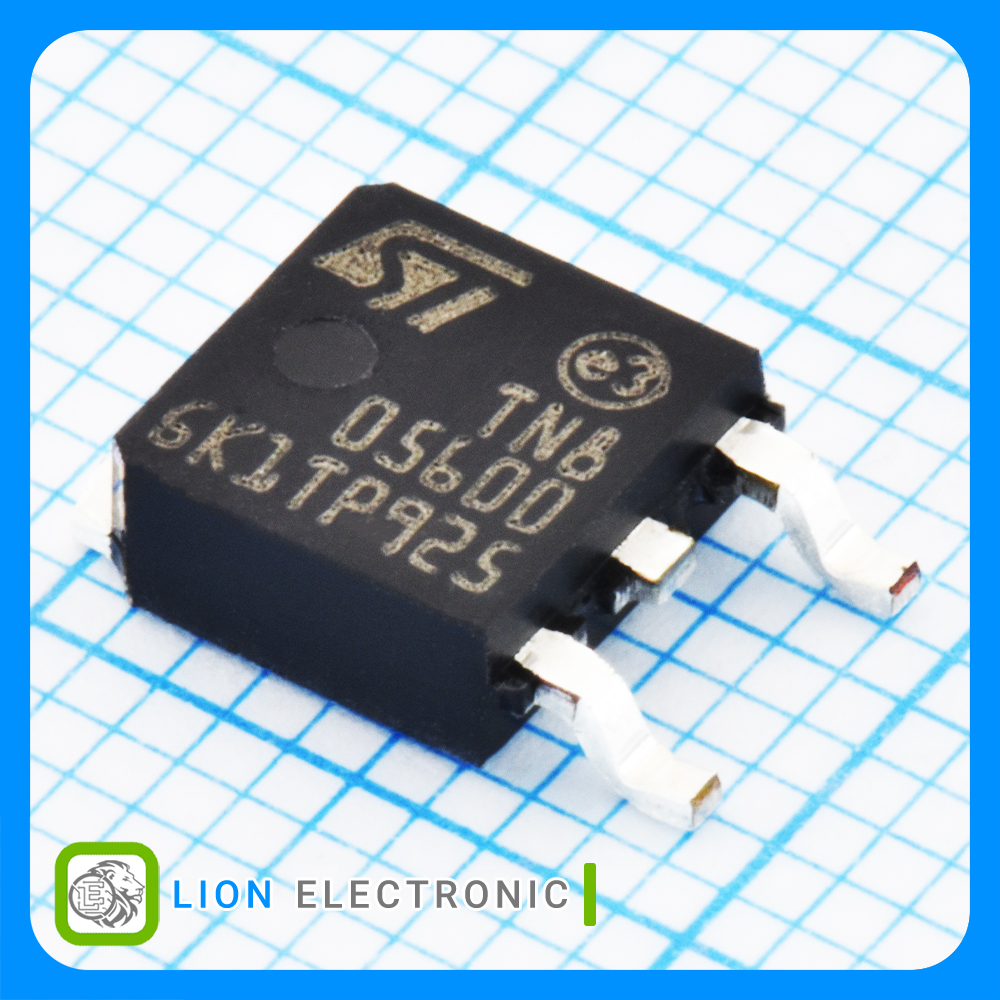

تریستور 600 ولت 8 آمپر با پکیج DPAK
SCR 600V, 8A with DPAK Package
معرفی
تریستور 600 ولت 8 آمپر با پکیج DPAK
SCR 600V, 8A with DPAK Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 600V
- On-State RMS Current - It RMS: 8A
- Vf - Forward Voltage: 1.6V
- Gate Trigger Voltage - Vgt: 1.3V
- Gate Trigger Current - Igt: 5mA
- Maximum Gate Peak Inverse Voltage: 5V
- Breakover Current IBO Max: 73A
- Off-State Leakage Current @ VDRM IDRM: 5uA
- Holding Current Ih Max: 25mA
- Mounting Style: SMD/SMT
- Package/Case: DPAK
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات TN805-600B
TN805-600B
Part Number
5V
Maximum Gate Peak Inverse Voltage
5uA
Off-State Leakage Current @ VDRM IDRM
8A
On-State RMS Current - It RMS
5mA
Gate Trigger Current - Igt
600V
Rated Repetitive Off-State Voltage VDRM
25mA
Holding Current Ih Max
Reel
Packaging
1.3V
Gate Trigger Voltage - Vgt
-40C
Minimum Operating Temperature
73A
Breakover Current IBO Max
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
1.6V
Vf - Forward Voltage
DPAK
Package-Case
