WeEn/NXP
معرفی

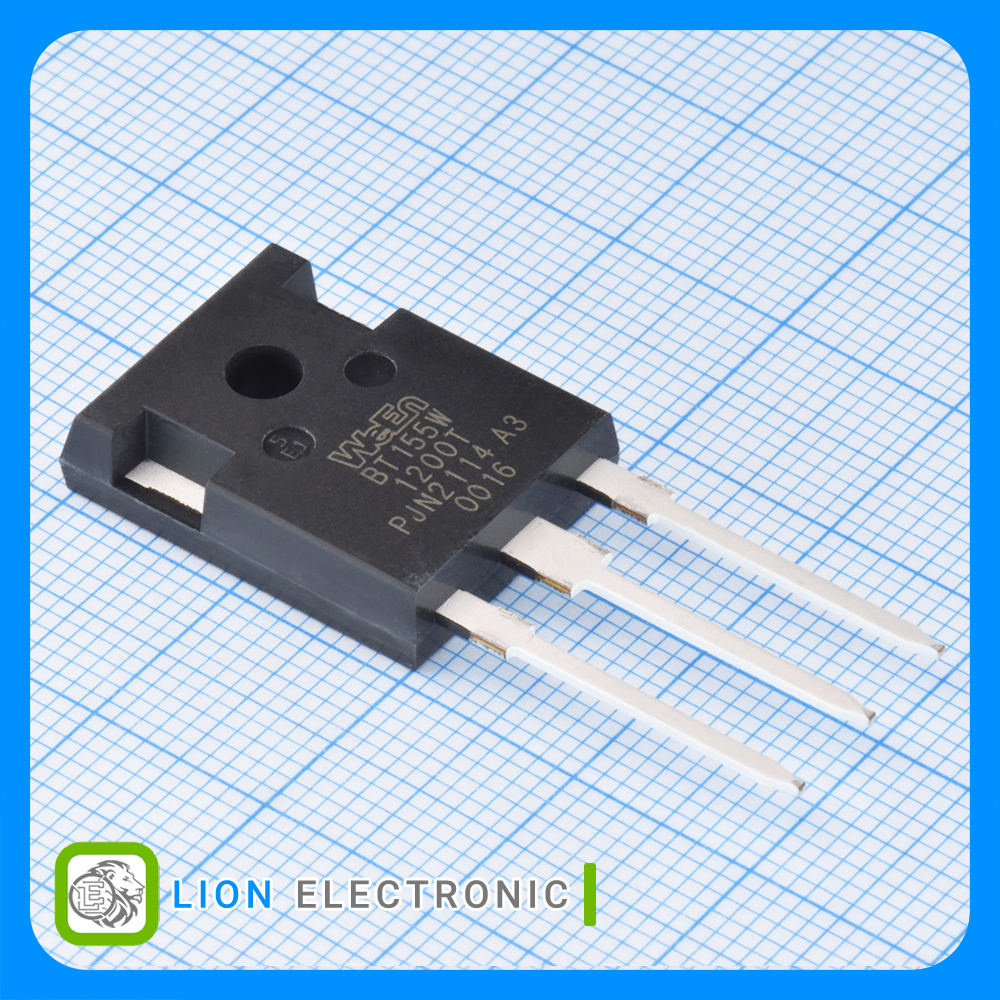

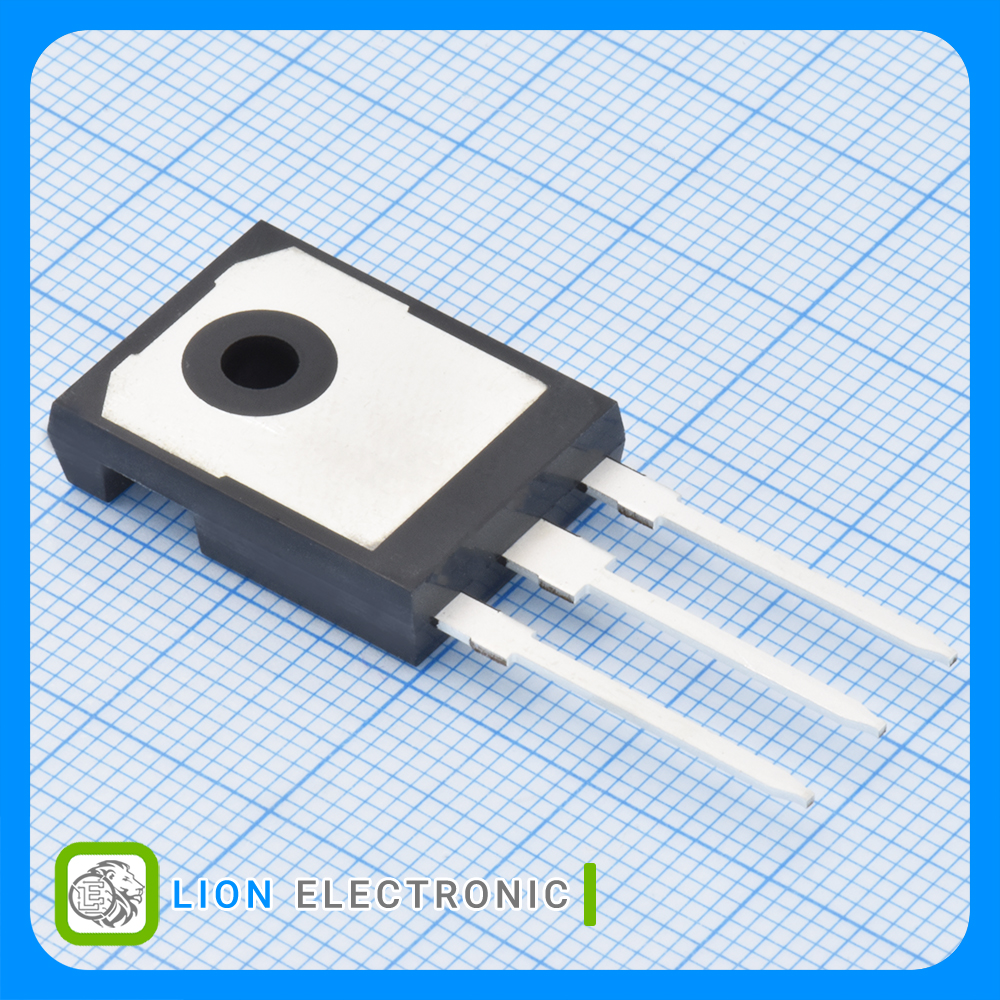

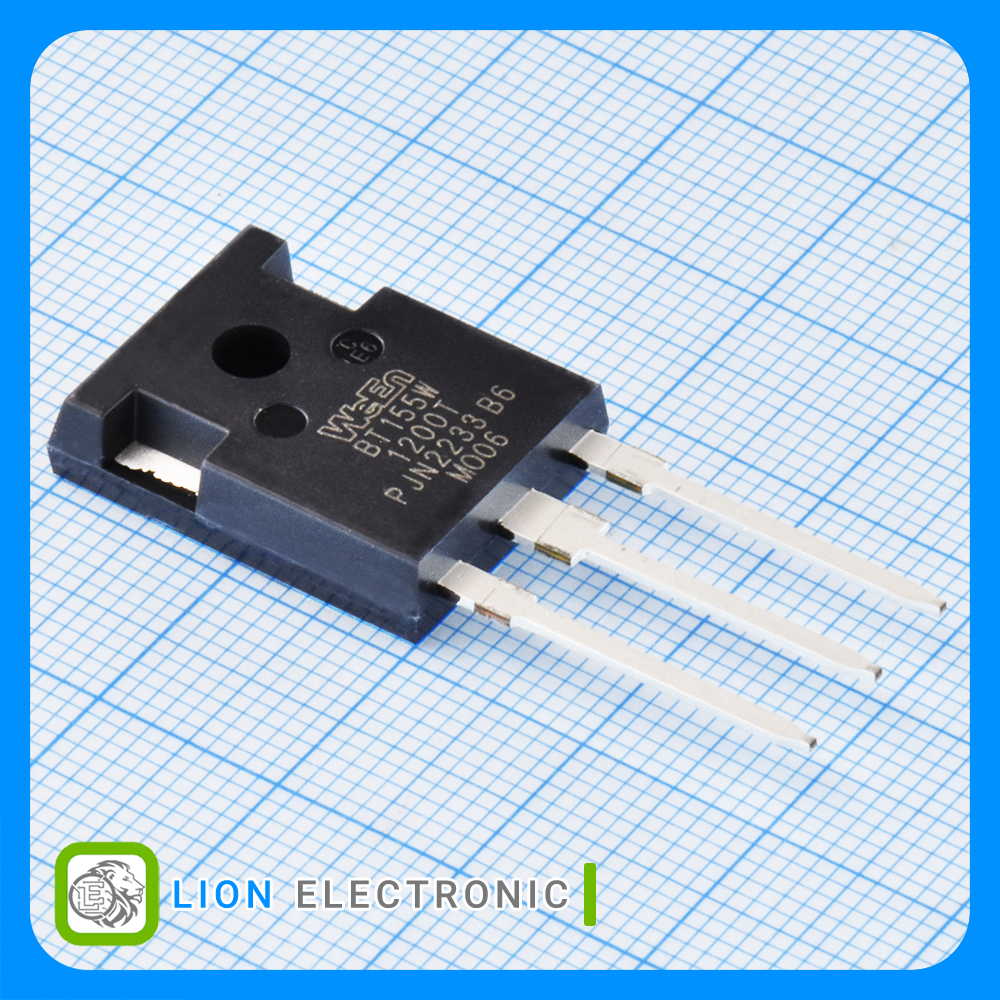

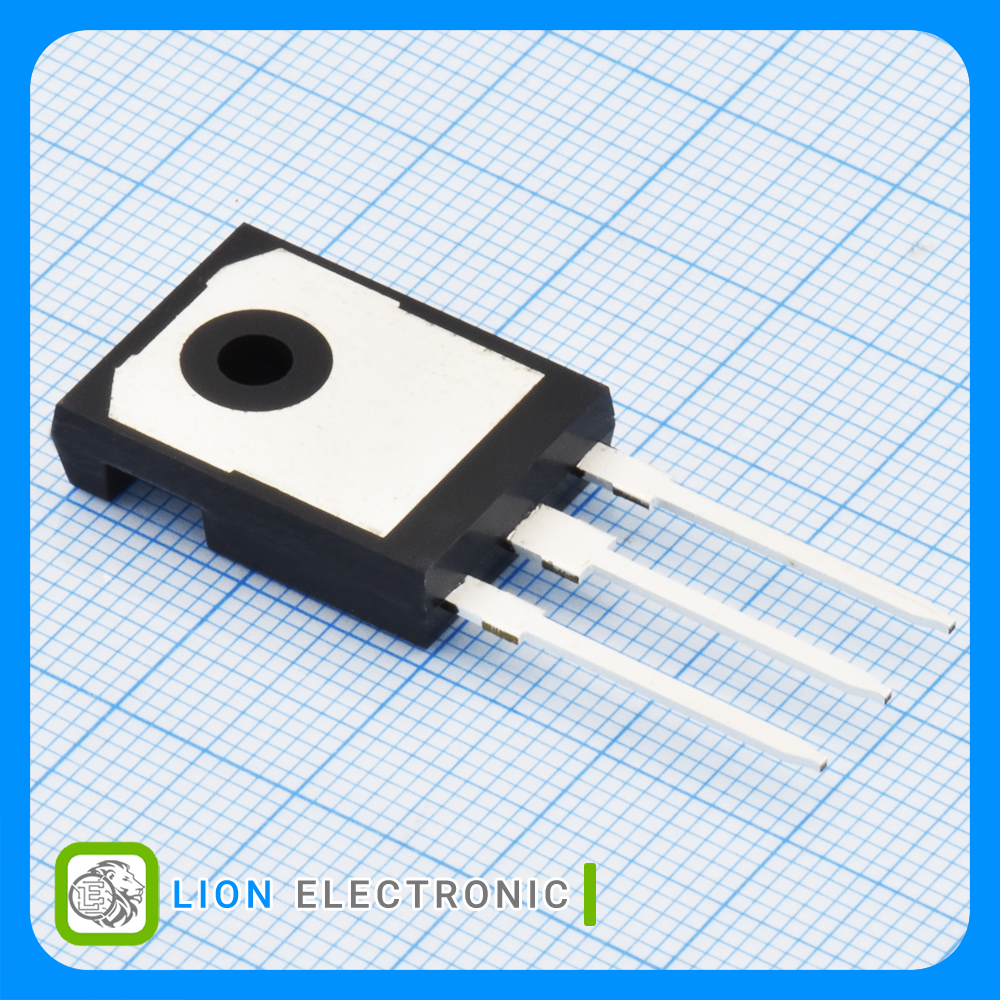

تریستور 1.2 کیلوولت 79 آمپر با پکیج TO-247
SCR 1.2kV, 79A with TO-247 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 1.2kV
- On-State RMS Current - It RMS: 79A
- Vf - Forward Voltage: 1.3V
- Gate Trigger Voltage - Vgt: 700mV
- Gate Trigger Current - Igt: 50mA
- Maximum Gate Peak Inverse Voltage: 5V
- Breakover Current IBO Max: 650A
- Off-State Leakage Current @ VDRM IDRM: 3mA
- Holding Current Ih Max: 200mA
- Mounting Style: Through Hole
- Package/Case: TO-247
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات تریستور BT155W-1200TQ

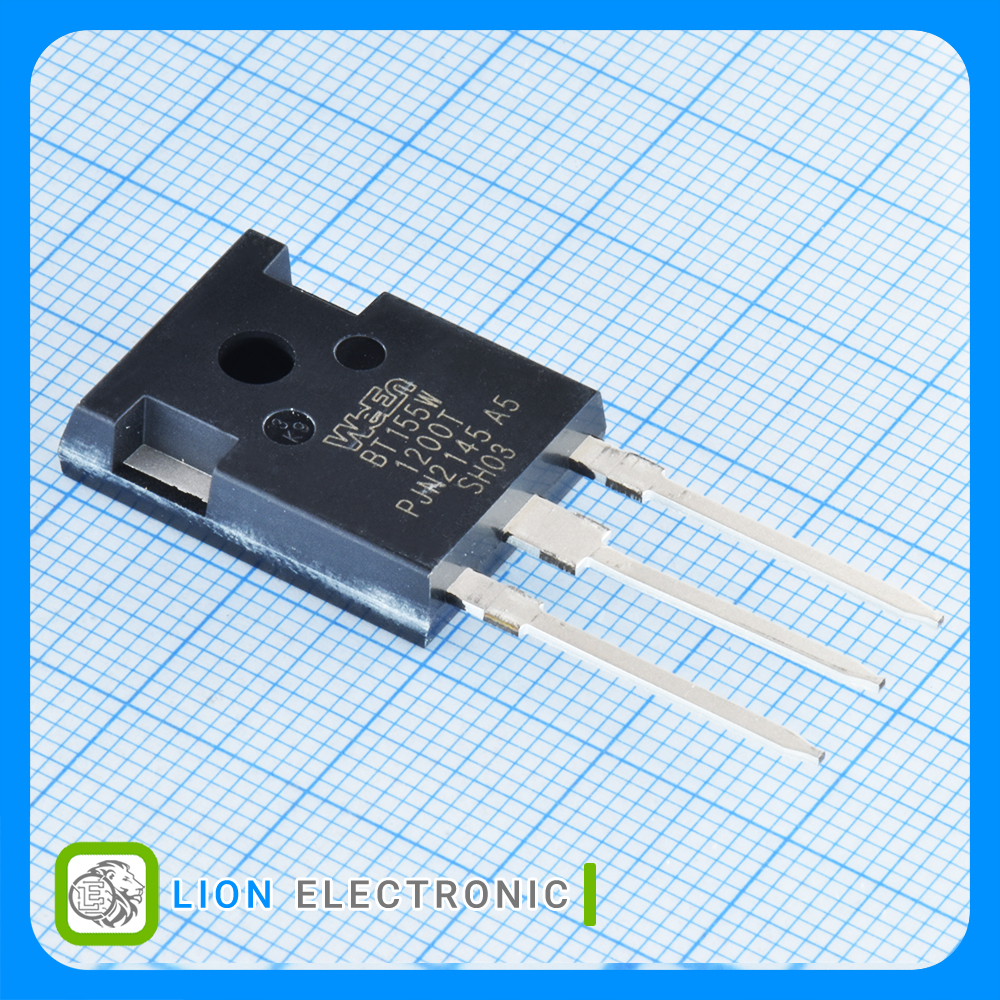

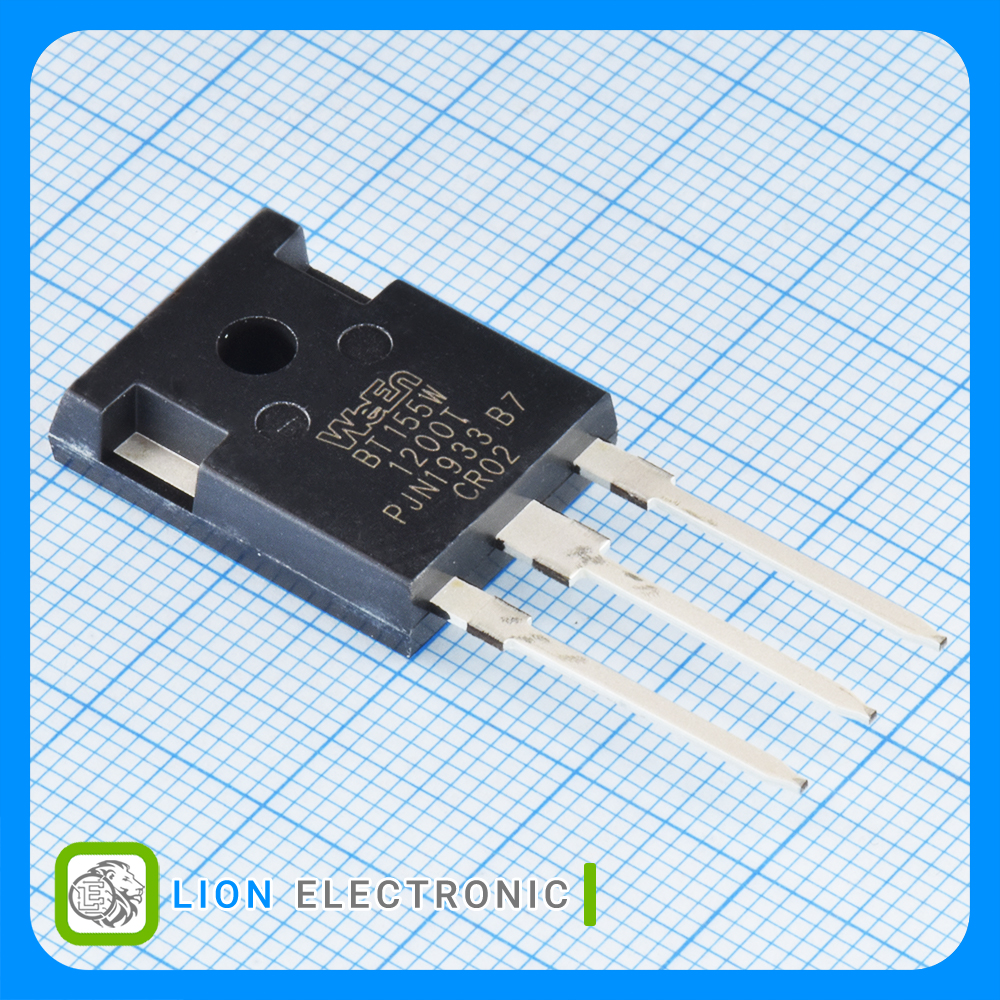

تریستور BT155W-1200TQ
Part Number
5V
Maximum Gate Peak Inverse Voltage
700mV
Gate Trigger Voltage - Vgt
-40C
Minimum Operating Temperature
Tube
Packaging
1.2kV
Rated Repetitive Off-State Voltage VDRM
50mA
Gate Trigger Current - Igt
3mA
Off-State Leakage Current @ VDRM IDRM
Through Hole
Mounting Style
650A
Breakover Current IBO Max
79A
On-State RMS Current - It RMS
200mA
Holding Current Ih Max
+150C
Maximum Operating Temperature
1.3V
Vf - Forward Voltage
TO-247
Package-Case
