WeEn/NXP
معرفی

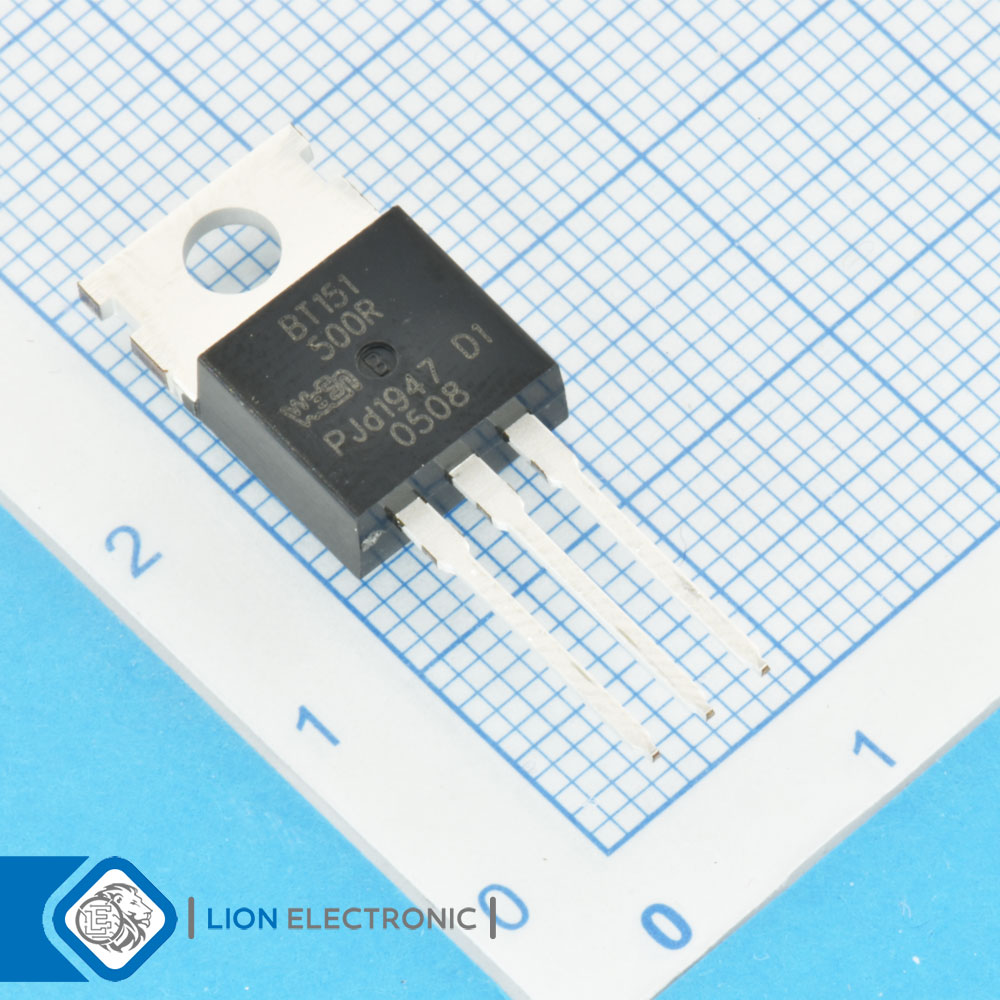

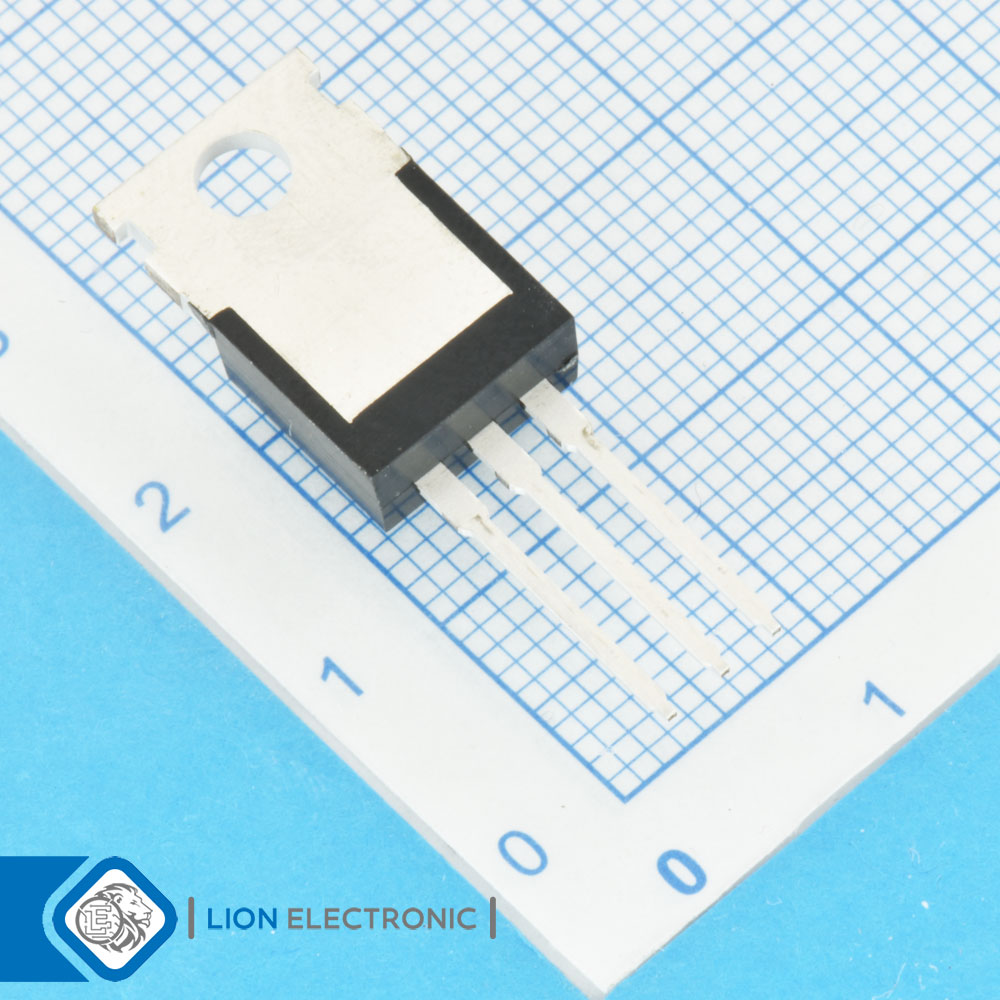

تریستور 500 ولت 12 آمپر با پکیج TO-220-3
Thyristor 500V, 12A with TO-220-3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 500V
- On-State RMS Current - It RMS: 12A
- Gate Trigger Voltage - Vgt: 600mV
- Gate Trigger Current - Igt: 2mA
- Maximum Gate Peak Inverse Voltage: 5V
- Off-State Leakage Current @ VDRM IDRM: 100uA
- Holding Current Ih Max: 20mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات تریستور BT151-500R
تریستور BT151-500R
Part Number
5V
Maximum Gate Peak Inverse Voltage
600mV
Gate Trigger Voltage - Vgt
2mA
Gate Trigger Current - Igt
20mA
Holding Current Ih Max
12A
On-State RMS Current - It RMS
500V
Rated Repetitive Off-State Voltage VDRM
100uA
Off-State Leakage Current @ VDRM IDRM
-40C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
N/A
Breakover Current IBO Max
+125C
Maximum Operating Temperature
N/A
Vf - Forward Voltage
TO-220
Package-Case
