WeEn/NXP
معرفی

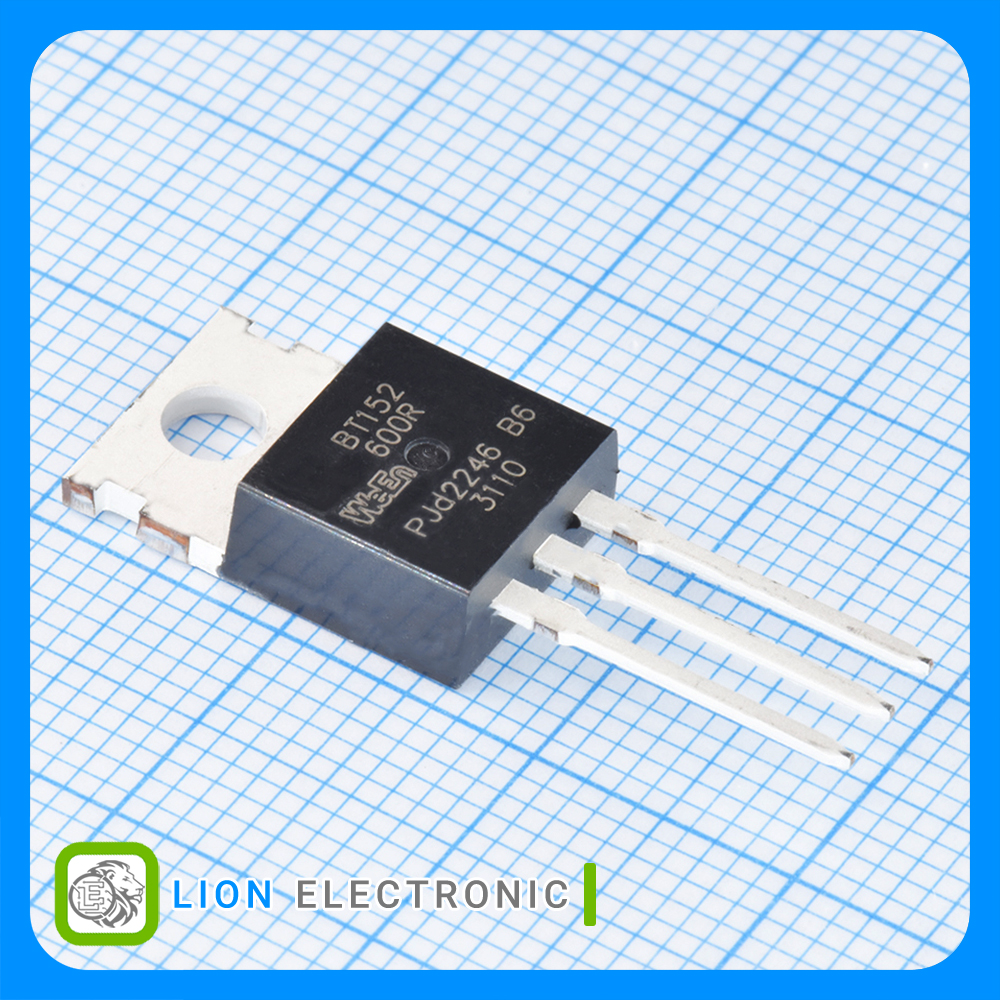

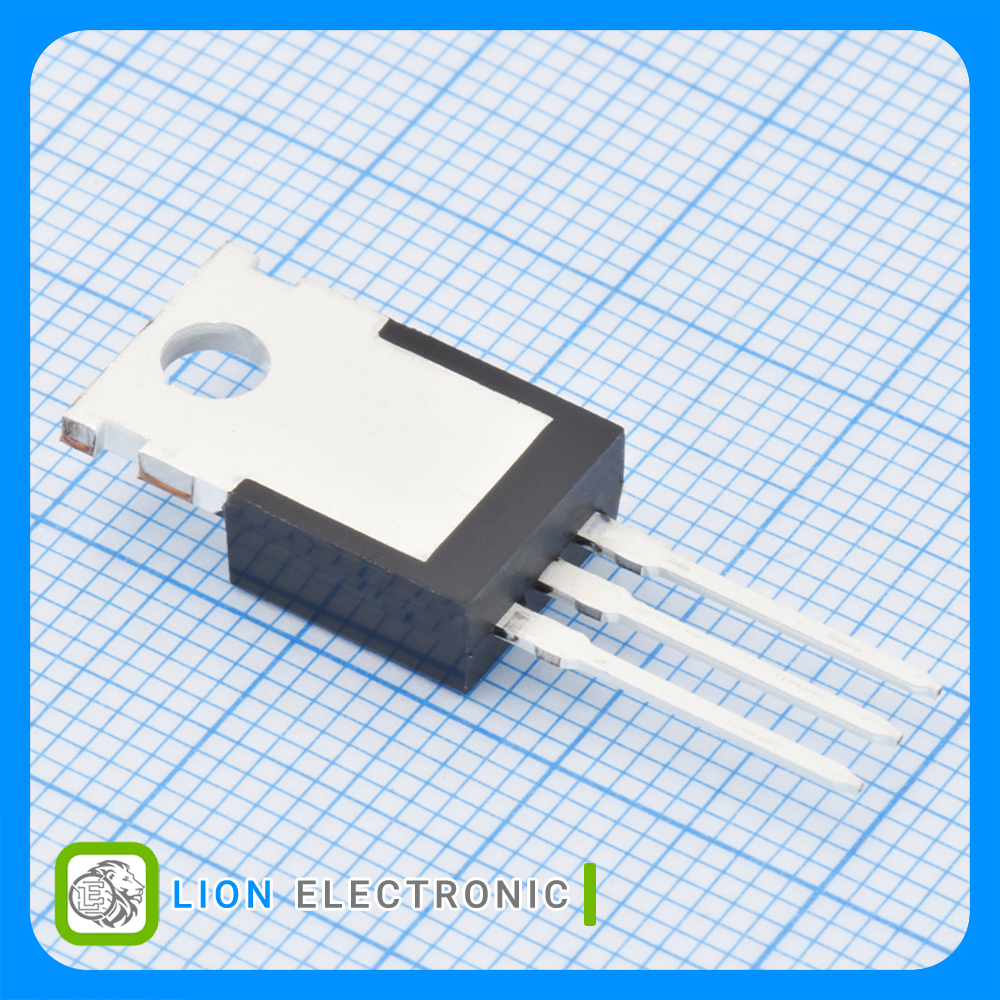

تریستور BT152 با 650 ولت 20 آمپر با پکیج TO-220-3
Thyristors BT152 650V, 20A with TO-220-3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 650V
- On-State RMS Current - It RMS: 20A
- Vf - Forward Voltage: 1.75V
- Gate Trigger Voltage - Vgt: 600mV
- Gate Trigger Current - Igt: 3mA
- Maximum Gate Peak Inverse Voltage: 5V
- Breakover Current IBO Max: 220A
- Off-State Leakage Current @ VDRM IDRM: 1mA
- Holding Current Ih Max: 60mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات BT152-600R
BT152-600R
Part Number
600mV
Gate Trigger Voltage - Vgt
5V
Maximum Gate Peak Inverse Voltage
3mA
Gate Trigger Current - Igt
-40C
Minimum Operating Temperature
20A
On-State RMS Current - It RMS
650V
Rated Repetitive Off-State Voltage VDRM
220A
Breakover Current IBO Max
1mA
Off-State Leakage Current @ VDRM IDRM
Tube
Packaging
Through Hole
Mounting Style
60mA
Holding Current Ih Max
+125C
Maximum Operating Temperature
1.75V
Vf - Forward Voltage
TO-220-3
Package-Case
