معرفی

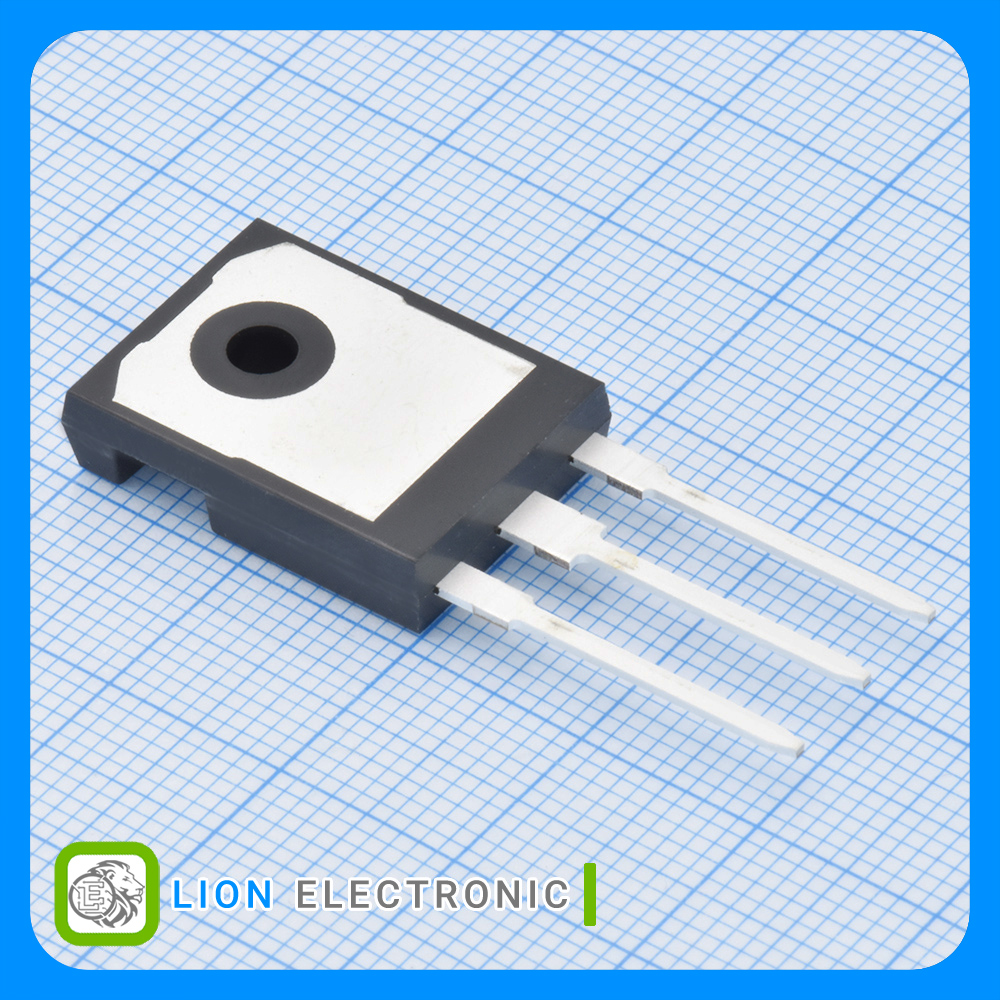

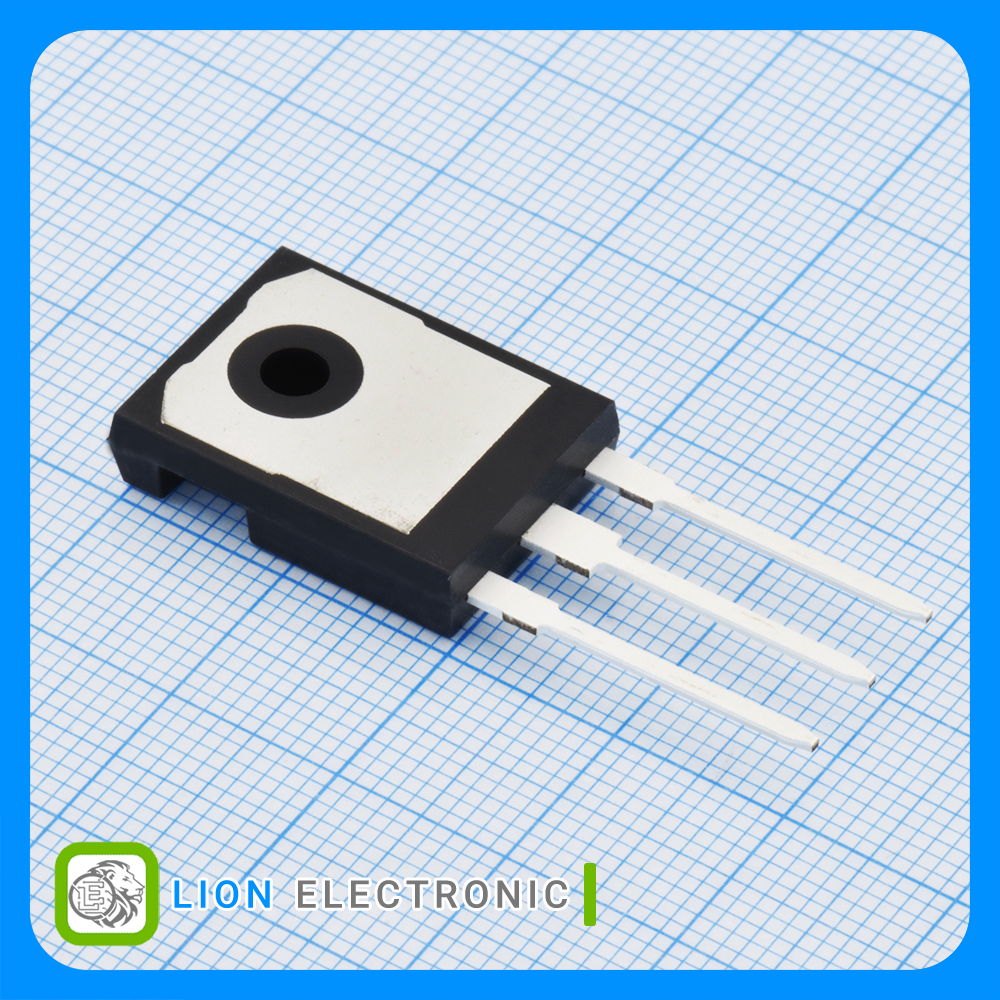

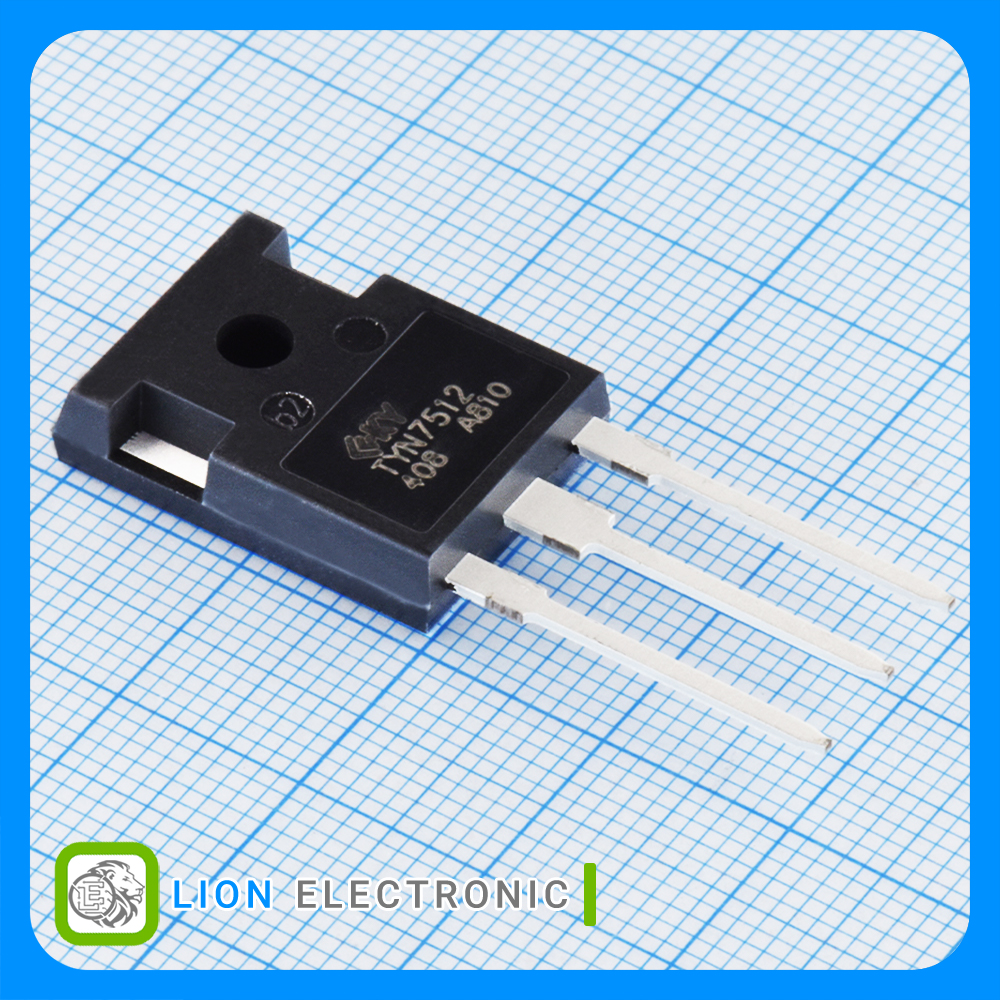

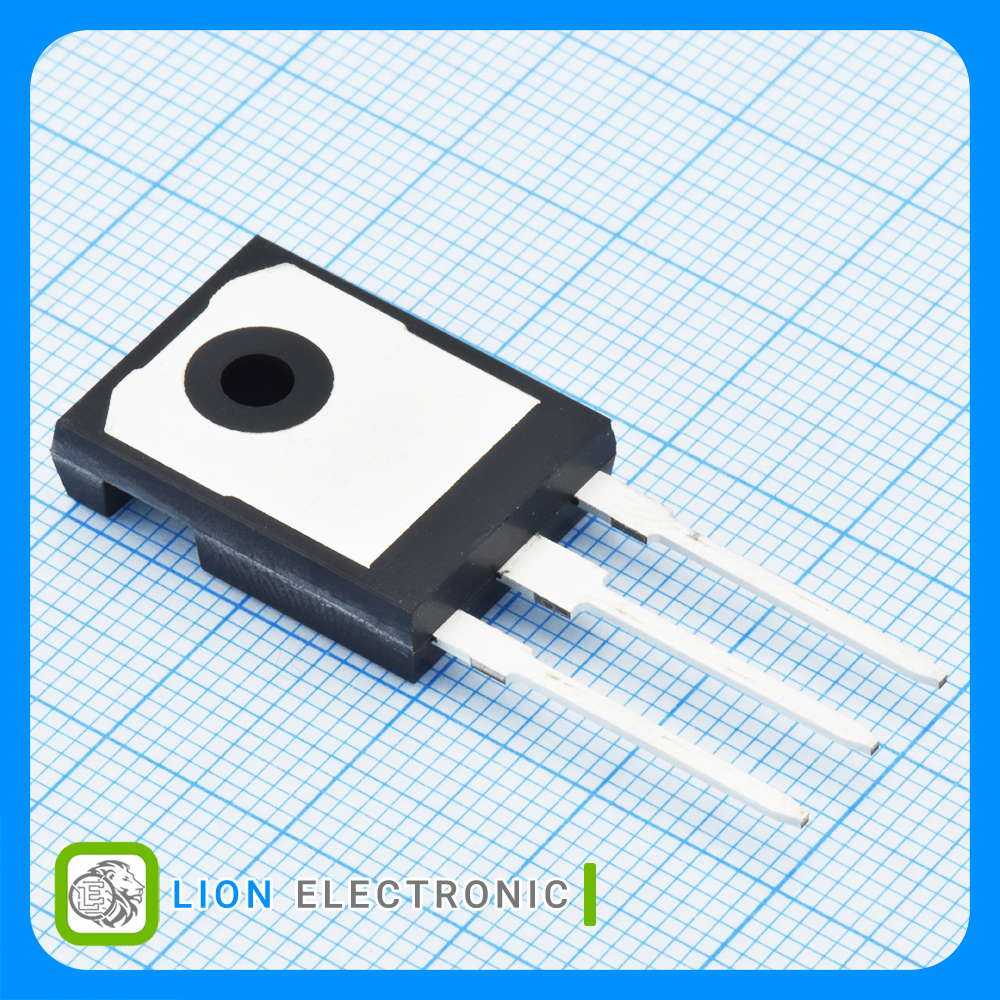

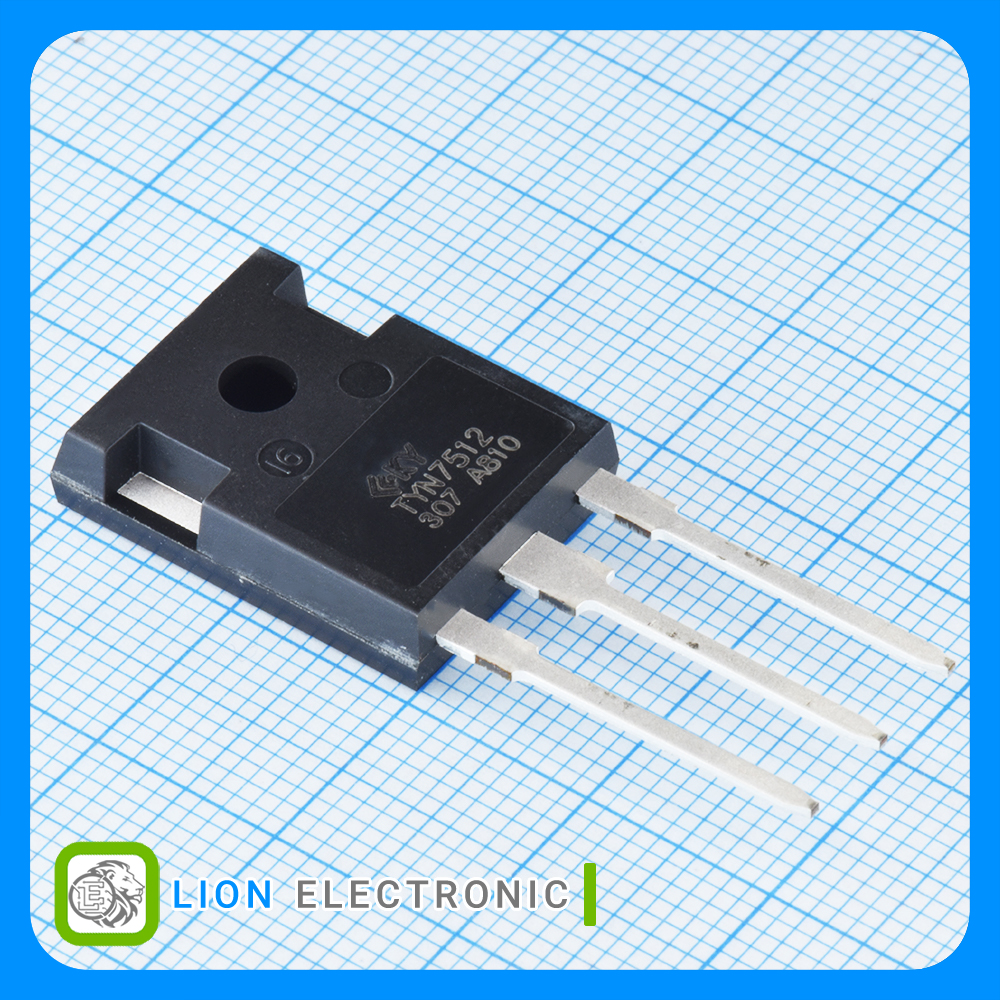

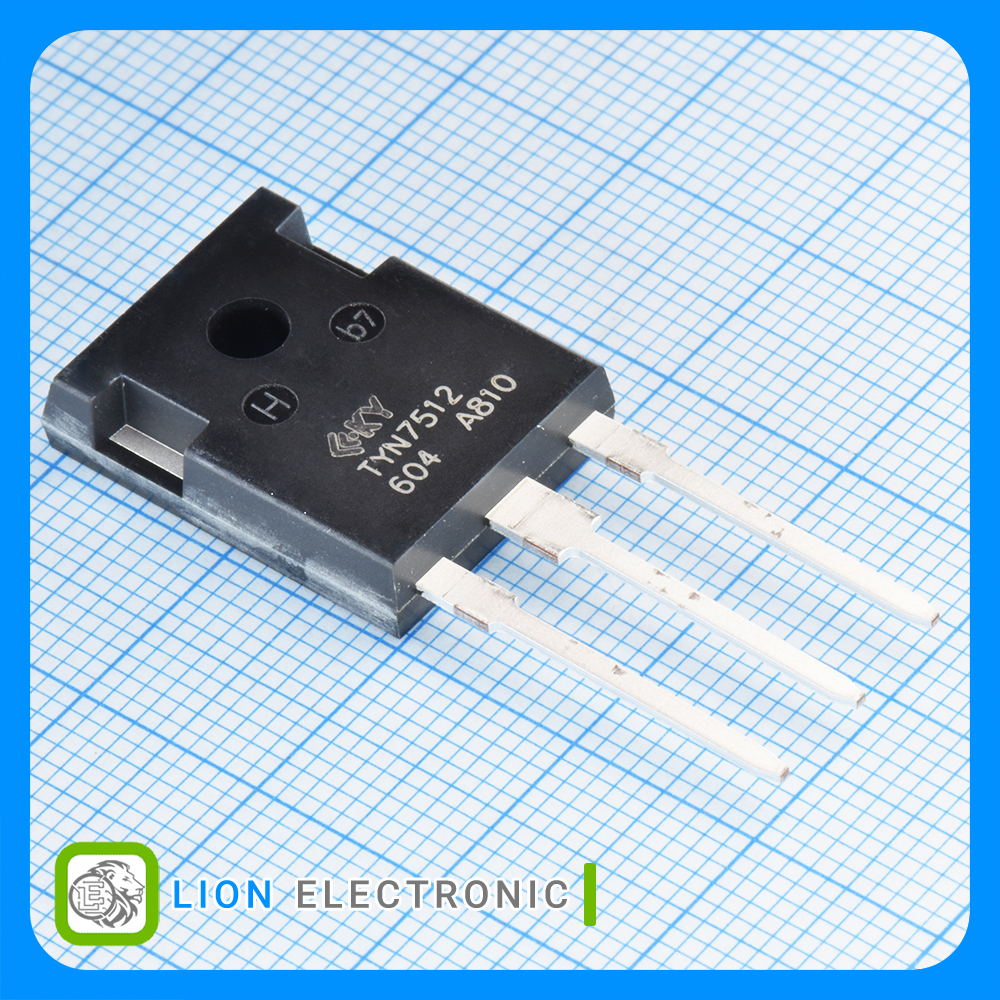

تریستور 1.2 کیلوولت 75 آمپر با پکیج TO-247J
SCR 1.2kV, 75A with TO-247J Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 1.2kV
- On-State RMS Current - It RMS: 75A
- Vf - Forward Voltage: 1.5V
- Gate Trigger Voltage - Vgt: 1.3V
- Gate Trigger Current - Igt: 70mA
- Breakover Current IBO Max: 800A
- Off-State Leakage Current @ VDRM IDRM: 50uA
- Holding Current Ih Max: 120mA
- Mounting Style: Through Hole
- Package/Case: TO-247J
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات TYN7512
TYN7512
Part Number
N/A
Maximum Gate Peak Inverse Voltage
50uA
Off-State Leakage Current @ VDRM IDRM
1.3V
Gate Trigger Voltage - Vgt
-40C
Minimum Operating Temperature
Tube
Packaging
1.2kV
Rated Repetitive Off-State Voltage VDRM
70mA
Gate Trigger Current - Igt
75A
On-State RMS Current - It RMS
Through Hole
Mounting Style
800A
Breakover Current IBO Max
120mA
Holding Current Ih Max
+150C
Maximum Operating Temperature
1.5V
Vf - Forward Voltage
TO-247J
Package-Case
