WeEn/NXP
معرفی

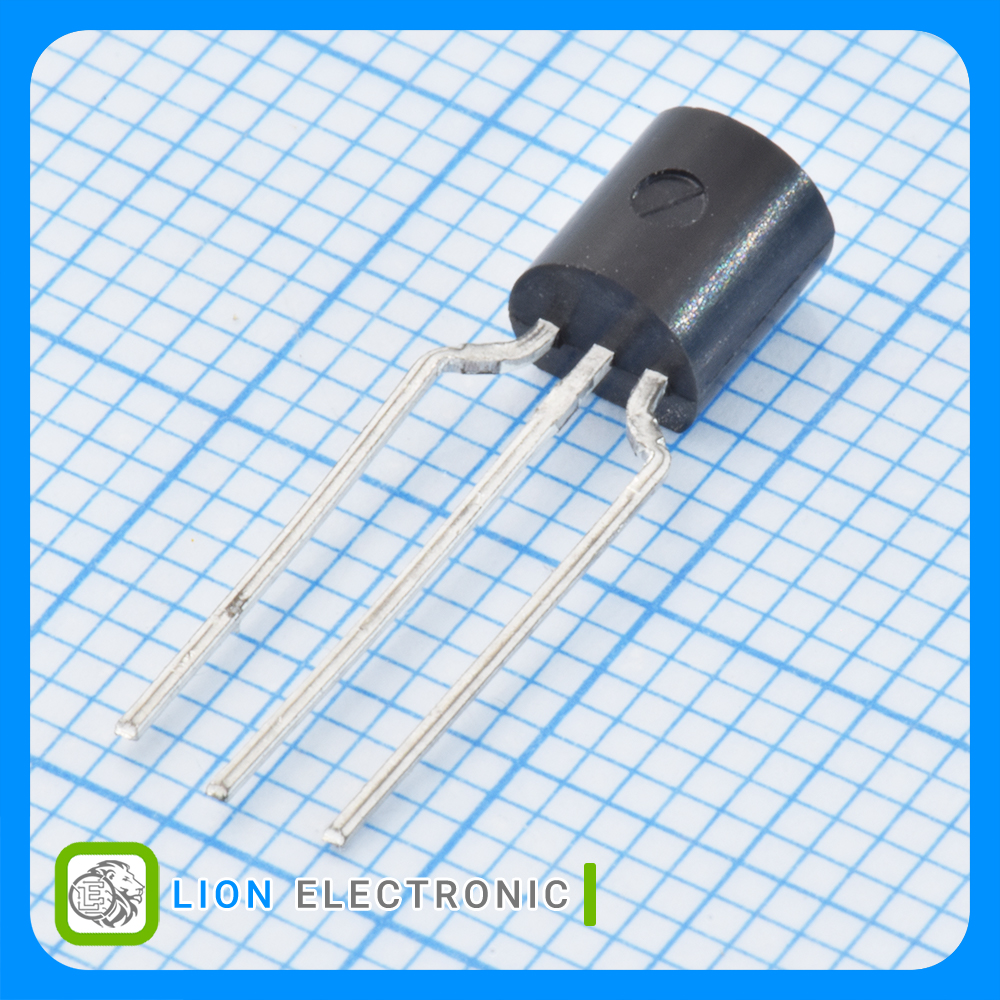

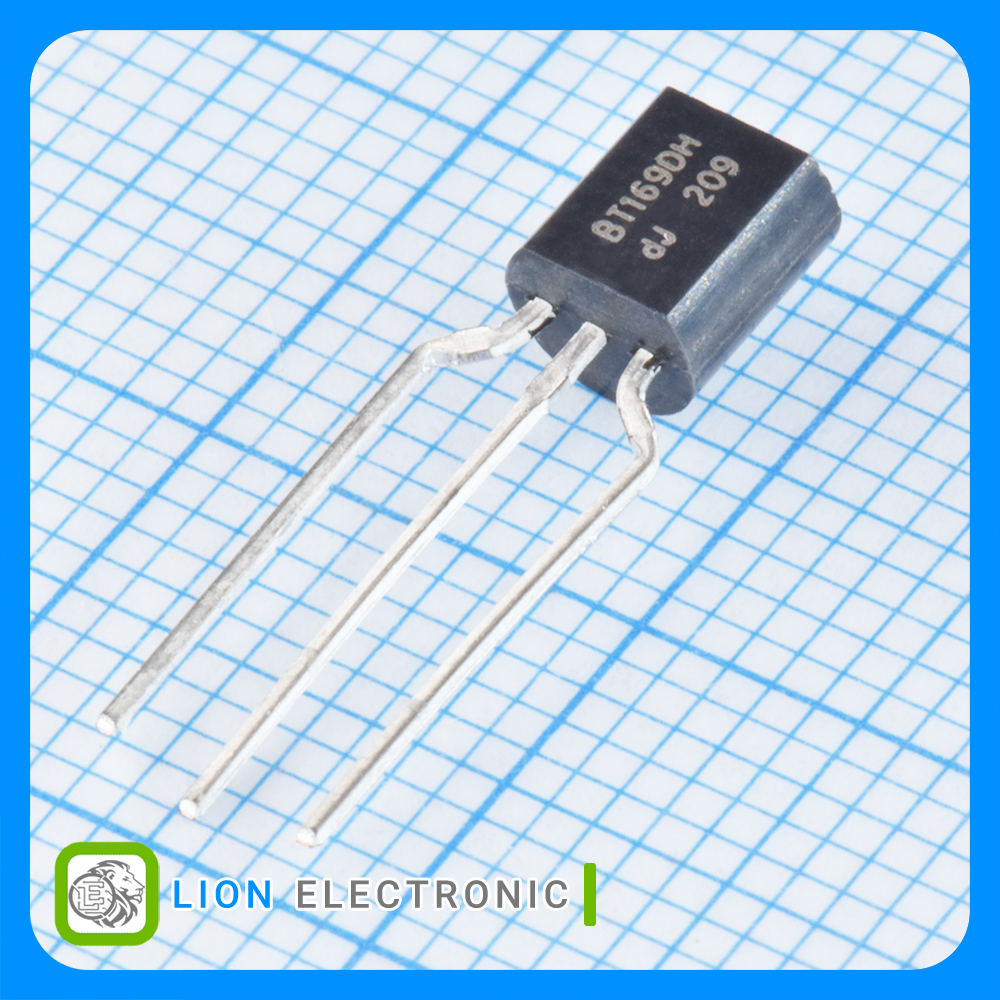

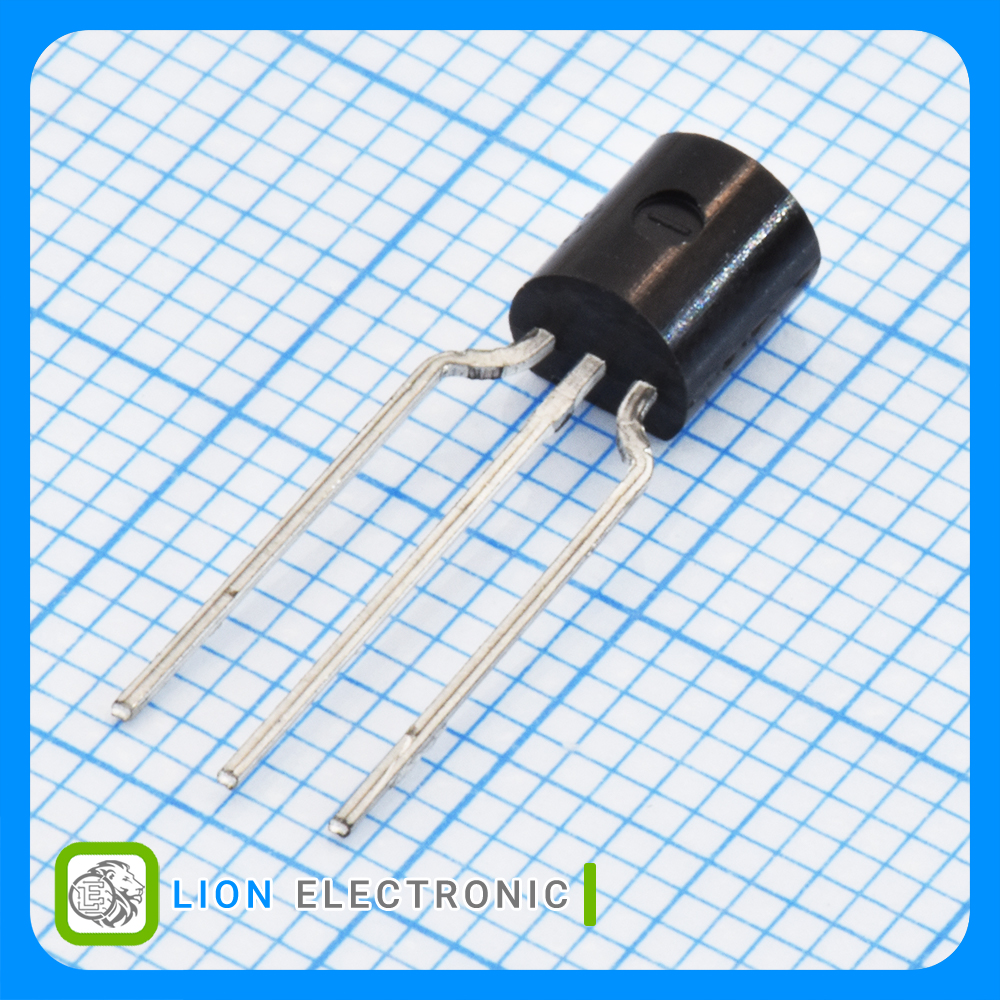

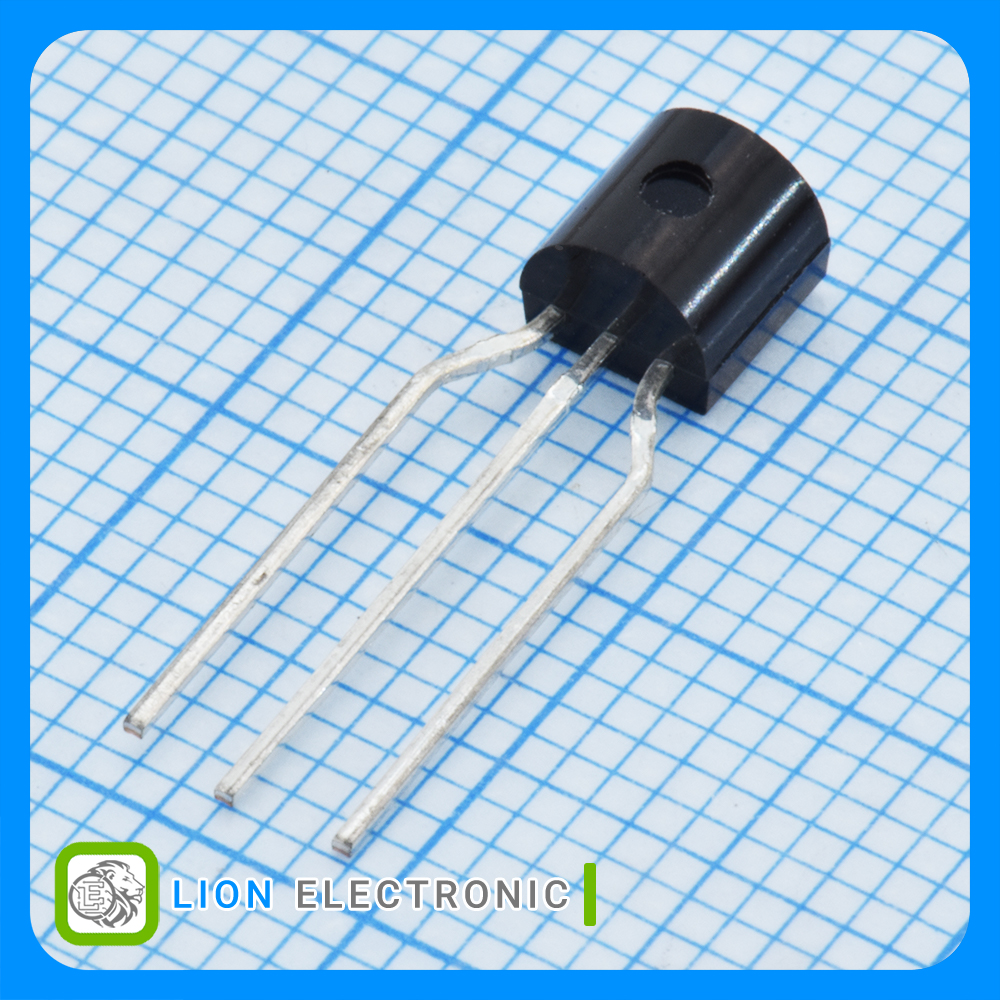

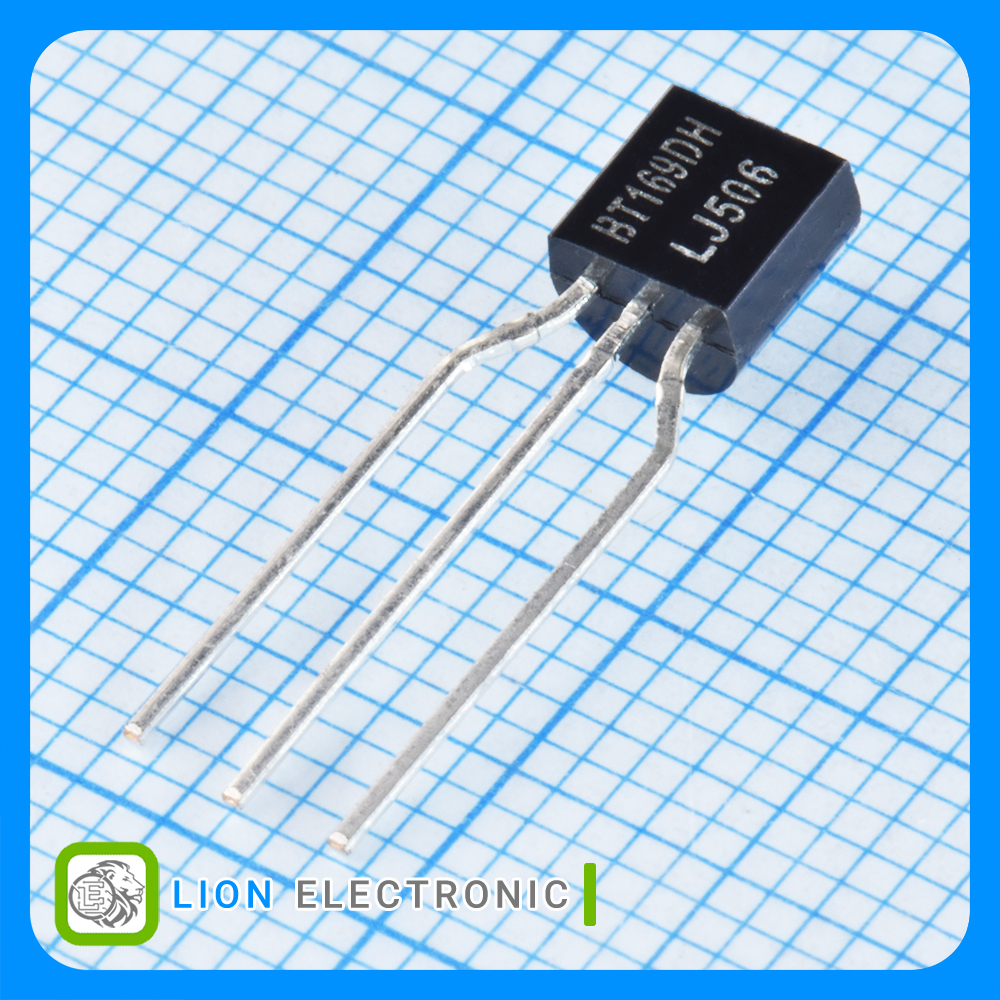

تریستور 400 ولت 800 میلیآمپر با پکیج TO-92-3
SCR 400V, 800mA with TO-92-3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 400V
- On-State RMS Current - It RMS: 800mA
- Vf - Forward Voltage: 1.7V
- Gate Trigger Voltage - Vgt: 800mV
- Gate Trigger Current - Igt: 200uA
- Maximum Gate Peak Inverse Voltage: 5V
- Breakover Current IBO Max: 9A
- Off-State Leakage Current @ VDRM IDRM: 100uA
- Holding Current Ih Max: 5mA
- Mounting Style: Through Hole
- Package/Case: TO-92 (SOT-54)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Bulk
مشخصات BT169D
BT169D
Part Number
5V
Maximum Gate Peak Inverse Voltage
200uA
Gate Trigger Current - Igt
800mA
On-State RMS Current - It RMS
5mA
Holding Current Ih Max
800mV
Gate Trigger Voltage - Vgt
Bulk
Packaging
400V
Rated Repetitive Off-State Voltage VDRM
100uA
Off-State Leakage Current @ VDRM IDRM
9A
Breakover Current IBO Max
-40C
Minimum Operating Temperature
Through Hole
Mounting Style
+125C
Maximum Operating Temperature
1.7V
Vf - Forward Voltage
TO-92
Package-Case
