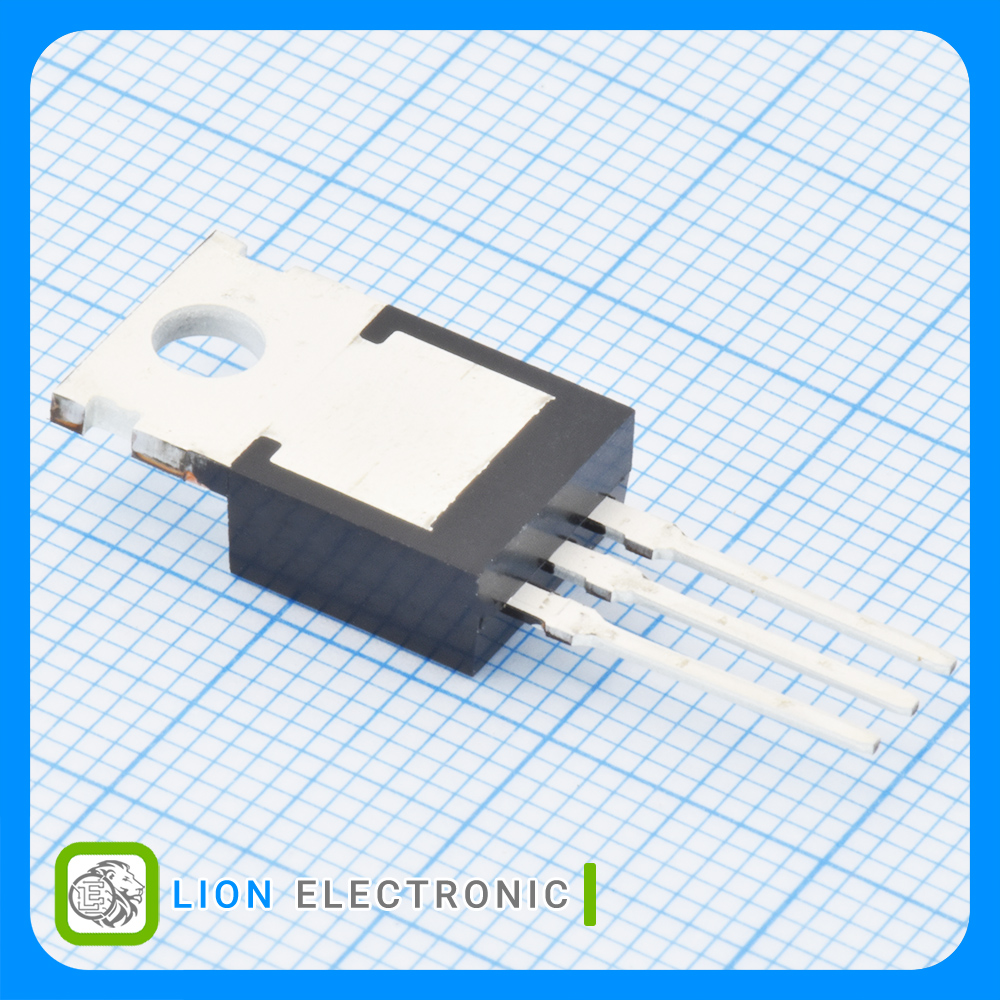

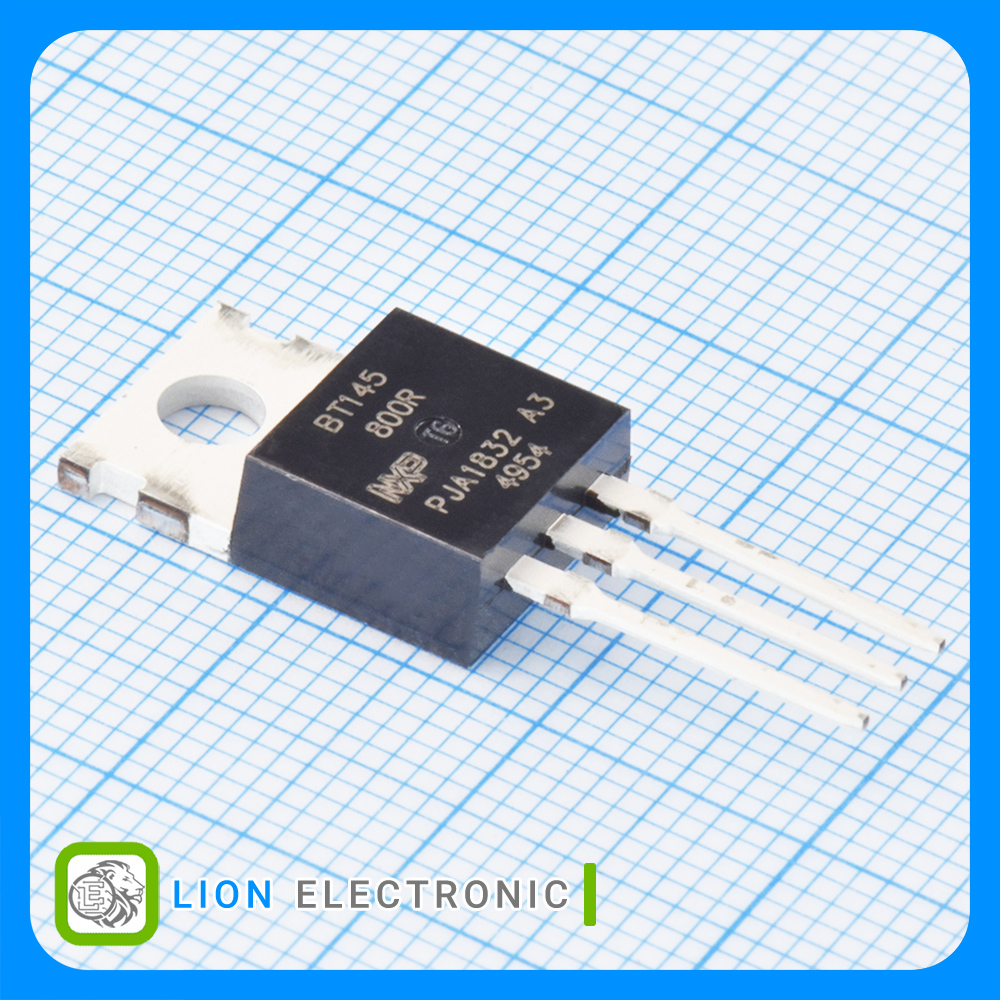

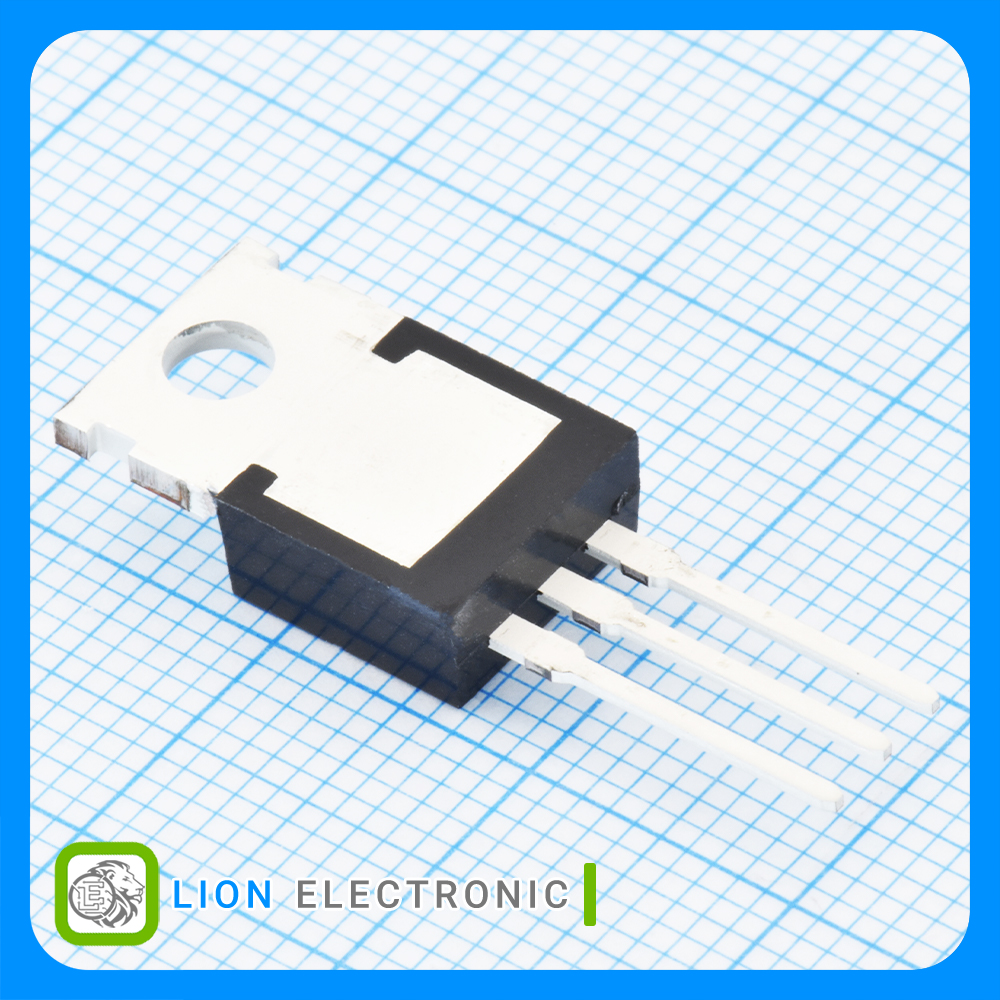

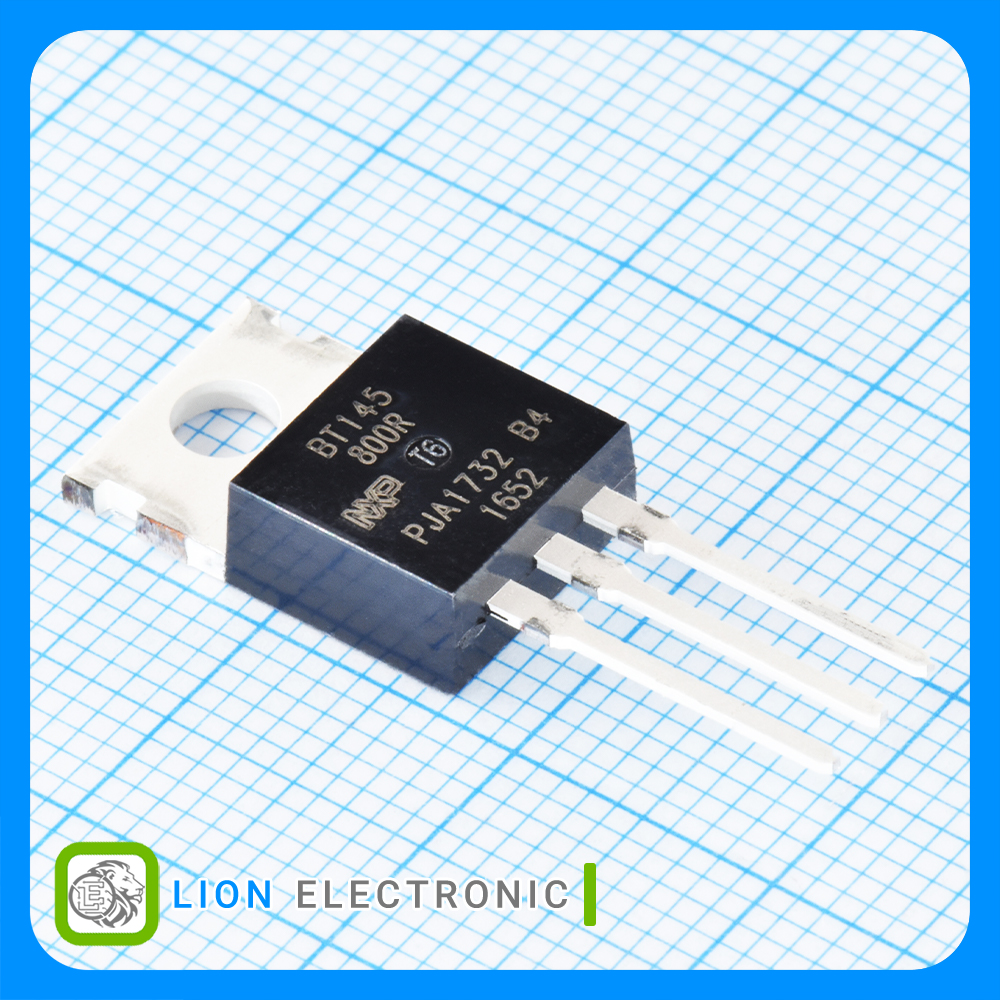

BT145-800R
BT145-800R
Part Number
43
Lion Part
Datasheet
NXP Semiconductors Manufacture
تریستور 800 ولت 25 آمپر با پکیج TO-220-3
Thyristor 800V, 25A with TO-220-3 Package
معرفی
تریستور 800 ولت 25 آمپر با پکیج TO-220-3
Thyristor 800V, 25A with TO-220-3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 800V
- On-State RMS Current - It RMS: 25A
- Vf - Forward Voltage: 1.5V
- Gate Trigger Voltage - Vgt: 600mV
- Gate Trigger Current - Igt: 5mA
- Maximum Gate Peak Inverse Voltage: 5V
- Breakover Current IBO Max: 330A
- Off-State Leakage Current @ VDRM IDRM: 200uA
- Holding Current Ih Max: 60mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات BT145-800R
BT145-800R
Part Number
600mV
Gate Trigger Voltage - Vgt
5V
Maximum Gate Peak Inverse Voltage
5mA
Gate Trigger Current - Igt
200uA
Off-State Leakage Current @ VDRM IDRM
-40C
Minimum Operating Temperature
25A
On-State RMS Current - It RMS
Tube
Packaging
800V
Rated Repetitive Off-State Voltage VDRM
330A
Breakover Current IBO Max
Through Hole
Mounting Style
60mA
Holding Current Ih Max
+125C
Maximum Operating Temperature
1.5V
Vf - Forward Voltage
TO-220-3
Package-Case
