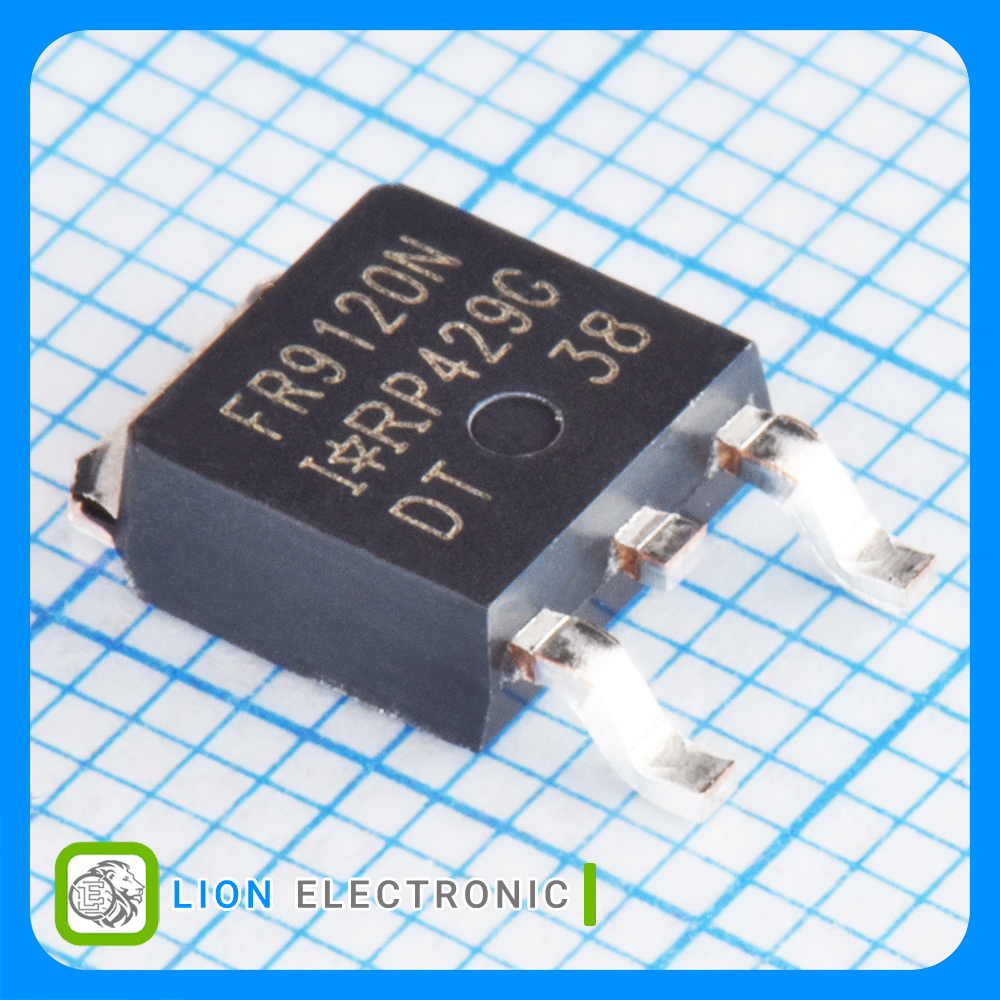

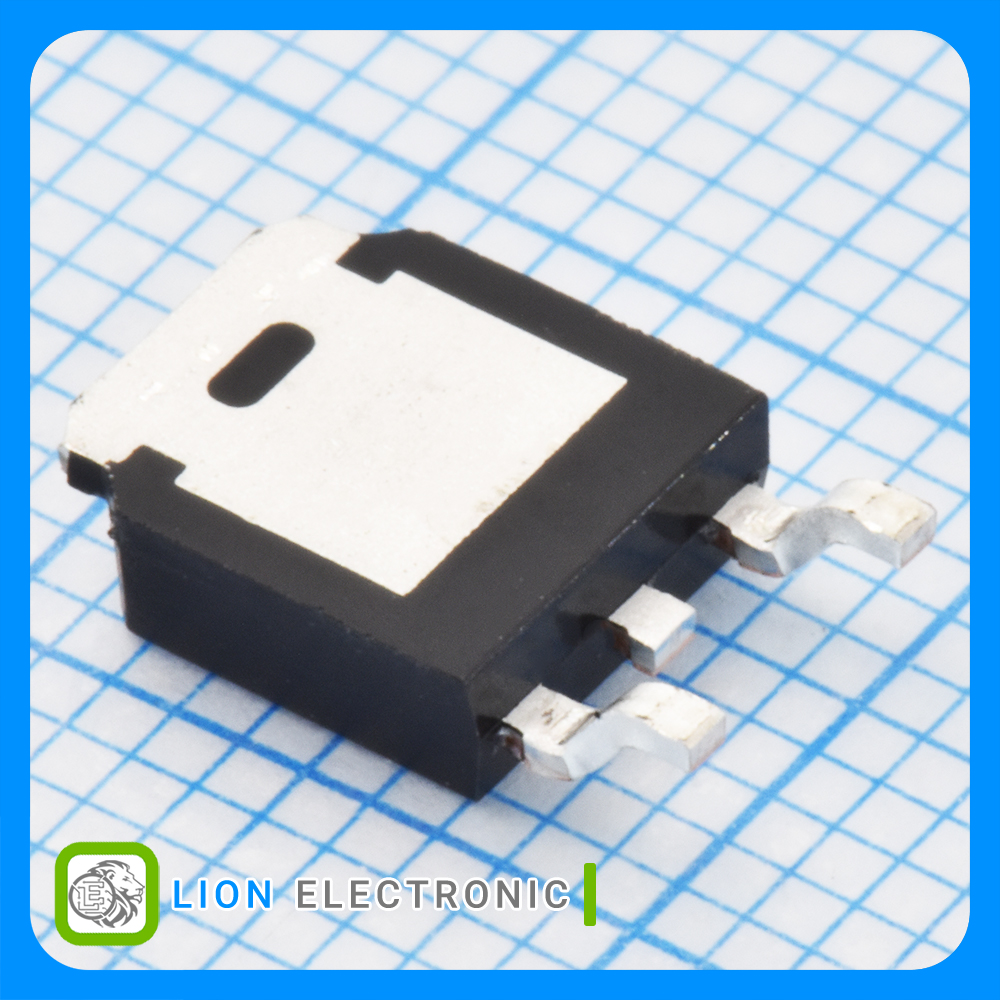

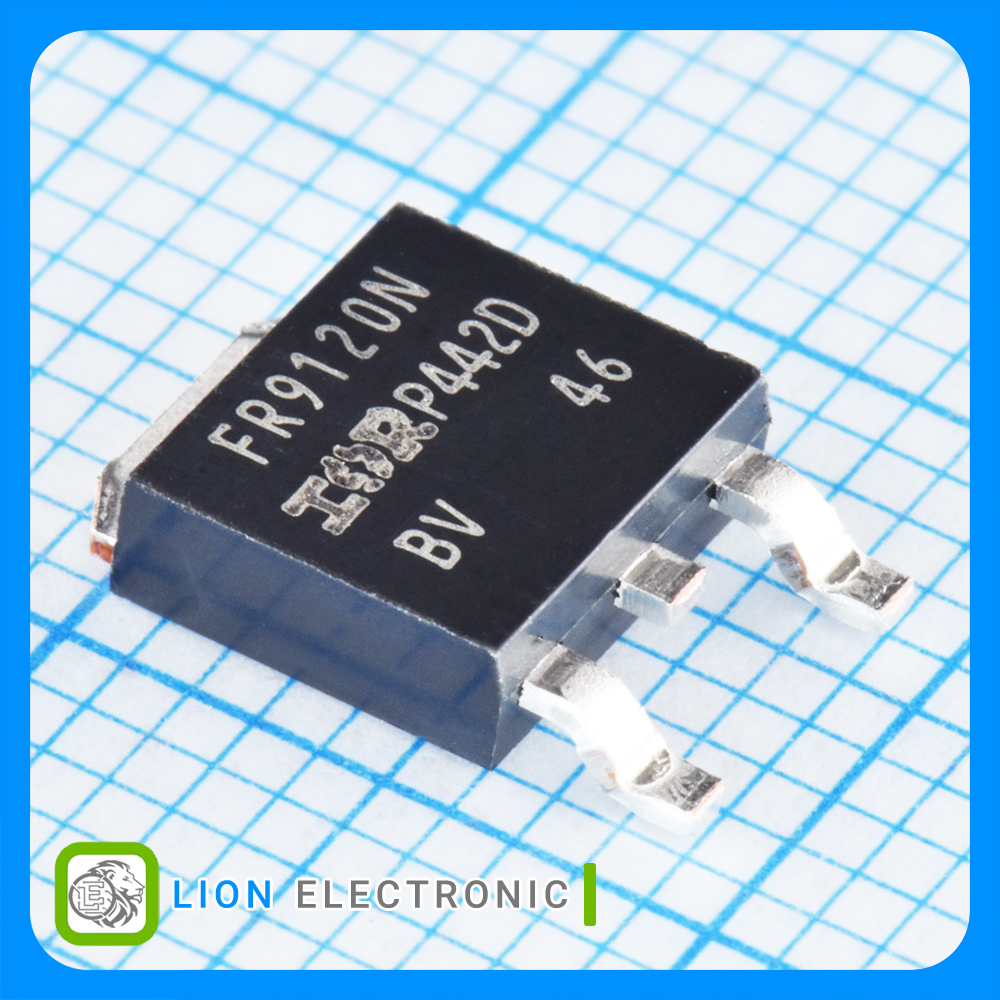

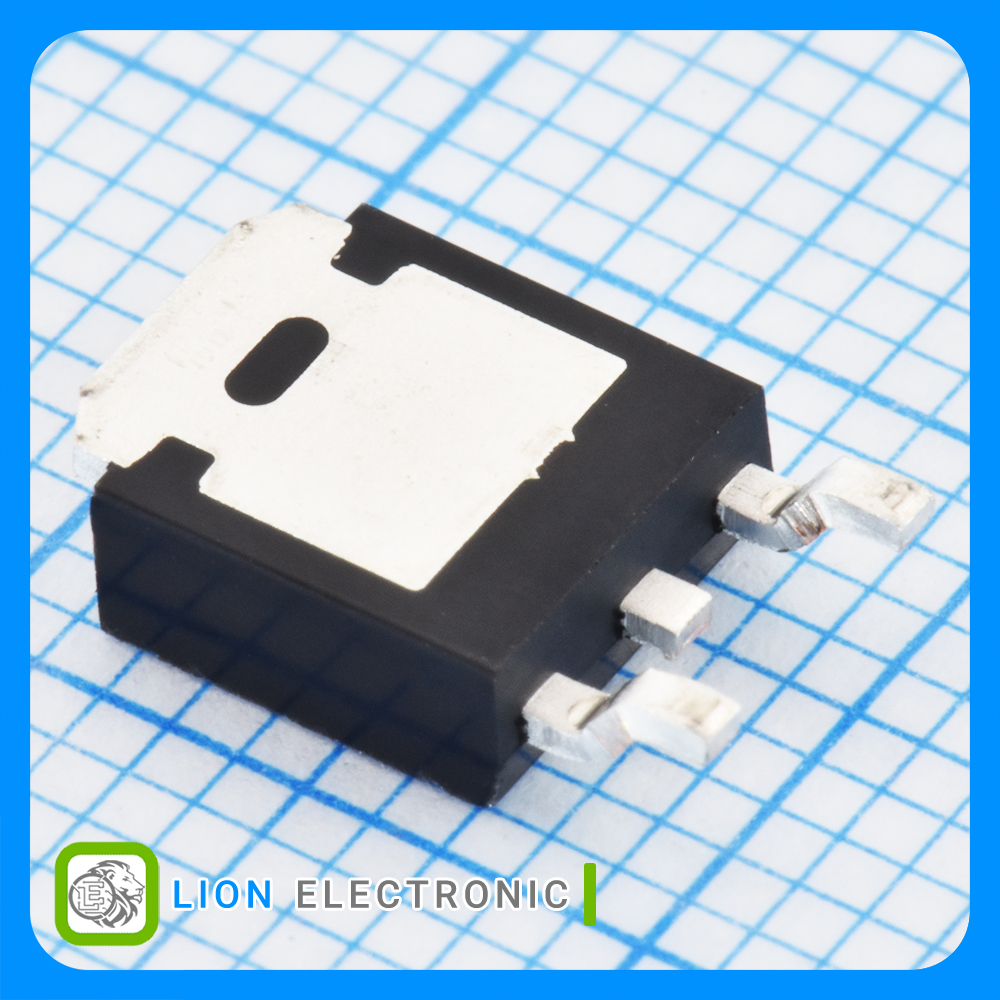

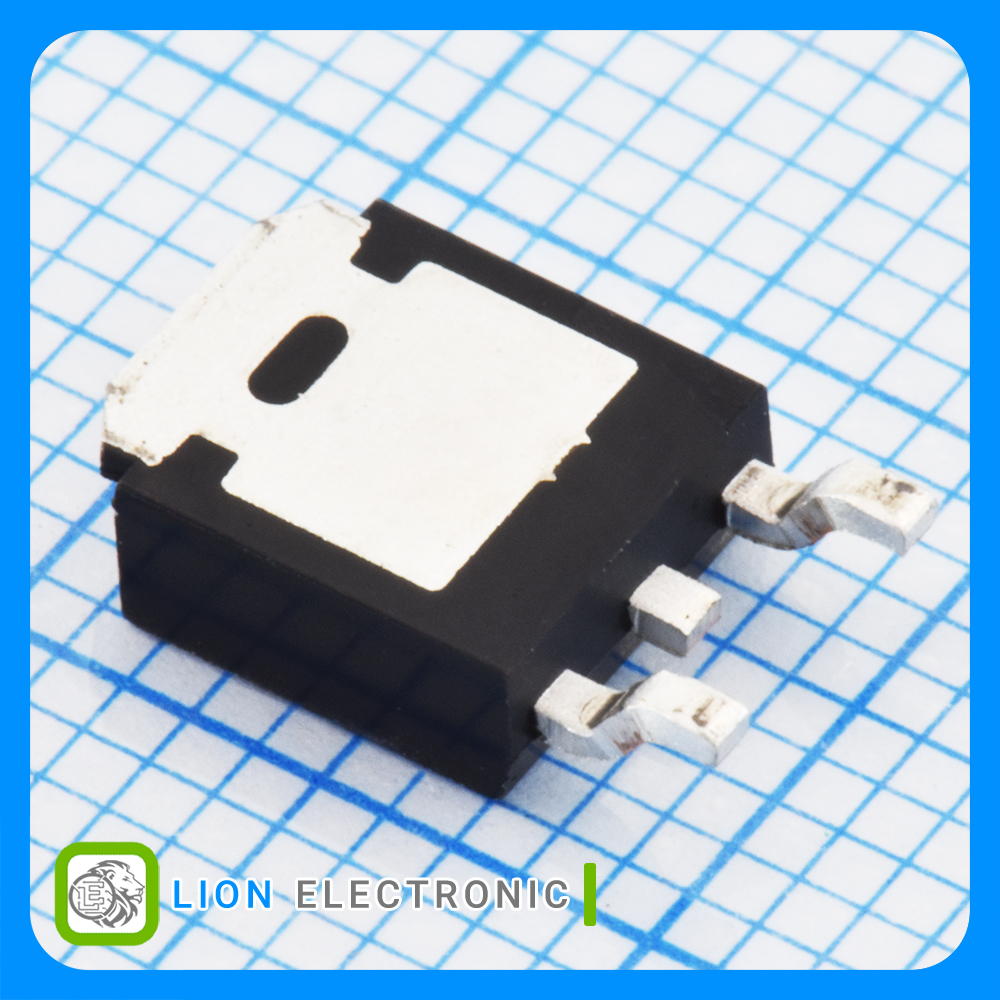

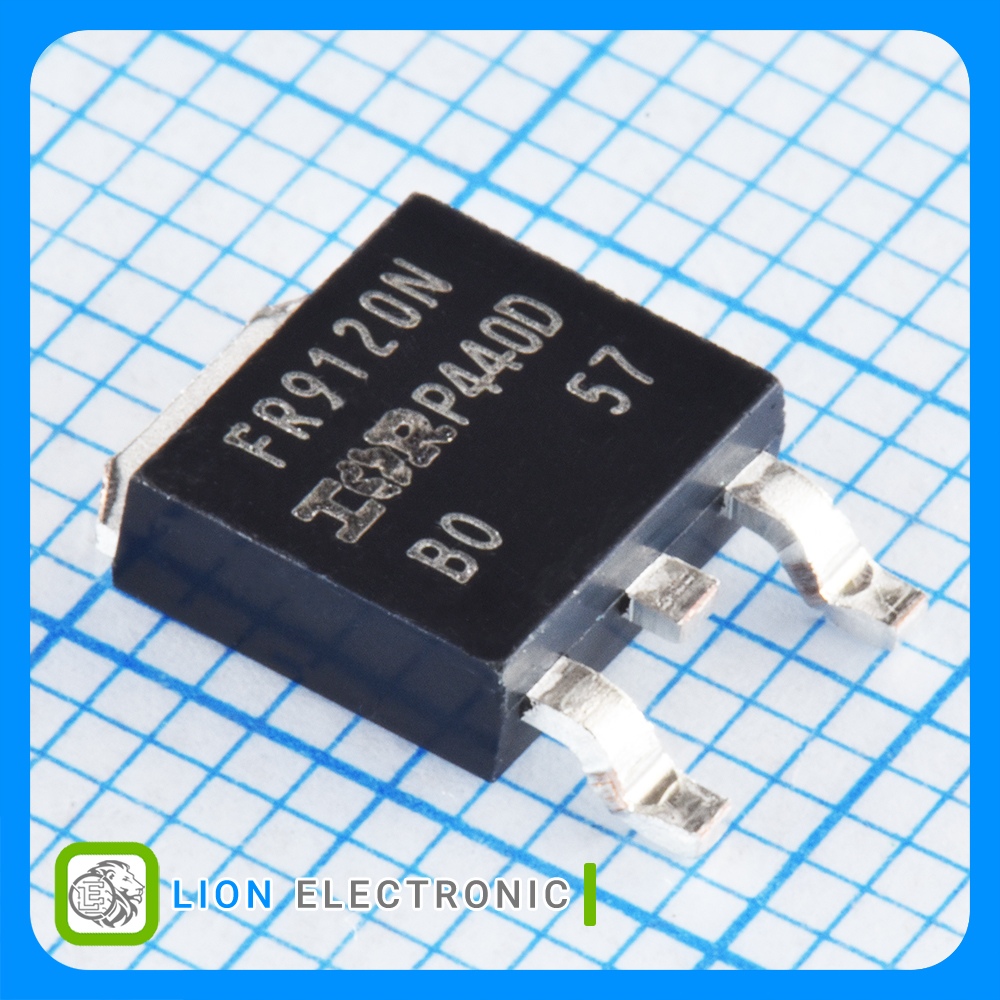

IRFR9120NTRPBF
IRFR9120NTRPBF
Part Number
2607
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت -100 ولت -6.6 آمپر نوع P با پکیج TO-252-3
P-Channel MOSFET -100V, -6.6A with TO-252-3 Package
معرفی
ماسفت -100 ولت -6.6 آمپر نوع P با پکیج TO-252-3
P-Channel MOSFET -100V, -6.6A with TO-252-3 Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: -100V
- Id - Continuous Drain Current: -6.6A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 480mΩ
- Pd - Power Dissipation: 40W
- Qg - Gate Charge: 27nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت IRFR9120NTRPBF
ماسفت IRFR9120NTRPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-100V
Vds - Drain - Source Breakdown Voltage
-55C
Minimum Operating Temperature
-2V
Vgs th - Gate - Source Threshold Voltage
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
-6.6A
Id - Continuous Drain Current
+150C
Maximum Operating Temperature
27nC
Qg - Gate Charge
40W
Pd - Power Dissipation
DPAK
Package-Case
480mΩ
Rds On - Drain - Source Resistance
