TOSHIBA
معرفی

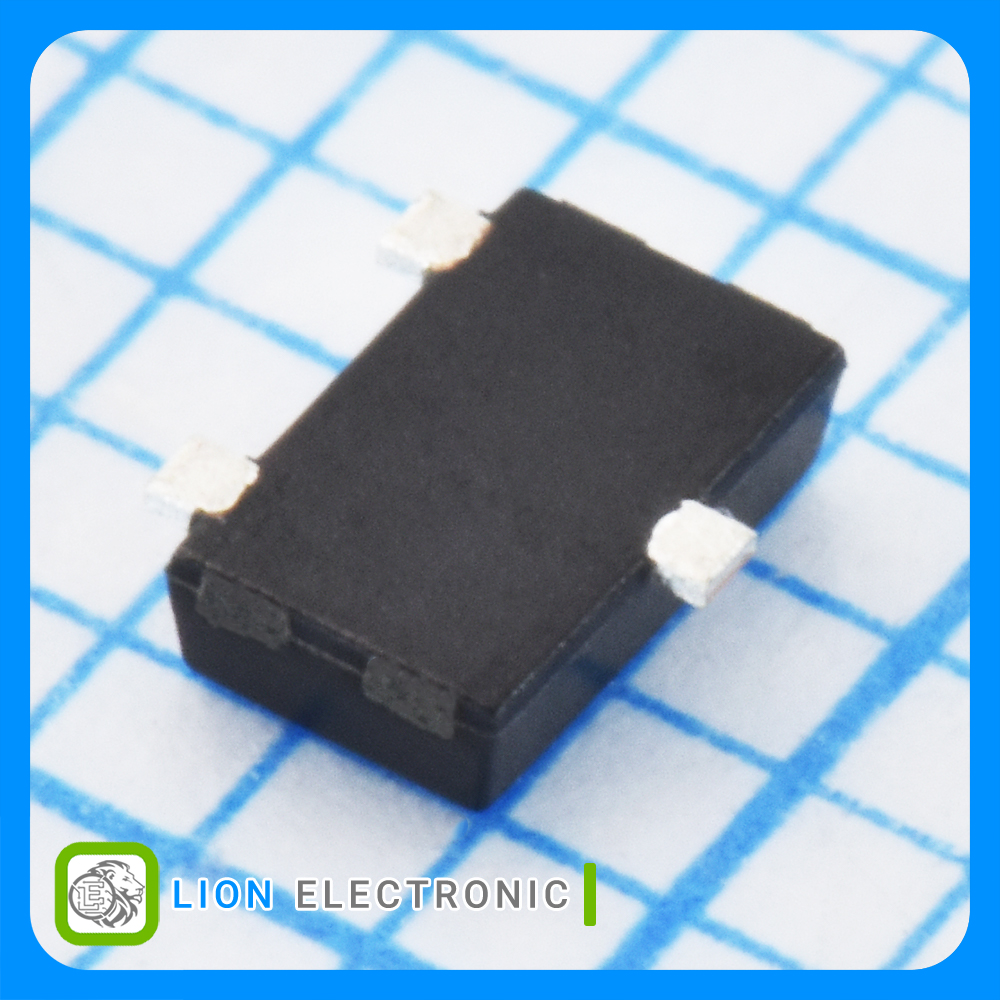

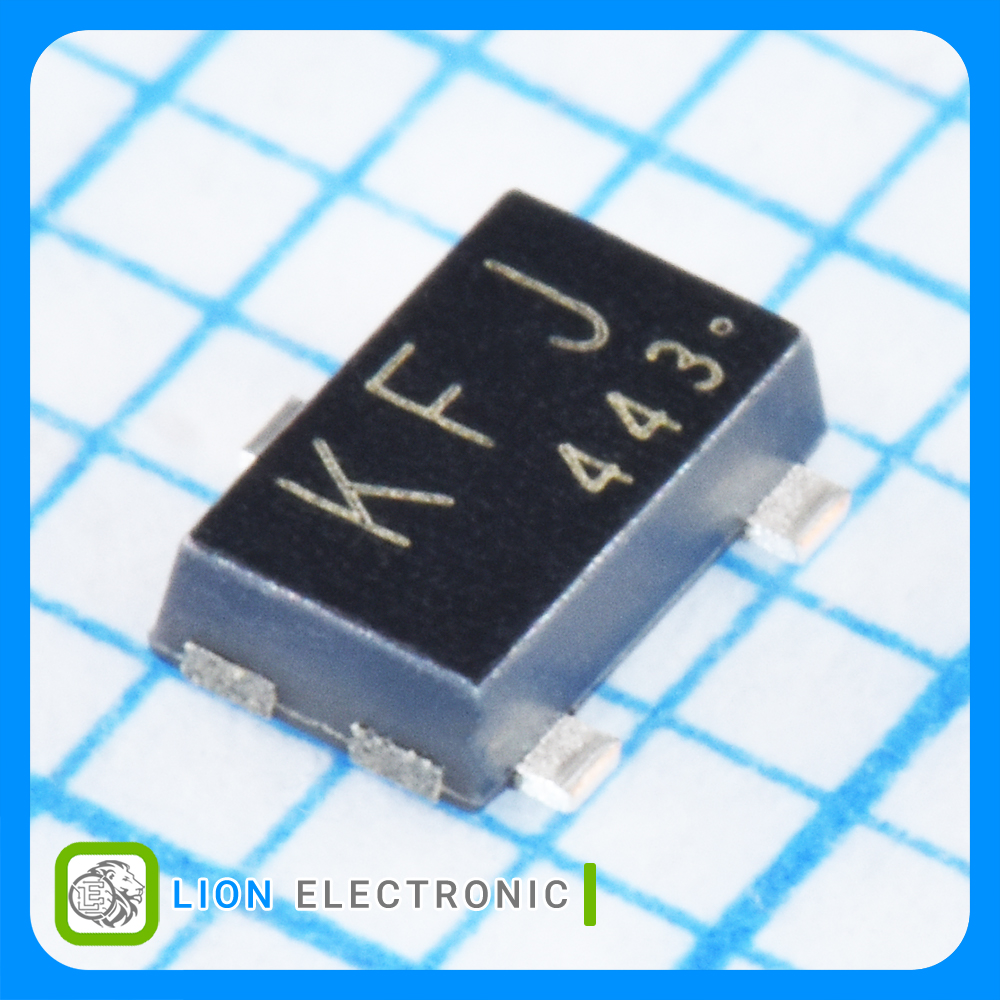

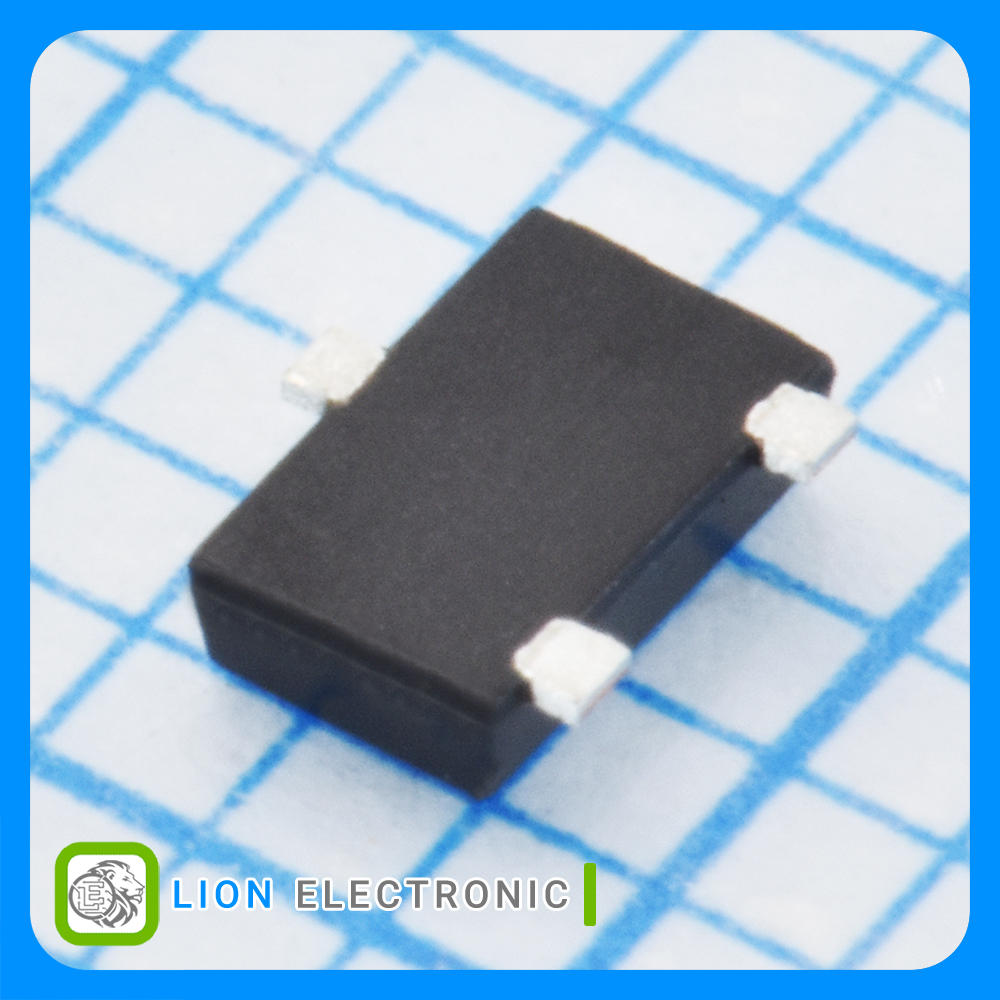

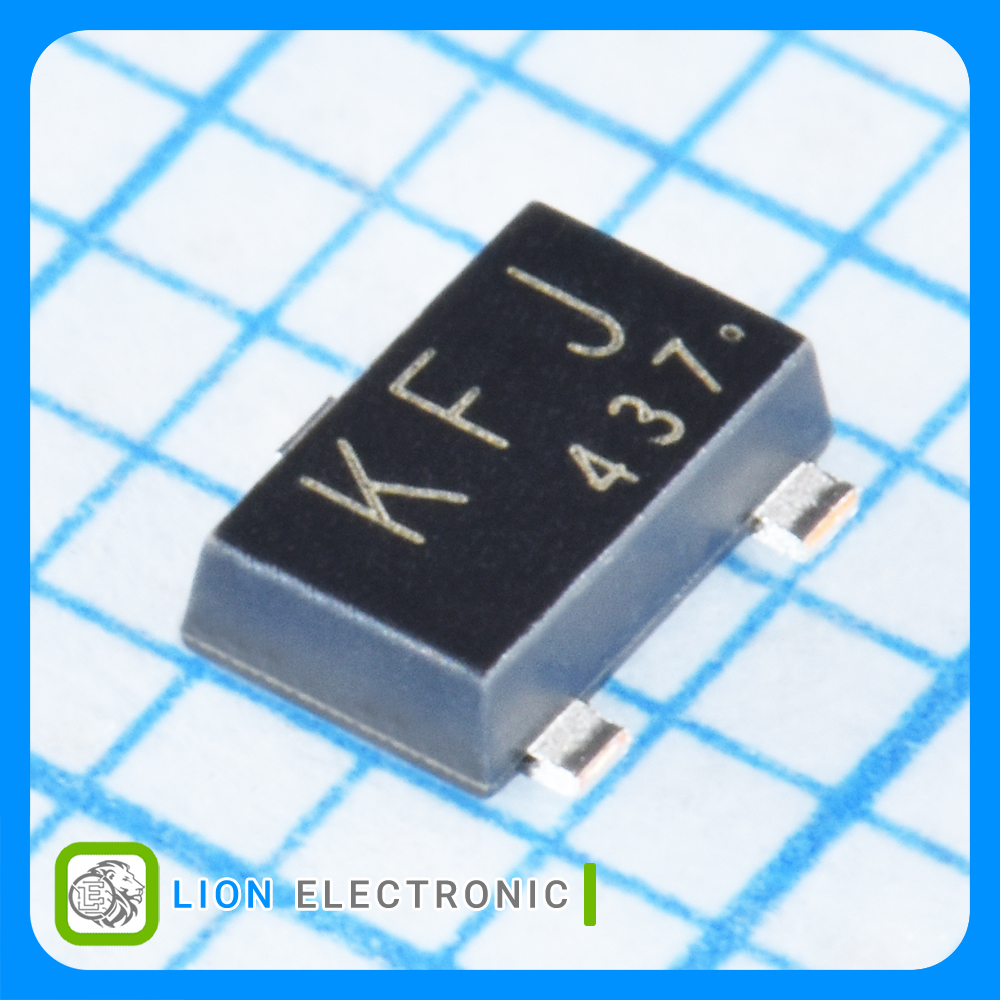

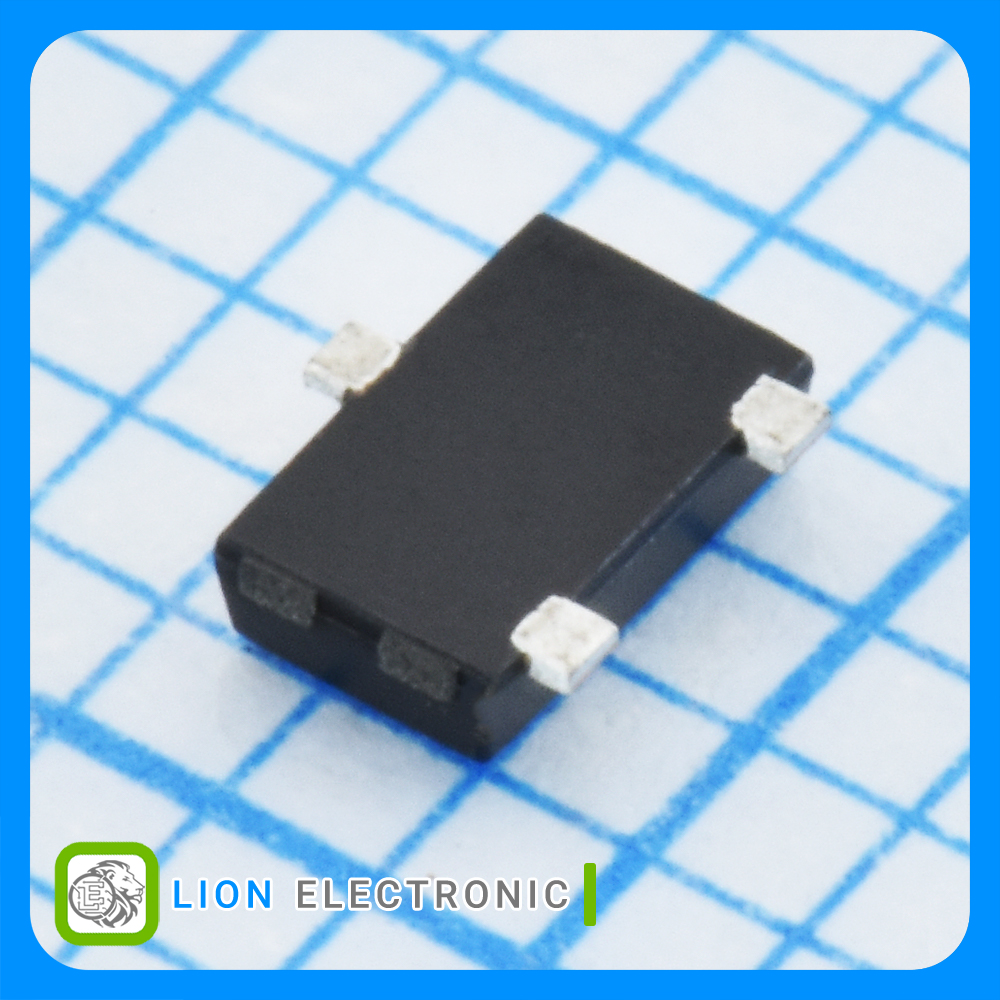

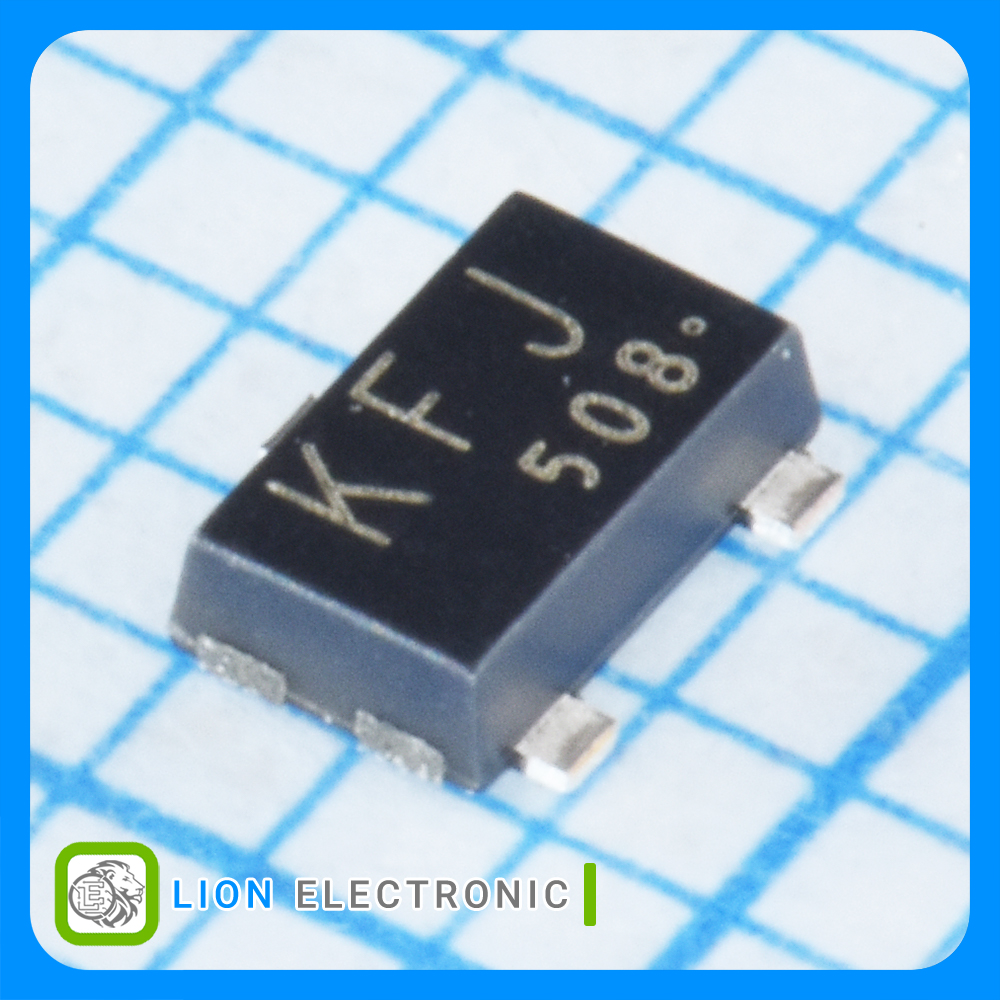

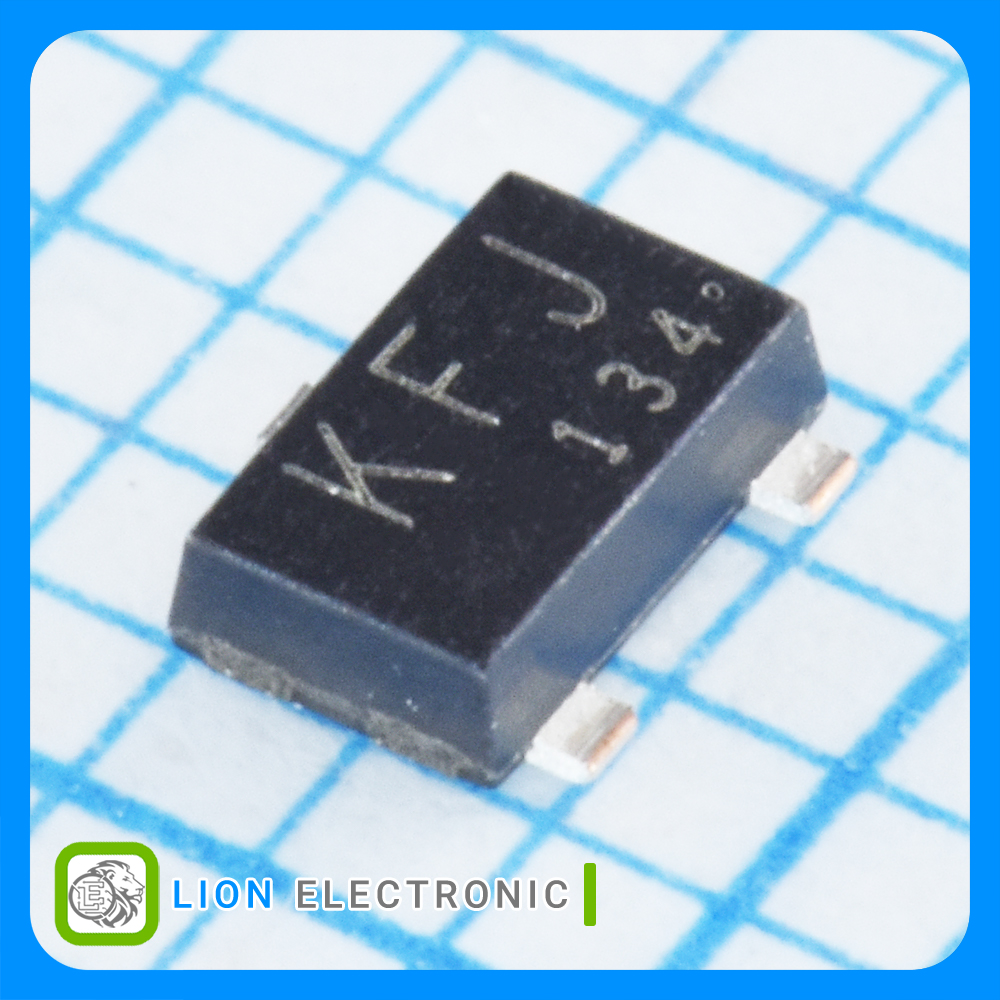

ماسفت 30 ولت 6 آمپر نوع P با پکیج SOT-23-3
P-CH MOSFET 30V, 6A with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: -30V
- Id - Continuous Drain Current: -6A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -500mV
- Vgs - Gate - Source Voltage: ±12V
- Rds On - Drain - Source Resistance: 36mΩ
- Pd - Power Dissipation: 1W
- Qg - Gate Charge: 8.2nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -50C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات SSM3J332R,LF

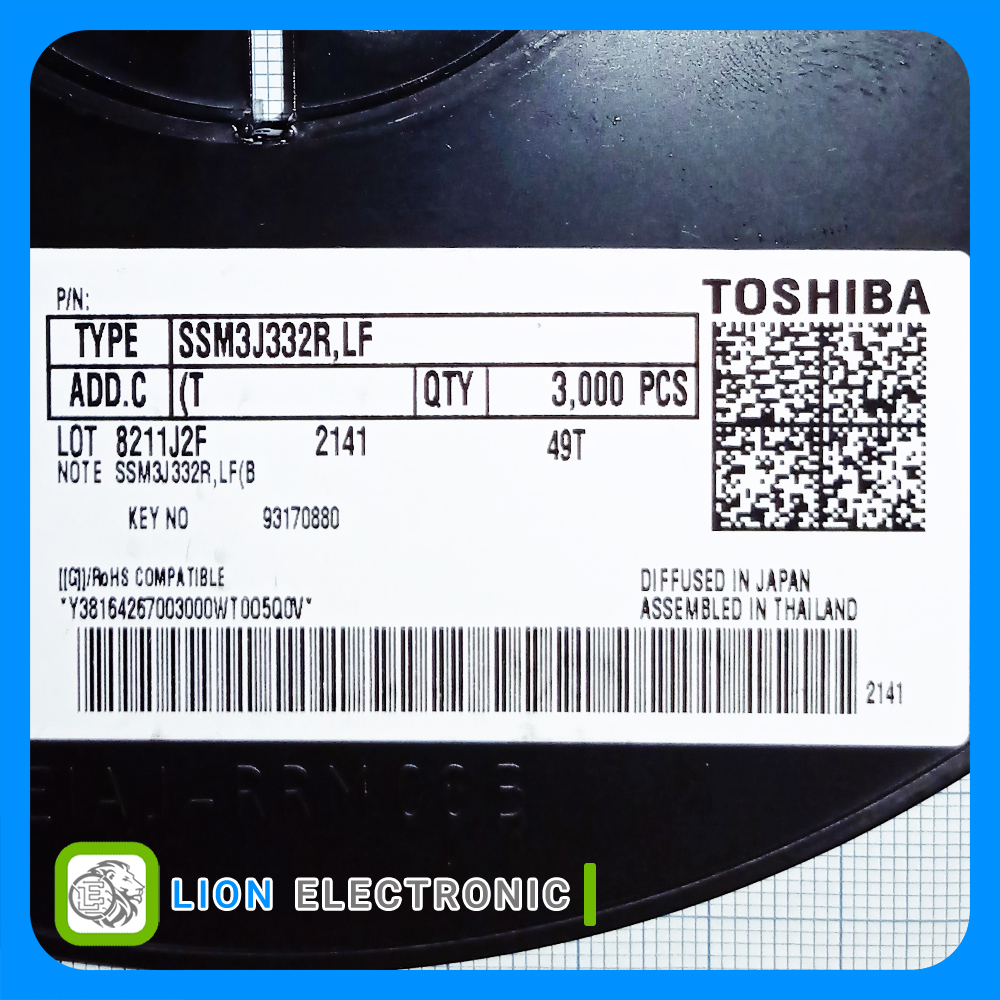

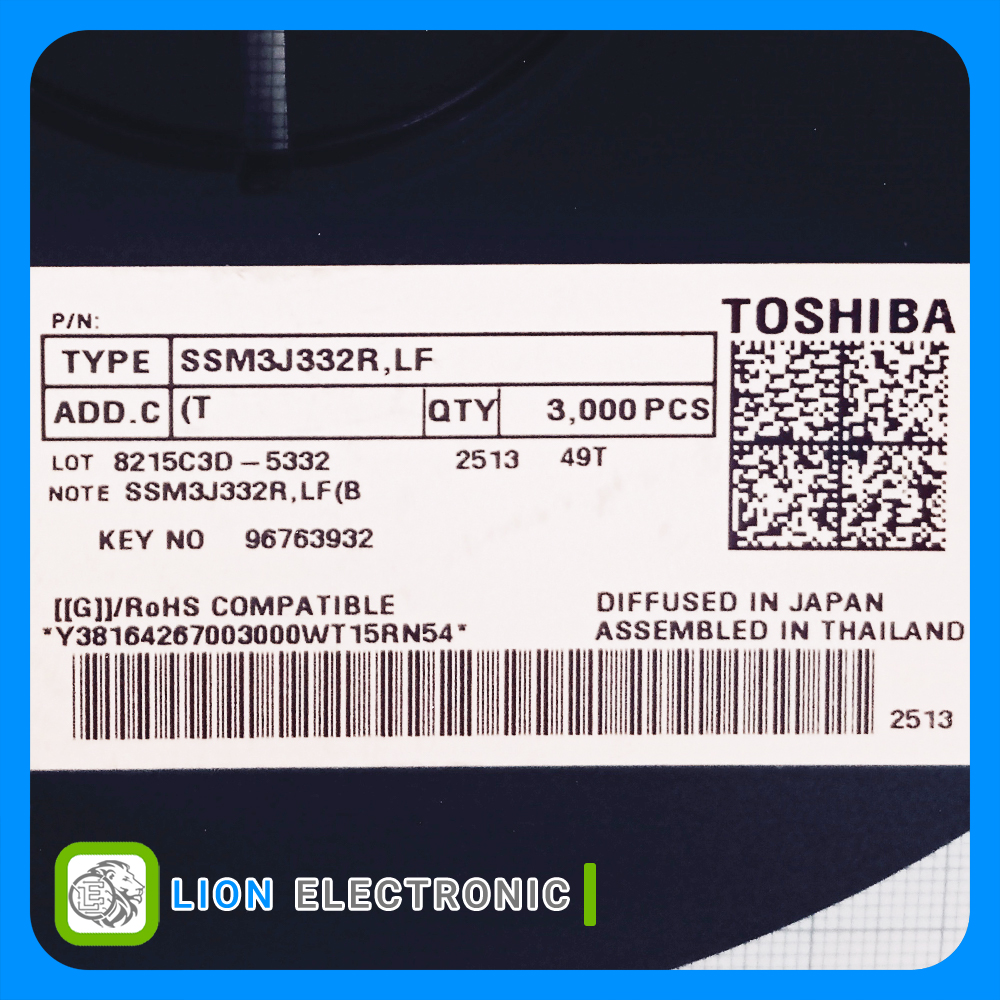

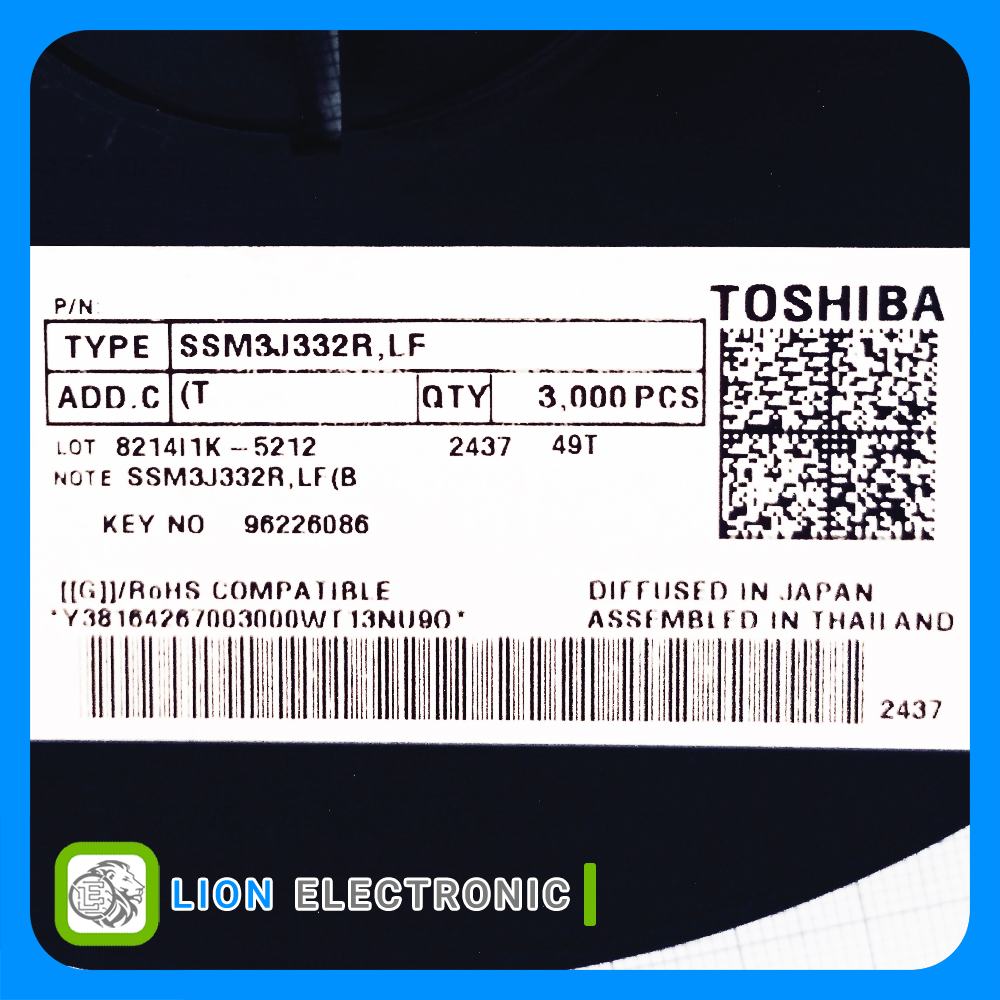

SSM3J332R,LF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-50C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
-30V
Vds - Drain - Source Breakdown Voltage
SMD/SMT
Mounting Style
±12V
Vgs - Gate - Source Voltage
-500mV
Vgs th - Gate - Source Threshold Voltage
+150C
Maximum Operating Temperature
-6A
Id - Continuous Drain Current
8.2nC
Qg - Gate Charge
1W
Pd - Power Dissipation
36mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
