BSS84W-7-F
BSS84W-7-F
Part Number
2690
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت 50 ولت 130 میلیآمپر نوع P با پکیج SOT-323

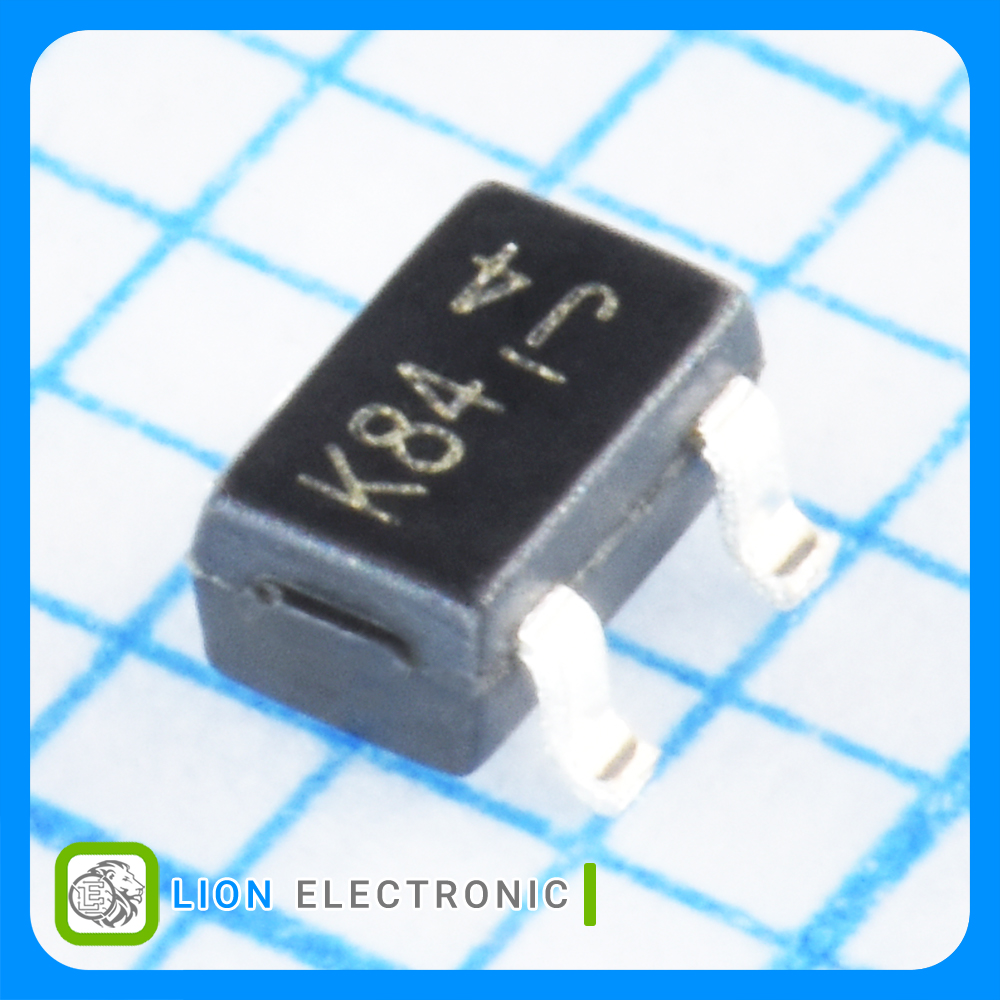

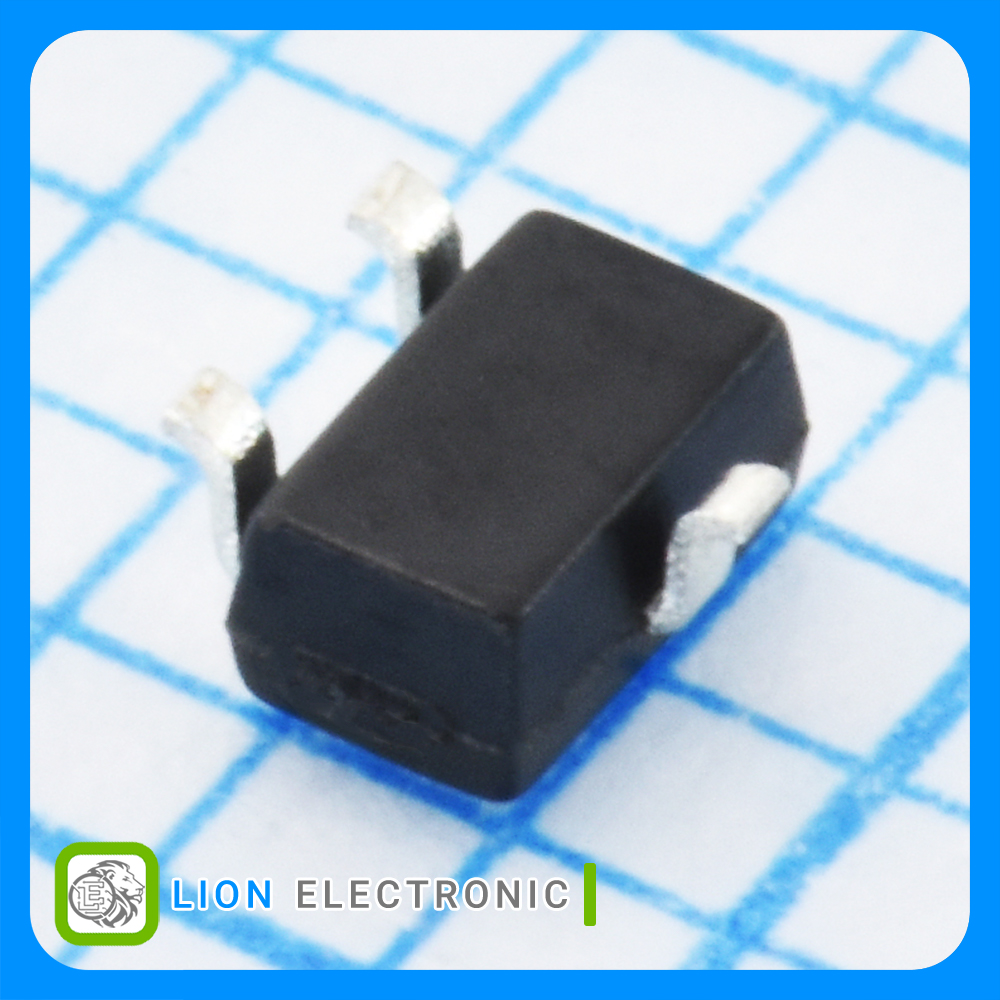

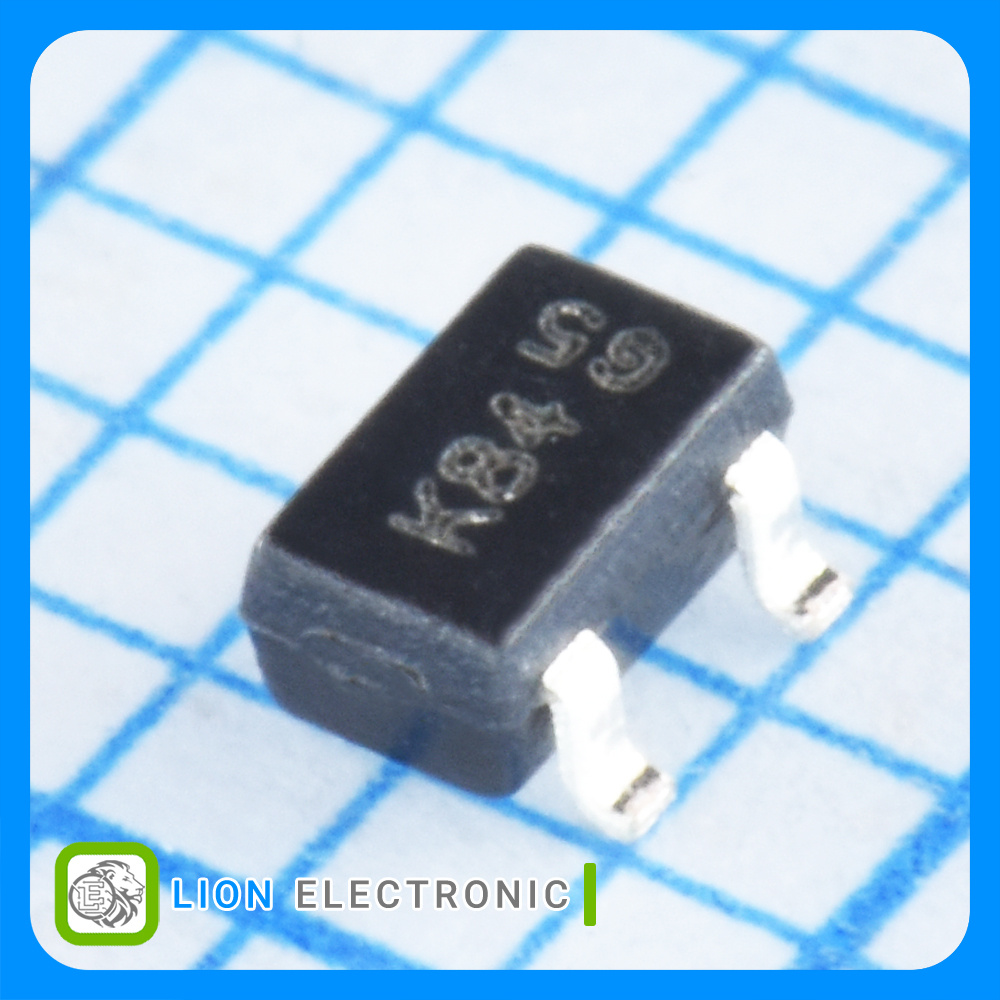

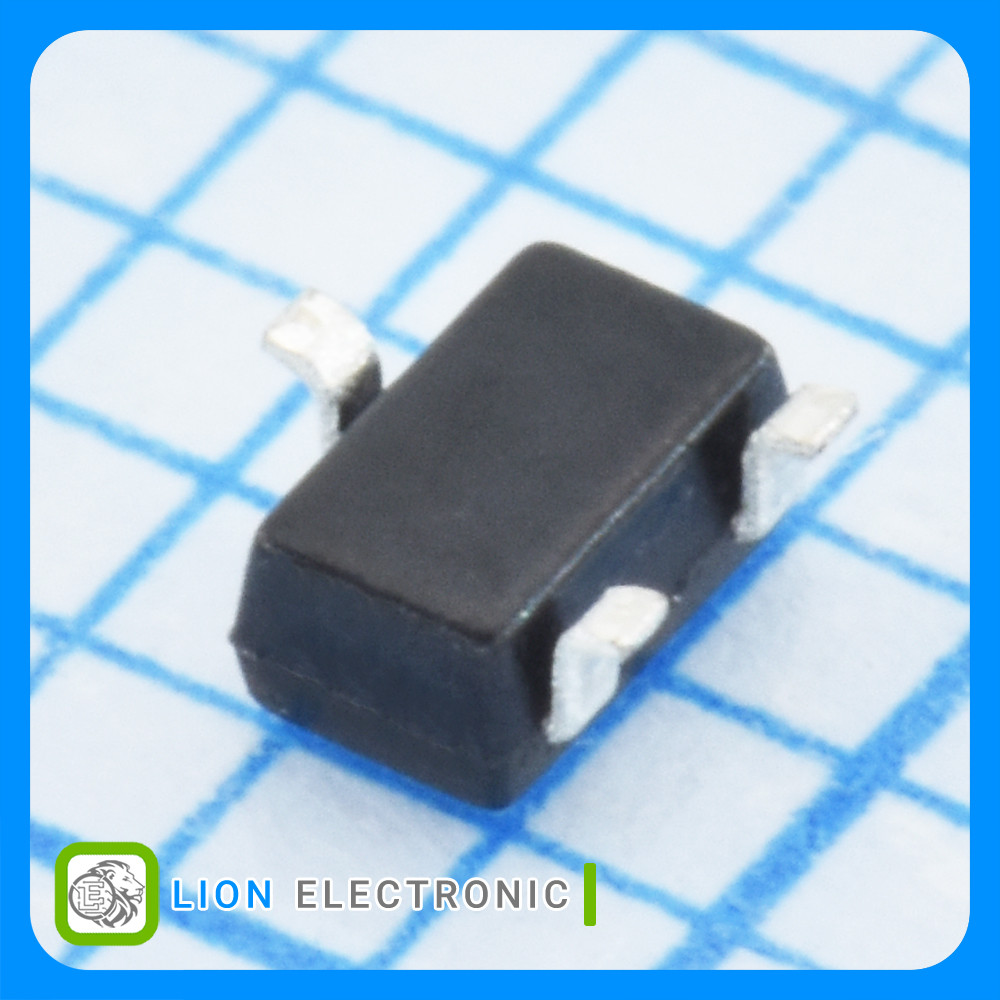

P-Channel MOSFET 50V, 130mA with SOT-323 Package
معرفی
ماسفت 50 ولت 130 میلیآمپر نوع P با پکیج SOT-323
P-Channel MOSFET 50V, 130mA with SOT-323 Package
Specifications
- Package/Case: SOT-323
- Vds - Drain - Source Breakdown Voltage: -50V
- Id - Continuous Drain Current: -130mA
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -800mV
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 6Ω
- Pd - Power Dissipation: 200mW
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت BSS84W-7-F
ماسفت BSS84W-7-F
Part Number
---
Qg - Gate Charge
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
-50V
Vds - Drain - Source Breakdown Voltage
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
-800mV
Vgs th - Gate - Source Threshold Voltage
200mW
Pd - Power Dissipation
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
-130mA
Id - Continuous Drain Current
6Ω
Rds On - Drain - Source Resistance
SOT-323
Package-Case
