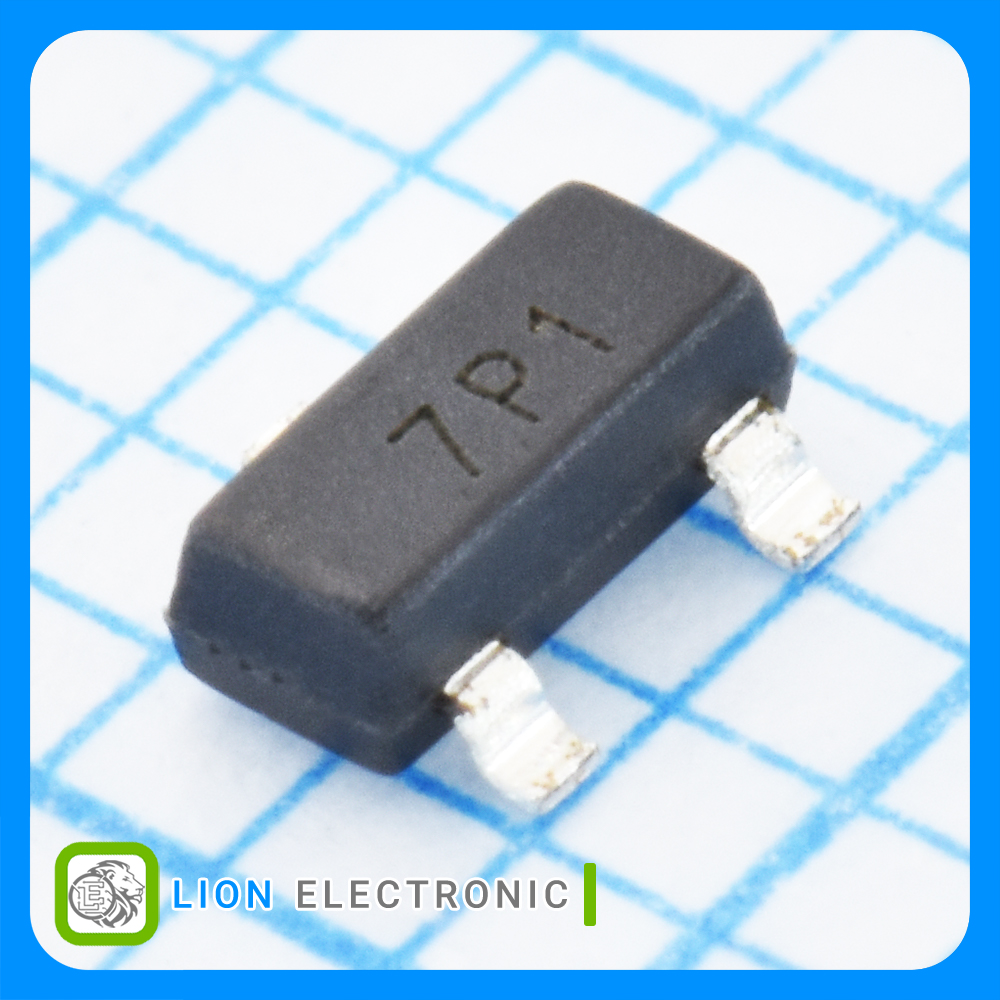

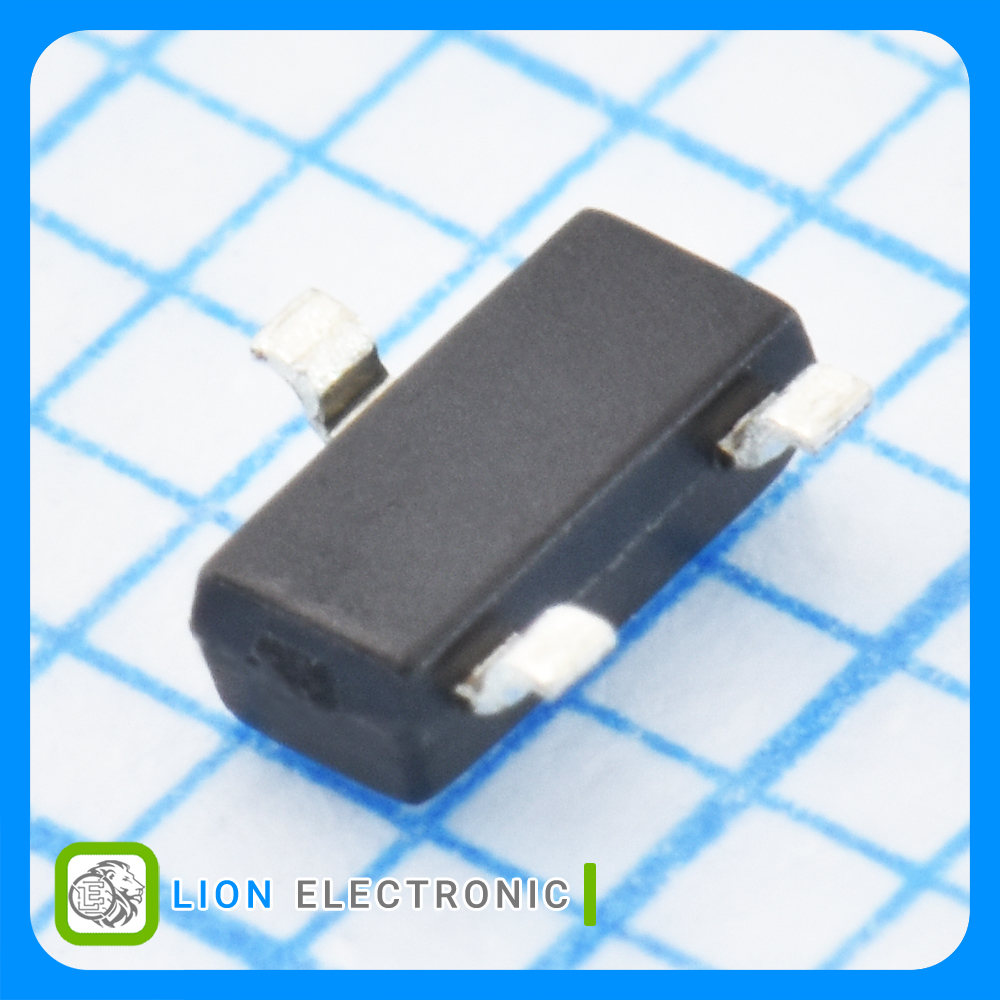

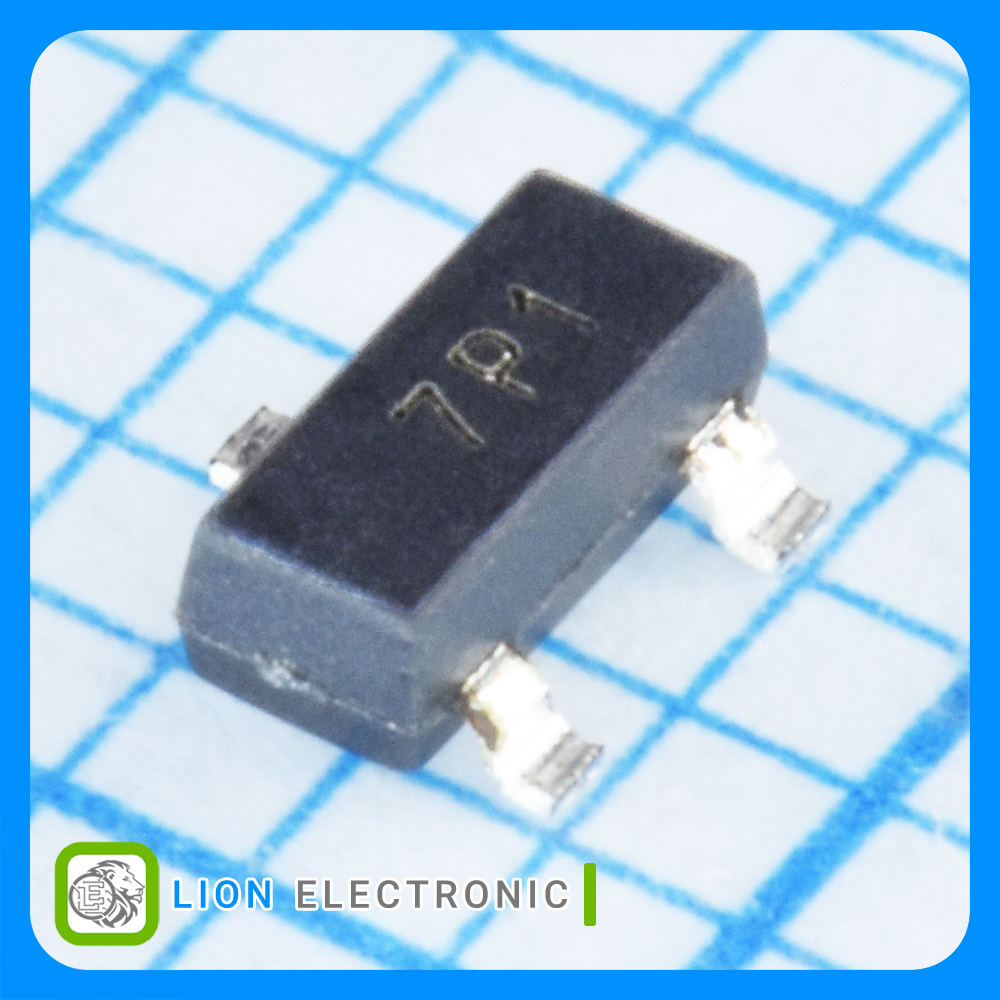

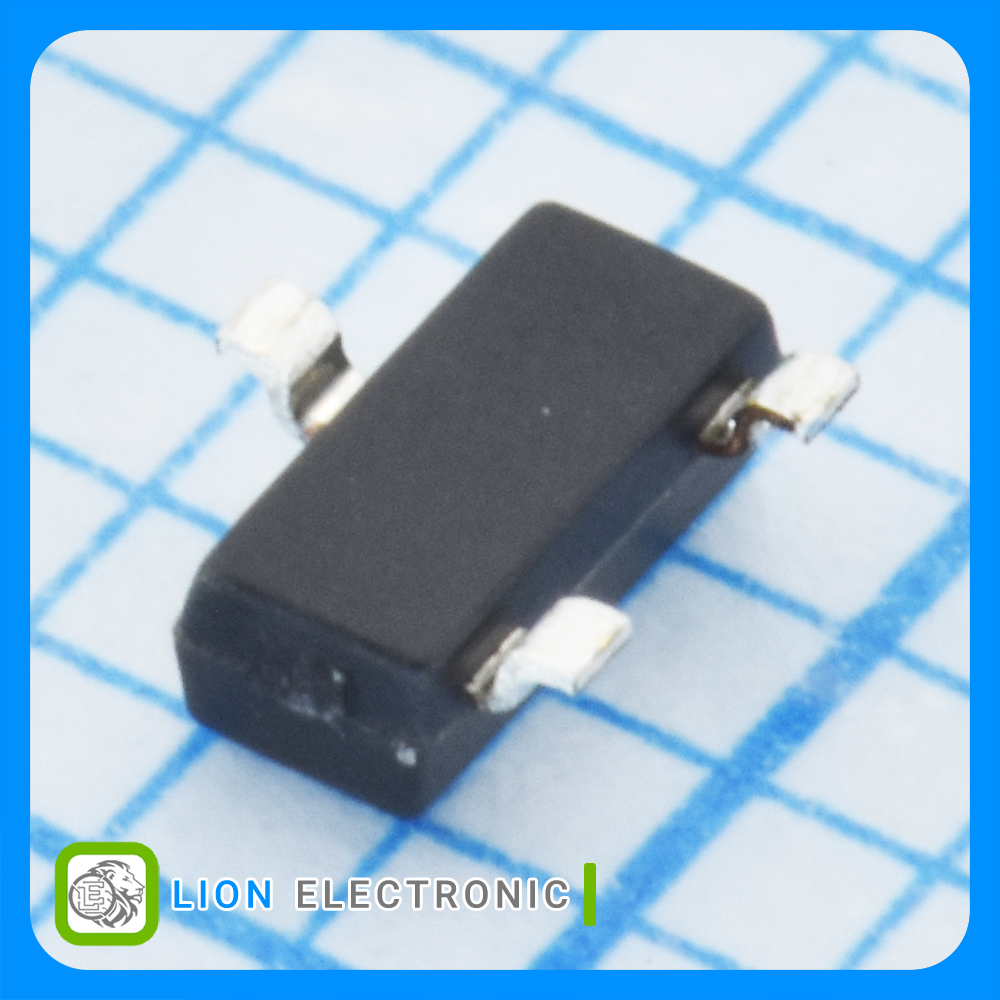

ZXMP10A13FTA
ZXMP10A13FTA
Part Number
2805
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت P-CH نوع P با ولتاژ -100 ولت و جریان -700 میلیآمپر با پکیج TSOT-23-5
P-CH MOSFET -100V, -700mA with TSOT-23-5 Package
معرفی
ماسفت P-CH نوع P با ولتاژ -100 ولت و جریان -700 میلیآمپر با پکیج TSOT-23-5
P-CH MOSFET -100V, -700mA with TSOT-23-5 Package
Specifications
- Package/Case: TSOT-23-5
- Vds - Drain - Source Breakdown Voltage: -100V
- Id - Continuous Drain Current: -700mA
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 1Ω
- Pd - Power Dissipation: 806mW
- Qg - Gate Charge: 3.5nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت ZXMP10A13FTA
ماسفت ZXMP10A13FTA
Part Number
1
Number of Channels
Enhancement
Channel Mode
-100V
Vds - Drain - Source Breakdown Voltage
-55C
Minimum Operating Temperature
-2V
Vgs th - Gate - Source Threshold Voltage
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
3.5nC
Qg - Gate Charge
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
-700mA
Id - Continuous Drain Current
806mW
Pd - Power Dissipation
1Ω
Rds On - Drain - Source Resistance
SOT-23-5
Package-Case
