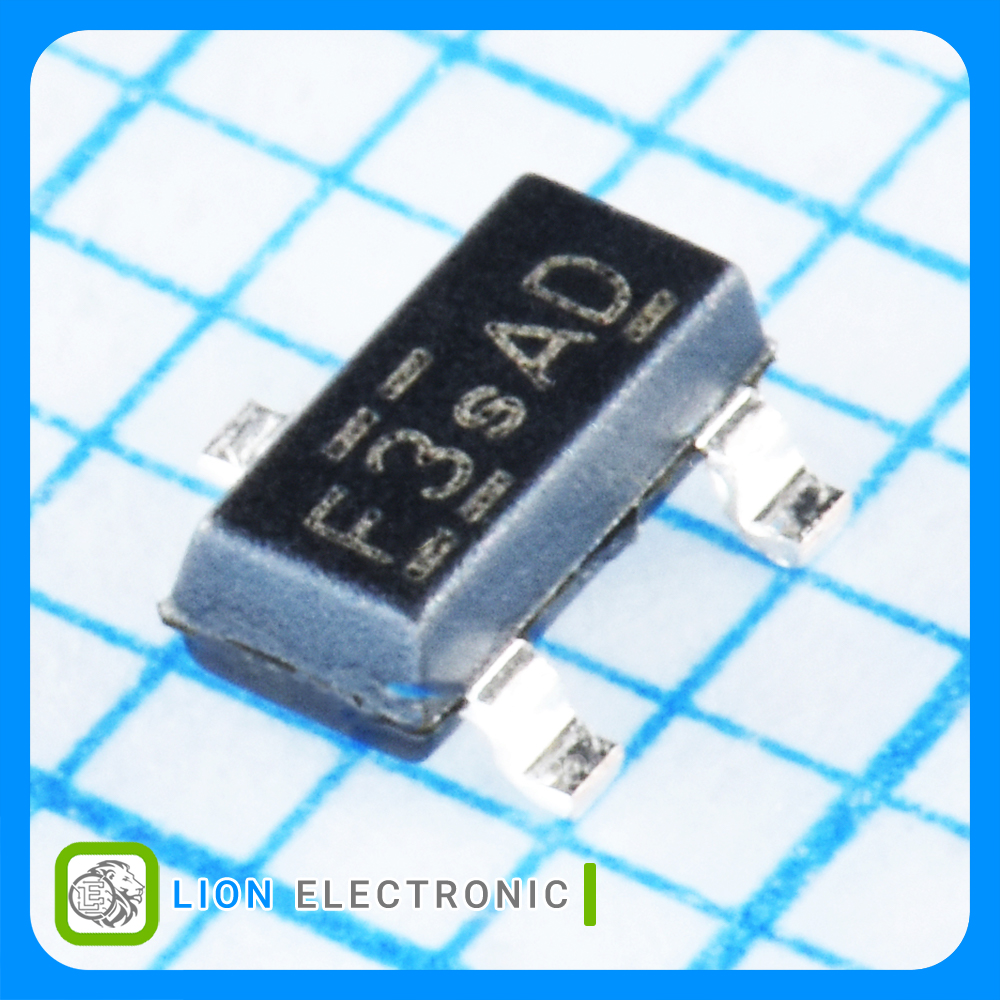

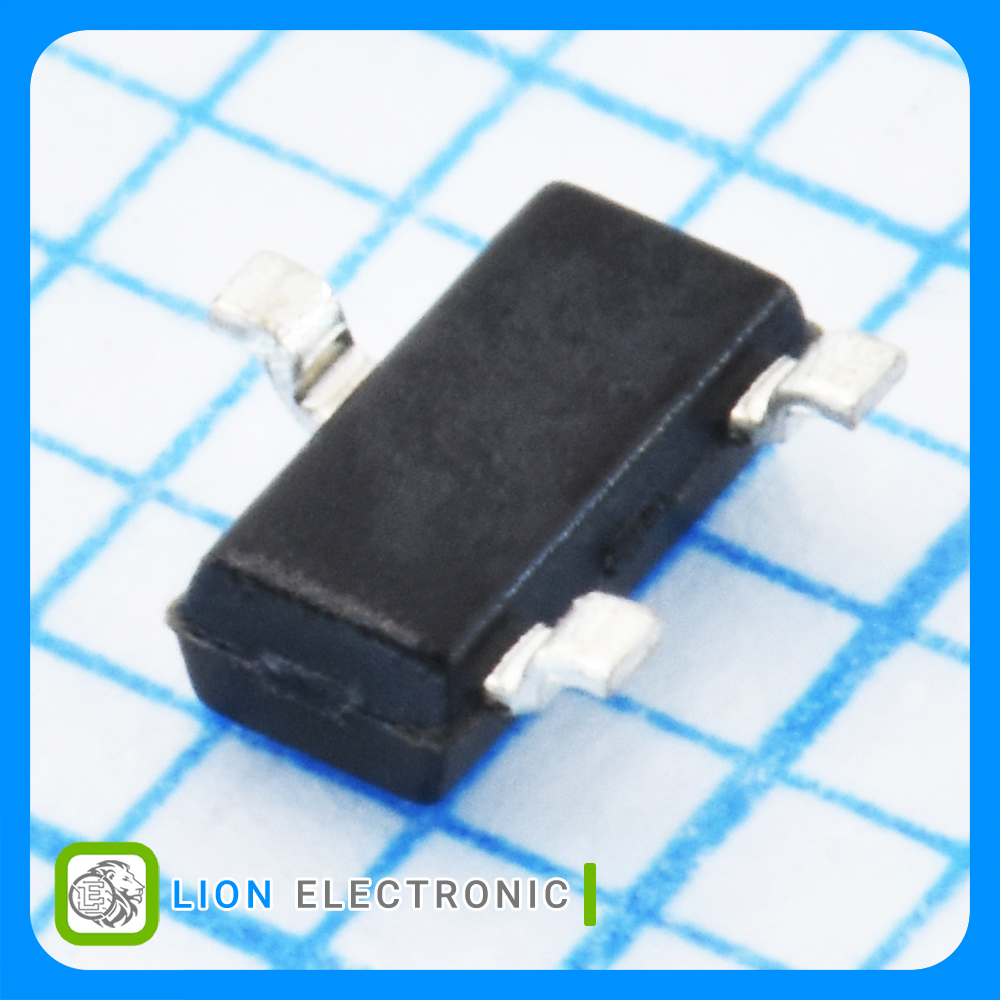

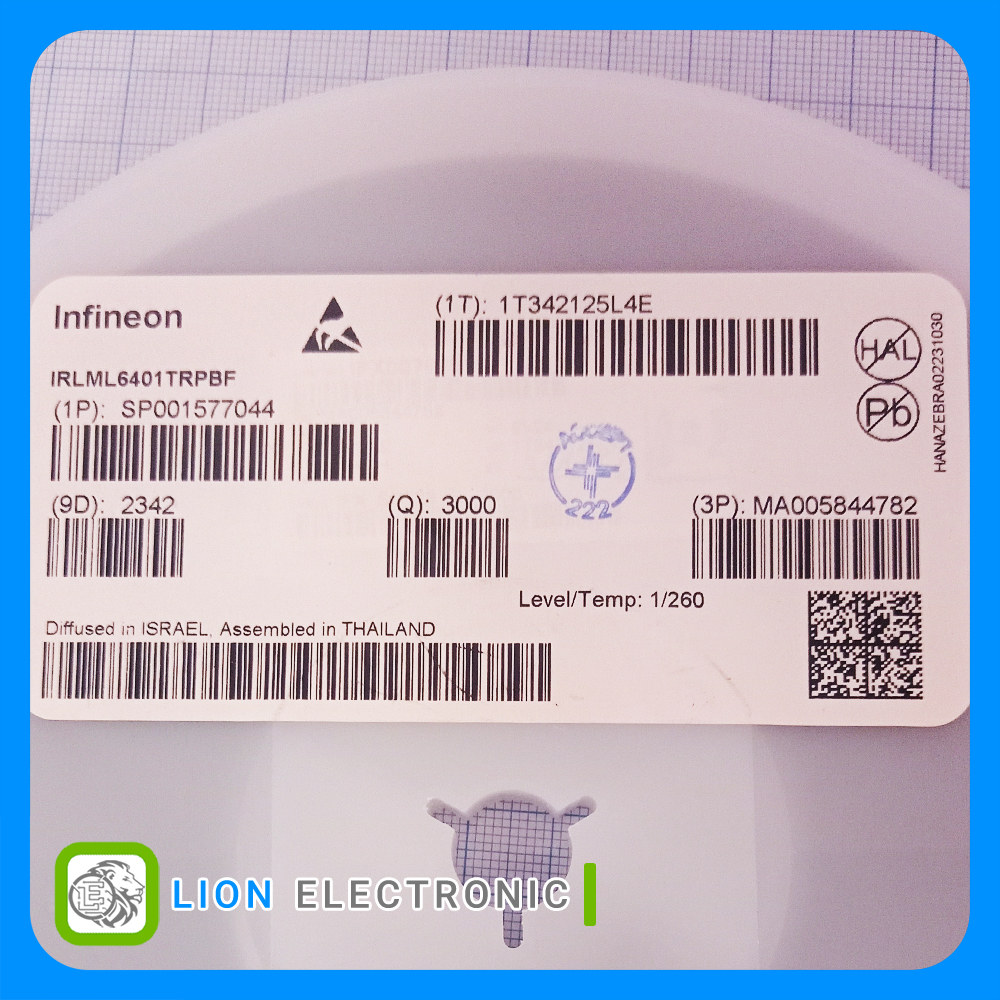

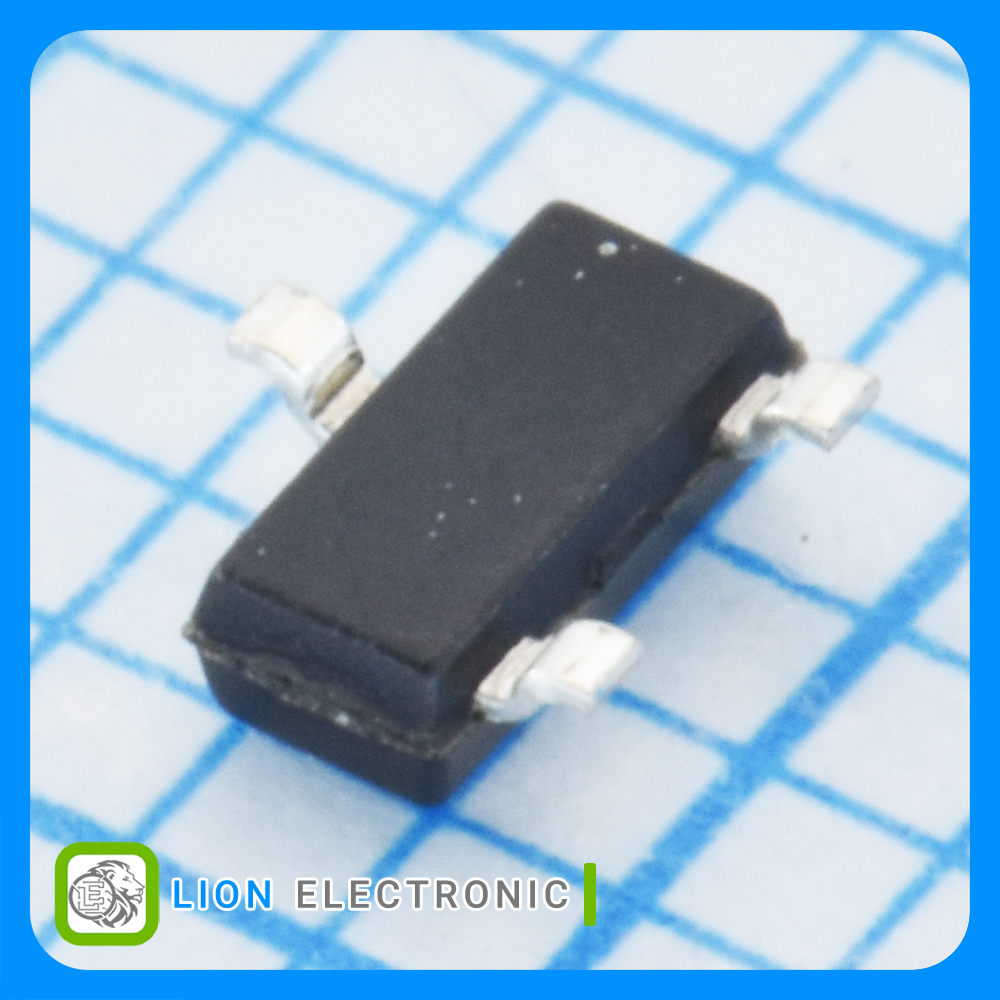

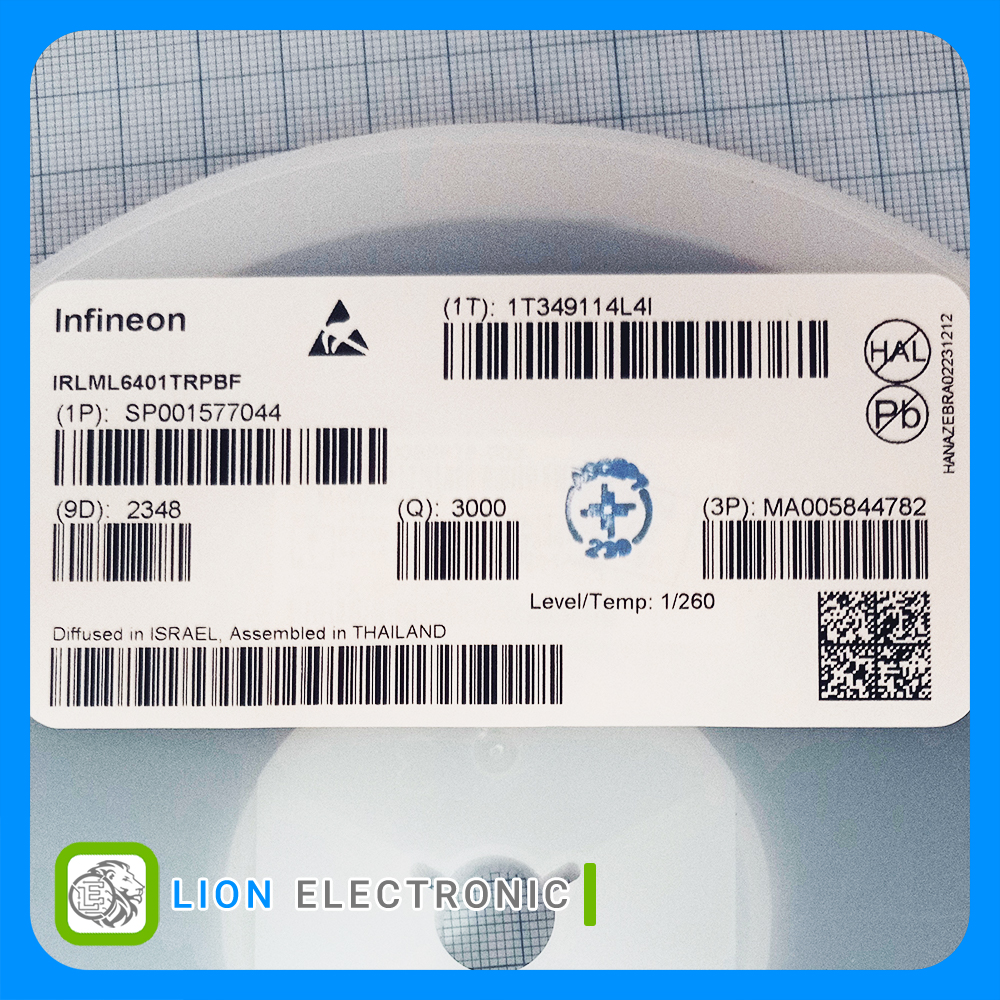

IRLML6401TRPBF
IRLML6401TRPBF
Part Number
2897
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 12 ولت 4.3 آمپر نوع P با پکیج SOT-23-3
P-Channel MOSFET 12V, 4.3A with SOT-23-3 Package
معرفی
ماسفت 12 ولت 4.3 آمپر نوع P با پکیج SOT-23-3
P-Channel MOSFET 12V, 4.3A with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: -12V
- Id - Continuous Drain Current: -4.3A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -400mV
- Vgs - Gate - Source Voltage: ±8V
- Rds On - Drain - Source Resistance: 50mΩ
- Pd - Power Dissipation: 1.3W
- Qg - Gate Charge: 10nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت IRLML6401TRPBF

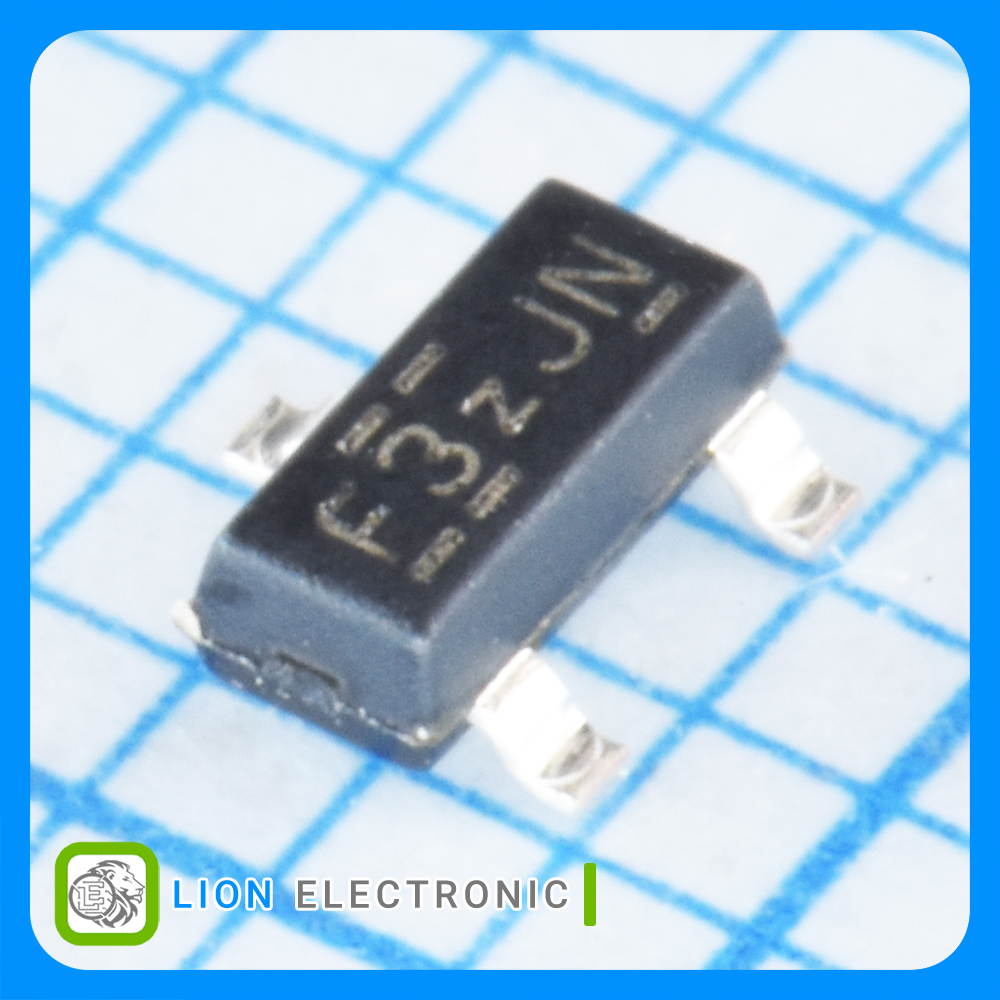

ماسفت IRLML6401TRPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
±8V
Vgs - Gate - Source Voltage
SMD/SMT
Mounting Style
-12V
Vds - Drain - Source Breakdown Voltage
-400mV
Vgs th - Gate - Source Threshold Voltage
+150C
Maximum Operating Temperature
-4.3A
Id - Continuous Drain Current
10nC
Qg - Gate Charge
1.3W
Pd - Power Dissipation
50mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
