TDK
معرفی
وریستور 275 ولت AC ولتاژ وریستور 430 ولت جریان ضربه 2.5 کیلوآمپر سایز 10 میلیمتر استاندارد با تلرانس 10%

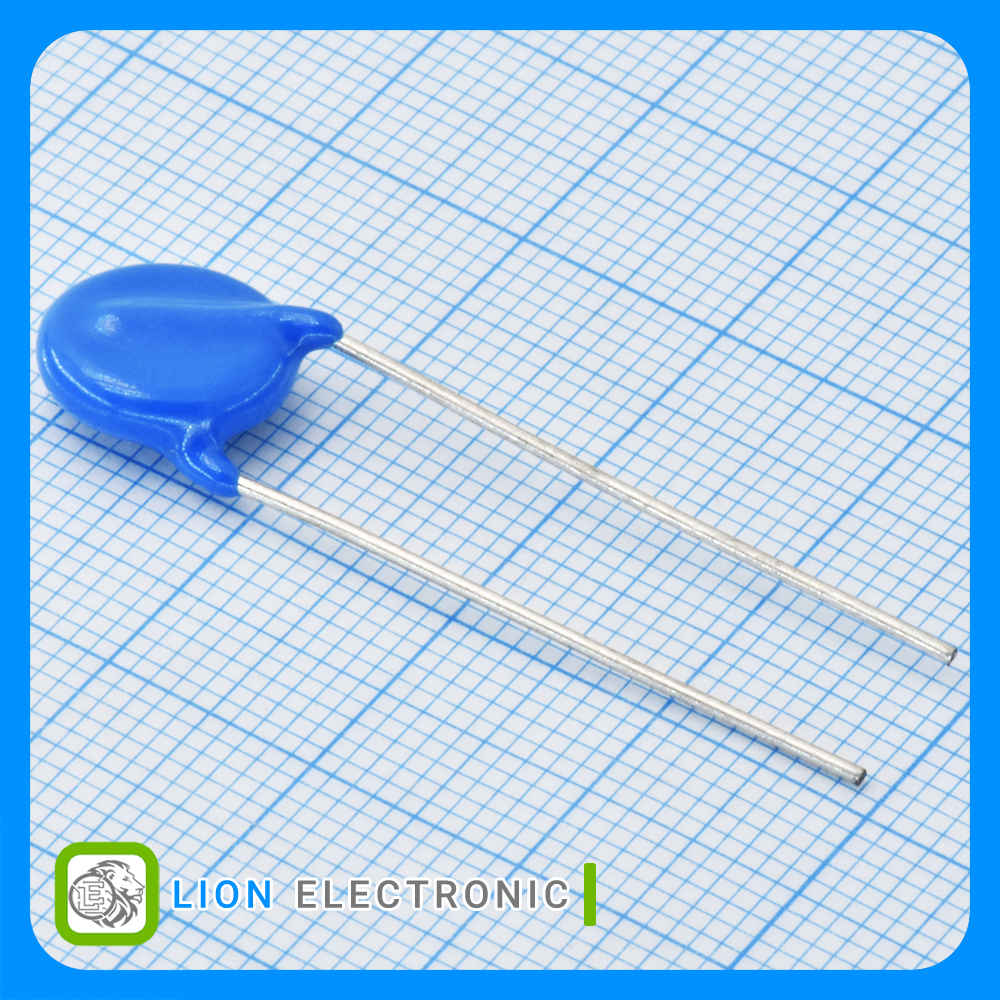

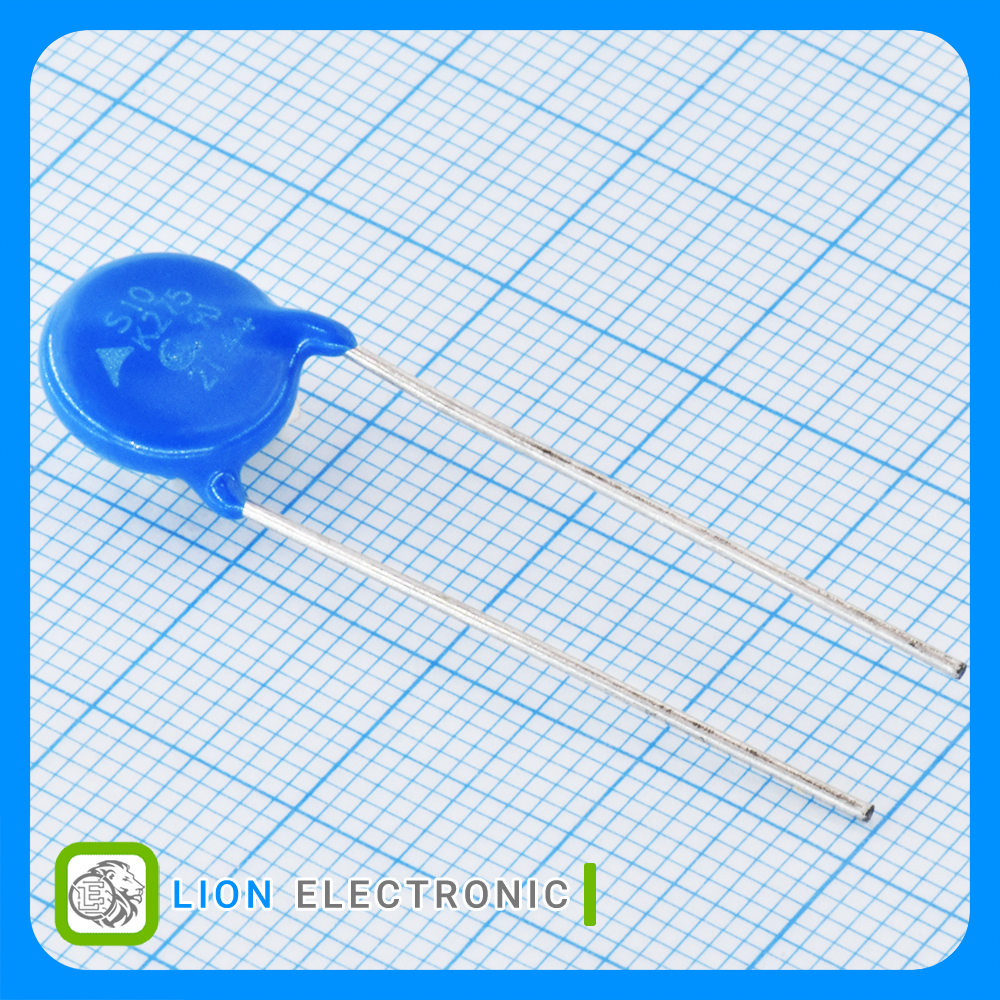

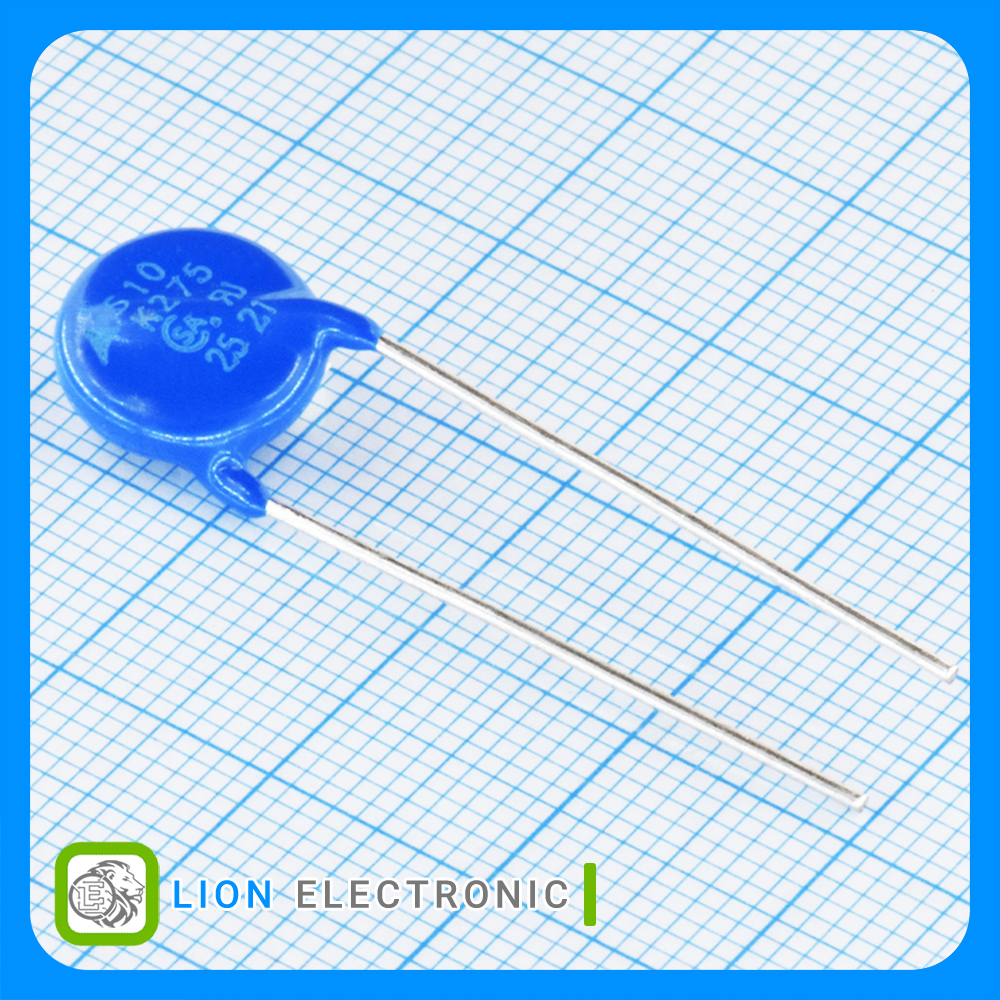

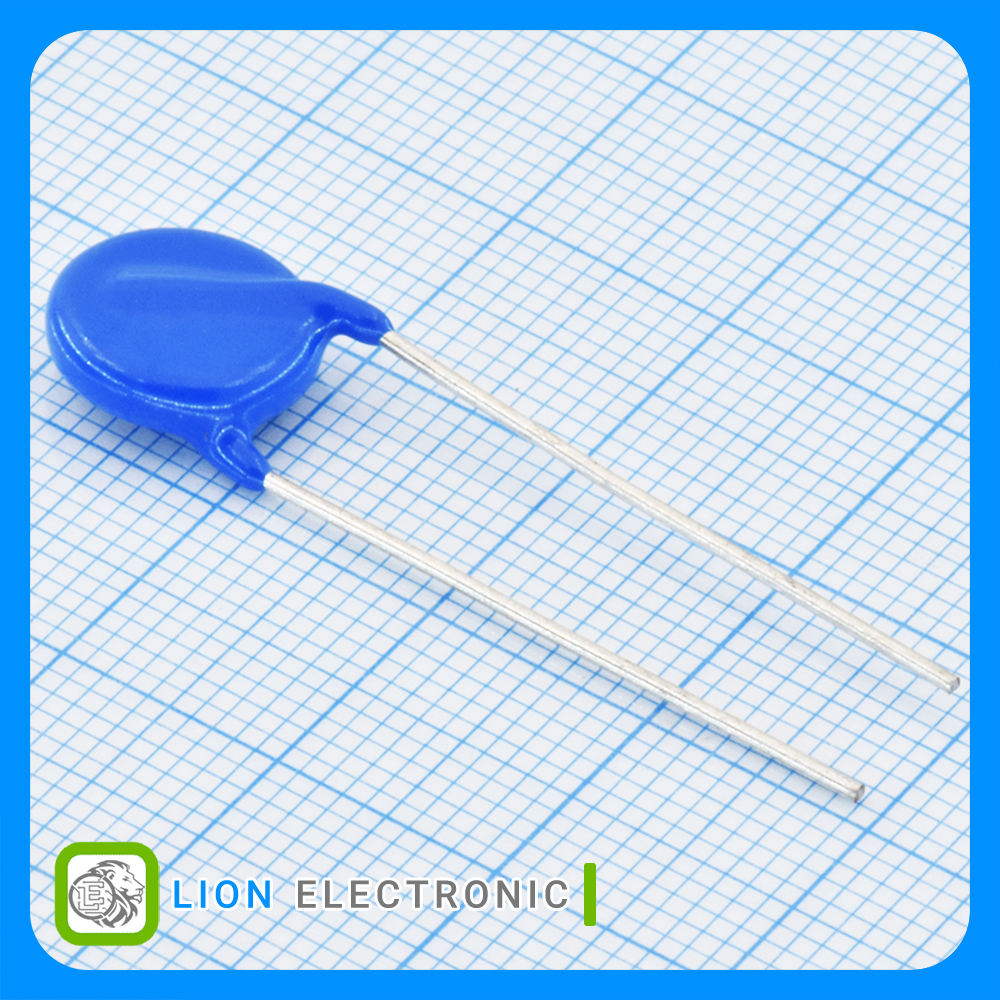

Varistor 275VAC, Varistor Voltage 430V with 2.5kA Peak Surge Current, 10mm Standard 10%
Specifications
- Product: MOV
- Varistor Voltage: 430V
- Clamping Voltage: 710V
- Voltage Rating AC: 275VAC
- Voltage Rating DC: 350VDC
- Peak Surge Current: 2.5kA
- Surge Energy Rating: 43J
- Capacitance: 220pF
- Diameter: 10mm
- Mounting Style: Through Hole
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Bulk
مشخصات وریستور B72210S0271K101
وریستور B72210S0271K101
Part Number
430V
Varistor Voltage
Bulk
Packaging
275VAC
Voltage Rating AC
2.5kA
Peak Surge Current
-40C
Minimum Operating Temperature
43J
Surge Energy Rating
Through Hole
Mounting Style
+105C
Maximum Operating Temperature
10mm
Diameter
350VDC
Voltage Rating DC
220pF
Capacitance
710V
Clamping Voltage
MOV
Product
N/A
Package-Case
