TDK
معرفی

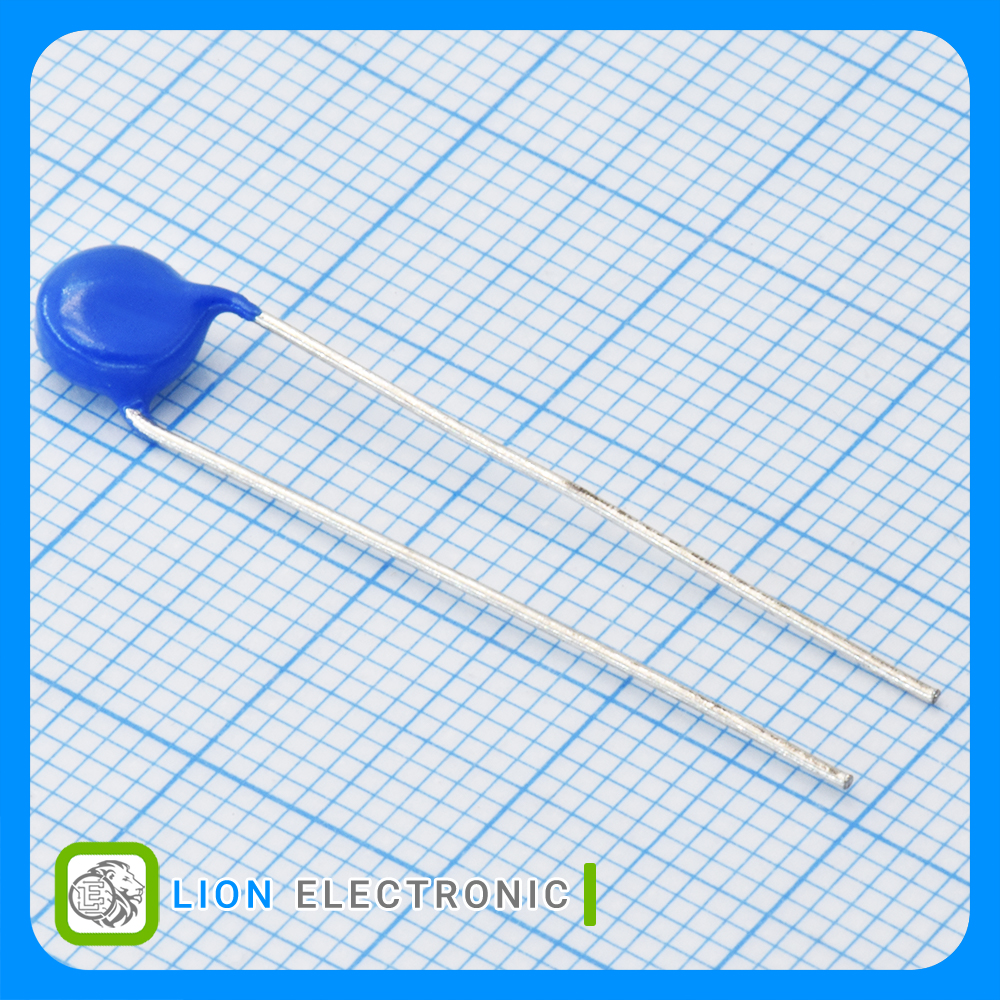

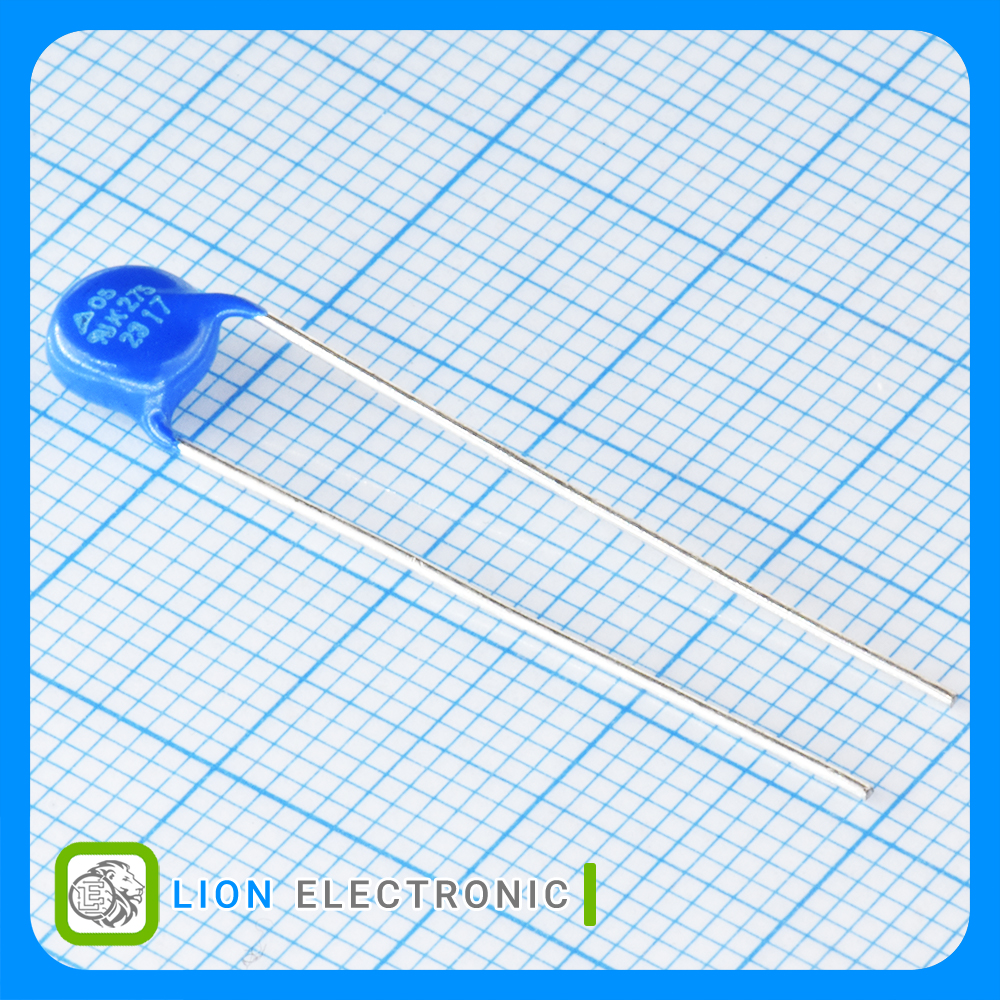

وریستور 275 ولت AC ولتاژ وریستور 430 ولت جریان ضربه 400 آمپر سایز 5 میلیمتر
Varistor 275VAC 10%, Varistor Voltage 430V with 400A Peak Surge Current, 5mm Standard
Specifications
- Product: MOV
- Varistor Voltage: 430V
- Clamping Voltage: 710V
- Voltage Rating AC: 275VAC
- Voltage Rating DC: 350VDC
- Peak Surge Current: 400A
- Surge Energy Rating: 8.6J
- Capacitance: 60pF
- Diameter: 5mm
- Mounting Style: Through Hole
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Bulk
مشخصات وریستور B72205S0271K101

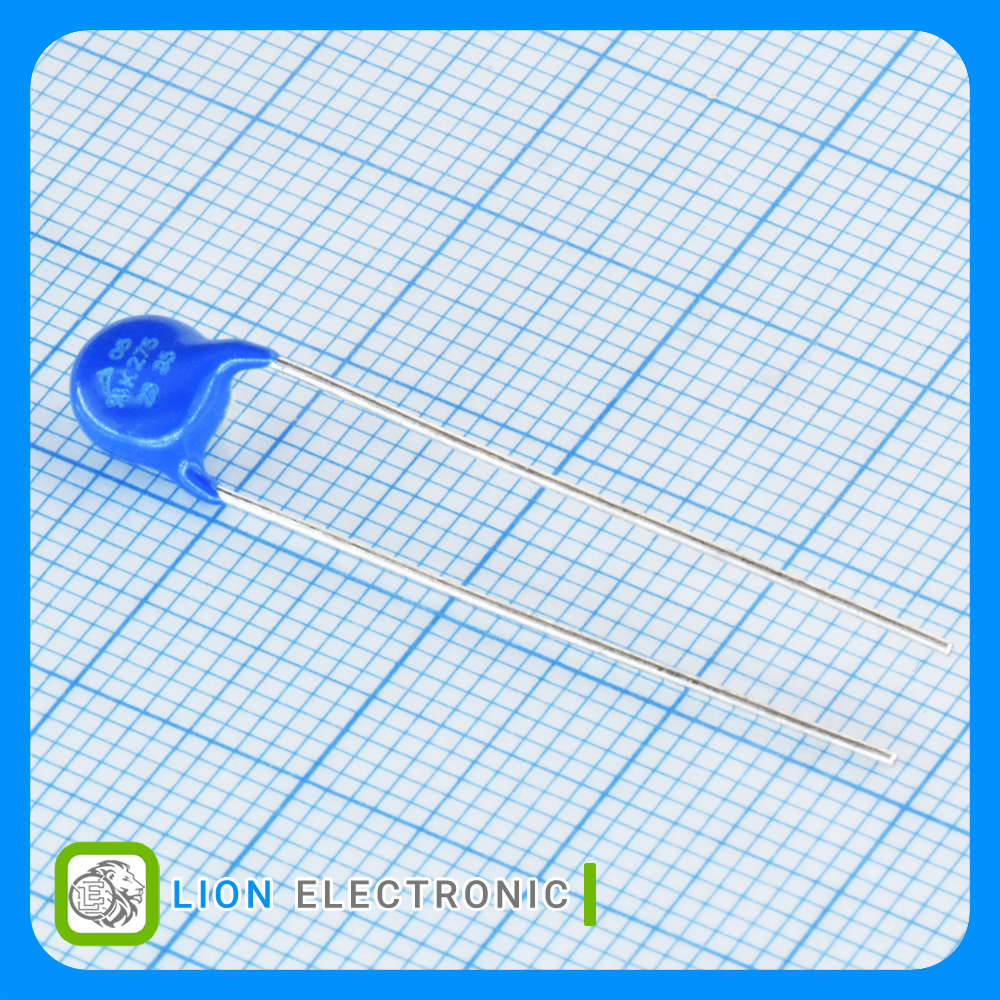

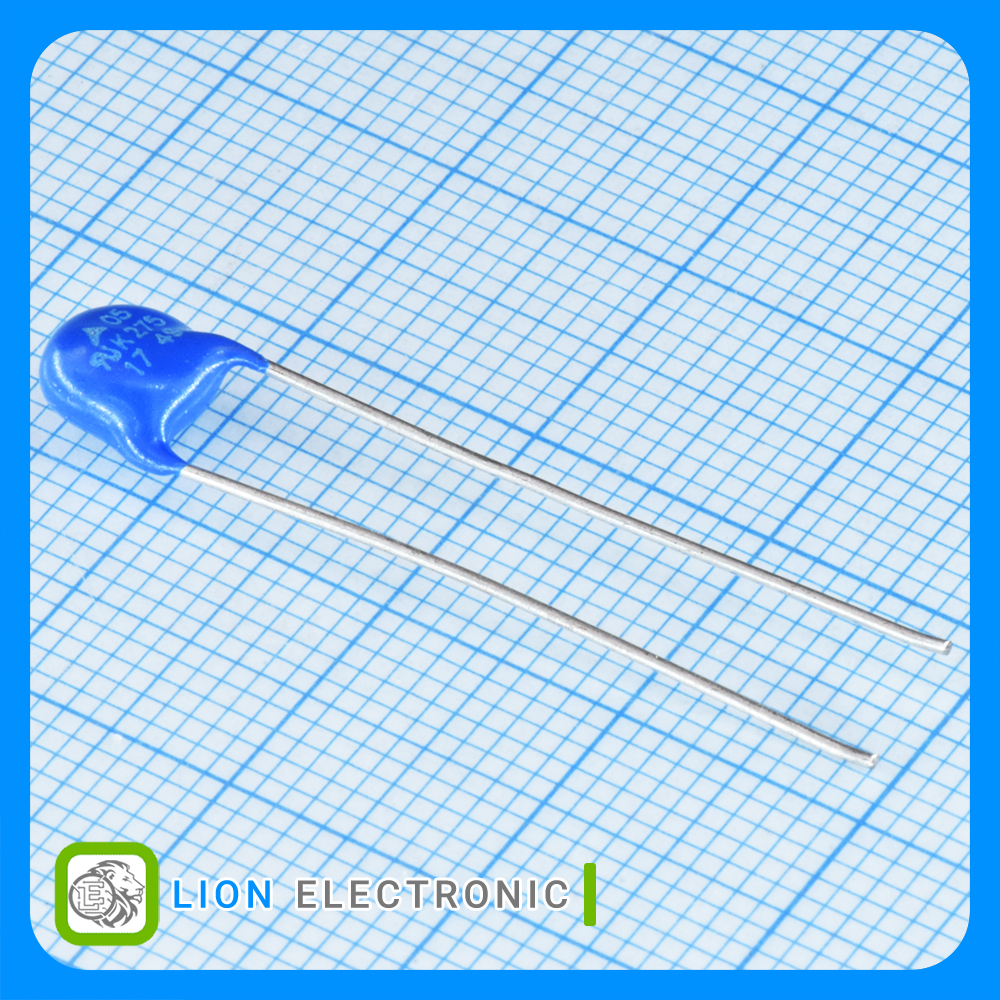

وریستور B72205S0271K101
Part Number
400A
Peak Surge Current
8.6J
Surge Energy Rating
430V
Varistor Voltage
Bulk
Packaging
275VAC
Voltage Rating AC
-40C
Minimum Operating Temperature
5mm
Diameter
Through Hole
Mounting Style
+105C
Maximum Operating Temperature
60pF
Capacitance
350VDC
Voltage Rating DC
710V
Clamping Voltage
MOV
Product
N/A
Package-Case
