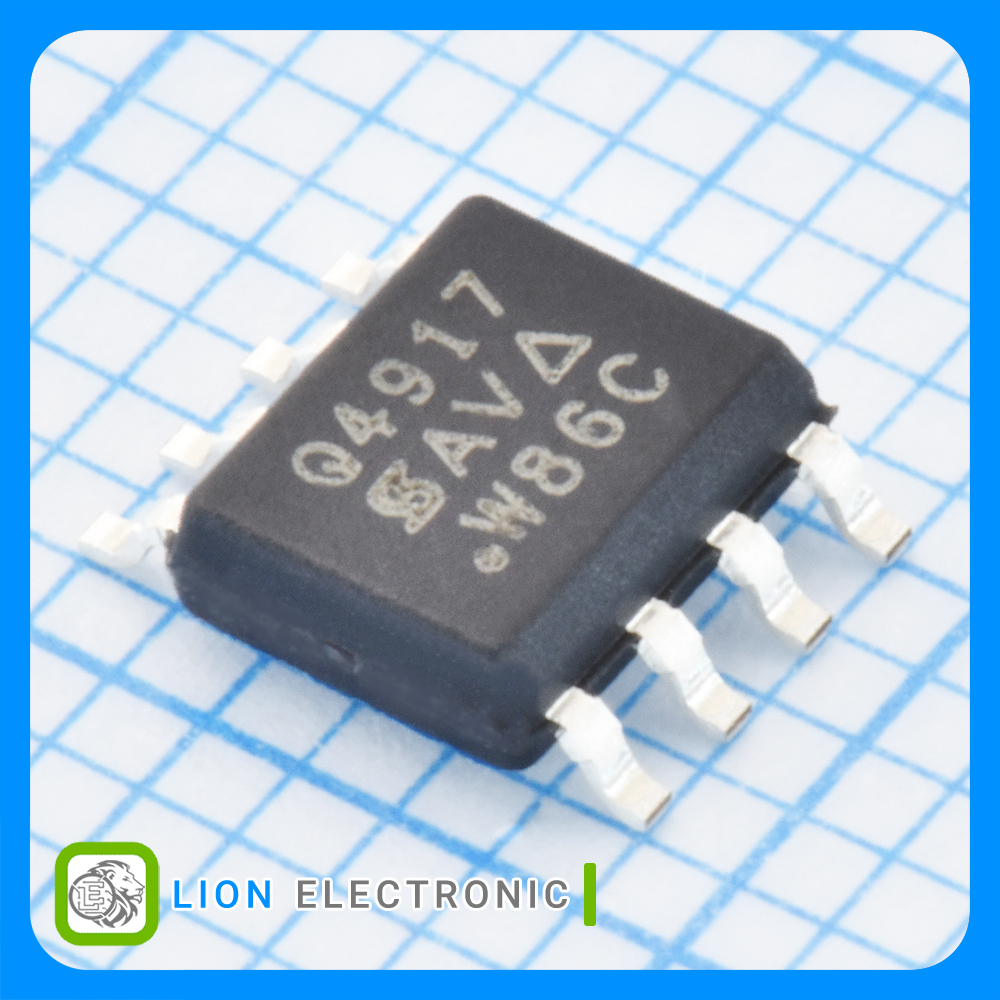

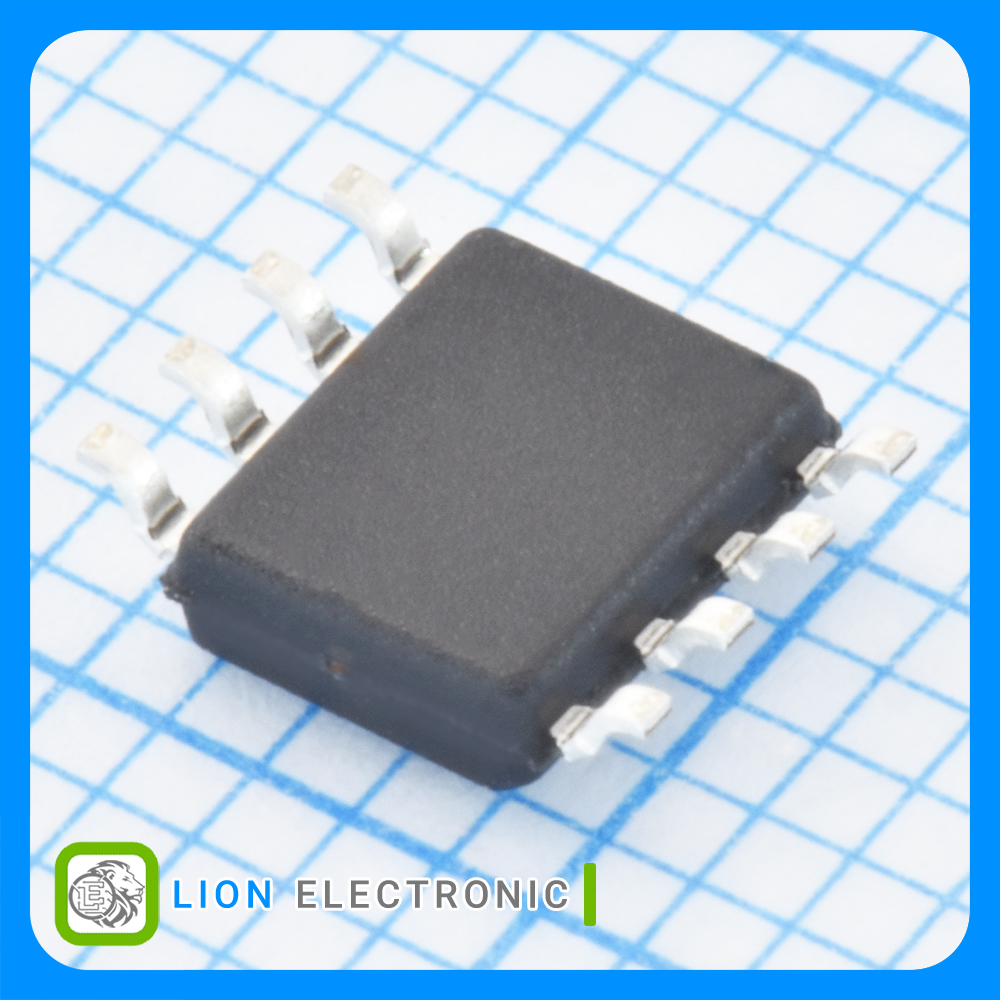

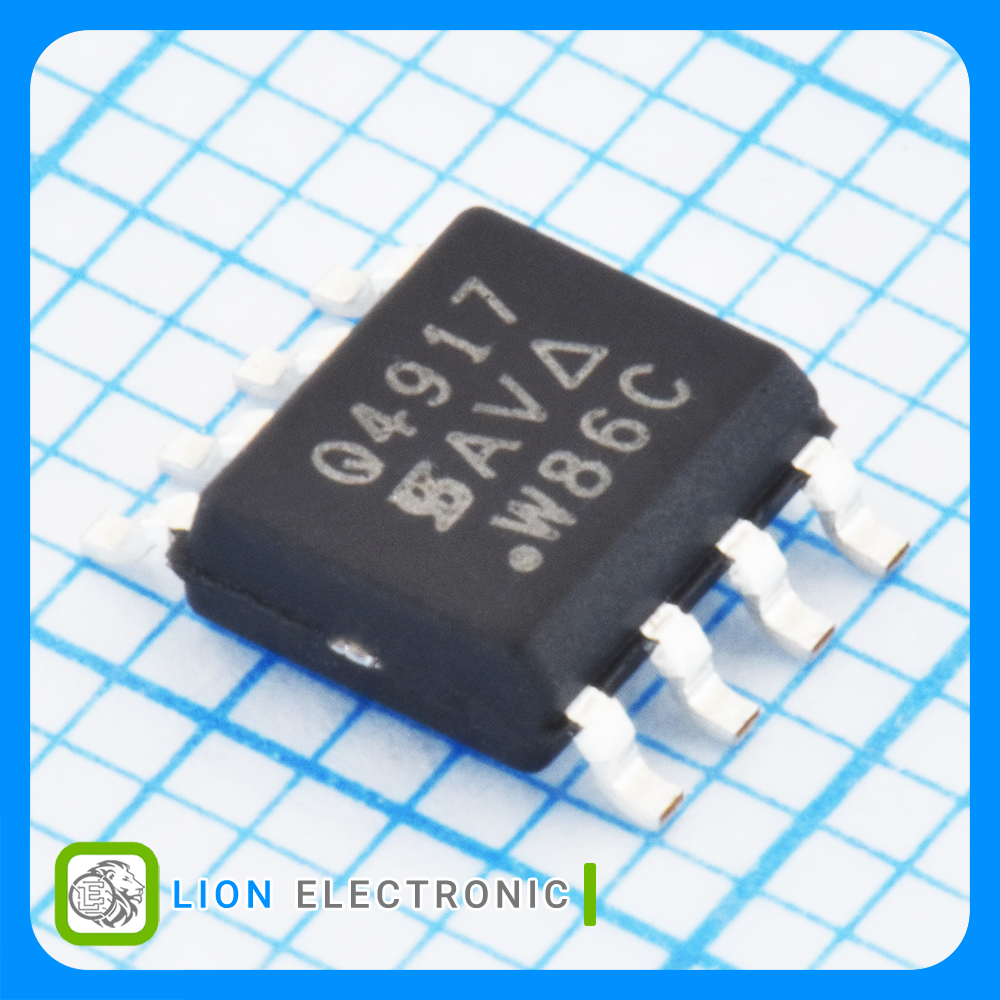

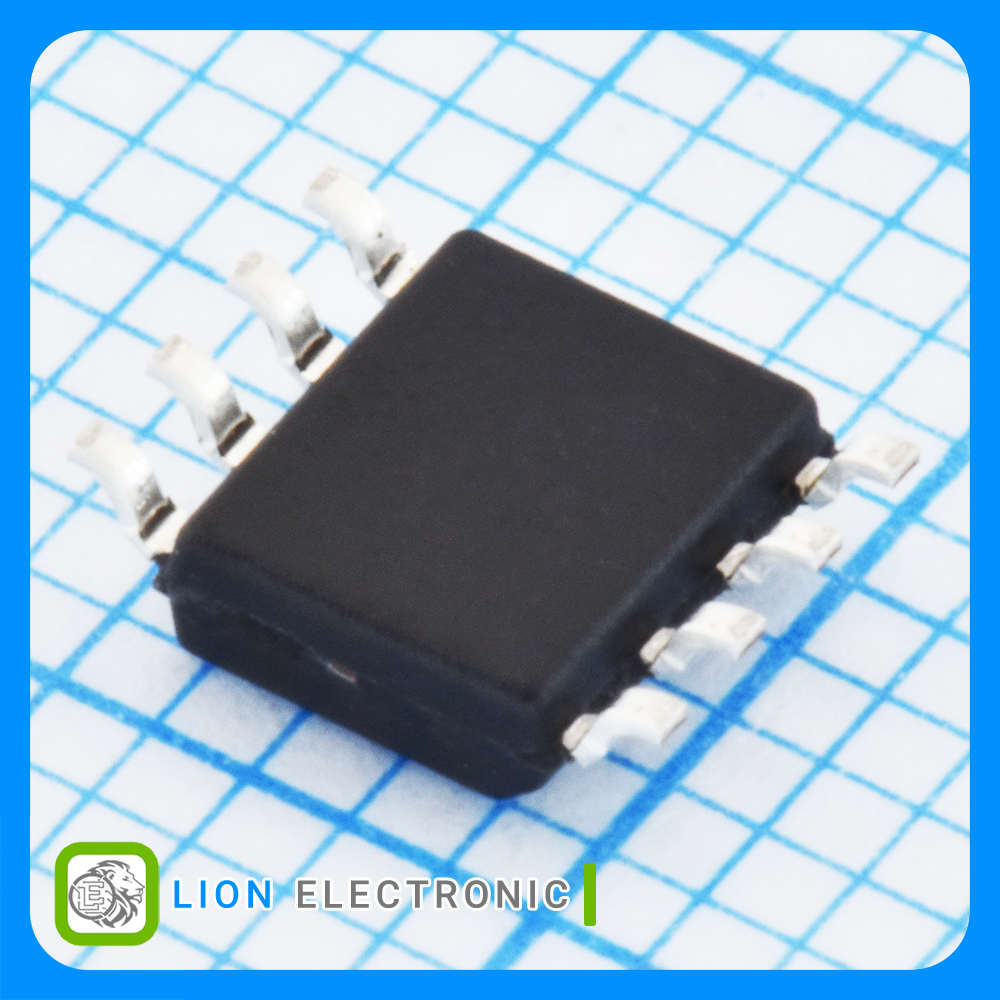

SQ4917EY-T1_GE3
SQ4917EY-T1_GE3
Part Number
2982
Lion Part
Datasheet
Vishay Semiconductors Manufacture
ماسفت جفت -60 ولت -8 آمپر نوع P با پکیج SOIC-8
DUAL P-CH MOSFET -60V, -8A with SOIC-8 Package
معرفی
ماسفت جفت -60 ولت -8 آمپر نوع P با پکیج SOIC-8
DUAL P-CH MOSFET -60V, -8A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: -60V
- Id - Continuous Drain Current: -8A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 2
- Vgs th - Gate - Source Threshold Voltage: -1.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 40mΩ
- Pd - Power Dissipation: 5W
- Qg - Gate Charge: 43.4nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت SQ4917EY-T1_GE3
ماسفت SQ4917EY-T1_GE3
Part Number
Enhancement
Channel Mode
2
Number of Channels
-60V
Vds - Drain - Source Breakdown Voltage
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
-1.5V
Vgs th - Gate - Source Threshold Voltage
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
-8A
Id - Continuous Drain Current
+175C
Maximum Operating Temperature
43.4nC
Qg - Gate Charge
5W
Pd - Power Dissipation
40mΩ
Rds On - Drain - Source Resistance
SOIC-8
Package-Case
