APM
معرفی

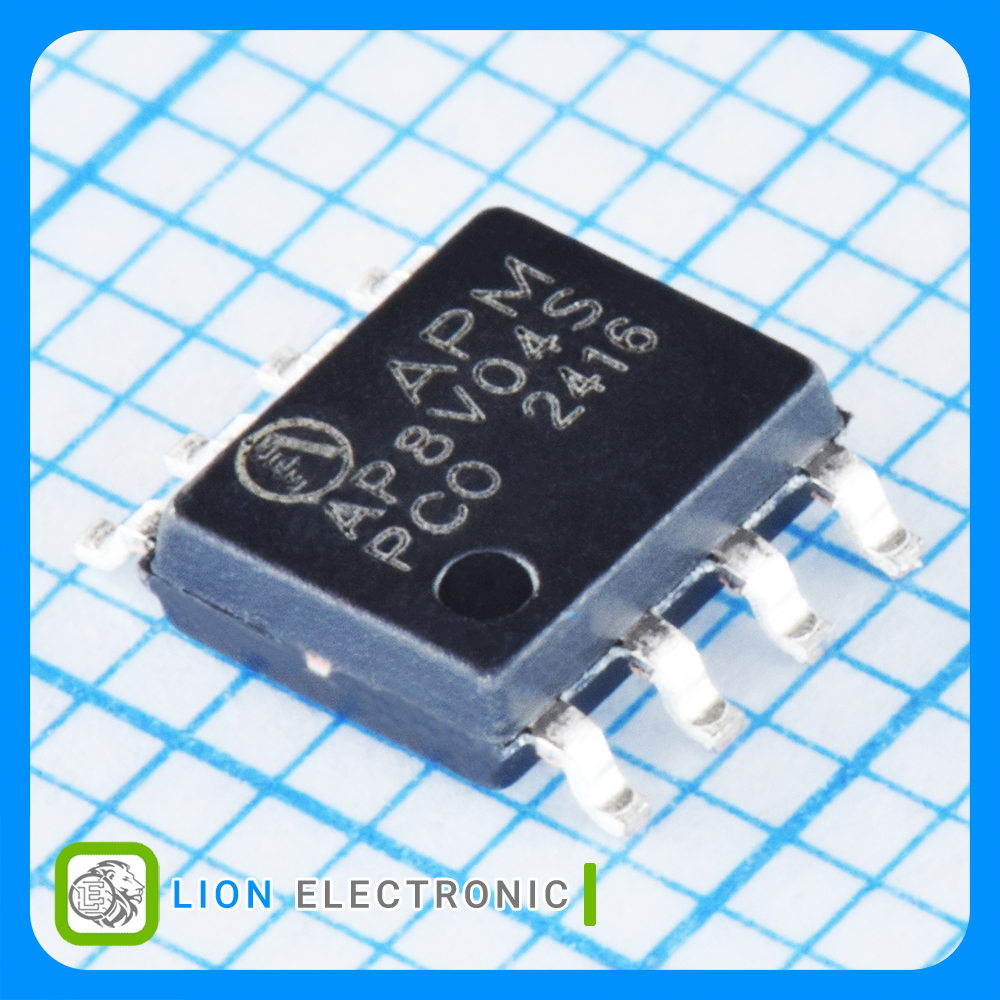

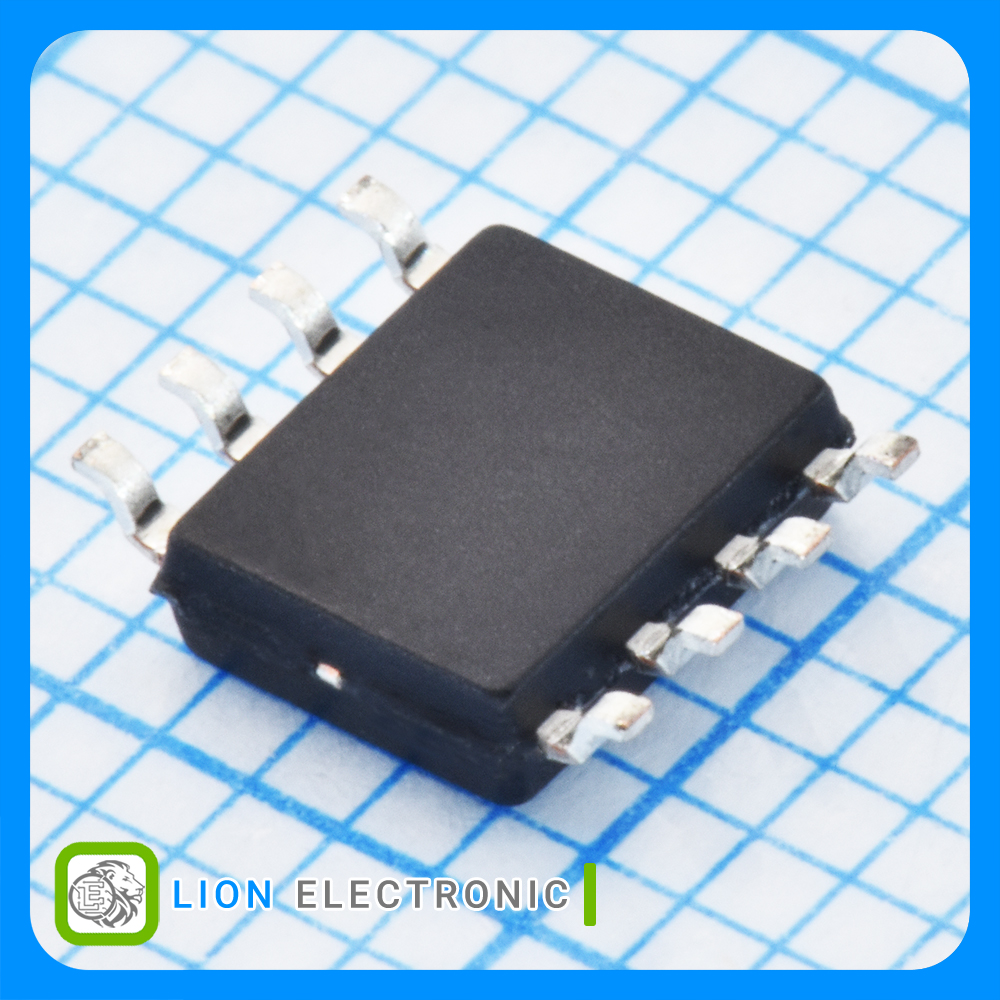

ماسفت جفت 40 ولت 8.2 و 8.2 آمپر نوع P با پکیج SOIC-8
DUAL P-CH MOSFET 40V, 8.2/8.2A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: -40V
- Id - Continuous Drain Current: -8.2A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 2
- Vgs th - Gate - Source Threshold Voltage: -1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 35mΩ
- Pd - Power Dissipation: 3.1W
- Qg - Gate Charge: 9nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت AP8V04S
ماسفت AP8V04S
Part Number
Enhancement
Channel Mode
2
Number of Channels
-55C
Minimum Operating Temperature
-40V
Vds - Drain - Source Breakdown Voltage
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
-1V
Vgs th - Gate - Source Threshold Voltage
±20V
Vgs - Gate - Source Voltage
-8.2A
Id - Continuous Drain Current
+150C
Maximum Operating Temperature
9nC
Qg - Gate Charge
3.1W
Pd - Power Dissipation
35mΩ
Rds On - Drain - Source Resistance
SOIC-8
Package-Case
