معرفی

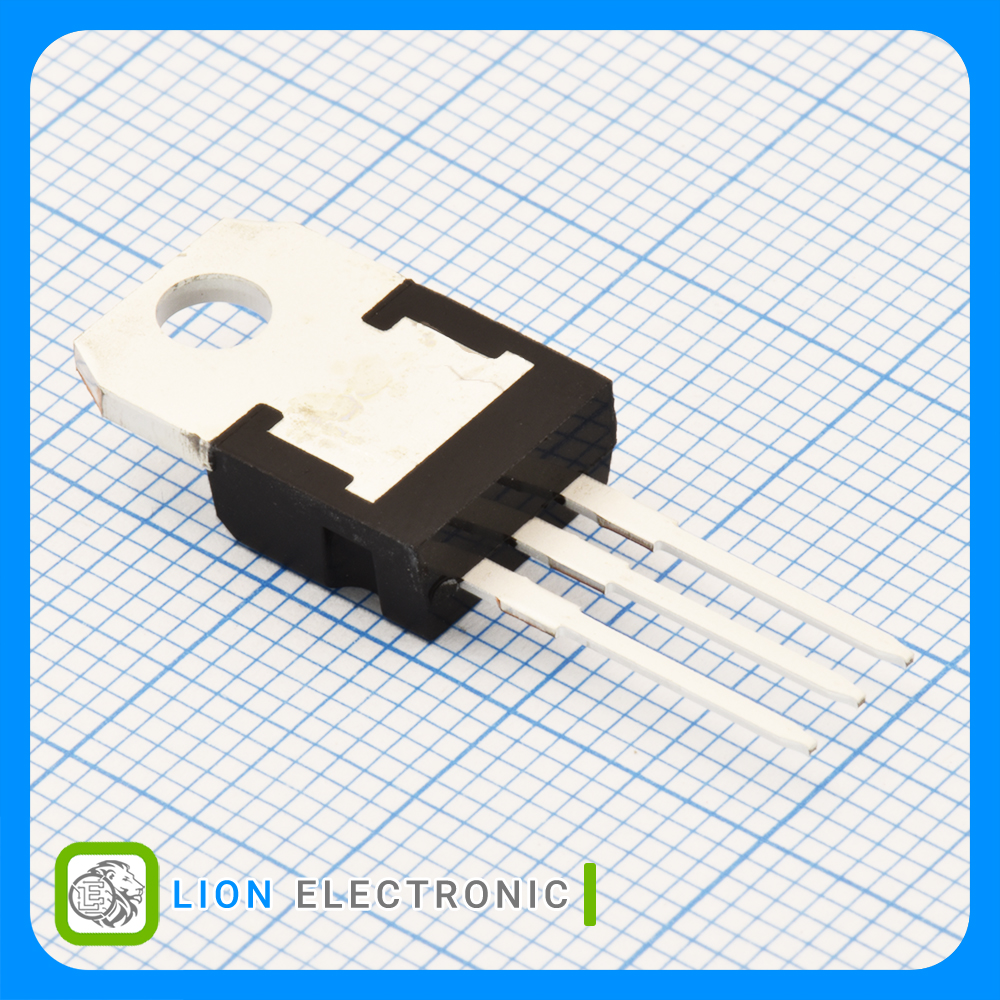

رگولاتور خطی 15 ولت 1.2 آمپر با پکیج TO-220-3
Fixed Linear Voltage Regulator 15V, 1.2A with TO-220-3 Package
Specifications
- Number of Outputs: 1
- Polarity: Positive
- Output Type: Fixed
- Load Regulation: 100mV
- Line Regulation: 300mV
- Input Voltage Max: 35V
- Quiescent Current: 6mA
- Output Current: 1.2A
- Input Voltage Min: 17V
- Output Voltage: 15V
- Package/Case: TO-220-3
- Mounting Style: Through Hole
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات رگولاتور L7815CV

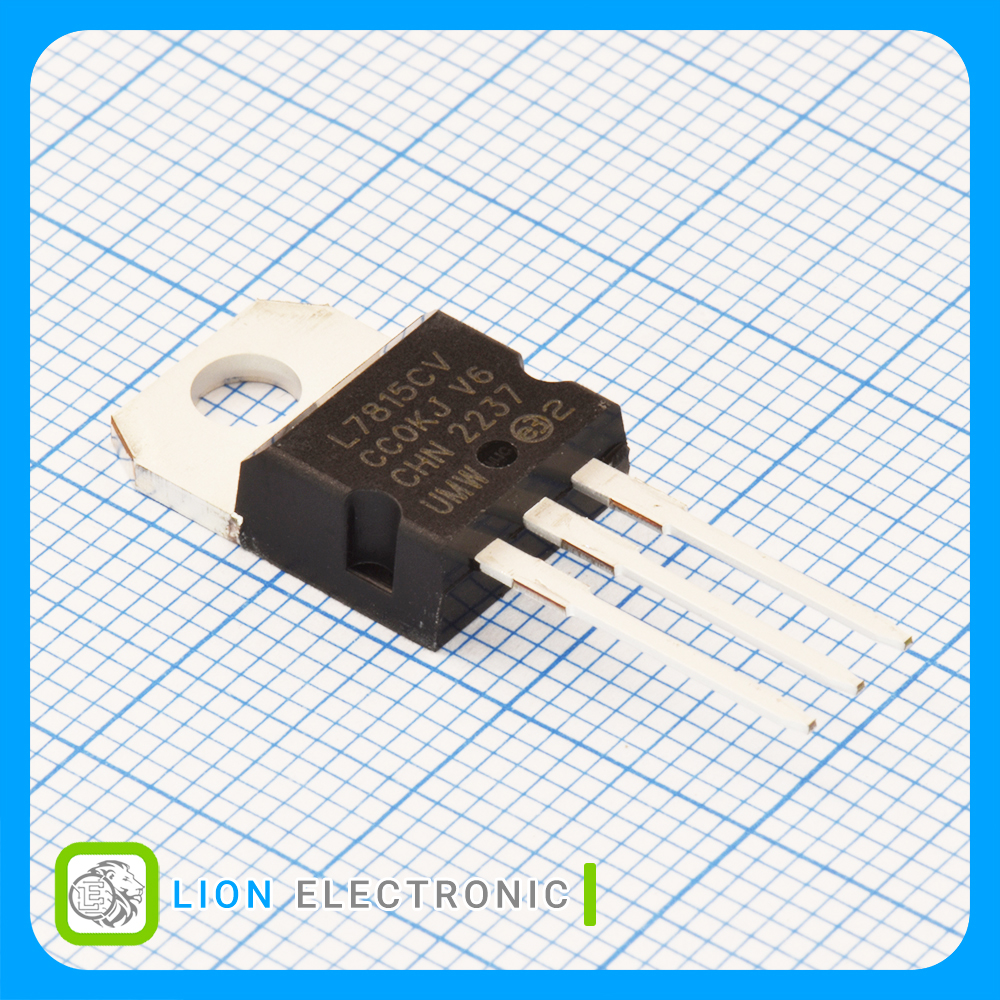

رگولاتور L7815CV
Part Number
1
Number of Outputs
Positive
Polarity
Tube
Packaging
Through Hole
Mounting Style
0C
Minimum Operating Temperature
Fixed
Output Type
100mV
Load Regulation
+125C
Maximum Operating Temperature
300mV
Line Regulation
35V
Input Voltage Max
6mA
Quiescent Current
1.2A
Output Current
17V
Input Voltage Min
15V
Output Voltage
TO-220
Package-Case
