XINGLIGHT
معرفی
ال ای دی سبز 520-525nm 20 میلیآمپر با پکیج 5mm ROUND
LED Green 520-525nm, 20mA with 5mm ROUND Package
Specifications
- Illumination Color: Green
- Vf - Forward Voltage: 2.8-3.2V
- If - Forward Current: 20mA
- Power Rating: 80mW
- Wavelength/Color Temperature: 520-525nm
- Luminous Intensity: 6000-12000mcd
- Package/Case: 5mm ROUND
- Mounting Style: Through Hole
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +85C
- Packaging: Bag
مشخصات ال ای دی سبز XL-504UGC

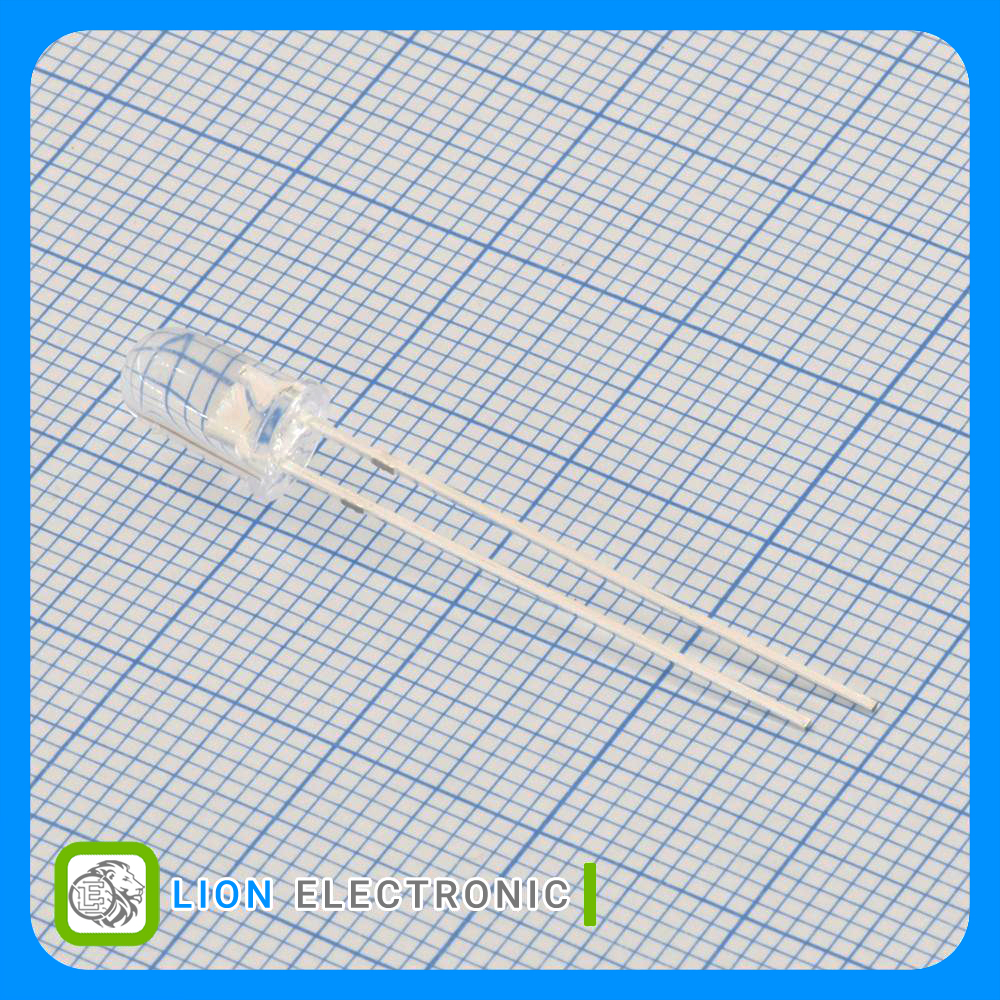

ال ای دی سبز XL-504UGC
Part Number
Bag
Packaging
Green
Illumination Color
80mW
Power Rating
20mA
If - Forward Current
-25C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
5mm ROUND
Package-Case
520-525nm
Wavelength-Color Temperature
6000-12000mcd
Luminous Intensity
2.8-3.2V
Vf - Forward Voltage
