معرفی
ال ای دی زرد 588-593nm با جریان 30 میلیآمپر و توان 80 میلیوات با پکیج 5mm ROUND
LED Yellow 588-593nm, 30mA, 80mW with 5mm ROUND Package
Specifications
- Illumination Color: Yellow
- Vf - Forward Voltage: 1.8-2.4V
- If - Forward Current: 30mA
- Power Rating: 80mW
- Wavelength/Color Temperature: 588-593nm
- Luminous Intensity: 600-1000mcd
- Package/Case: 5mm ROUND
- Mounting Style: Through Hole
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +85C
- Packaging: Bag
مشخصات ال ای دی زرد XL-504UYC

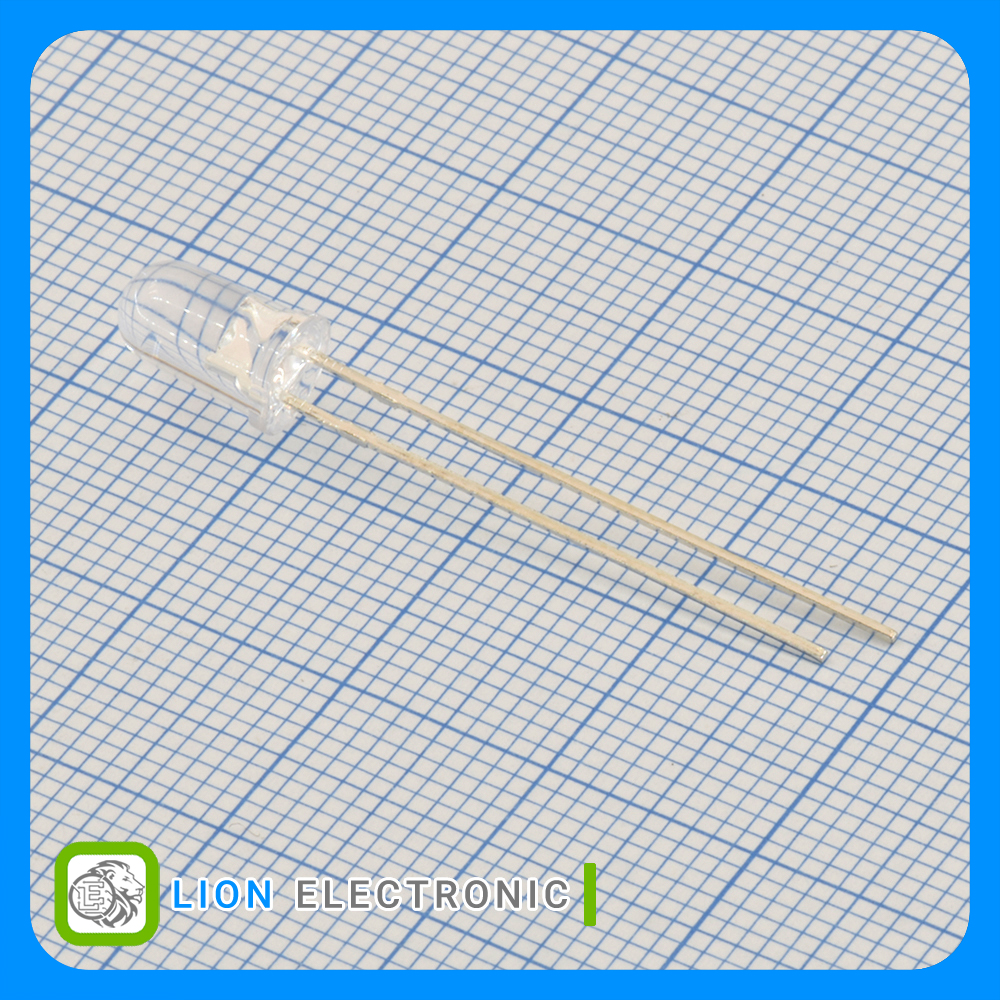

ال ای دی زرد XL-504UYC
Part Number
Bag
Packaging
5mm ROUND
Package-Case
80mW
Power Rating
-25C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
30mA
If - Forward Current
Yellow
Illumination Color
588-593nm
Wavelength-Color Temperature
600-1000mcd
Luminous Intensity
1.8-2.4V
Vf - Forward Voltage
