XL-A524SURSYGC
XINGLIGHT
معرفی
ال ای دی دو رنگ قرمز و سبز کاتد مشترک R:620-625-G:568-570nm با جریان 40 میلیآمپر 80+100 میلیوات با پکیج 5mm ROUND
LED Red & Green Common Cathode R:620-625-G:568-570nm, 40mA 80+100mW with 5mm ROUND Package
Specifications
- Illumination Color: Red & Green
- Vf - Forward Voltage: R:1.9-2.3-G:2.0-2.4V
- If - Forward Current: 40mA
- Power Rating: 80+100mW
- Wavelength/Color Temperature: R:620-625-G:568-570nm
- Luminous Intensity: R:500-700-G:450-650mcd
- Package/Case: 5mm ROUND
- Mounting Style: Through Hole
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +85C
- Packaging: Bag
مشخصات ال ای دی قرمز و سبز XL-A524SURSYGC

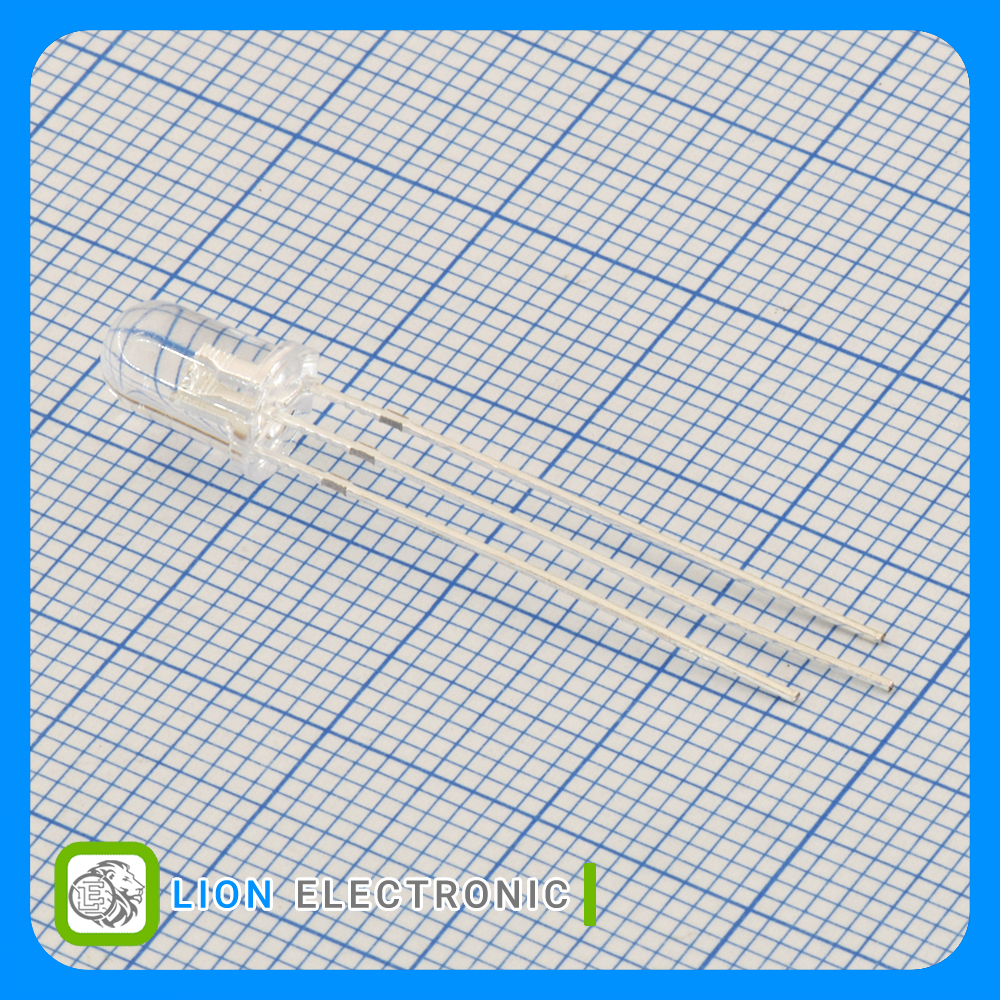

ال ای دی قرمز و سبز XL-A524SURSYGC
Part Number
Bag
Packaging
5mm ROUND
Package-Case
80+100mW
Power Rating
-25C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
Red & Green
Illumination Color
Through Hole
Mounting Style
40mA
If - Forward Current
R:620-625-G:568-570nm
Wavelength-Color Temperature
R:500-700-G:450-650mcd
Luminous Intensity
R:1.9-2.3-G:2.0-2.4V
Vf - Forward Voltage
