AO3413
AO3413
Part Number
3258
Lion Part
Datasheet
Alpha & Omega Semiconductor Manufacture
ماسفت -20 ولت -3 آمپر نوع P با پکیج SOT-23-3، محصول ایراد دارد و مناسب مونتاژ ماشینی نیست

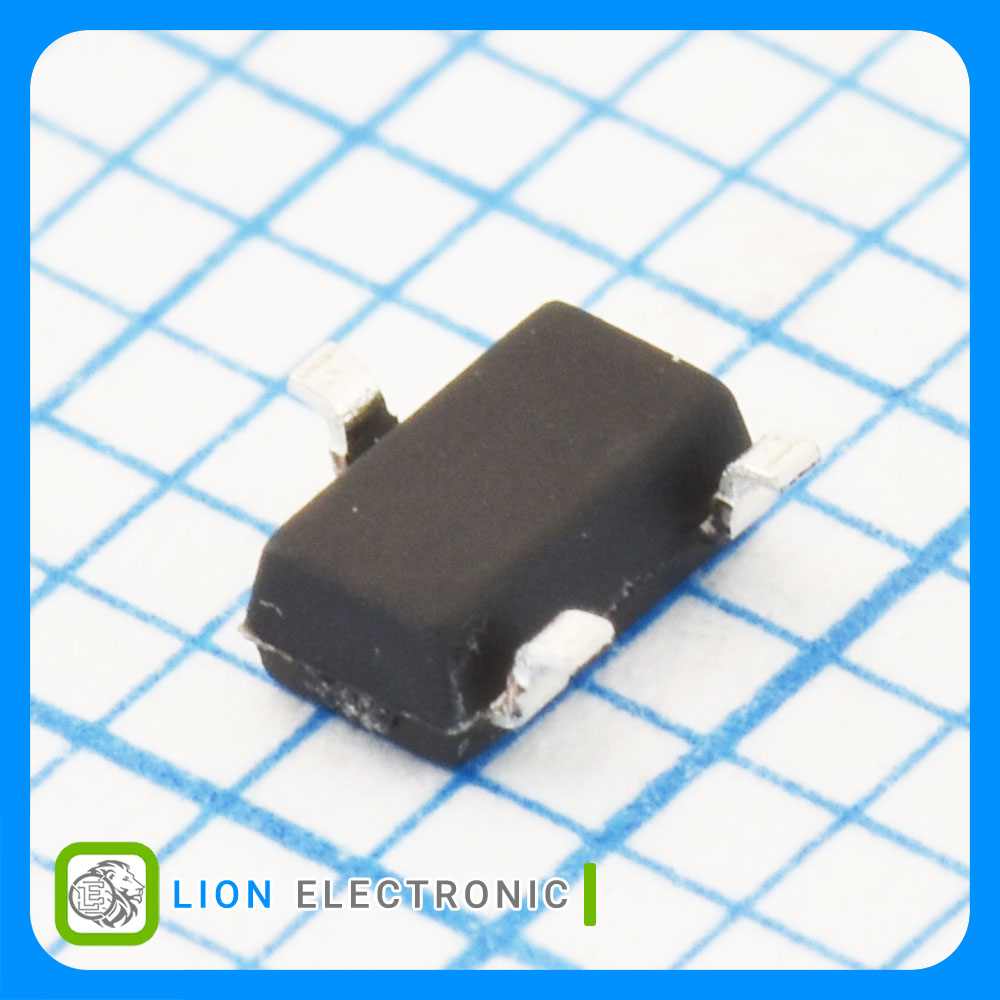

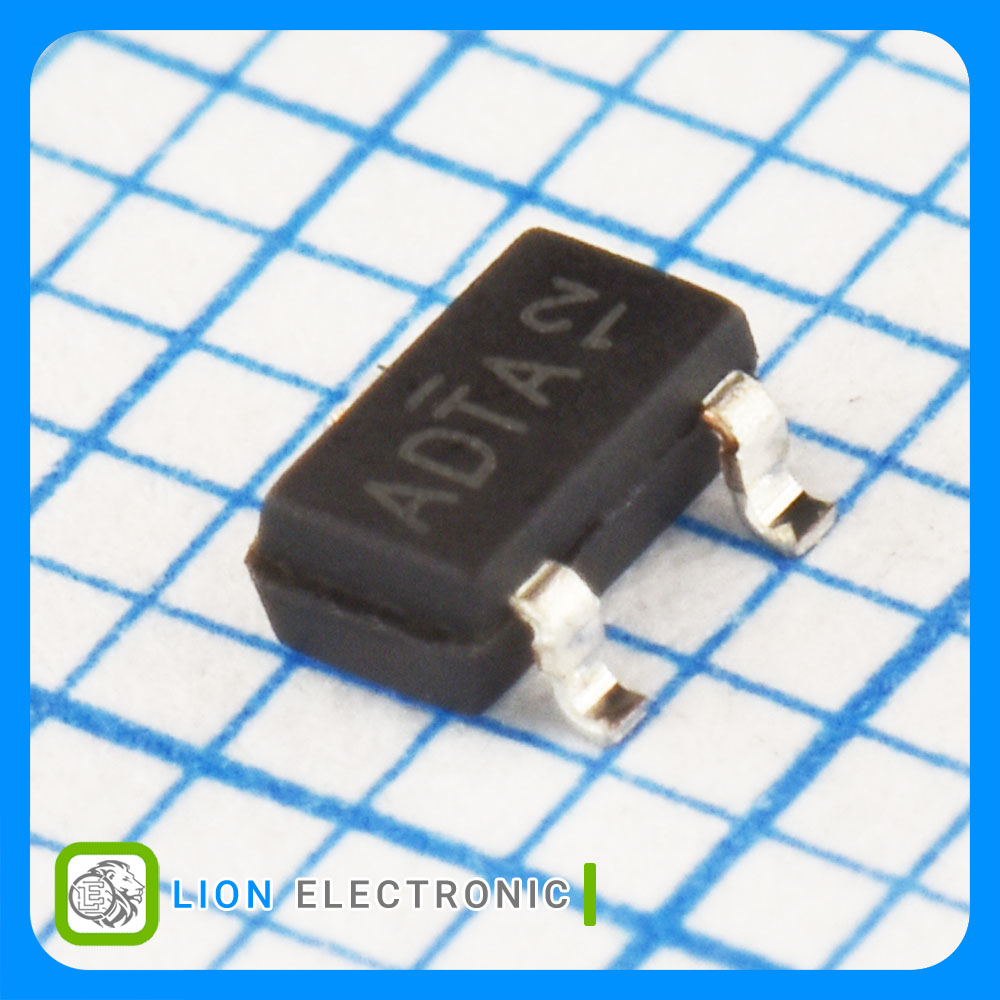

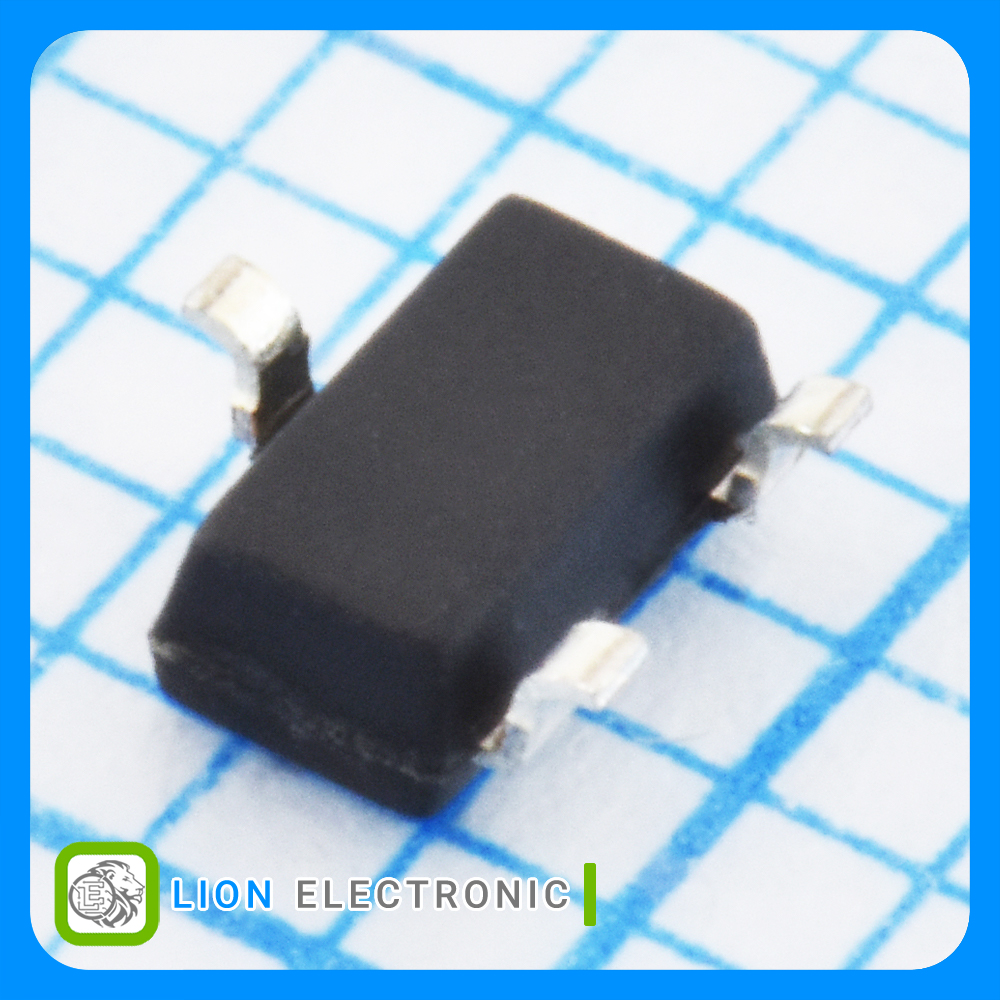

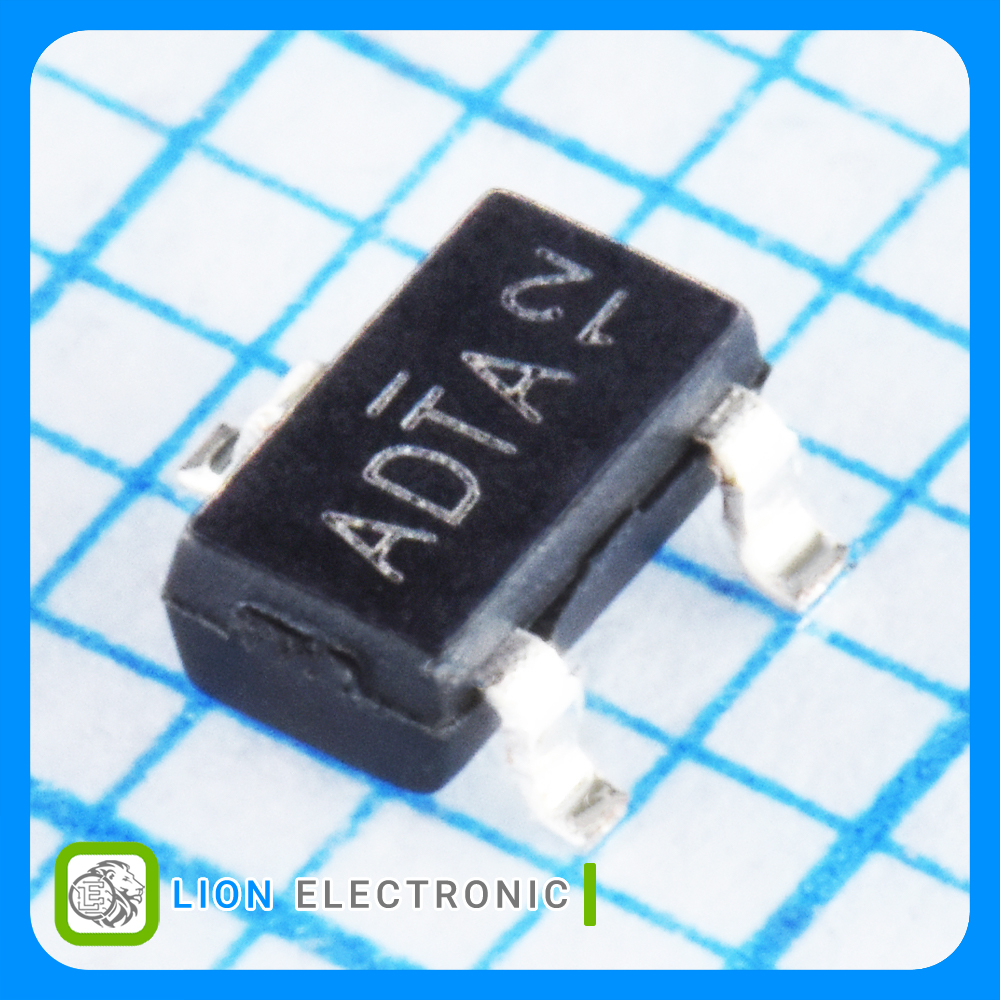

P-CH MOSFET -20V, -3A with SOT-23-3 Package, defective product, not suitable for machine assembly
معرفی
ماسفت -20 ولت -3 آمپر نوع P با پکیج SOT-23-3، محصول ایراد دارد و مناسب مونتاژ ماشینی نیست
P-CH MOSFET -20V, -3A with SOT-23-3 Package, defective product, not suitable for machine assembly
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: -20V
- Id - Continuous Drain Current: -3A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -400mV
- Vgs - Gate - Source Voltage: ±8V
- Rds On - Drain - Source Resistance: 56mΩ
- Pd - Power Dissipation: 1.4W
- Qg - Gate Charge: 8.5nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت AO3413
ماسفت AO3413
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
±8V
Vgs - Gate - Source Voltage
-20V
Vds - Drain - Source Breakdown Voltage
-400mV
Vgs th - Gate - Source Threshold Voltage
+150C
Maximum Operating Temperature
-3A
Id - Continuous Drain Current
8.5nC
Qg - Gate Charge
1.4W
Pd - Power Dissipation
56mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
