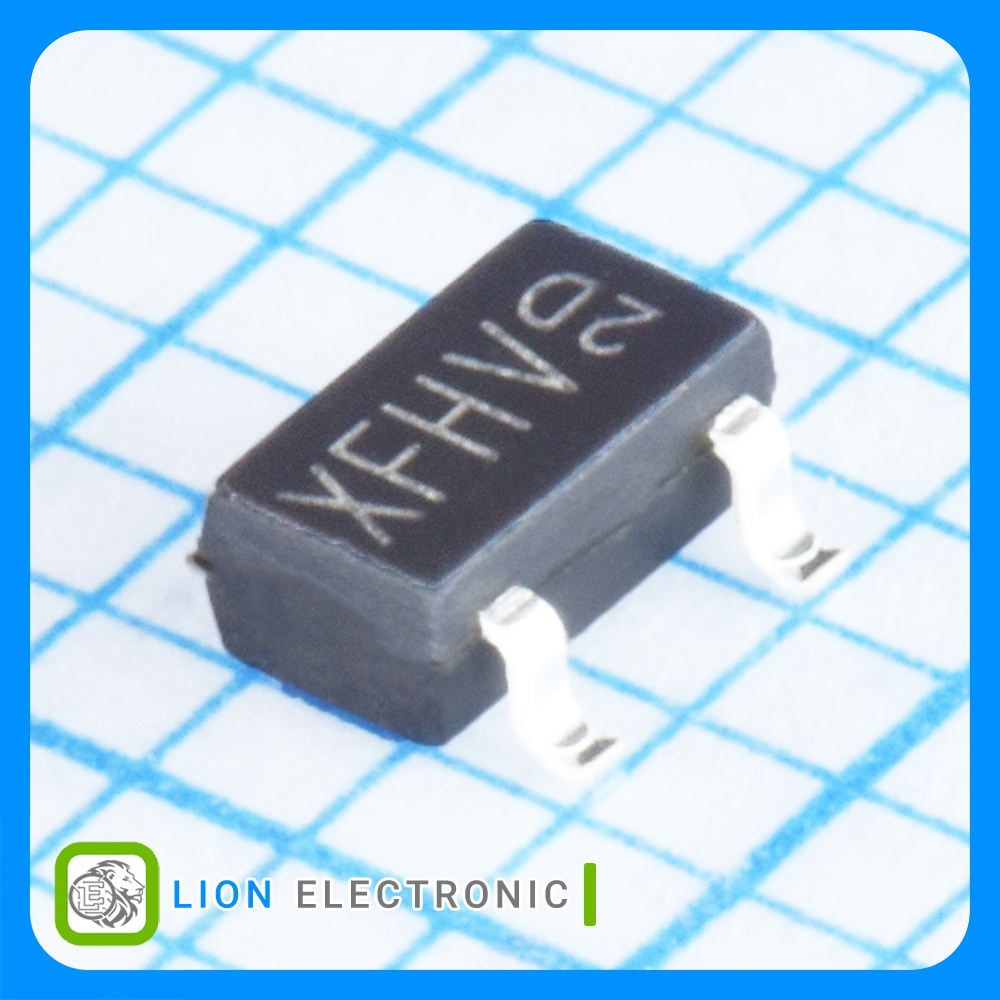

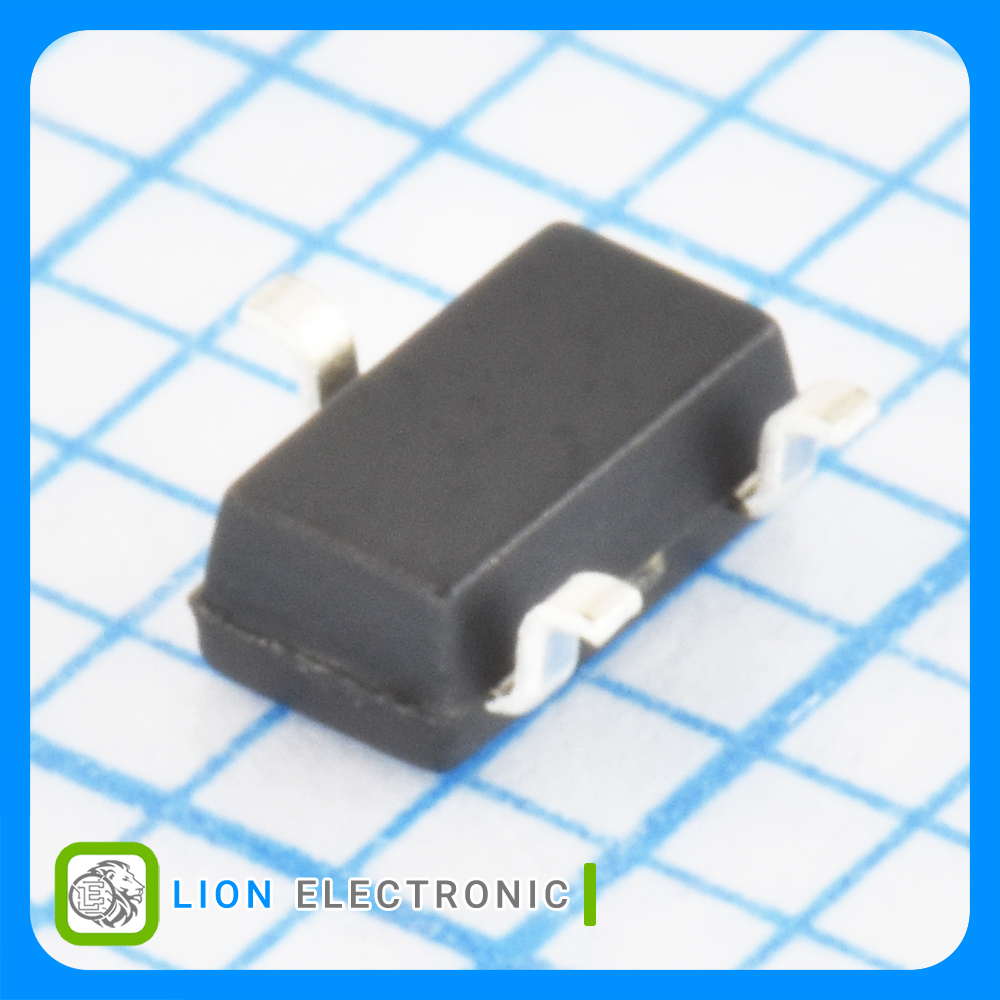

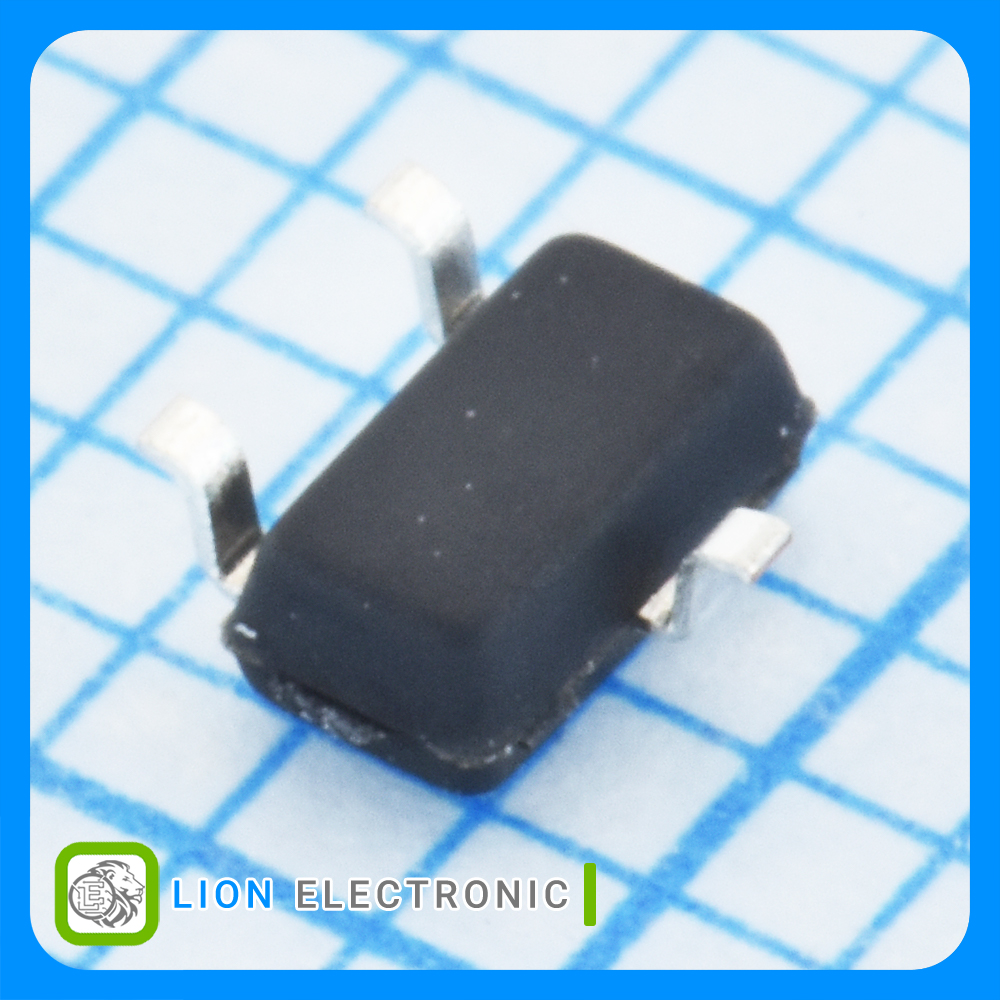

AO3415
AO3415
Part Number
3261
Lion Part
Datasheet

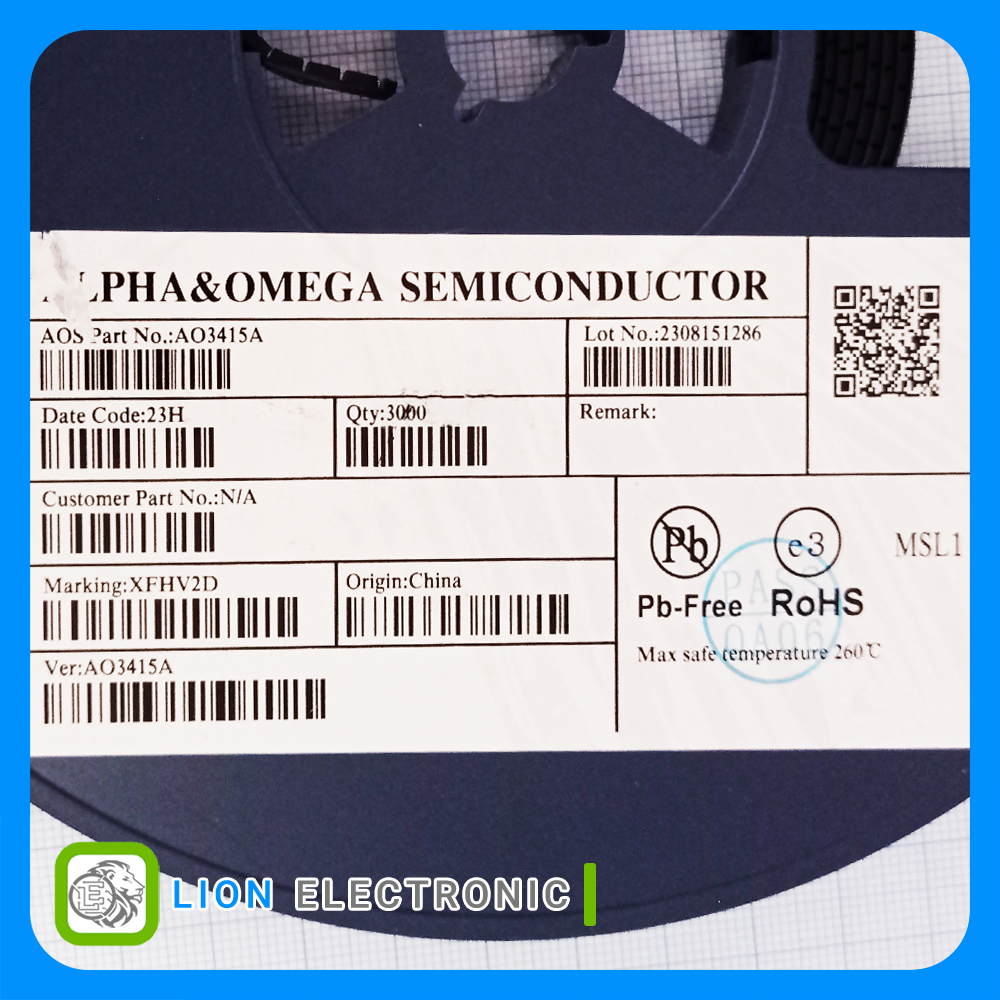

Alpha & Omega Semiconductor Manufacture
ماسفت 20- ولت 4- آمپر نوع P با پکیج SOT-23-3
P-CH MOSFET -20V, -4A with SOT-23-3 Package
معرفی
ماسفت 20- ولت 4- آمپر نوع P با پکیج SOT-23-3
P-CH MOSFET -20V, -4A with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: -20V
- Id - Continuous Drain Current: -4A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -300mV
- Vgs - Gate - Source Voltage: ±8V
- Rds On - Drain - Source Resistance: 34mΩ
- Pd - Power Dissipation: 1.5W
- Qg - Gate Charge: 9.3nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت AO3415

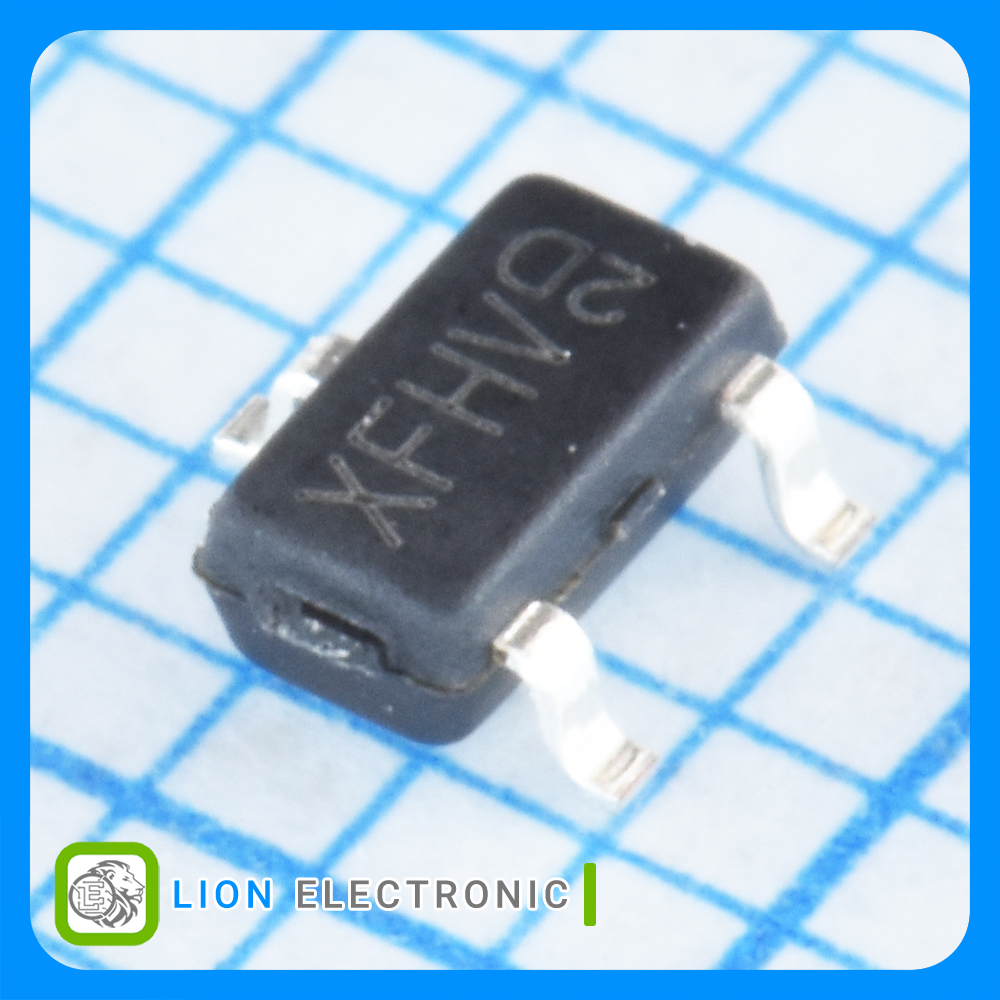

ماسفت AO3415
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
±8V
Vgs - Gate - Source Voltage
-20V
Vds - Drain - Source Breakdown Voltage
-300mV
Vgs th - Gate - Source Threshold Voltage
+150C
Maximum Operating Temperature
-4A
Id - Continuous Drain Current
9.3nC
Qg - Gate Charge
1.5W
Pd - Power Dissipation
34mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
