معرفی
ال ای دی زرد 580-595nm 25 میلیآمپر 60 میلیوات با پکیج 0603

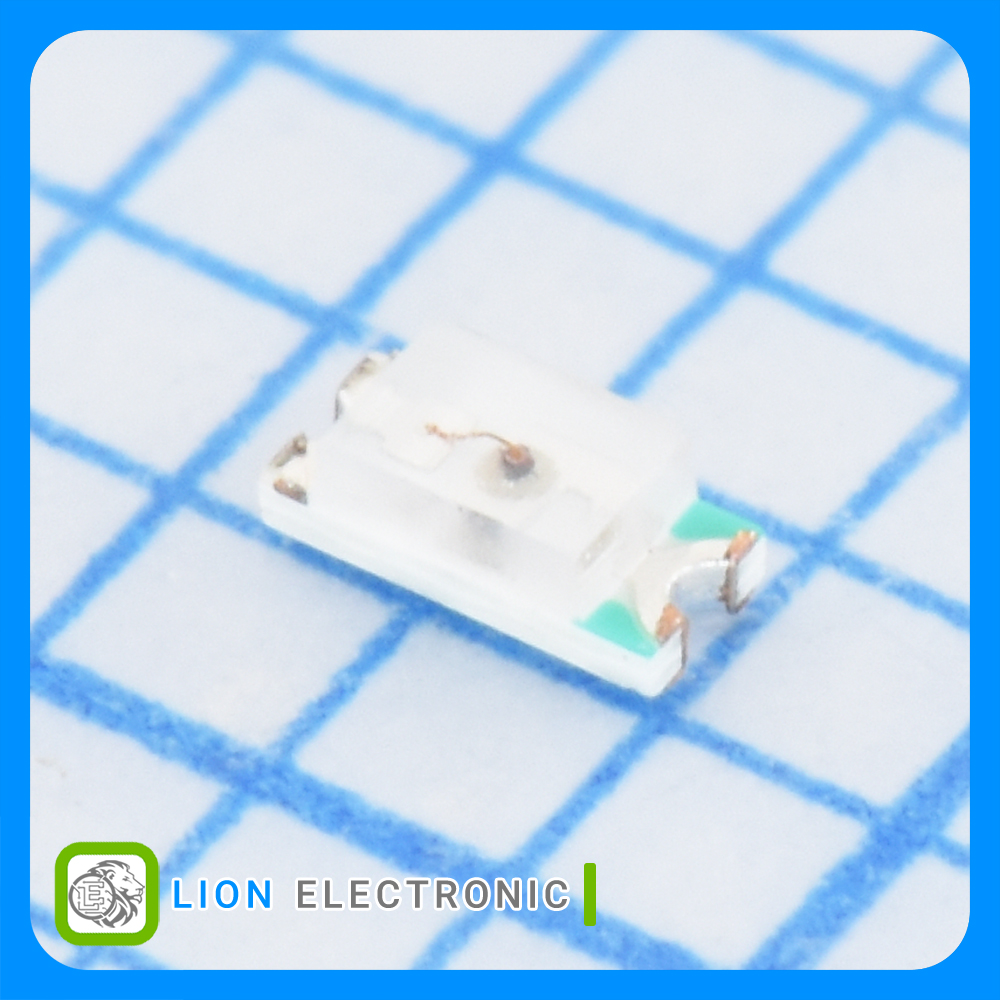

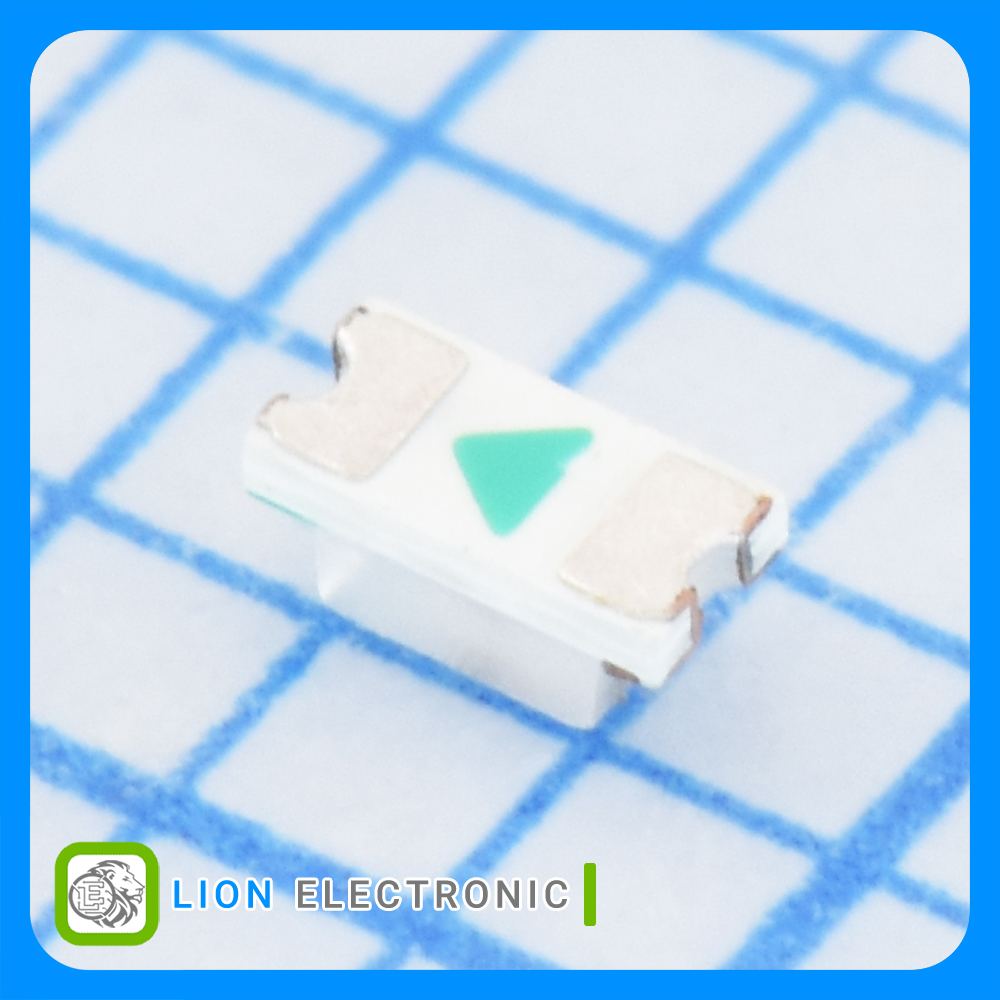

LED Yellow 580-595nm, 25mA, 60mW with 0603 Package
Specifications
- Illumination Color: Yellow
- Vf - Forward Voltage: 2.0-2.2V
- If - Forward Current: 25mA
- Power Rating: 60mW
- Wavelength/Color Temperature: 580-595nm
- Luminous Intensity: 70-145mcd
- Package/Case: 0603(1608 metric)
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -30C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ال ای دی زرد XL-1608UYC-06
ال ای دی زرد XL-1608UYC-06
Part Number
60mW
Power Rating
Reel
Packaging
-30C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
25mA
If - Forward Current
70-145mcd
Luminous Intensity
Yellow
Illumination Color
580-595nm
Wavelength-Color Temperature
0603(1608 metric)
Package-Case
2.0-2.2V
Vf - Forward Voltage
