معرفی
ال ای دی زرد 580-595nm با جریان 25 میلیآمپر و توان 60 میلیوات با پکیج 1206

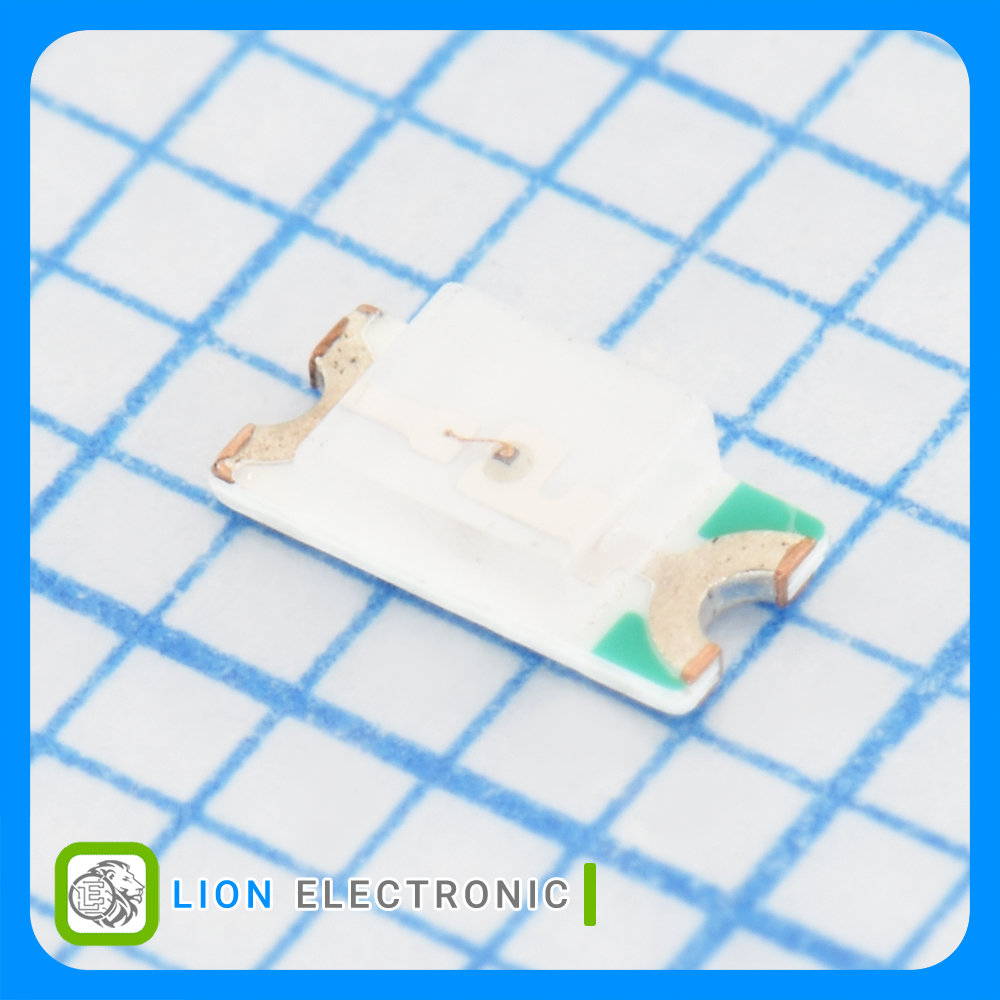

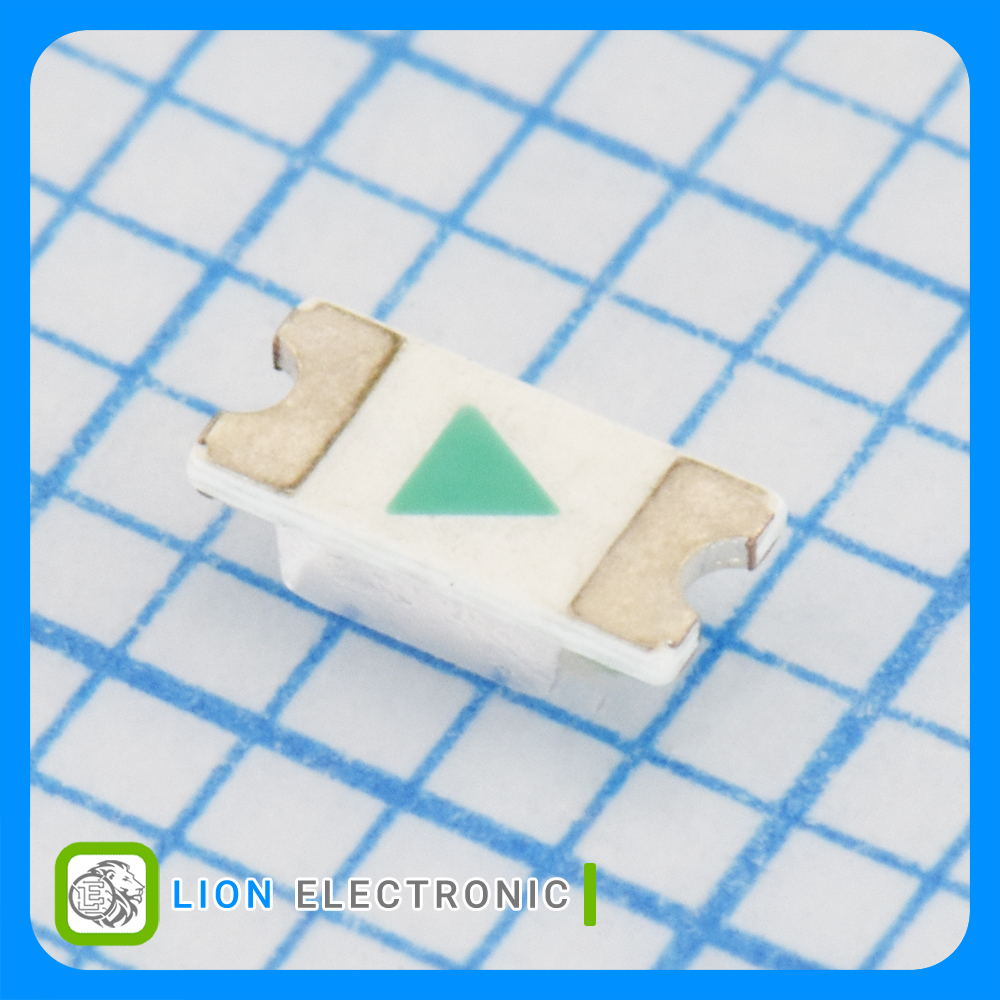

LED Yellow 580-595nm, 25mA, 60mW with 1206 Package
Specifications
- Illumination Color: Yellow
- Vf - Forward Voltage: 1.9-2.2V
- If - Forward Current: 25mA
- Power Rating: 60mW
- Wavelength/Color Temperature: 580-595nm
- Luminous Intensity: 90-180mcd
- Package/Case: 1206 (3216 metric)
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -30C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ال ای دی زرد XL-3216UYC
ال ای دی زرد XL-3216UYC
Part Number
60mW
Power Rating
Reel
Packaging
SMD/SMT
Mounting Style
-30C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
25mA
If - Forward Current
Yellow
Illumination Color
90-180mcd
Luminous Intensity
580-595nm
Wavelength-Color Temperature
1206 (3216 metric)
Package-Case
1.9-2.2V
Vf - Forward Voltage
