VBsemi
معرفی

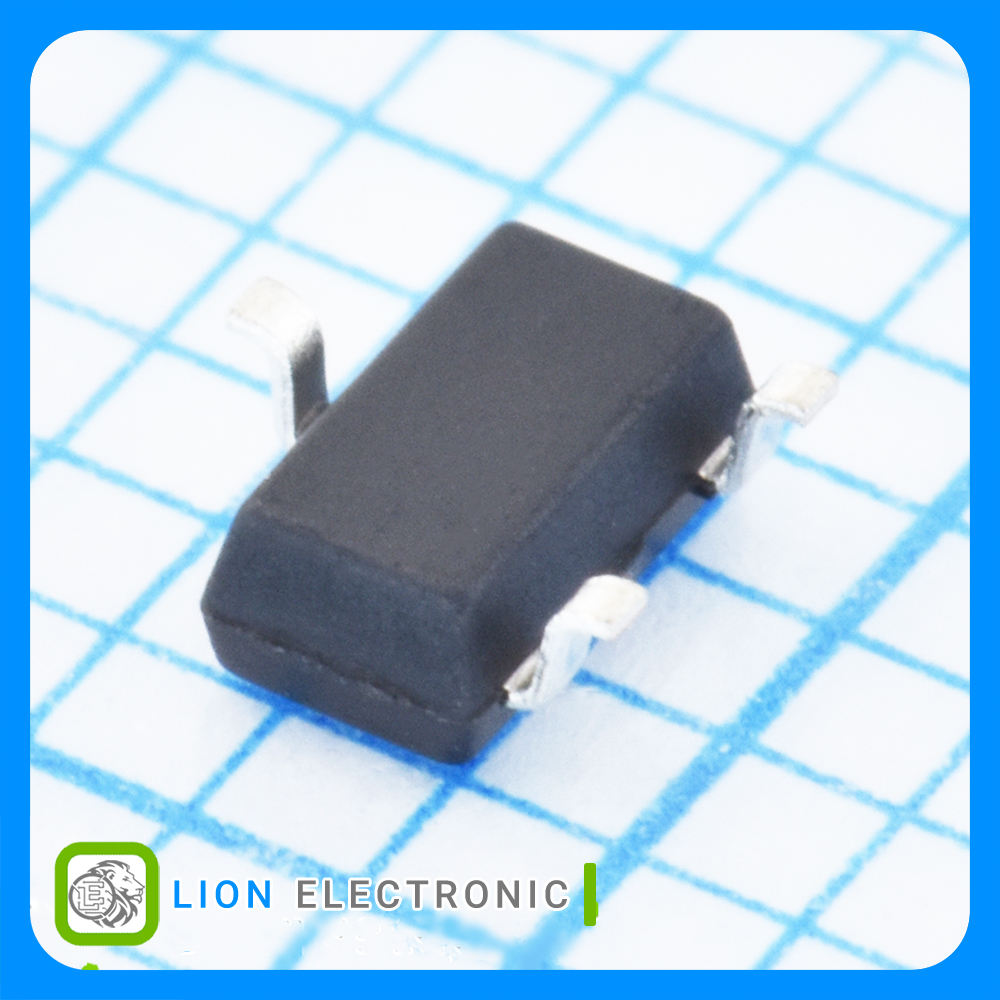

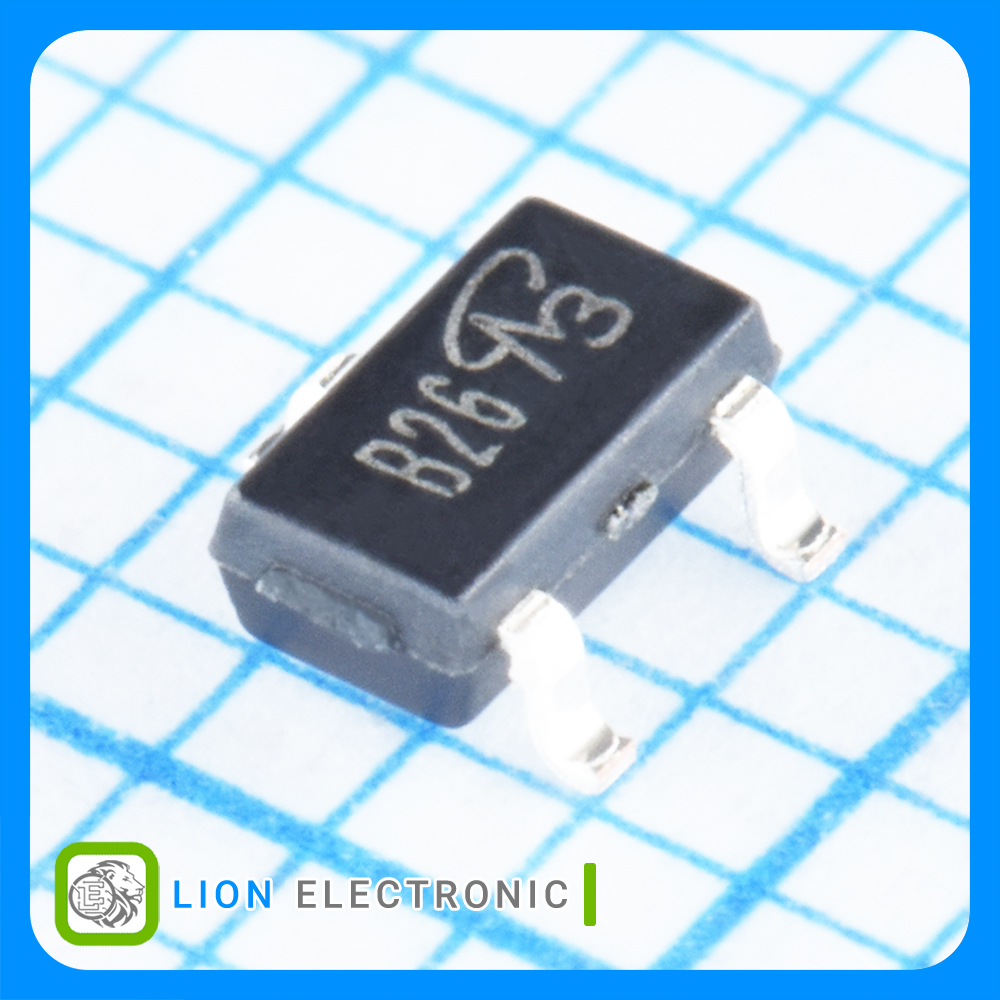

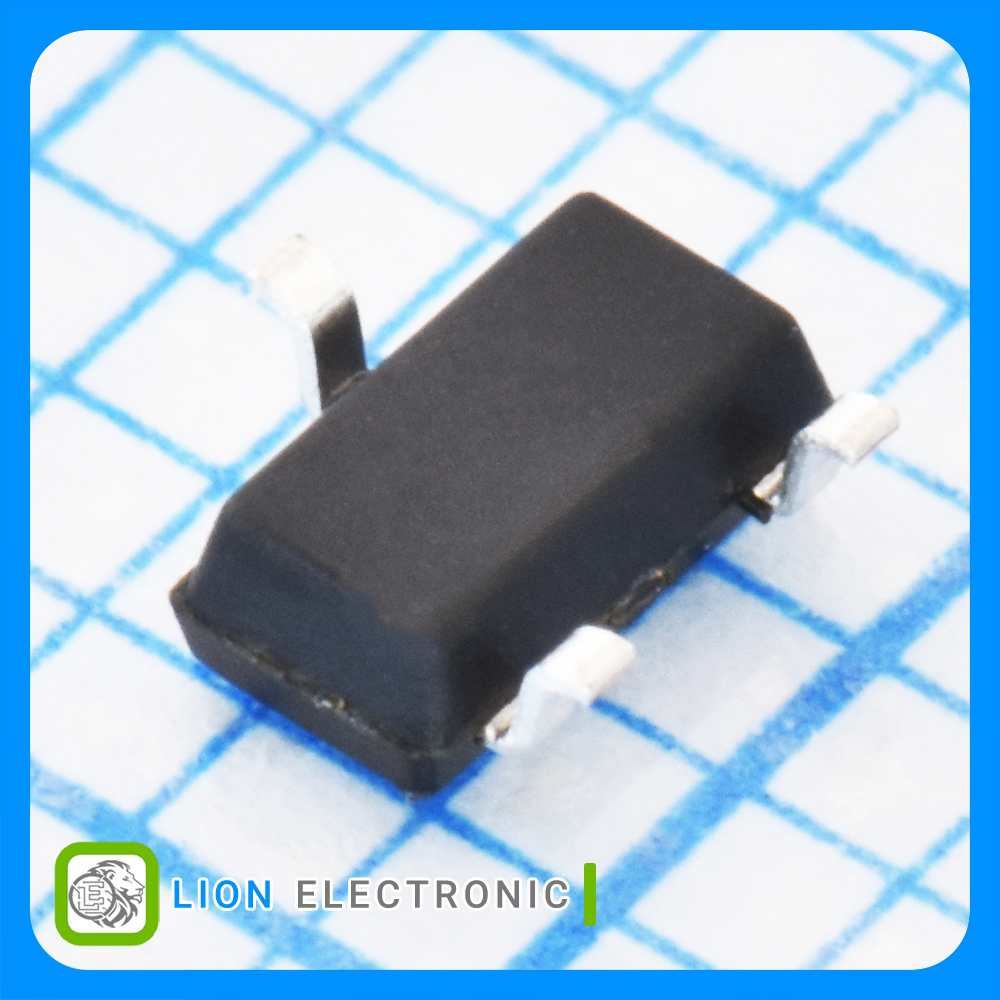

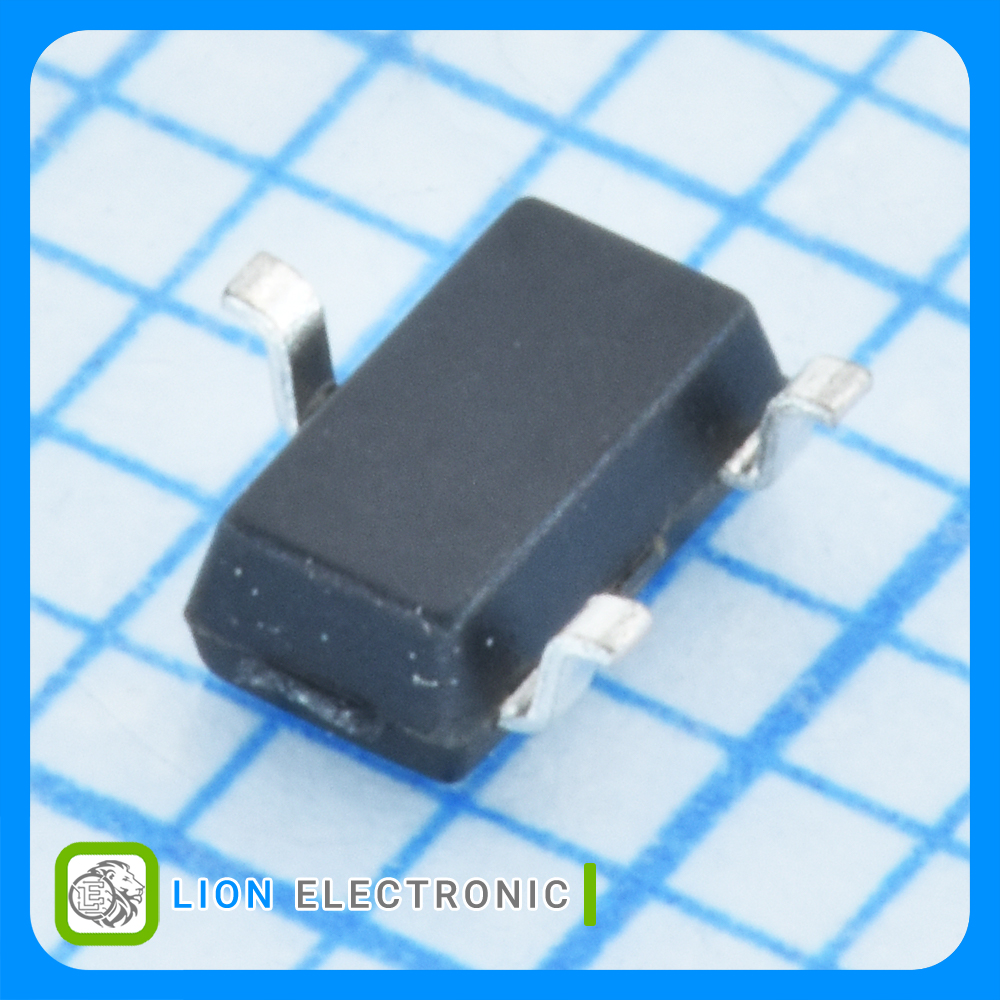

ماسفت 60 ولت 5.2 آمپر نوع P با پکیج SOT-23-3
P-CH MOSFET 60V, 5.2A with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: -60V
- Id - Continuous Drain Current: -5.2A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 40mΩ
- Pd - Power Dissipation: 27W
- Qg - Gate Charge: 12nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C

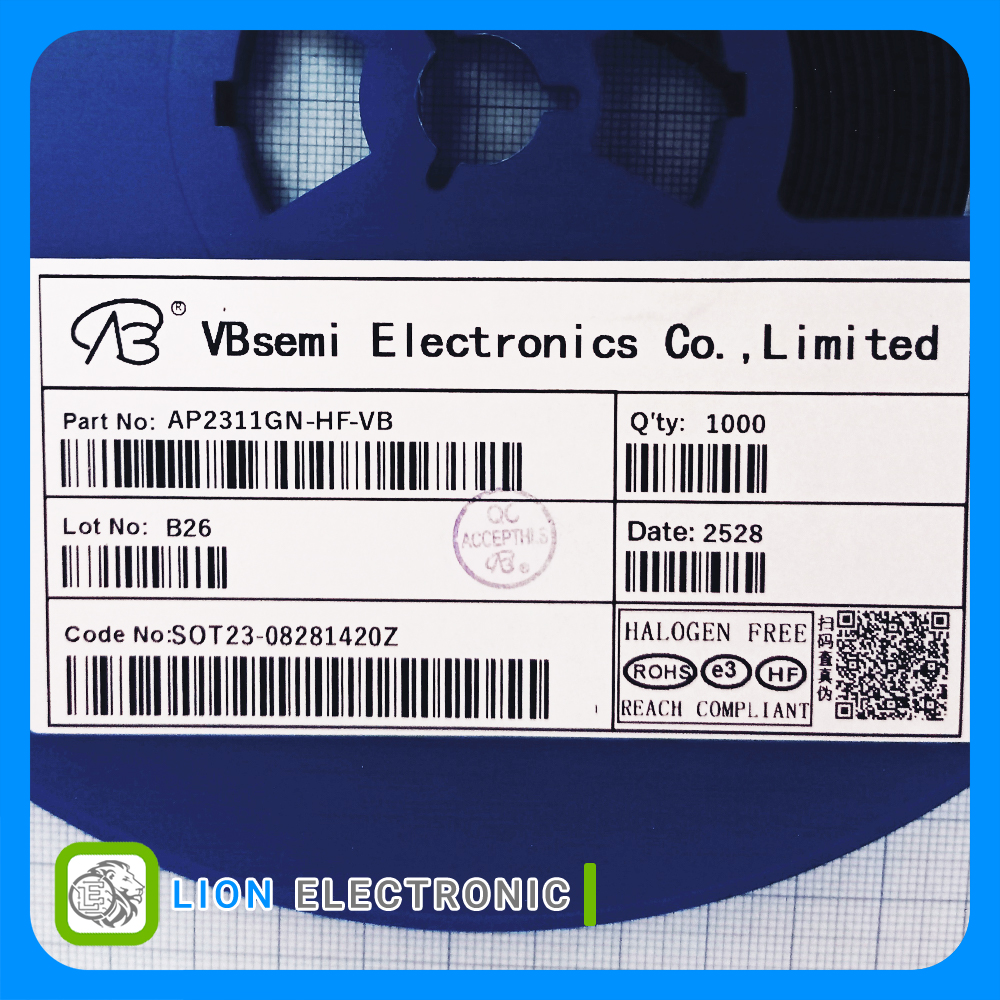

- Packaging: Reel
مشخصات ماسفت AP2311GN-HF-VB

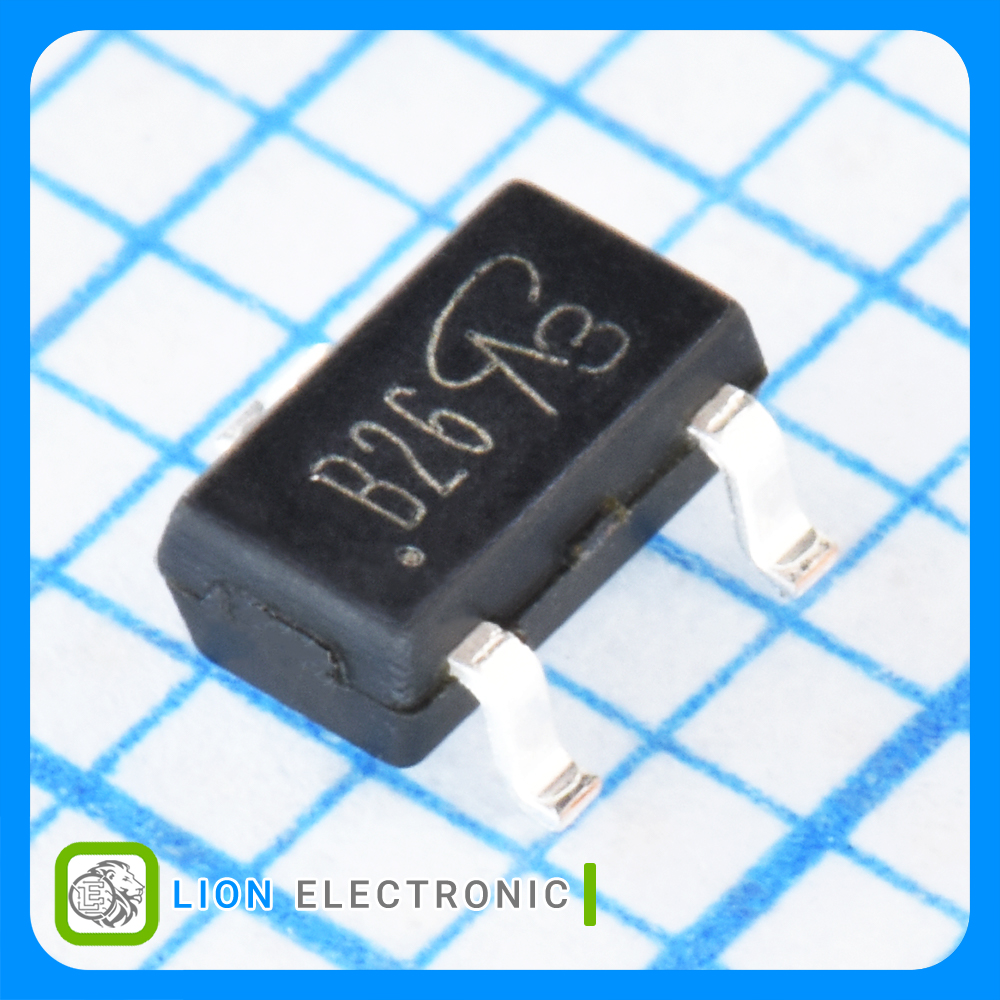

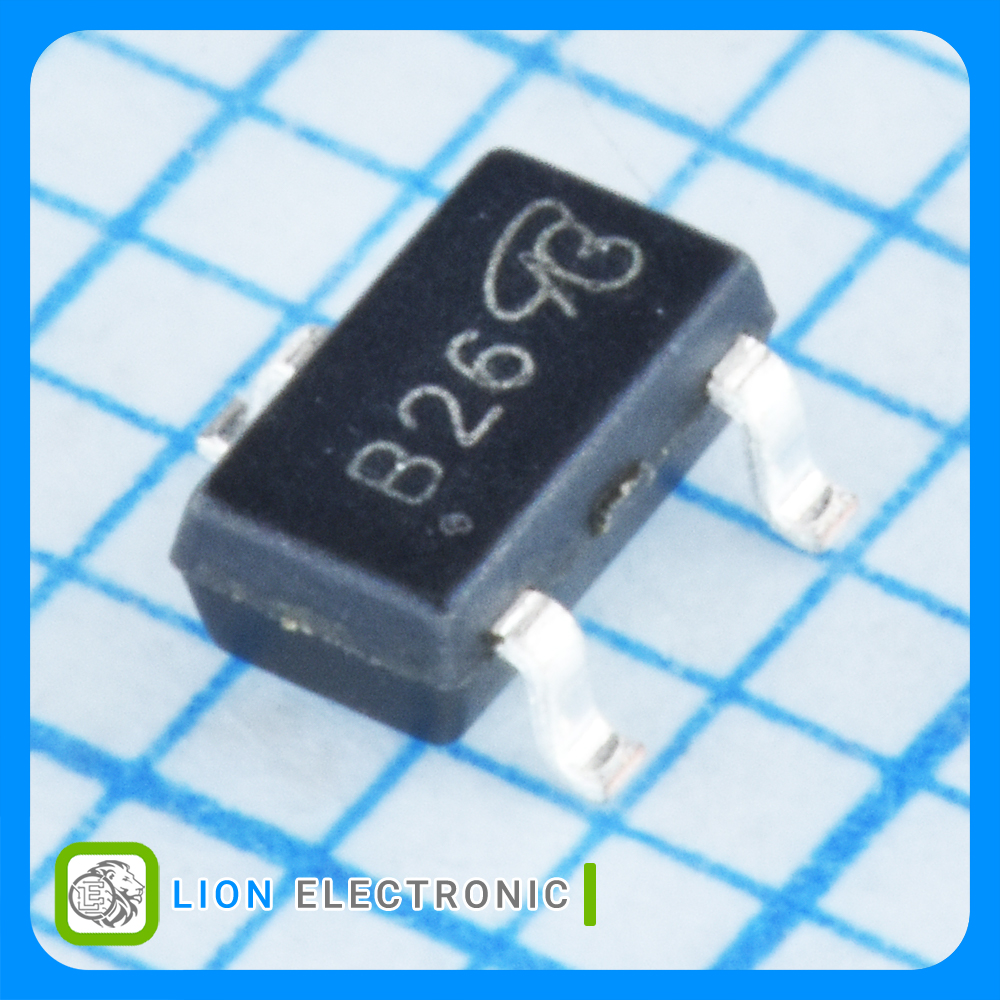

ماسفت AP2311GN-HF-VB
Part Number
1
Number of Channels
Enhancement
Channel Mode
-60V
Vds - Drain - Source Breakdown Voltage
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
-1V
Vgs th - Gate - Source Threshold Voltage
±20V
Vgs - Gate - Source Voltage
-5.2A
Id - Continuous Drain Current
+175C
Maximum Operating Temperature
12nC
Qg - Gate Charge
40mΩ
Rds On - Drain - Source Resistance
27W
Pd - Power Dissipation
SOT-23-3
Package-Case
