VBsemi
معرفی

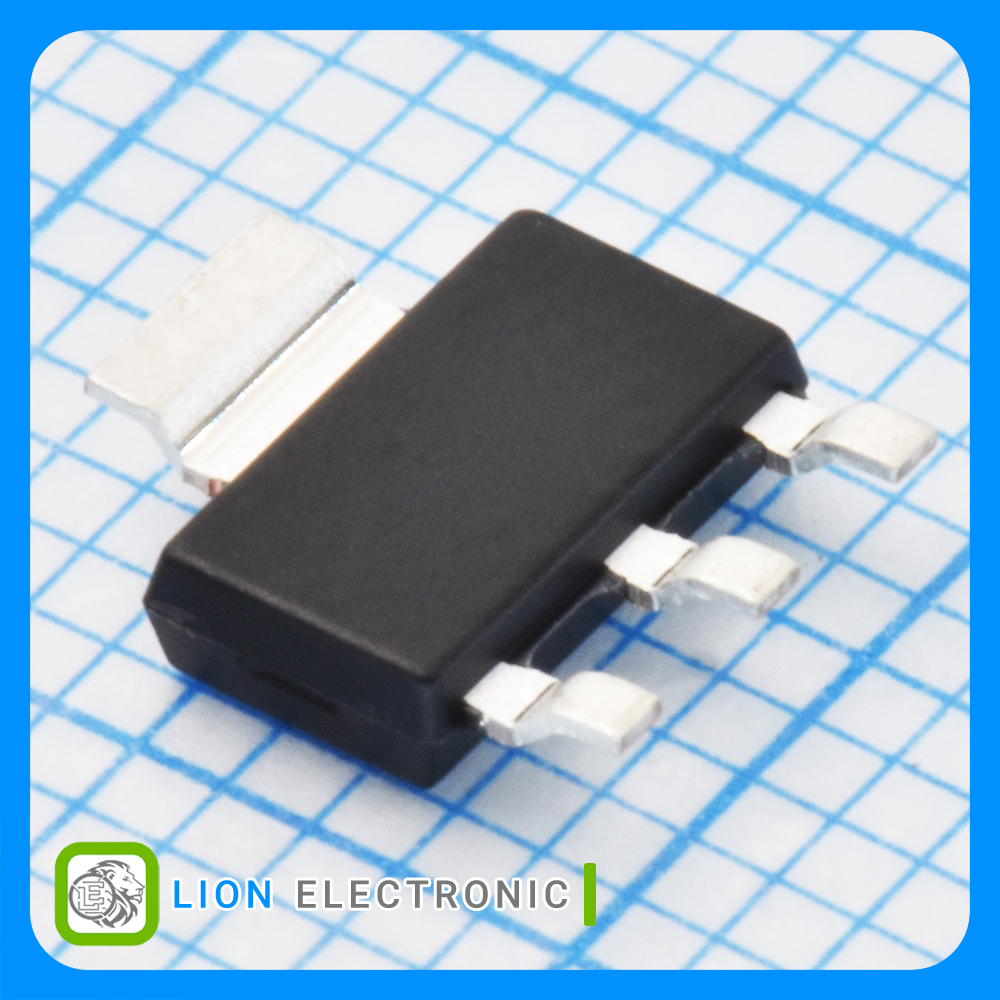

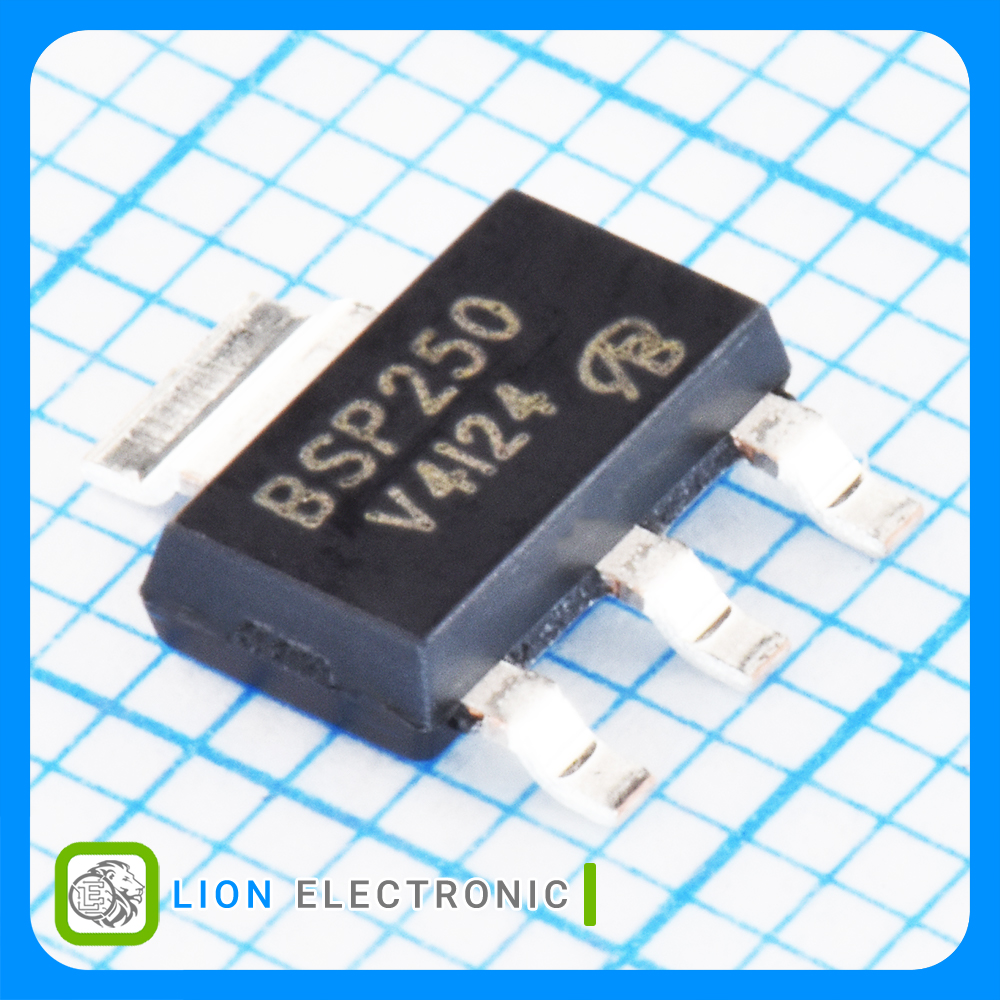

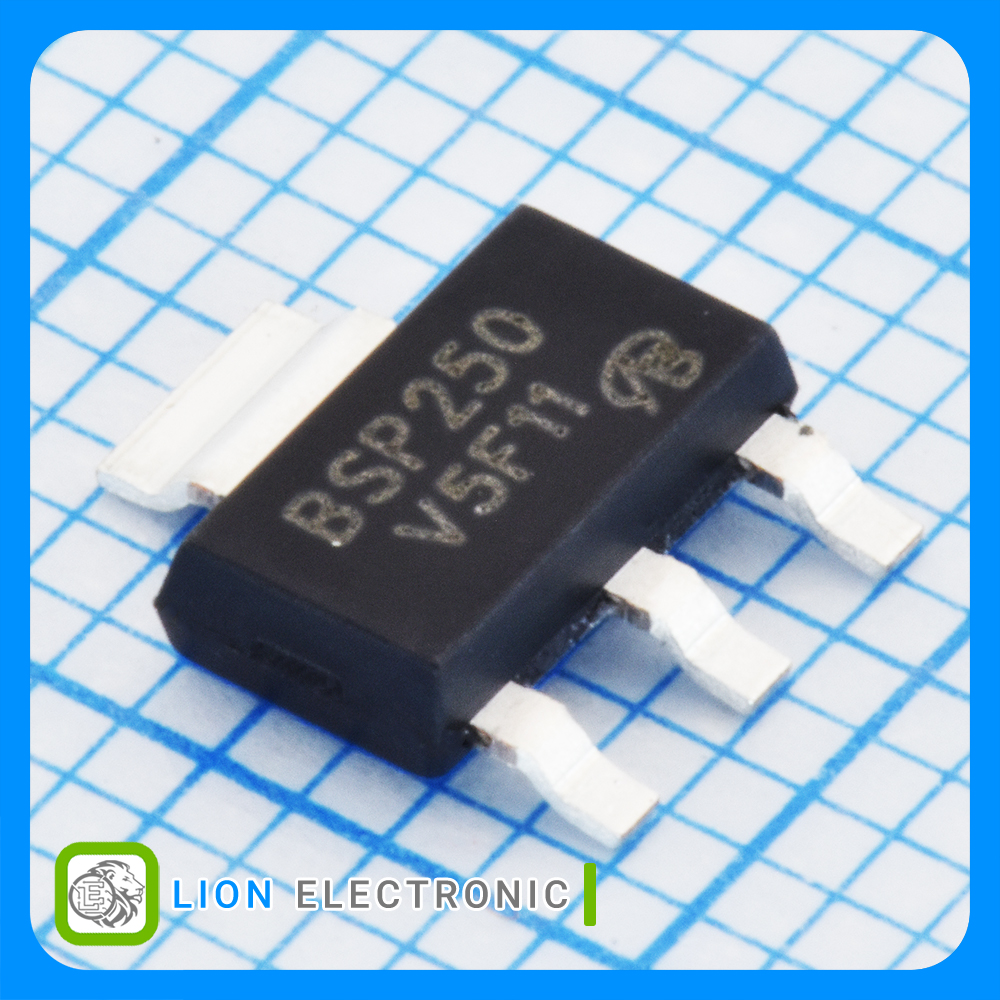

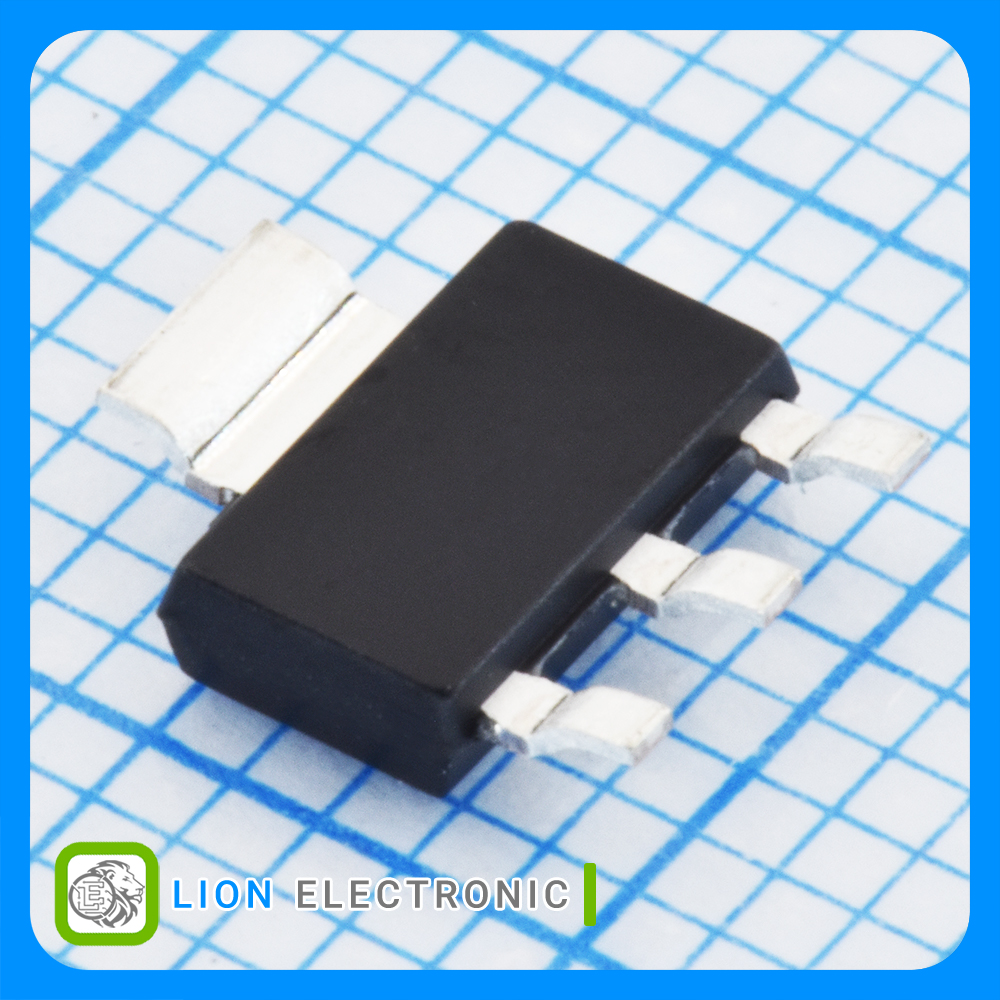

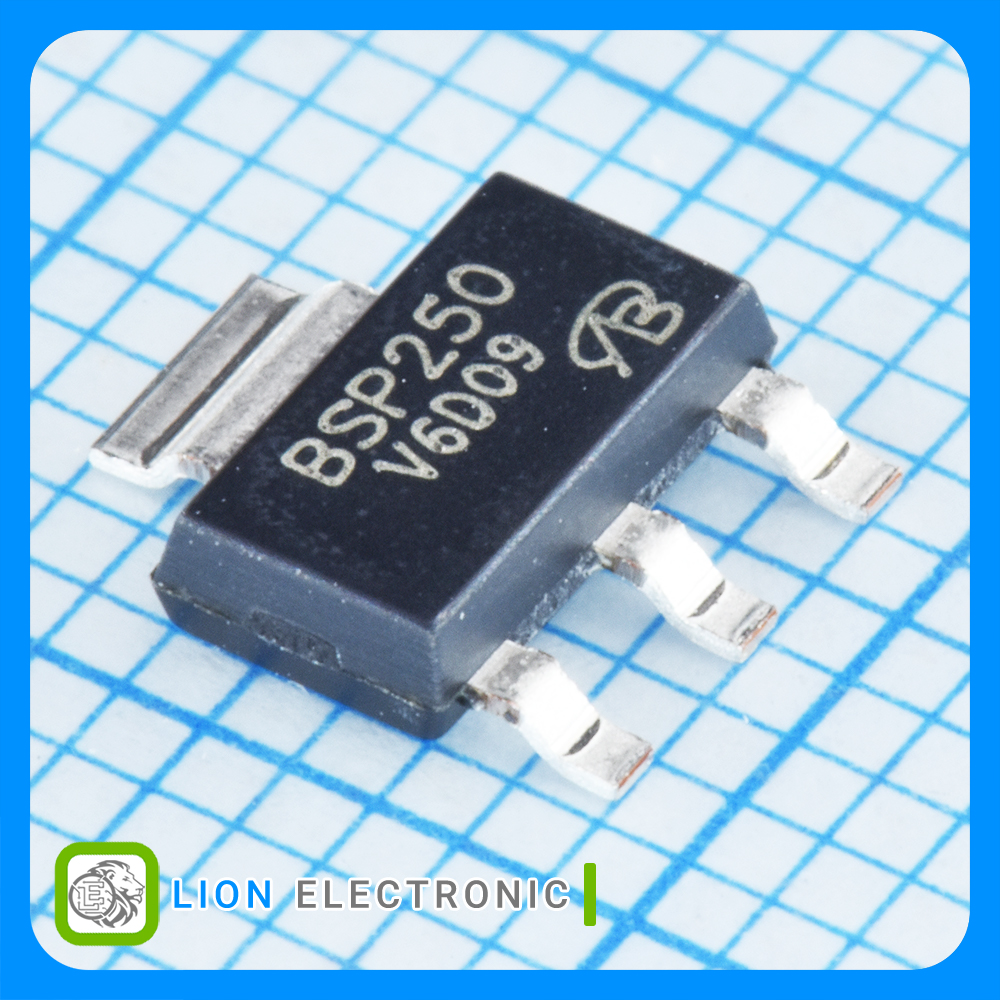

ماسفت 35 ولت 6.2 آمپر نوع P با پکیج SOT-223
P-CH MOSFET 35V, 6.2A with SOT-223 Package
Specifications
- Package/Case: SOT-223
- Vds - Drain - Source Breakdown Voltage: -35V
- Id - Continuous Drain Current: -6.2A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -600mV
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 40mΩ
- Pd - Power Dissipation: 4.2W
- Qg - Gate Charge: 23nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت BSP250-VB
ماسفت BSP250-VB
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
-35V
Vds - Drain - Source Breakdown Voltage
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
-600mV
Vgs th - Gate - Source Threshold Voltage
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
-6.2A
Id - Continuous Drain Current
23nC
Qg - Gate Charge
4.2W
Pd - Power Dissipation
40mΩ
Rds On - Drain - Source Resistance
SOT-223
Package-Case
