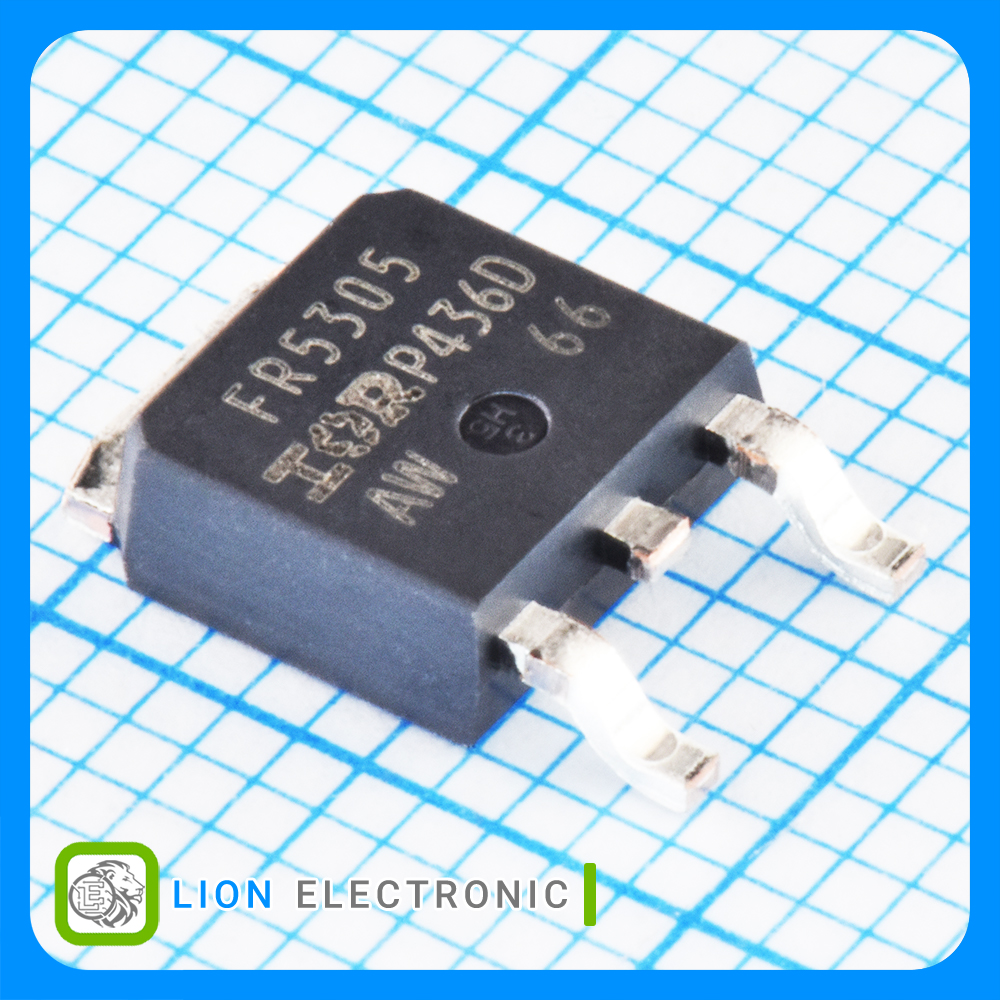

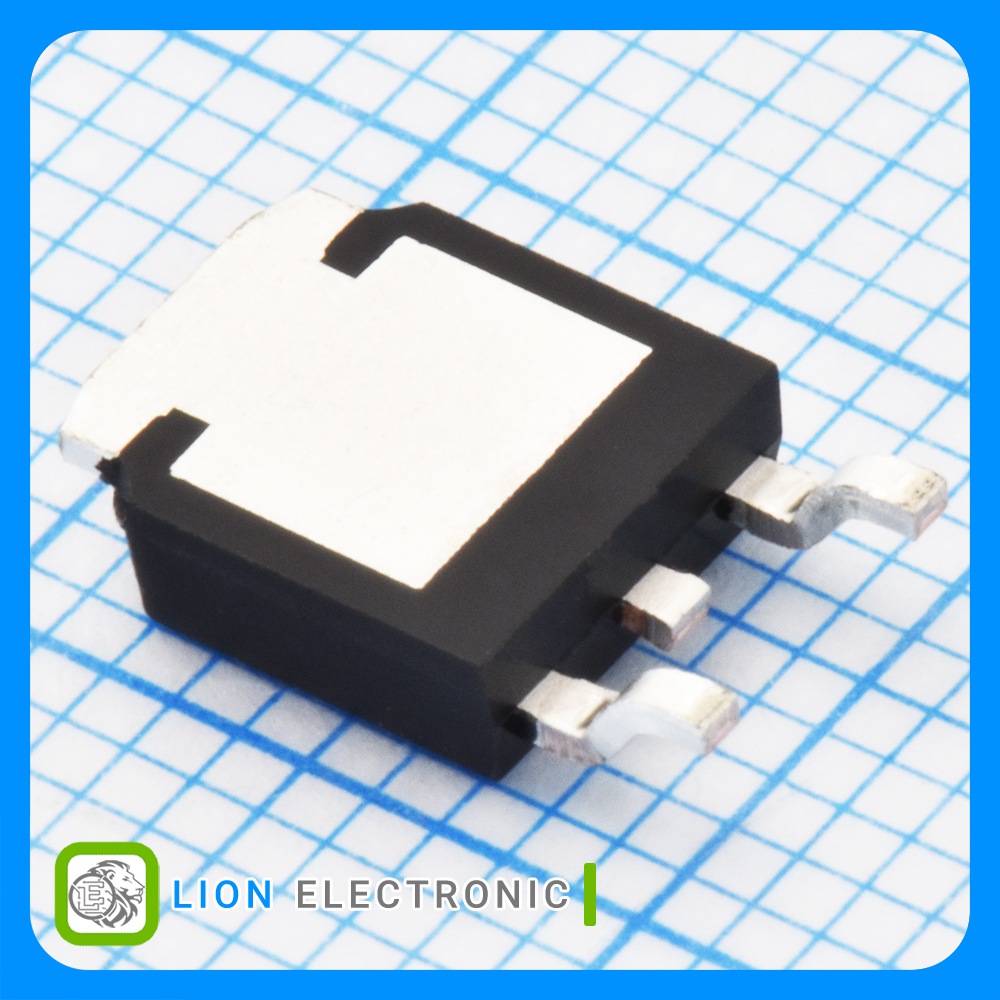

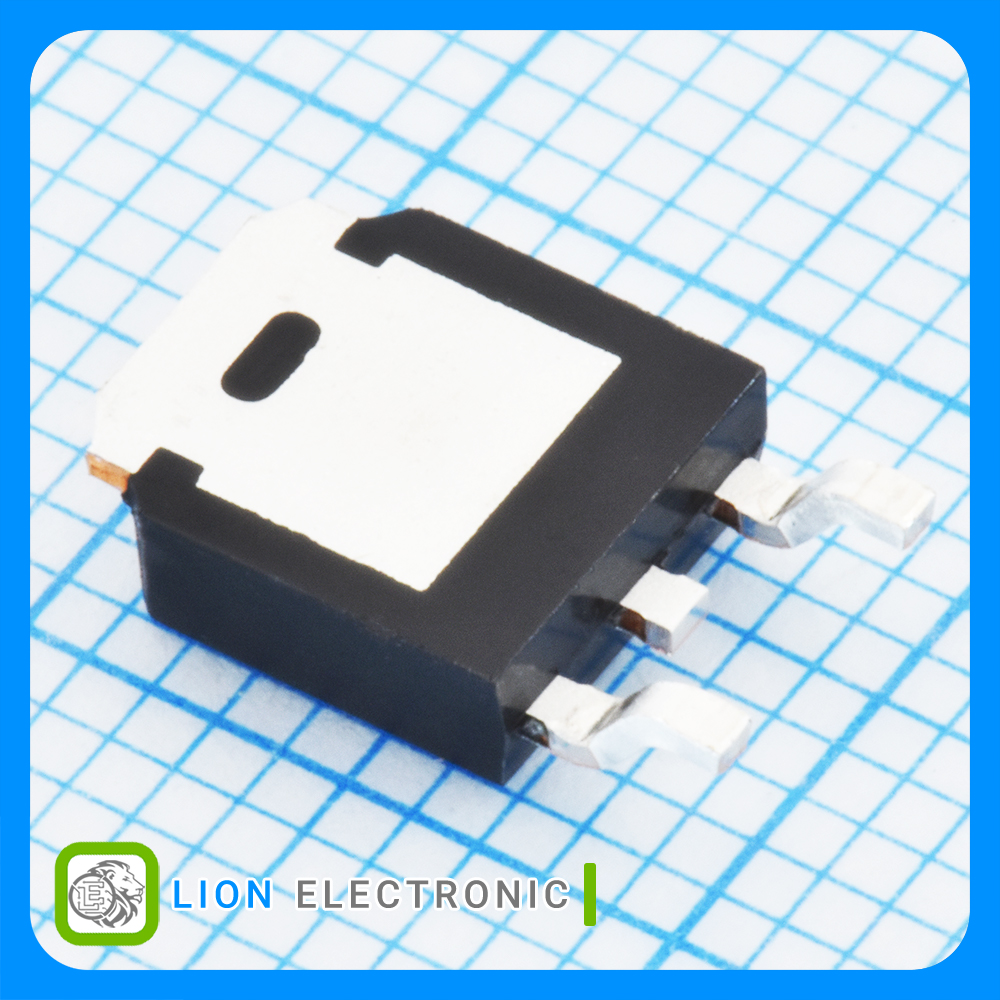

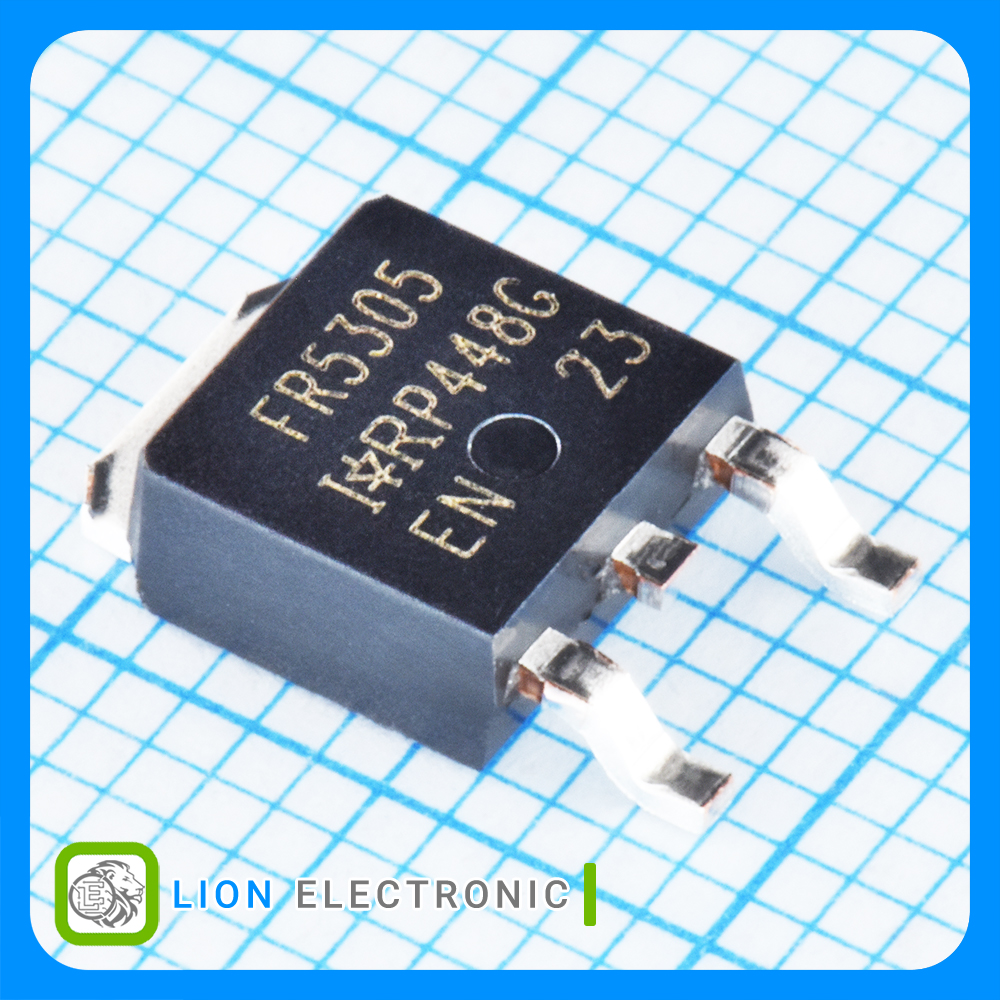

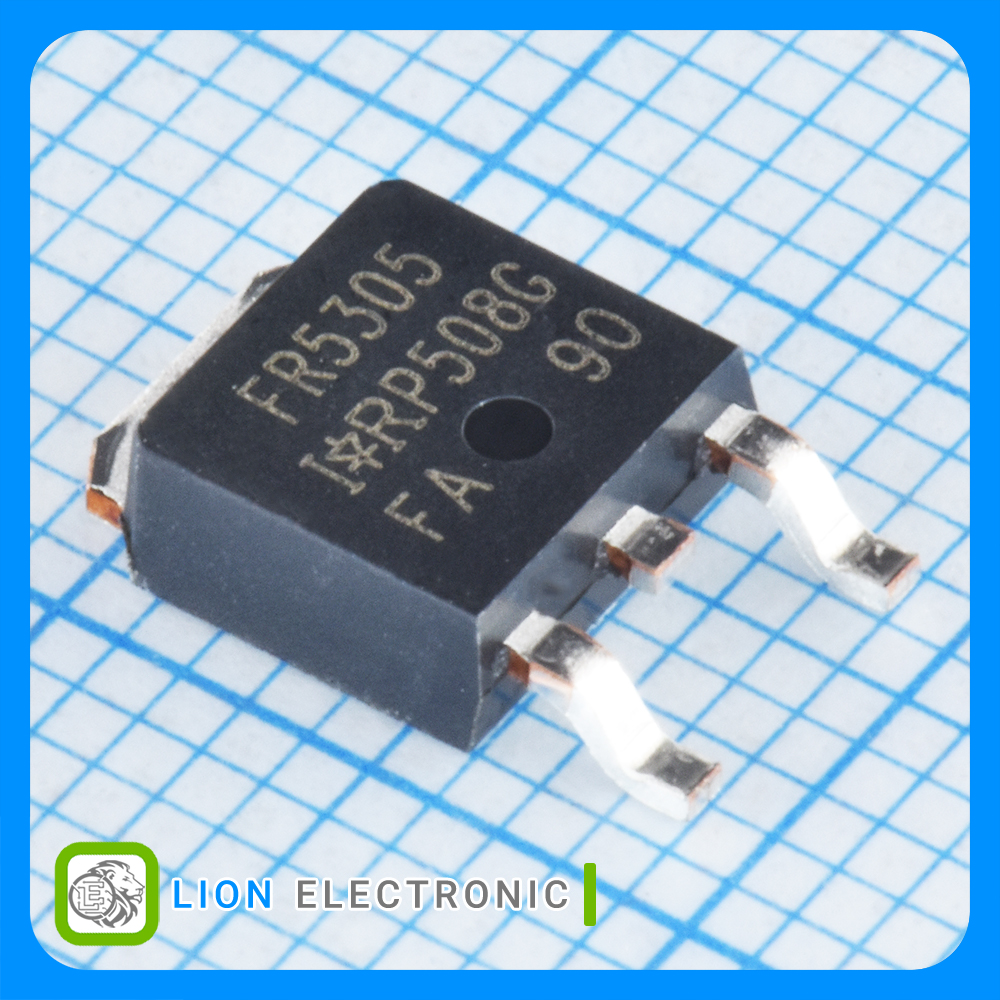

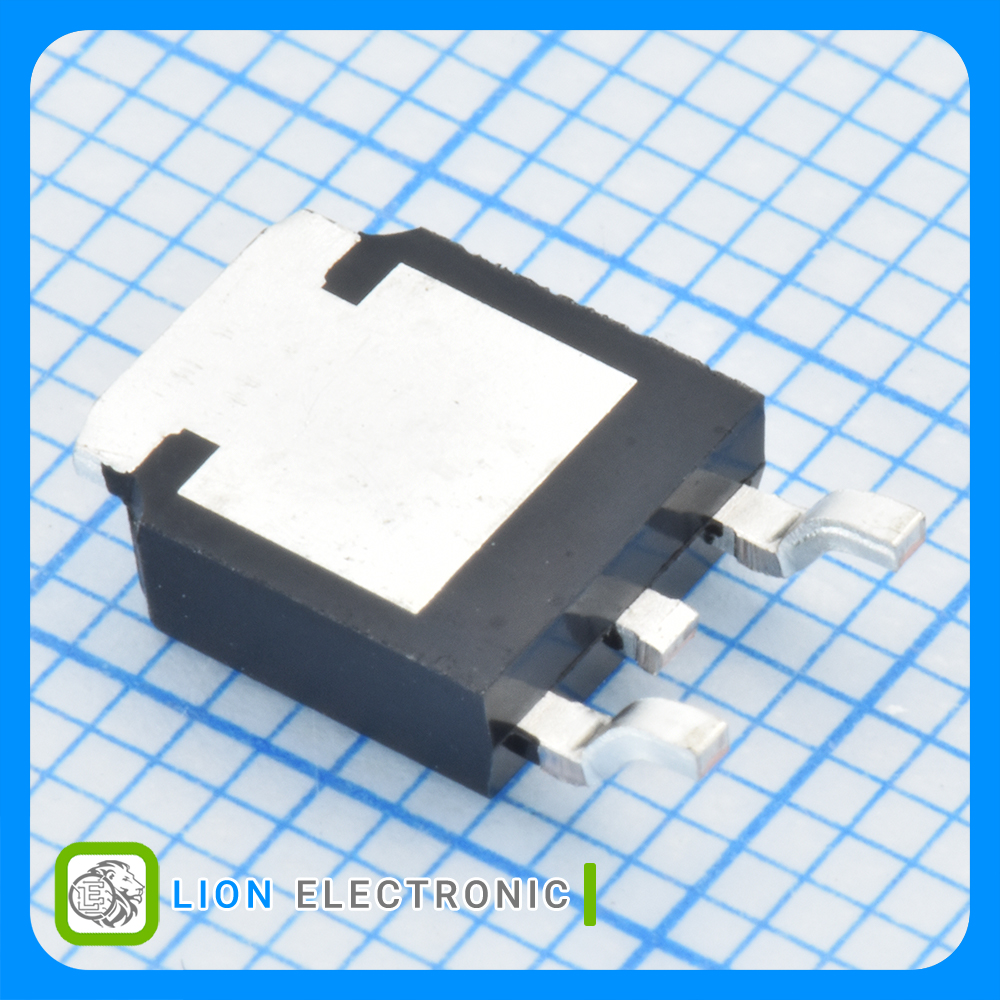

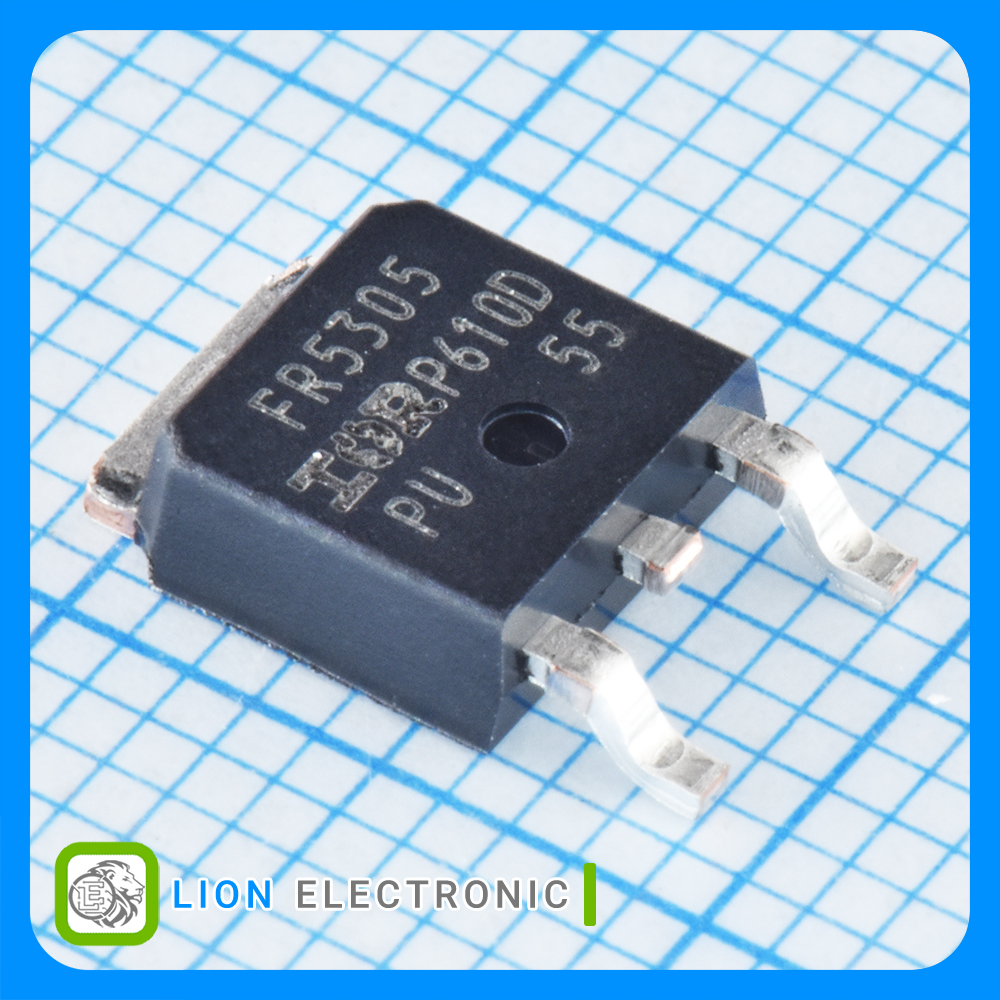

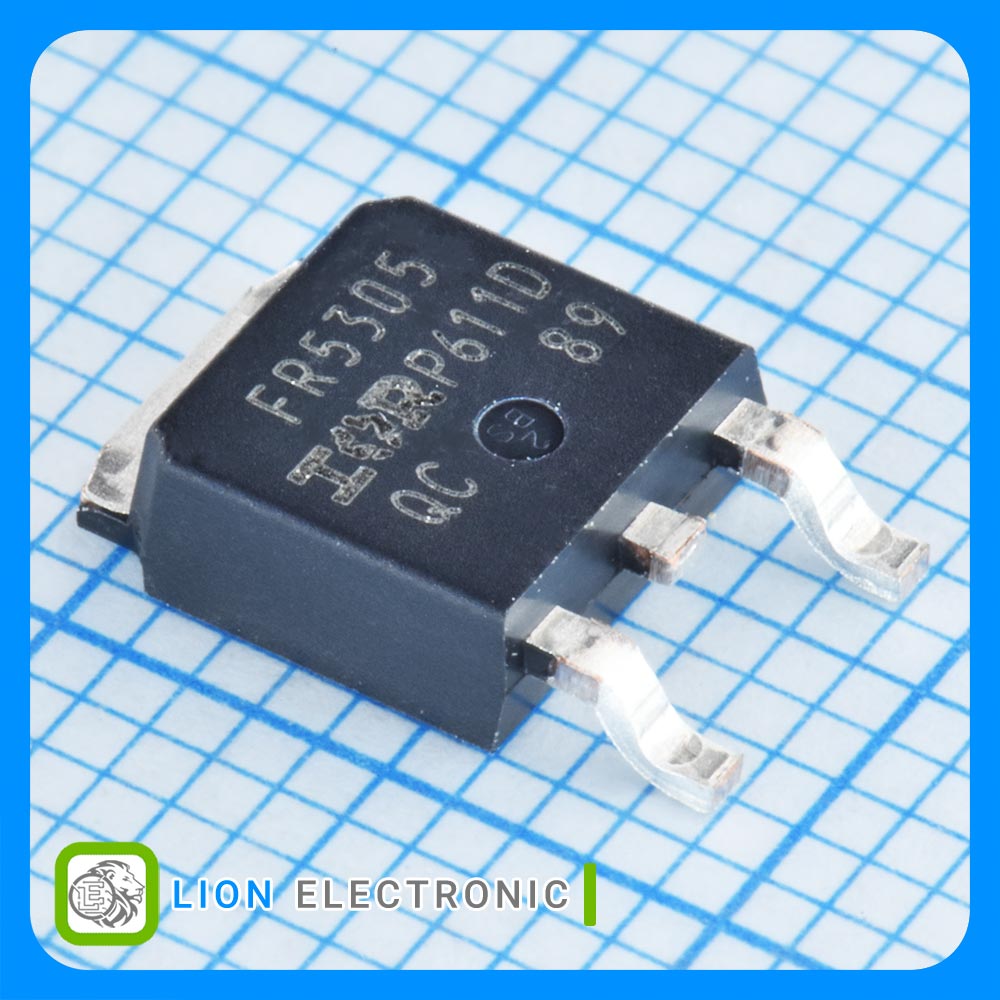

IRFR5305TRPBF
IRFR5305TRPBF
Part Number
3295
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 55- ولت 31- آمپر نوع P با پکیج TO-252-3 (DPAK)
P-CH MOSFET -55V, -31A with TO-252-3 (DPAK) Package
معرفی
ماسفت 55- ولت 31- آمپر نوع P با پکیج TO-252-3 (DPAK)
P-CH MOSFET -55V, -31A with TO-252-3 (DPAK) Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: -55V
- Id - Continuous Drain Current: -31A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 65mΩ
- Pd - Power Dissipation: 110W
- Qg - Gate Charge: 63nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت IRFR5305TRPBF
ماسفت IRFR5305TRPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55V
Vds - Drain - Source Breakdown Voltage
-55C
Minimum Operating Temperature
-2V
Vgs th - Gate - Source Threshold Voltage
Reel
Packaging
P-Channel
Transistor Polarity
-31A
Id - Continuous Drain Current
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
63nC
Qg - Gate Charge
DPAK
Package-Case
65mΩ
Rds On - Drain - Source Resistance
110W
Pd - Power Dissipation
