IRF7416TRPBF
IRF7416TRPBF
Part Number
3326
Lion Part
Datasheet
Infineon Technologies Manufacture

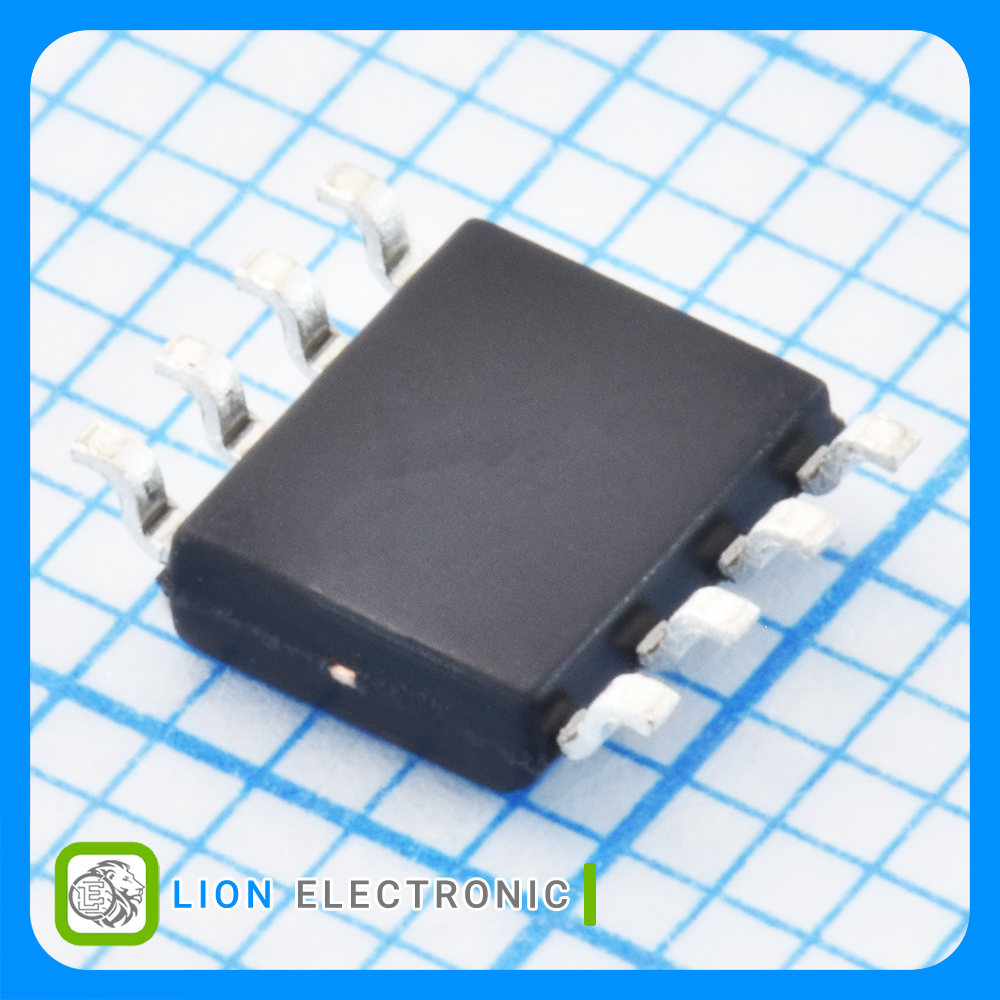

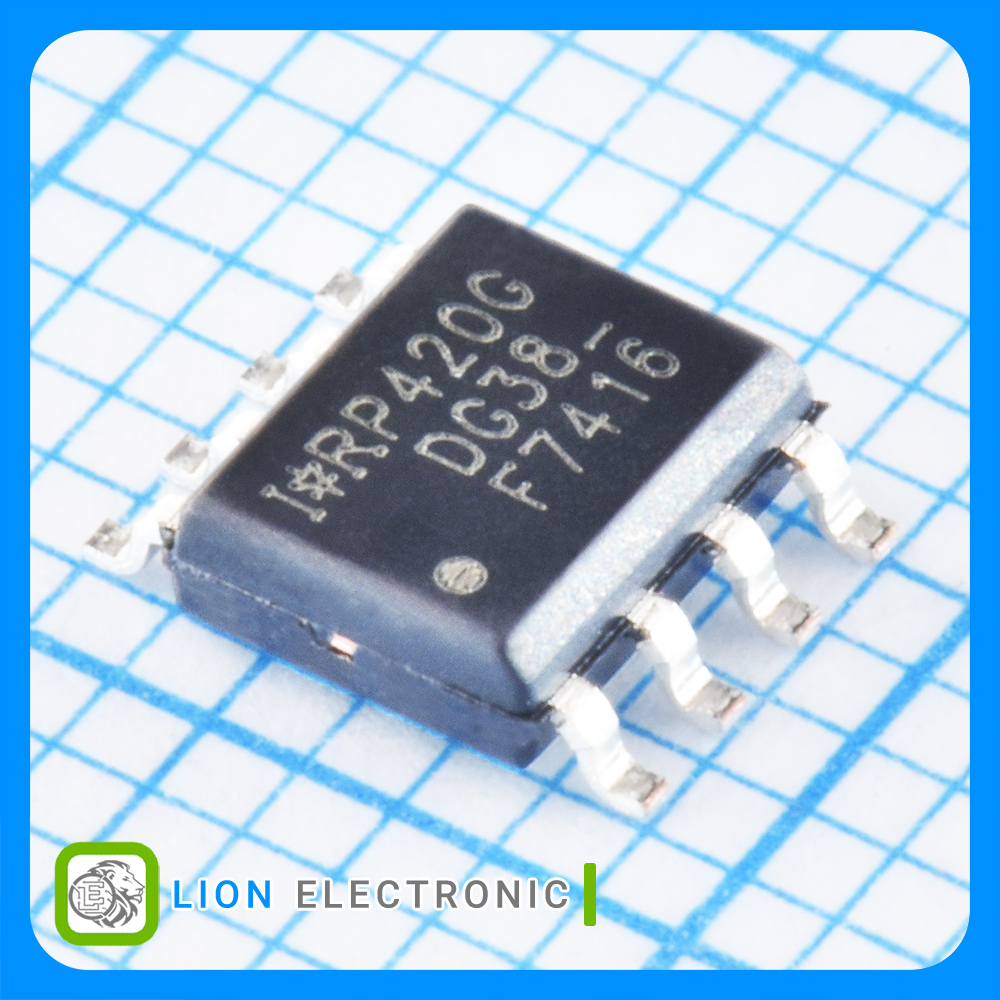

ماسفت 30 ولت 10 آمپر نوع P با پکیج SOIC-8
P-CH MOSFET 30V, 10A with SOIC-8 Package
معرفی
ماسفت 30 ولت 10 آمپر نوع P با پکیج SOIC-8
P-CH MOSFET 30V, 10A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: -30V
- Id - Continuous Drain Current: -10A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 20mΩ
- Pd - Power Dissipation: 2.5W
- Qg - Gate Charge: 61nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت IRF7416TRPBF
ماسفت IRF7416TRPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
-30V
Vds - Drain - Source Breakdown Voltage
SMD/SMT
Mounting Style
-1V
Vgs th - Gate - Source Threshold Voltage
-10A
Id - Continuous Drain Current
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
2.5W
Pd - Power Dissipation
20mΩ
Rds On - Drain - Source Resistance
61nC
Qg - Gate Charge
SOIC-8
Package-Case
