VBsemi
معرفی

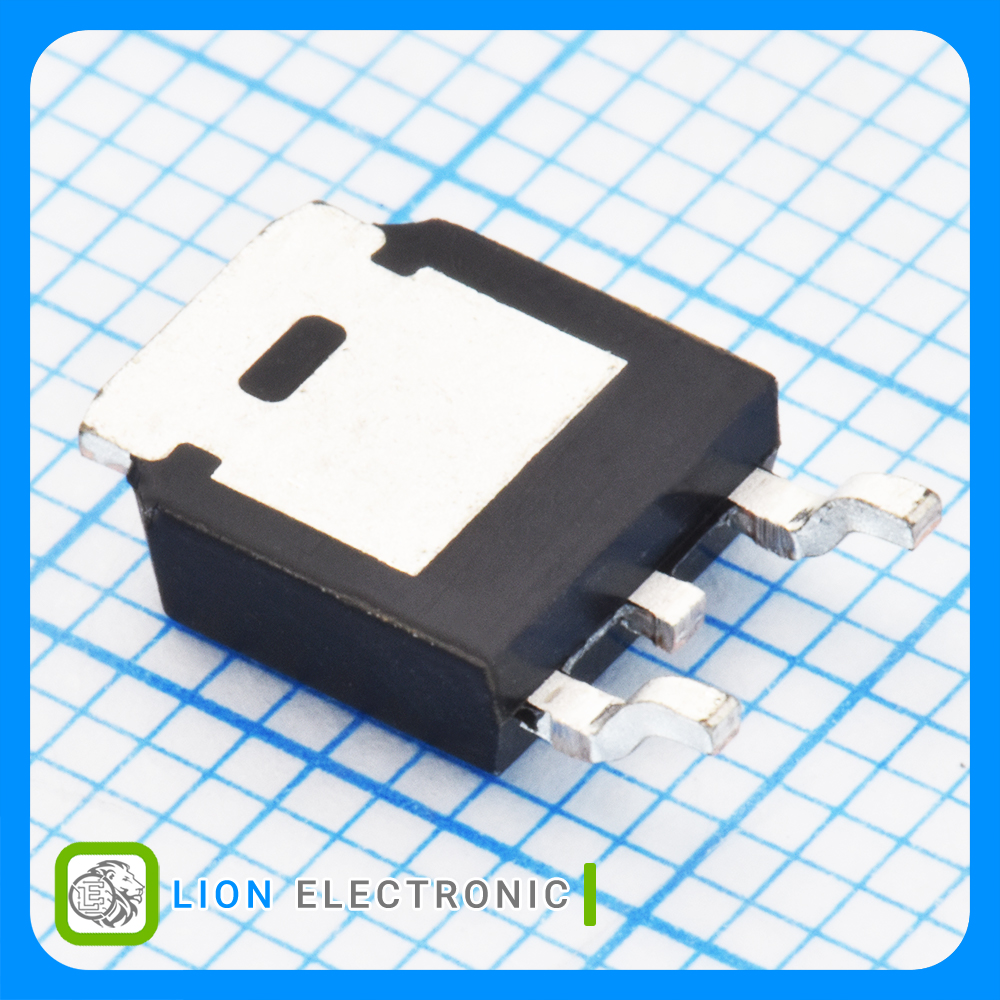

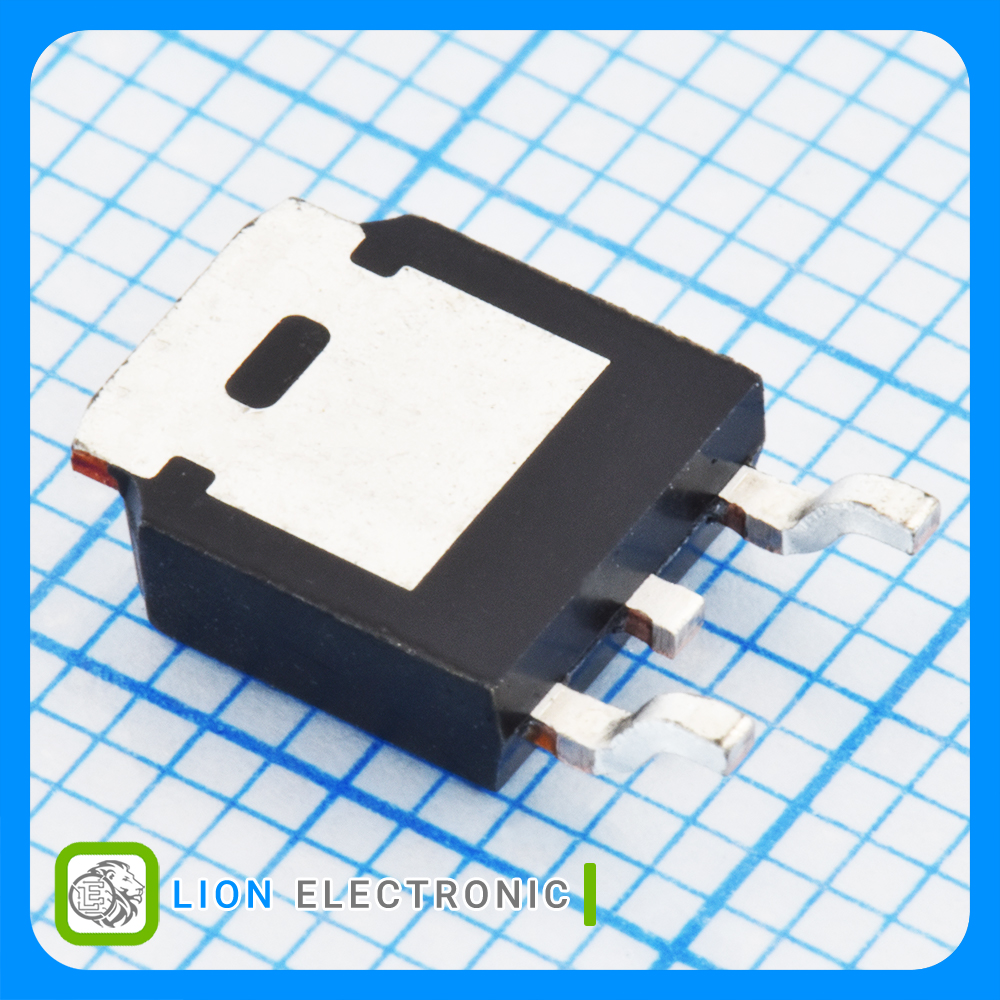

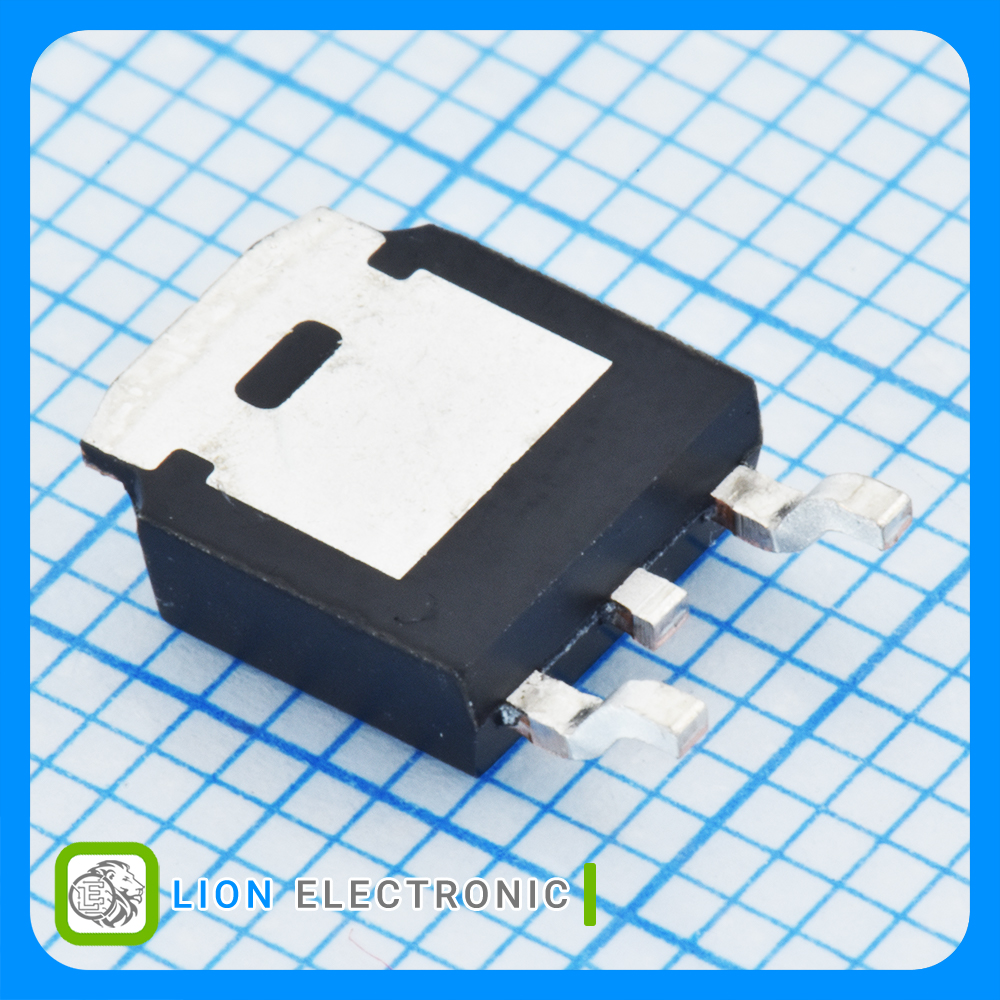

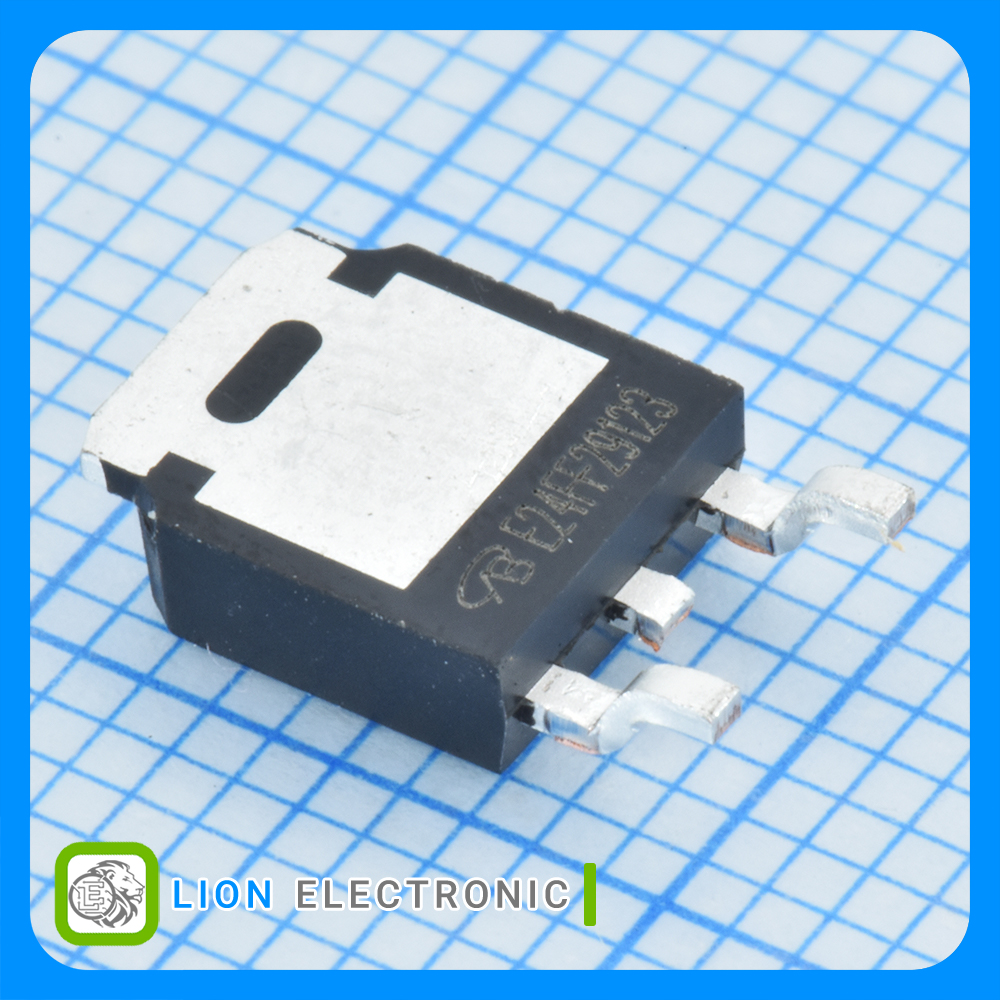

ماسفت 40- ولت 50- آمپر نوع P با پکیج TO-252-3
P-CH MOSFET -40V, -50A with TO-252-3 Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: -40V
- Id - Continuous Drain Current: -50A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -1.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 12mΩ
- Pd - Power Dissipation: 136W
- Qg - Gate Charge: 60nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت P1504EDG-VB

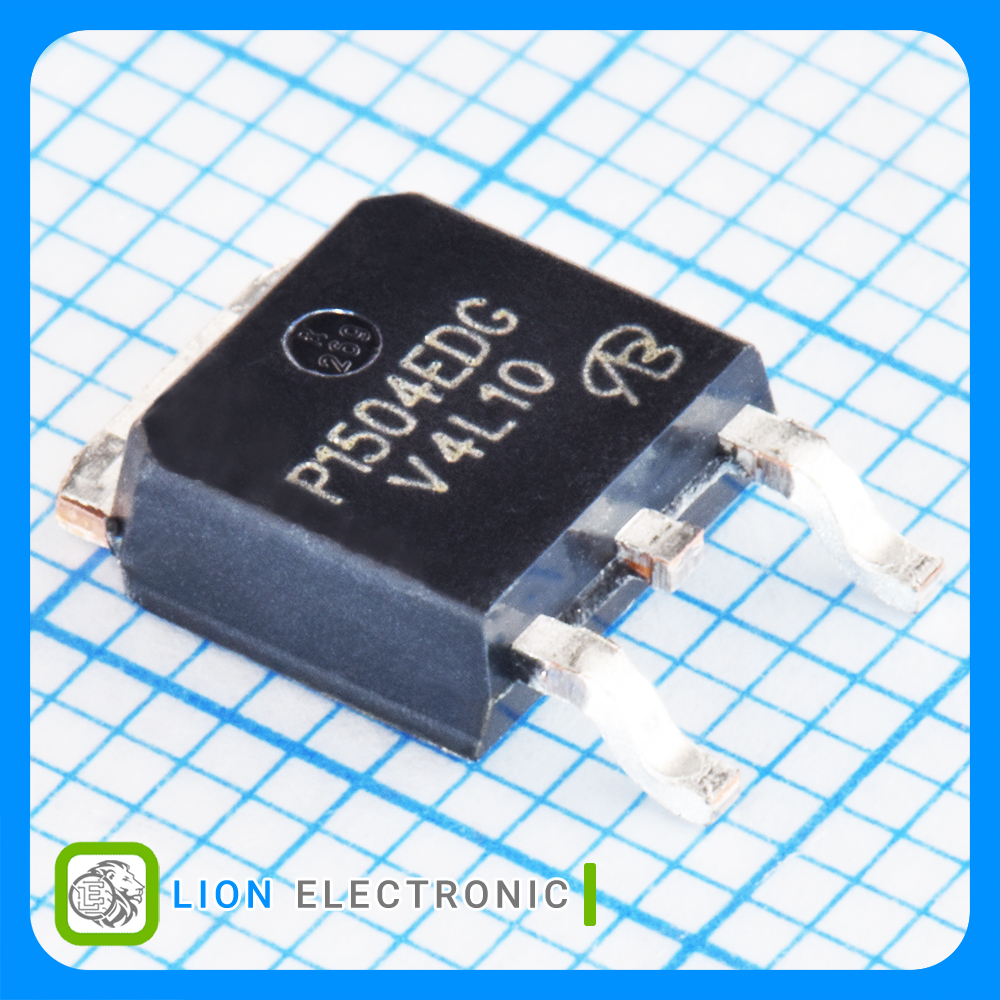

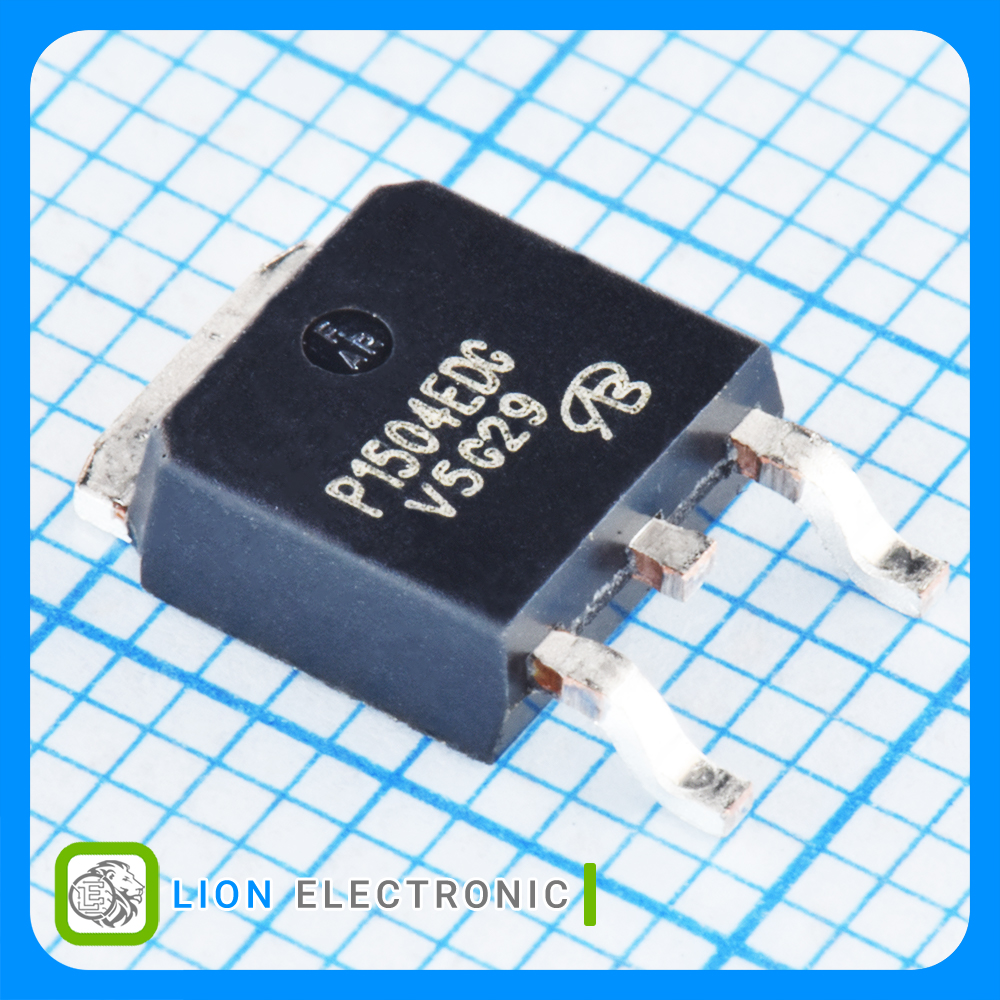

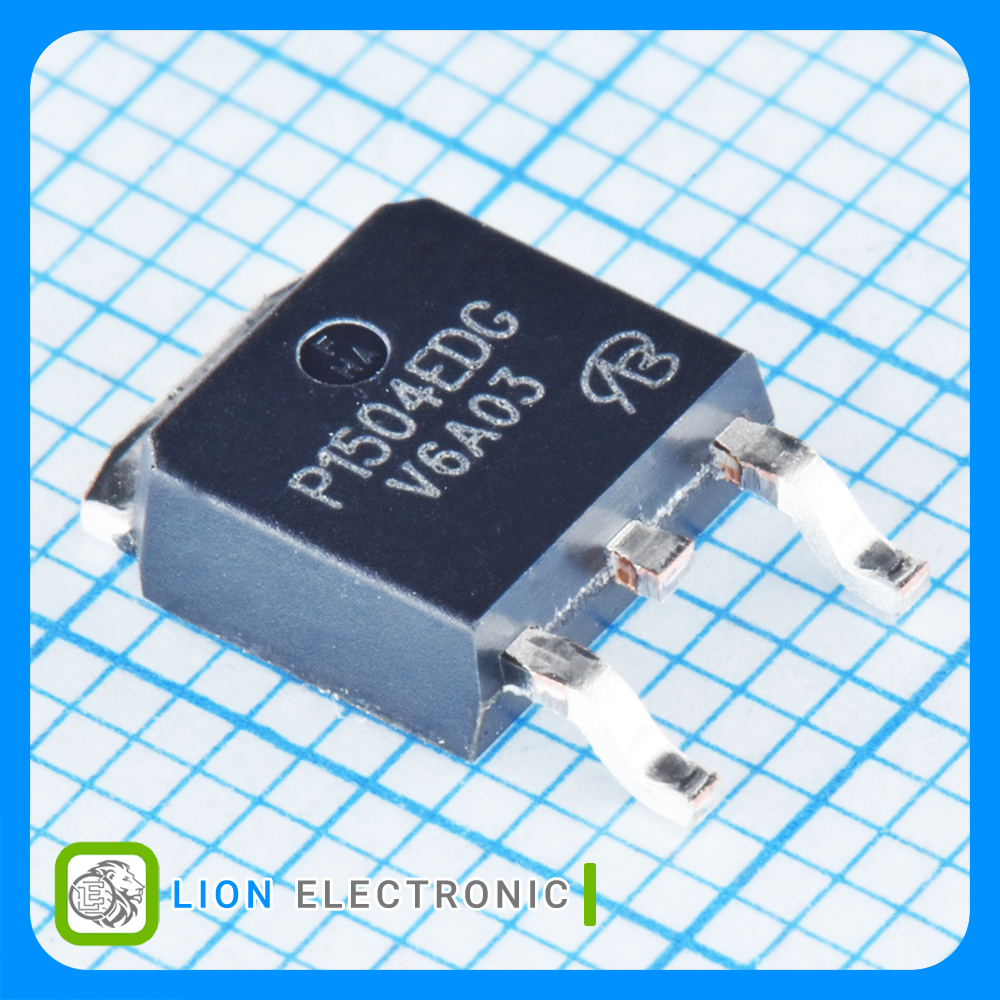

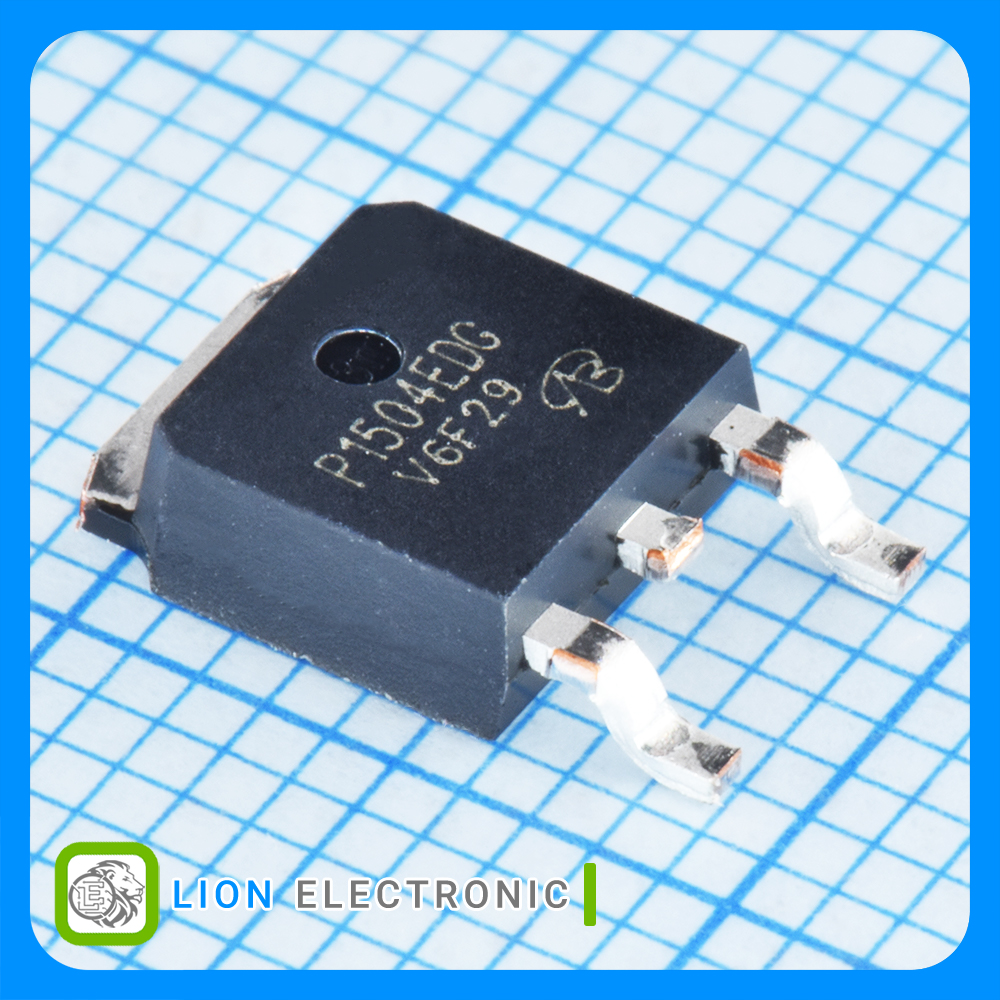

ماسفت P1504EDG-VB
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
-50A
Id - Continuous Drain Current
-40V
Vds - Drain - Source Breakdown Voltage
Reel
Packaging
P-Channel
Transistor Polarity
-1.5V
Vgs th - Gate - Source Threshold Voltage
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
12mΩ
Rds On - Drain - Source Resistance
60nC
Qg - Gate Charge
DPAK
Package-Case
136W
Pd - Power Dissipation
