VBsemi
معرفی

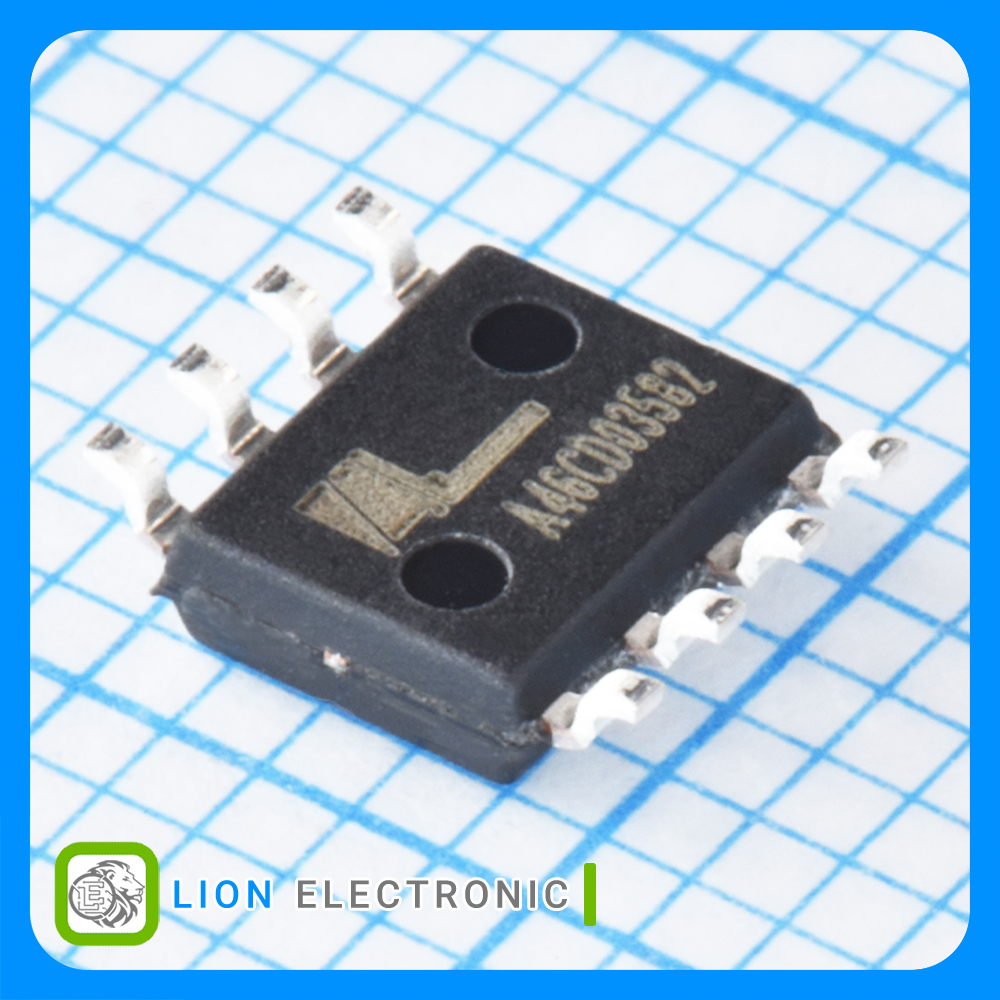

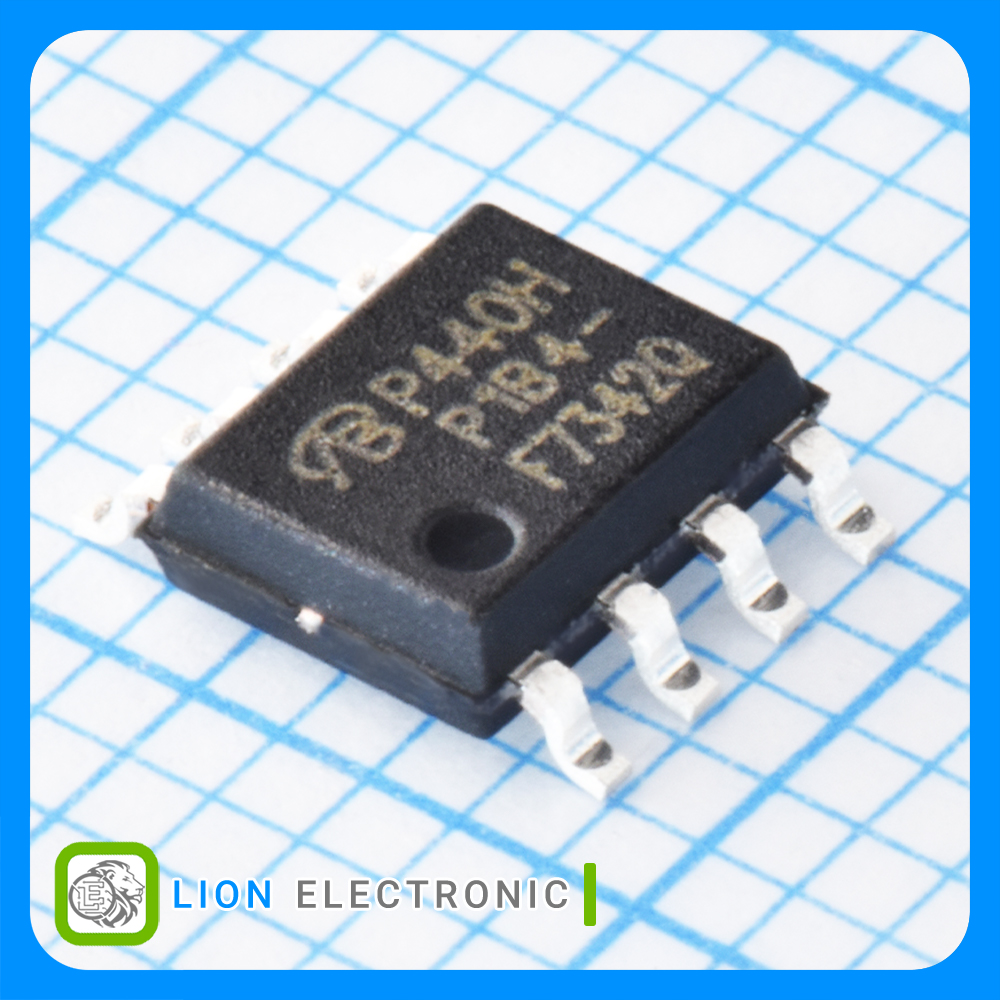

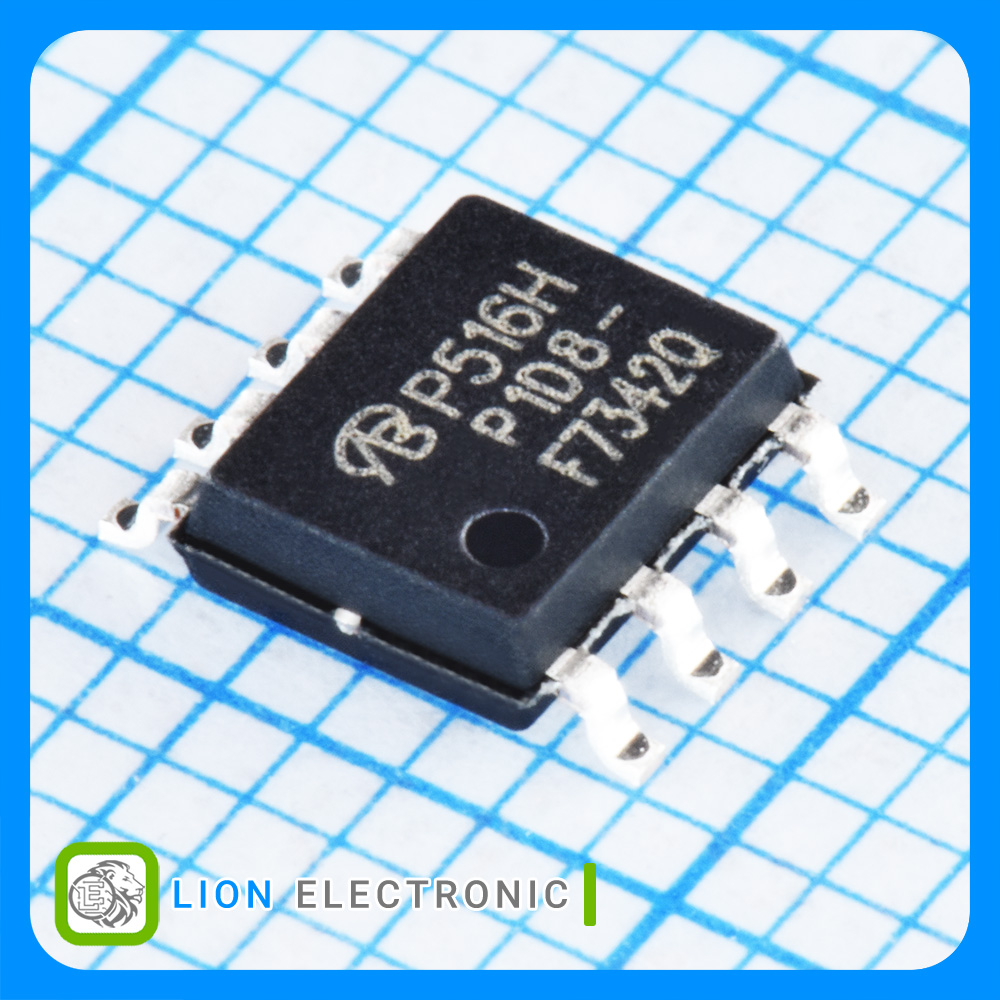

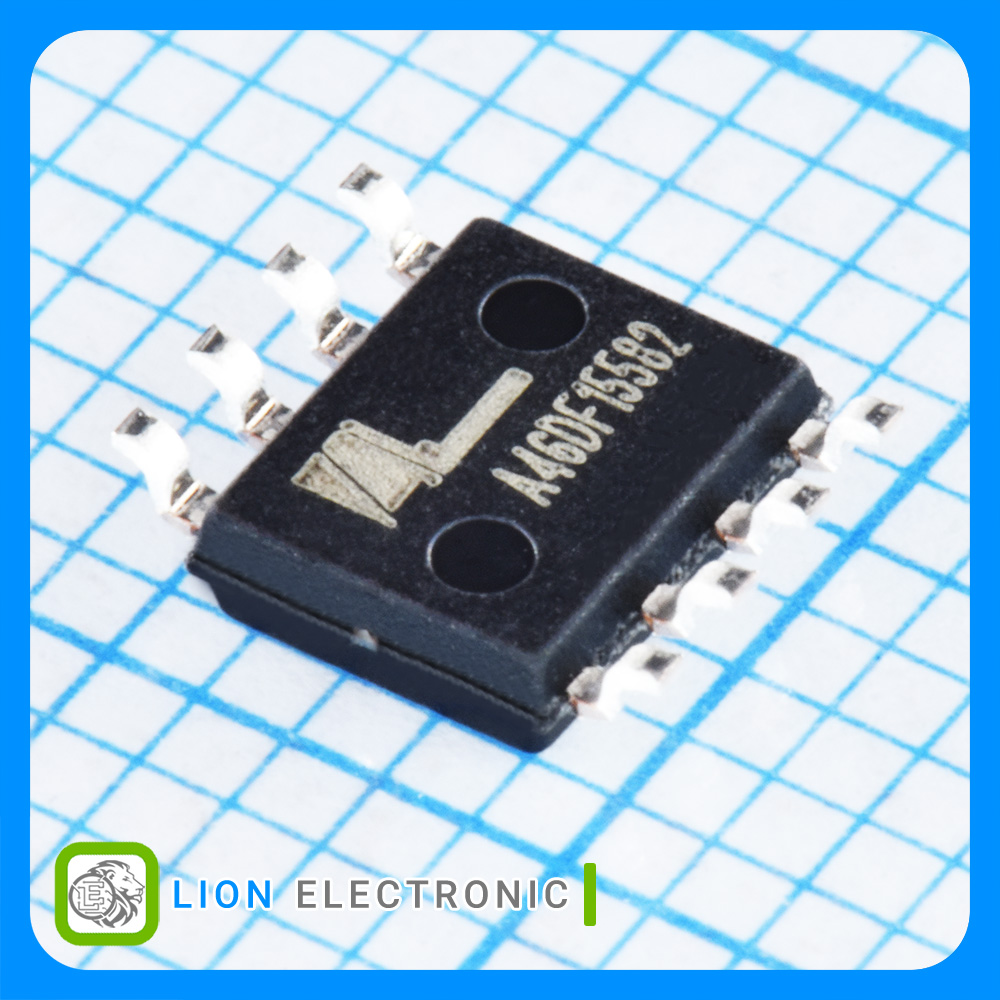

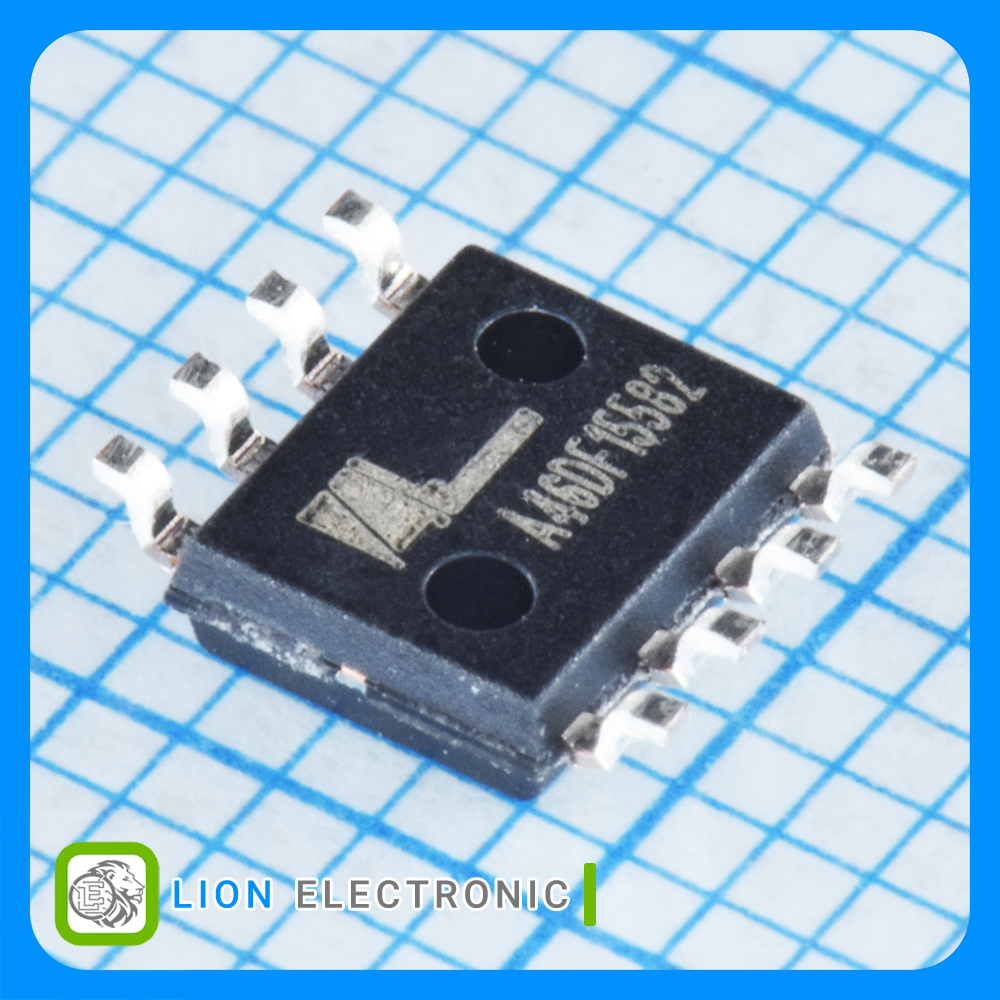

ماسفت جفت -60 ولت -5.3 آمپر نوع P با پکیج SOIC-8
DUAL P-Channel MOSFET -60V, -5.3A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: -60V
- Id - Continuous Drain Current: -5.3A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 2
- Vgs th - Gate - Source Threshold Voltage: -1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 54mΩ
- Pd - Power Dissipation: 4W
- Qg - Gate Charge: 32nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت IRF7342QTRPBF-VB

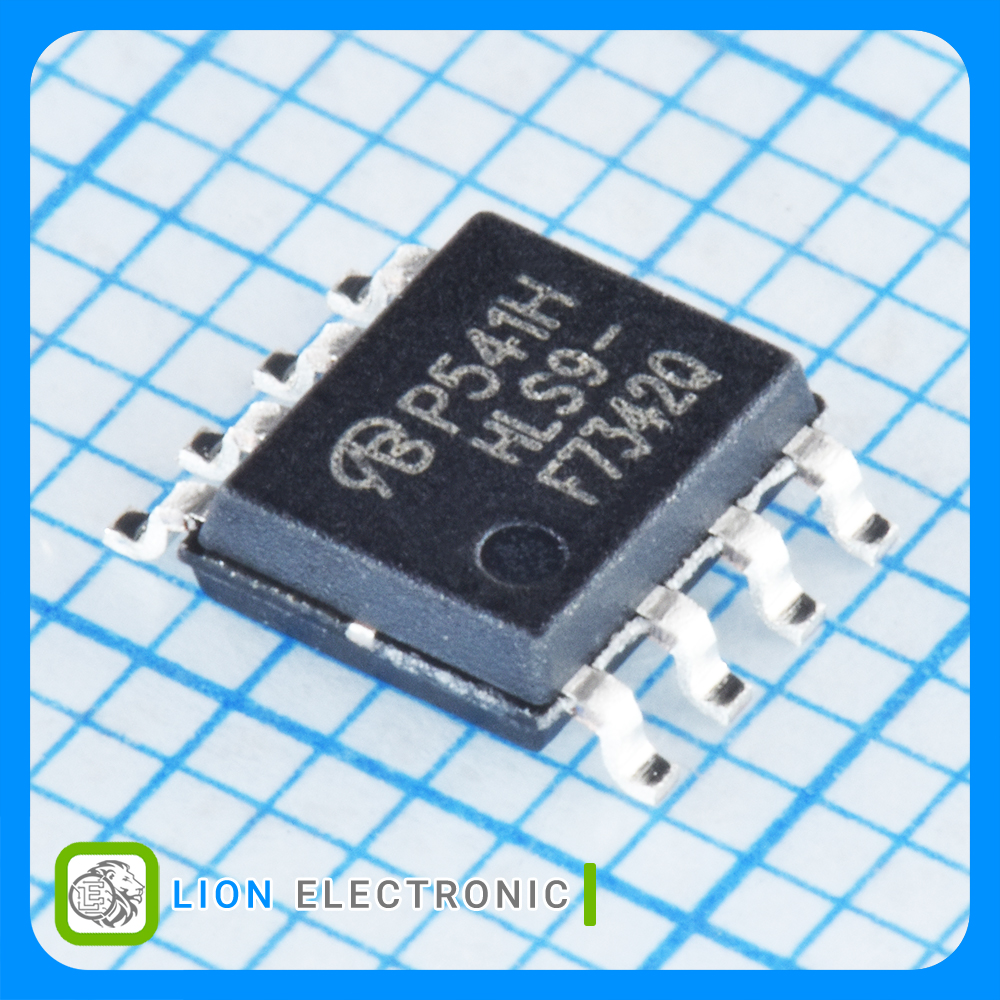

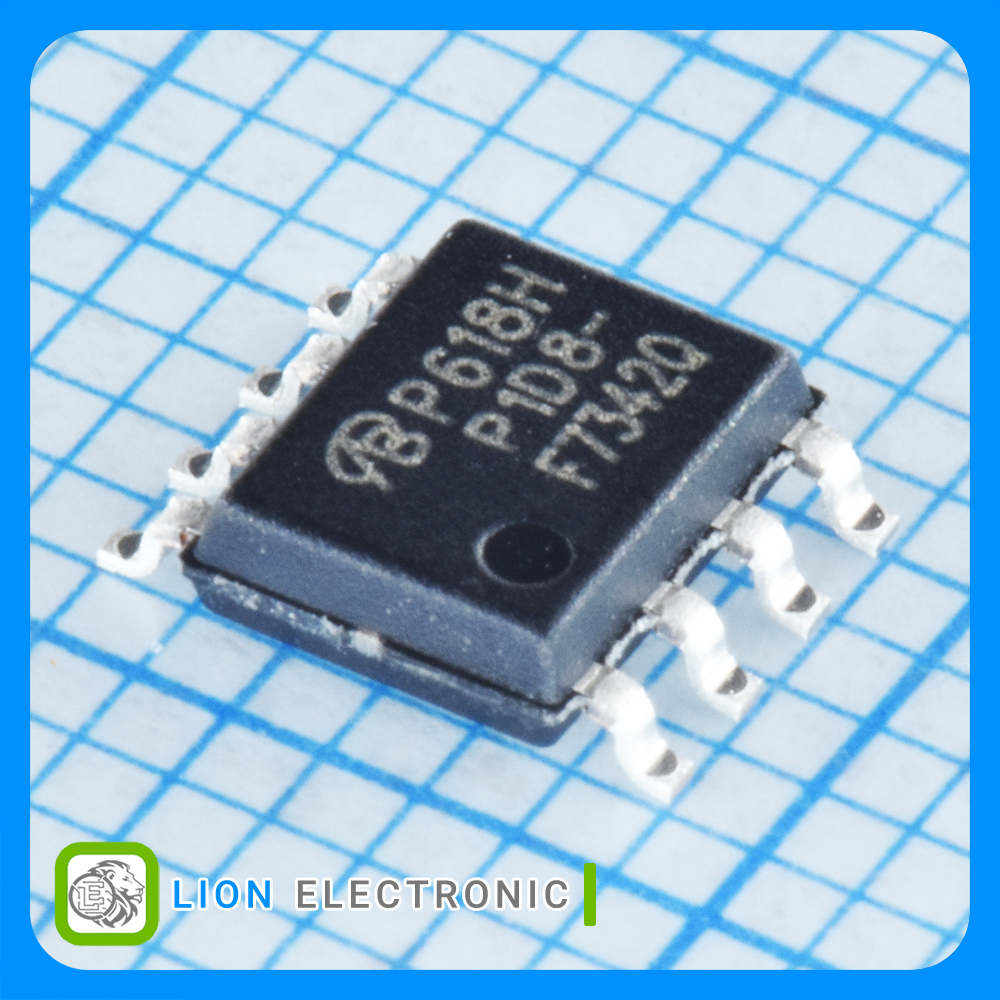

ماسفت IRF7342QTRPBF-VB
Part Number
Enhancement
Channel Mode
2
Number of Channels
-60V
Vds - Drain - Source Breakdown Voltage
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
-1V
Vgs th - Gate - Source Threshold Voltage
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
-5.3A
Id - Continuous Drain Current
32nC
Qg - Gate Charge
4W
Pd - Power Dissipation
54mΩ
Rds On - Drain - Source Resistance
SOIC-8
Package-Case
