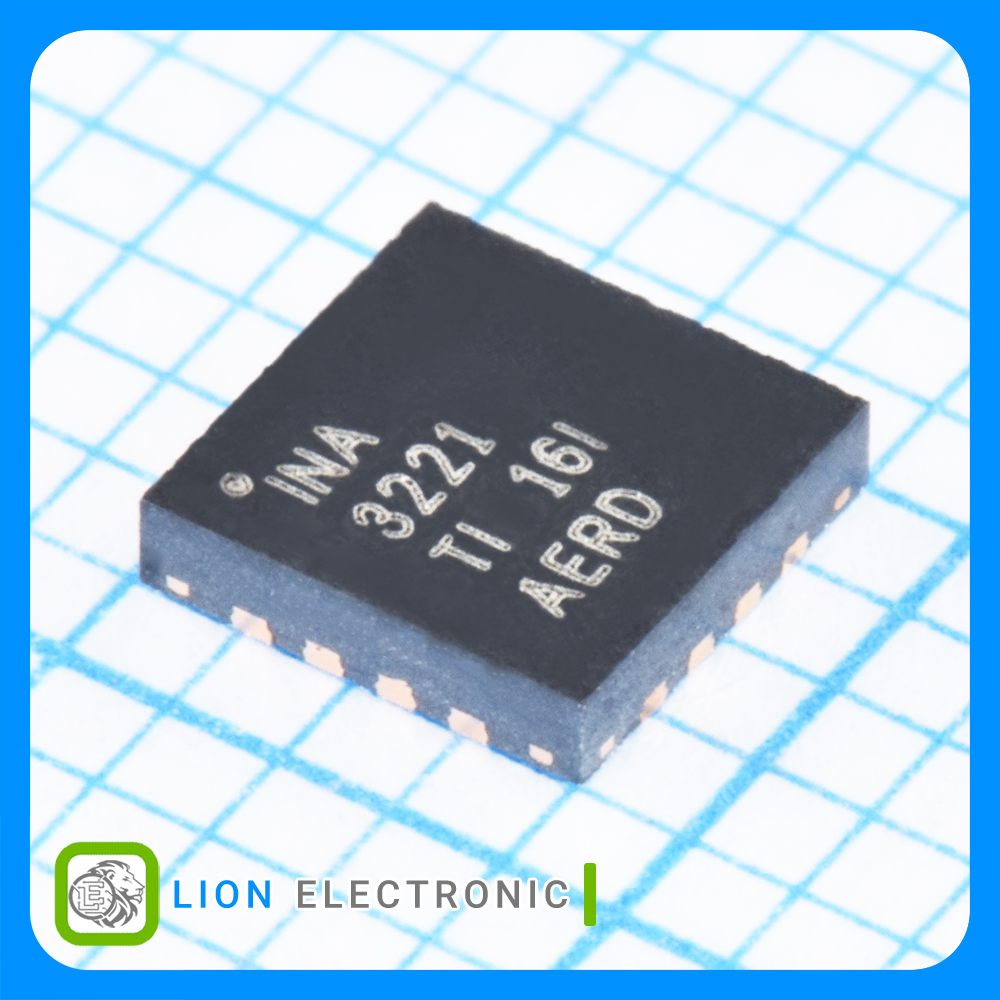

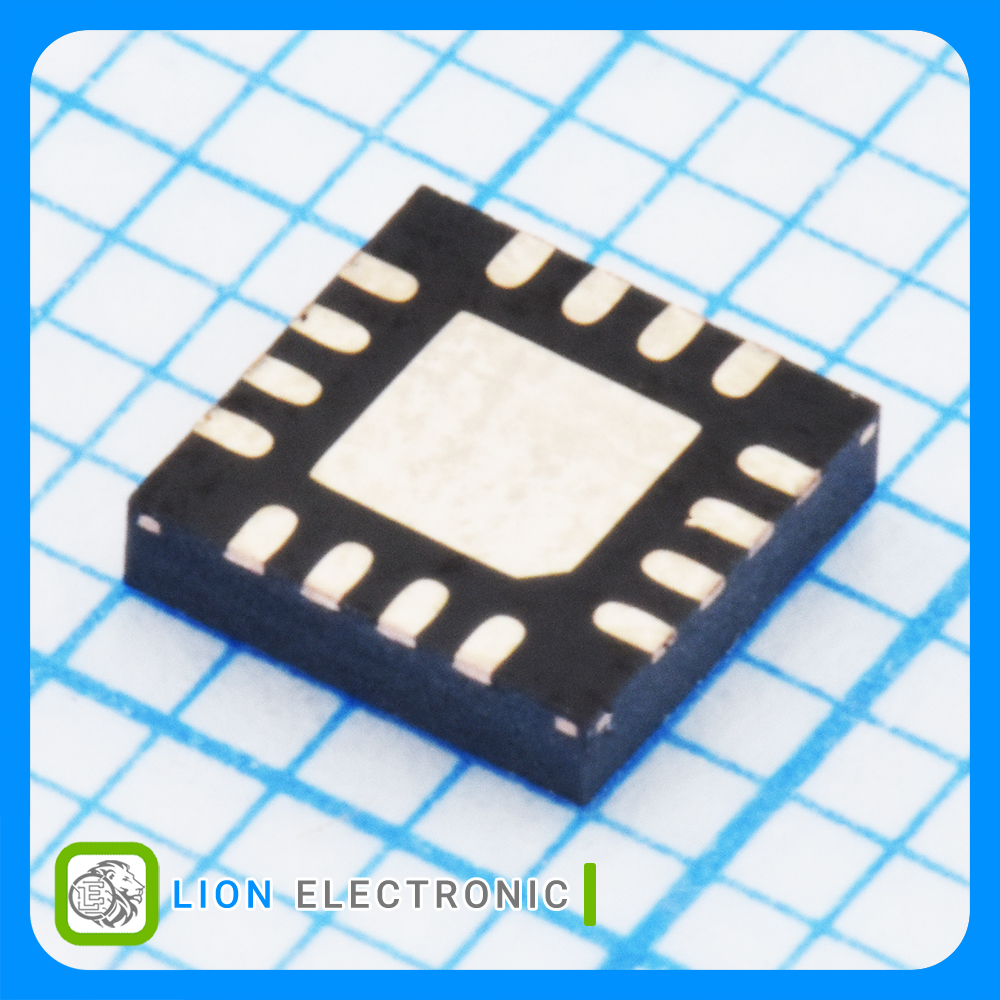

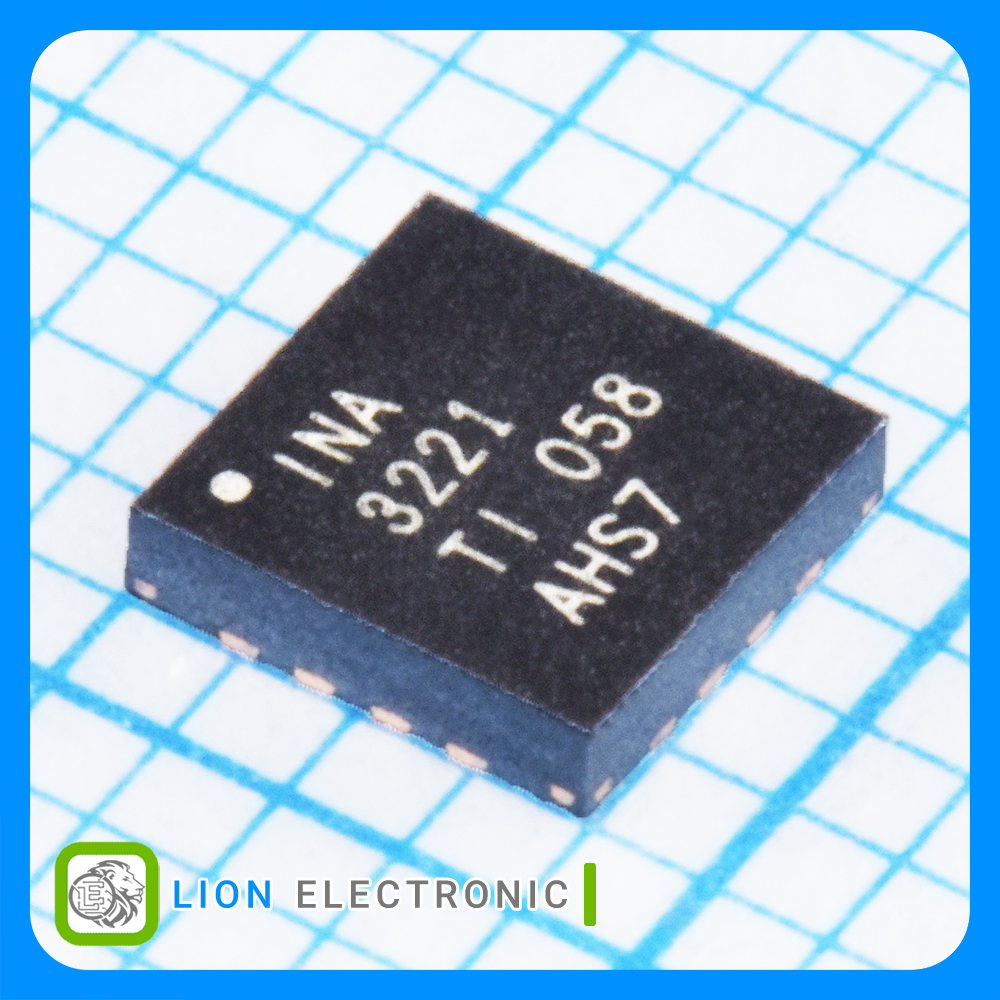

INA3221AIRGVR
INA3221AIRGVR
Part Number
3677
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی سنس جریان 3 کاناله 0 تا 26 ولت آفست 40 میکروولت جریان بایاس 10 میکروآمپر با پکیج VQFN-16
3-Channel Current Sense Amplifier 0-26V, 40uV, 10uA with VQFN-16 Package
معرفی
آیسی سنس جریان 3 کاناله 0 تا 26 ولت آفست 40 میکروولت جریان بایاس 10 میکروآمپر با پکیج VQFN-16
3-Channel Current Sense Amplifier 0-26V, 40uV, 10uA with VQFN-16 Package
Specifications
- Number of Channels: 3
- Vcm - Common Mode Voltage: 0 - 26V
- Vos - Input Offset Voltage: 40uV
- CMRR - Common Mode Rejection Ratio: 110dB
- Ib - Input Bias Current: 10uA
- Supply Voltage - Min: 2.7V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 350uA
- Gain Error: 0.1%
- Mounting Style: SMD/SMT
- Package/Case: VQFN-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آیسی سنس جریان INA3221AIRGVR
آیسی سنس جریان INA3221AIRGVR
Part Number
0.1%
Gain Error
0 - 26V
Vcm - Common Mode Voltage
3
Number of Channels
Reel
Packaging
0.25%
Accuracy
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
40uV
Vos - Input Offset Voltage
5.5V
Supply Voltage - Max
N/A
Gain
Current and Power Monitors
Product
2.7V
Supply Voltage - Min
110dB
CMRR - Common Mode Rejection Ratio
N/A
GBP - Gain Bandwidth Product
10uA
Ib - Input Bias Current
350uA
Operating Supply Current
VQFN-16
Package-Case
