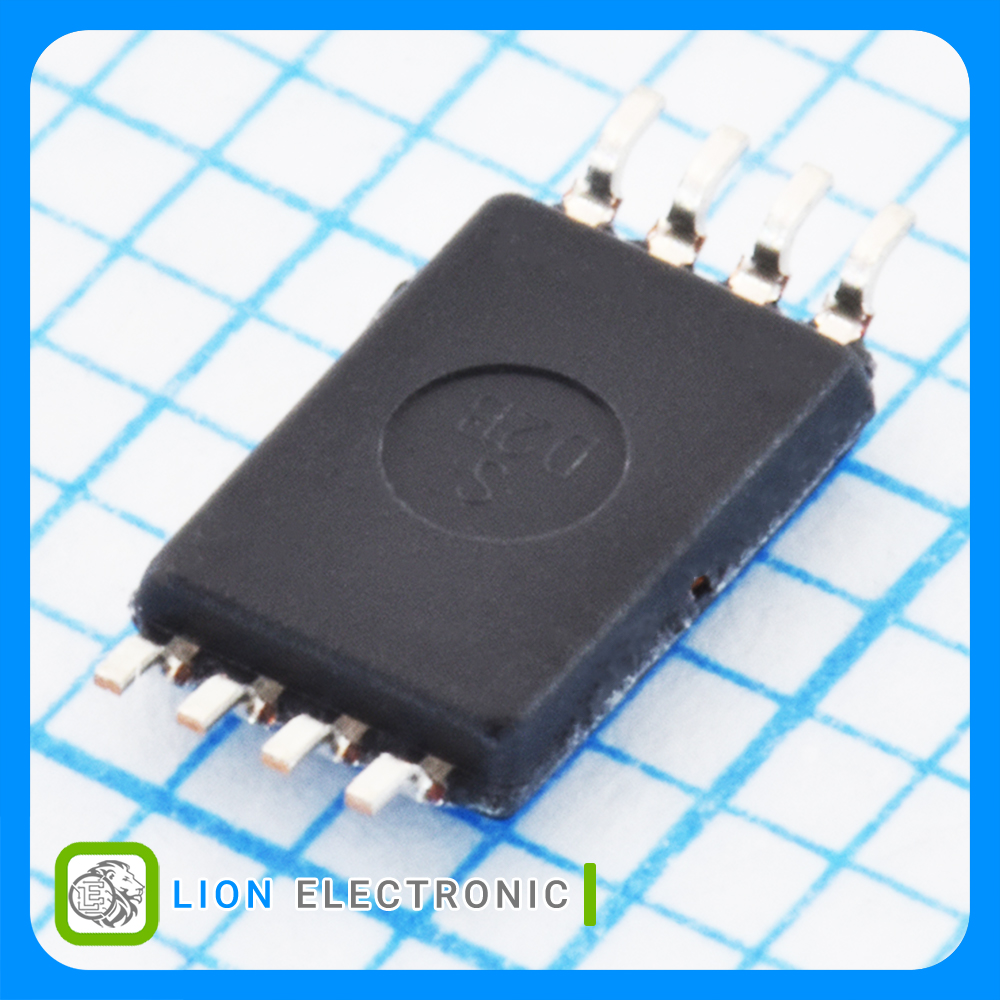

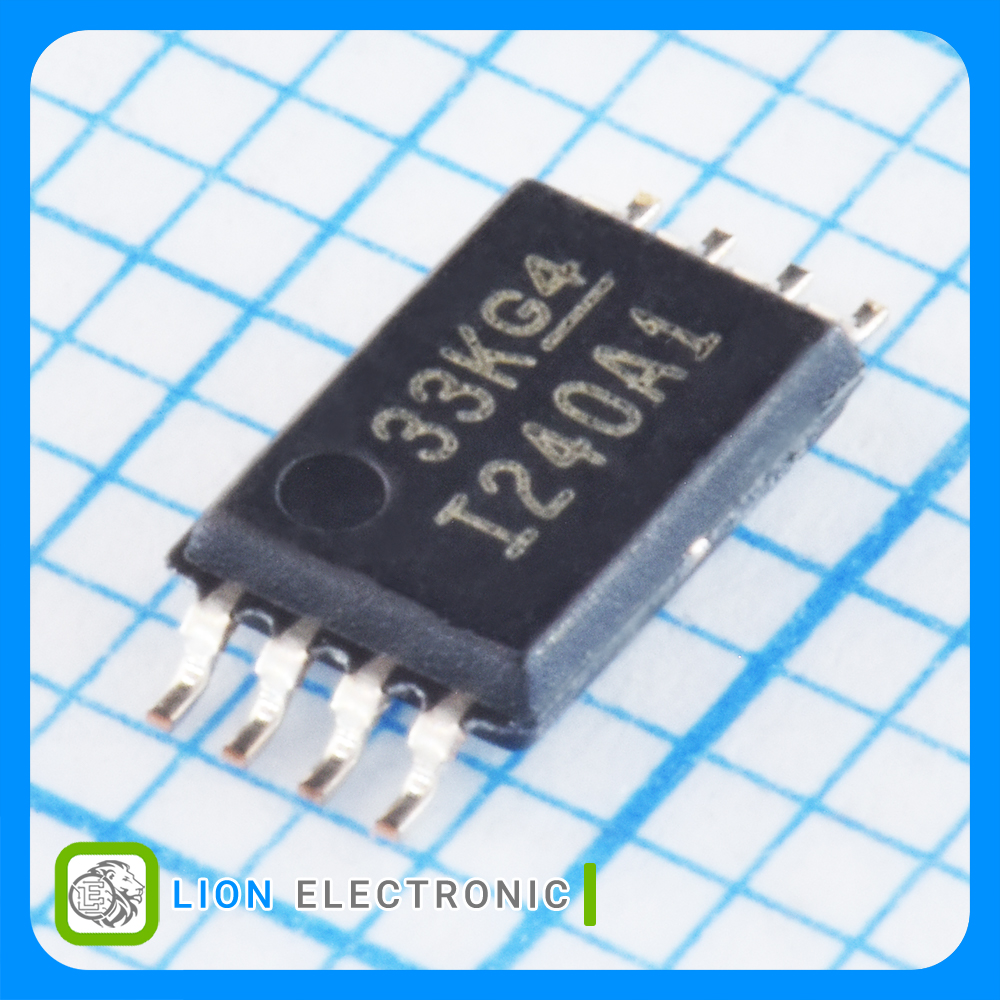

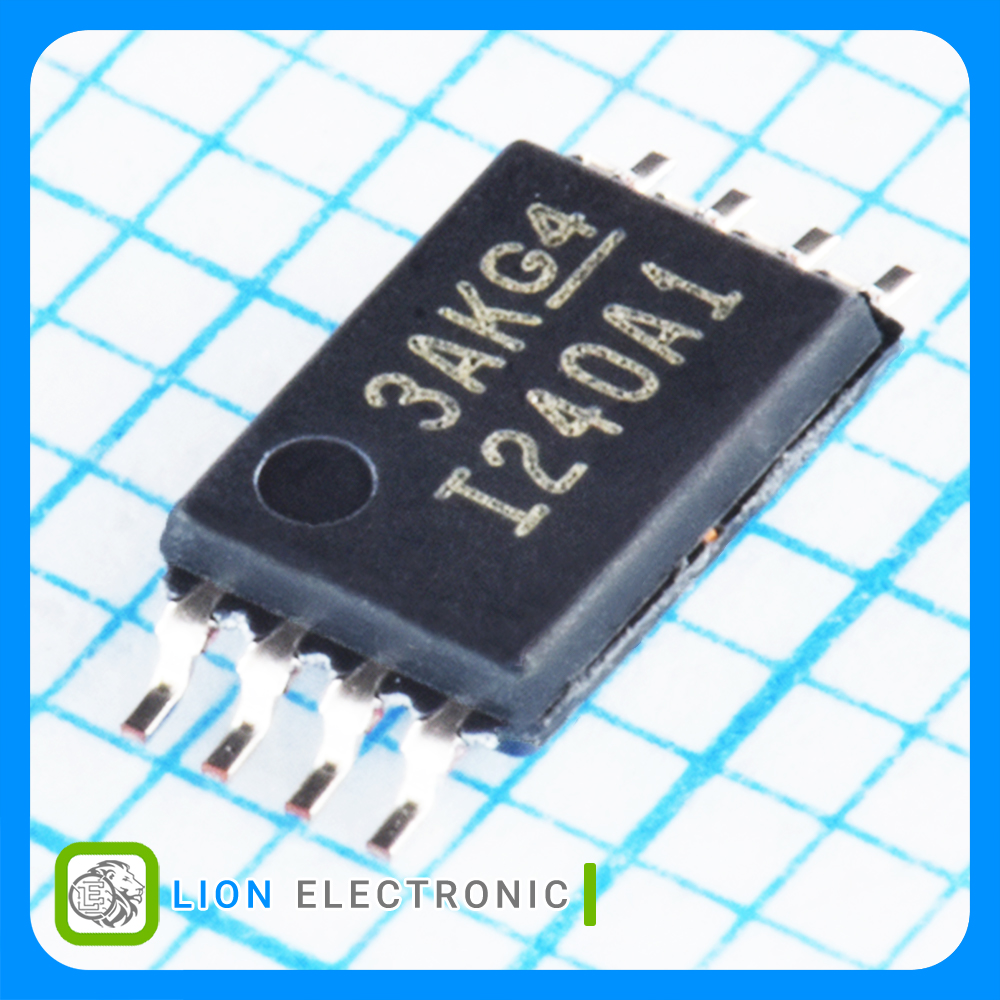

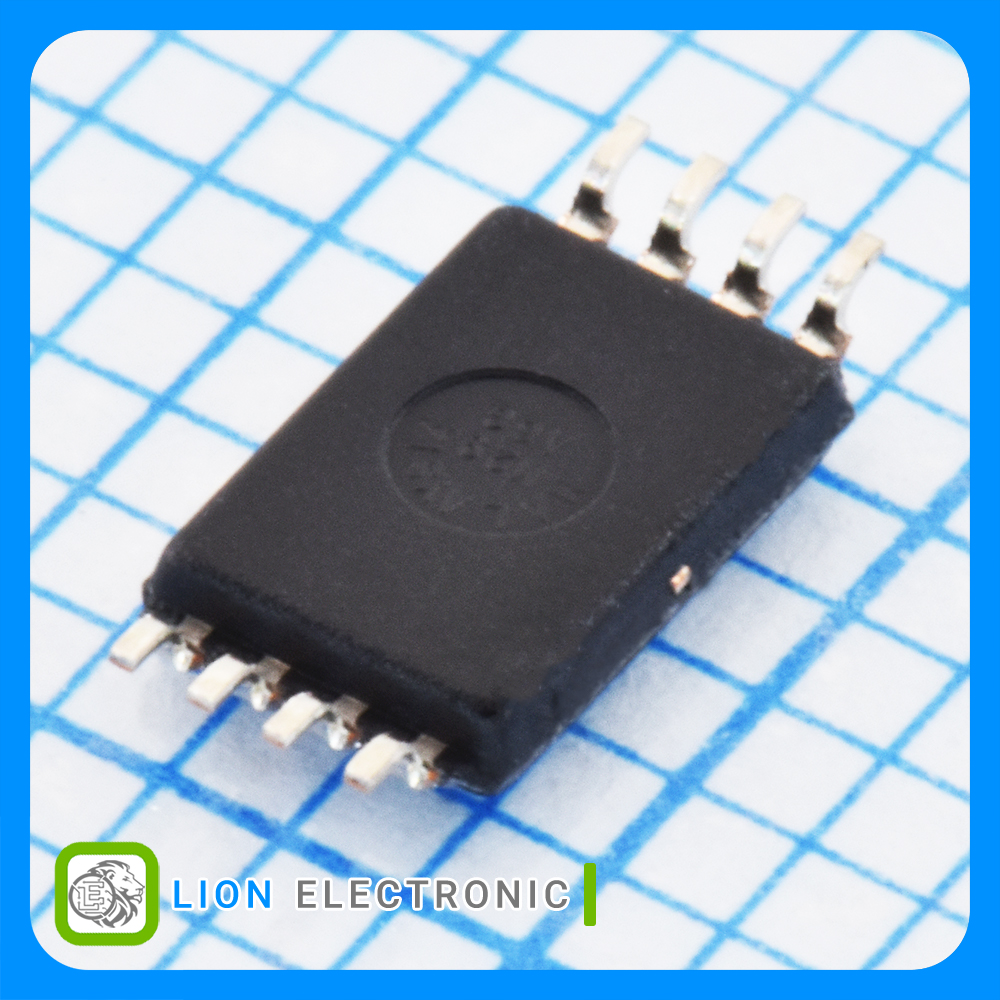

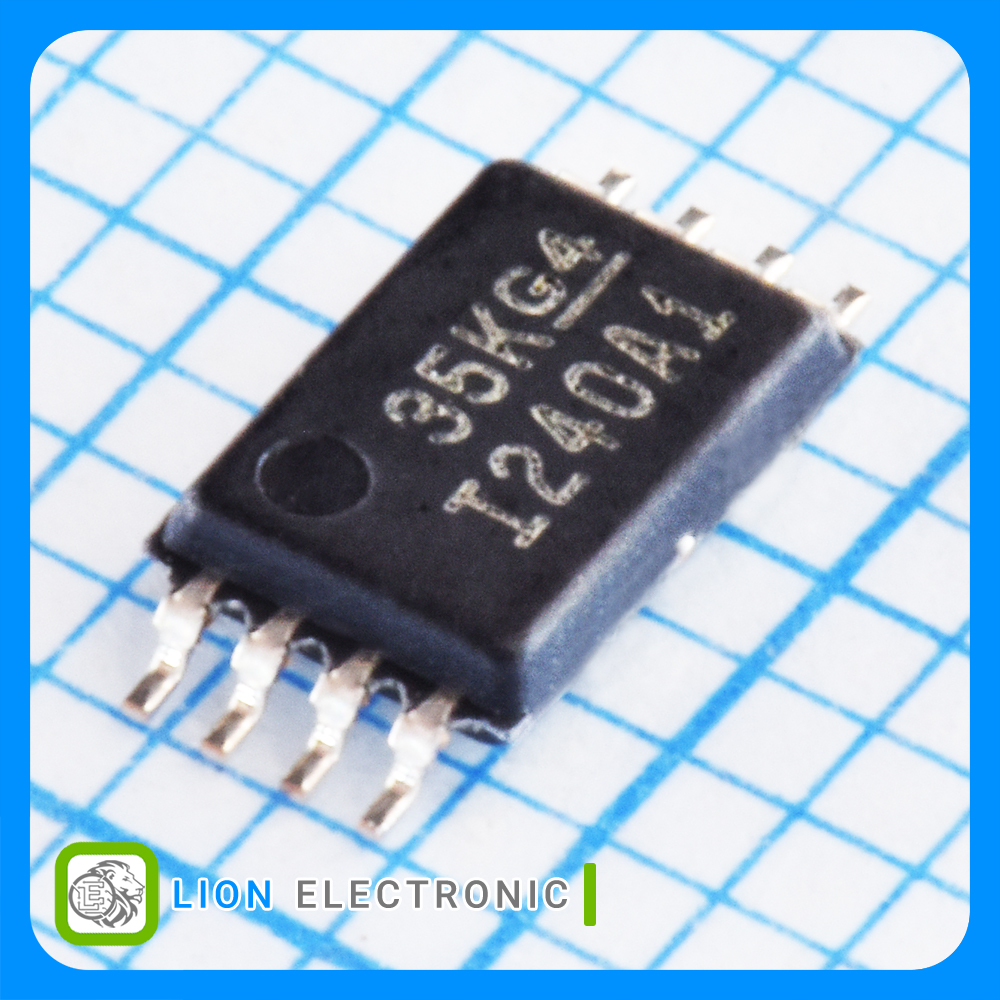

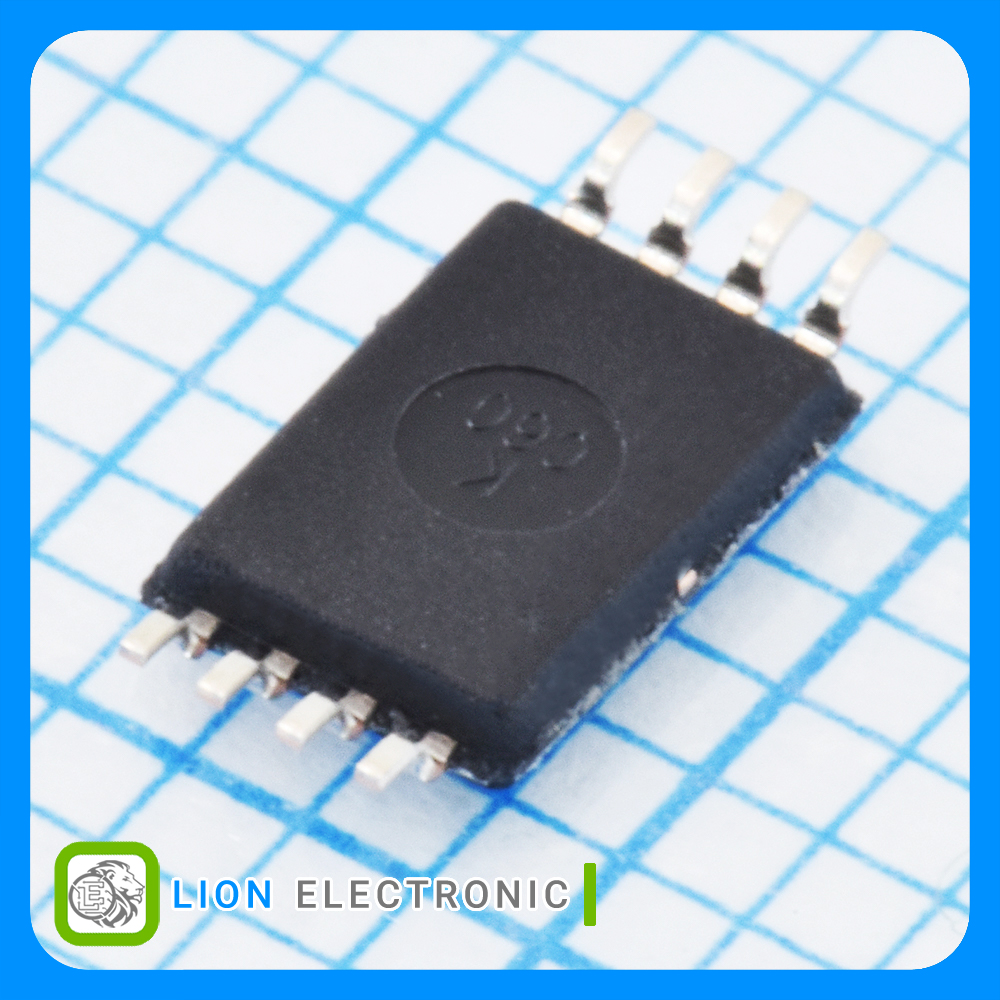

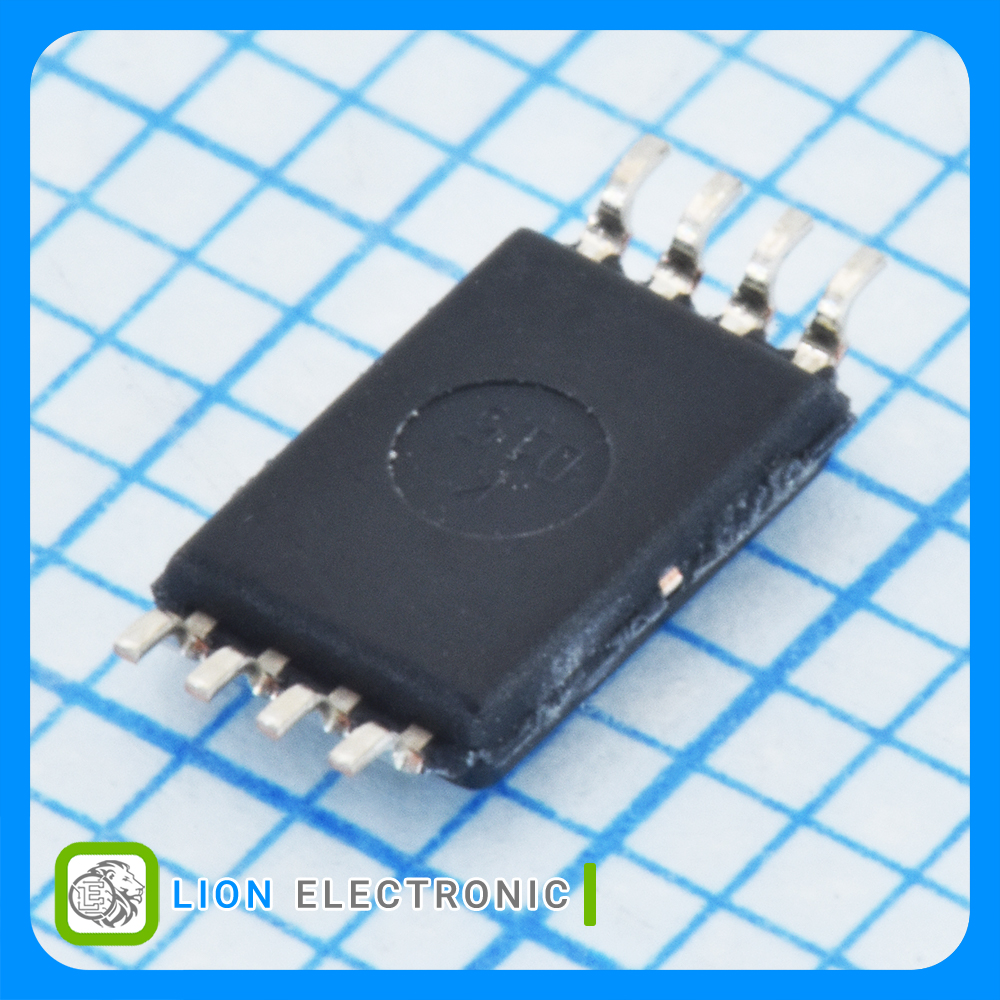

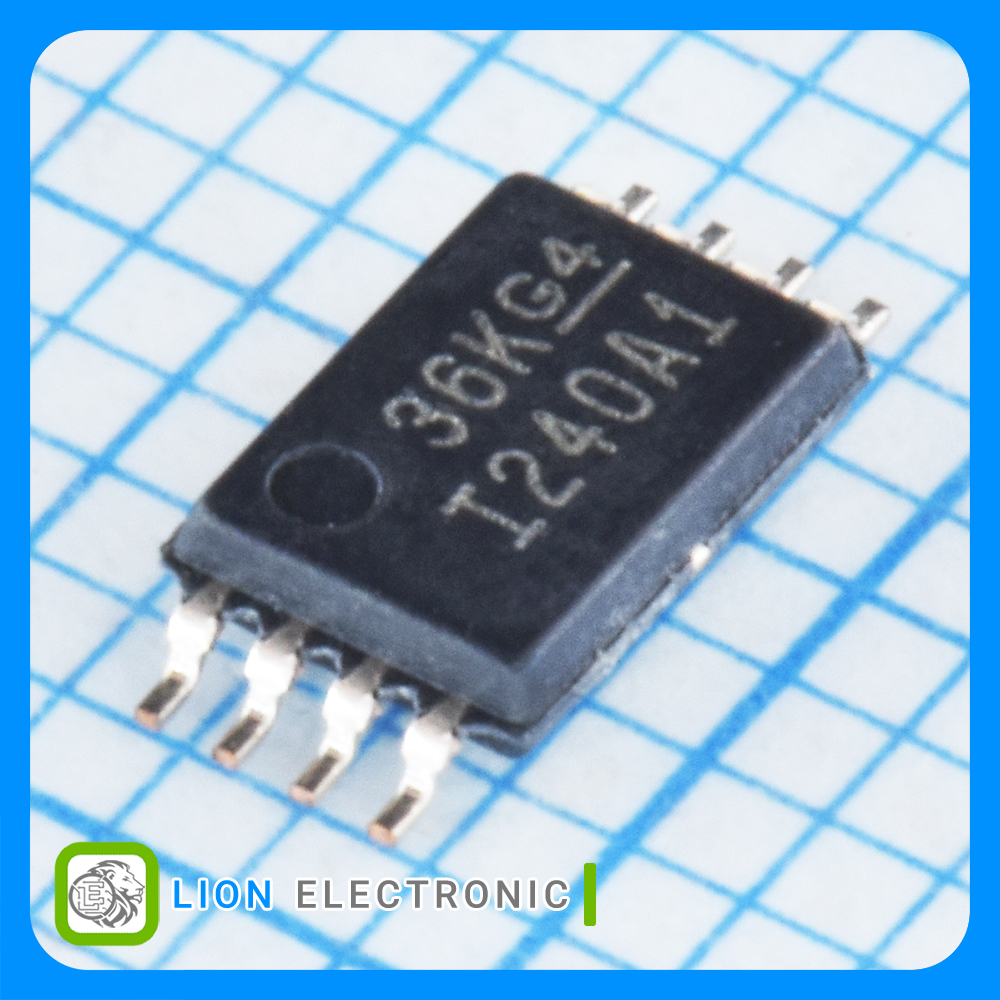

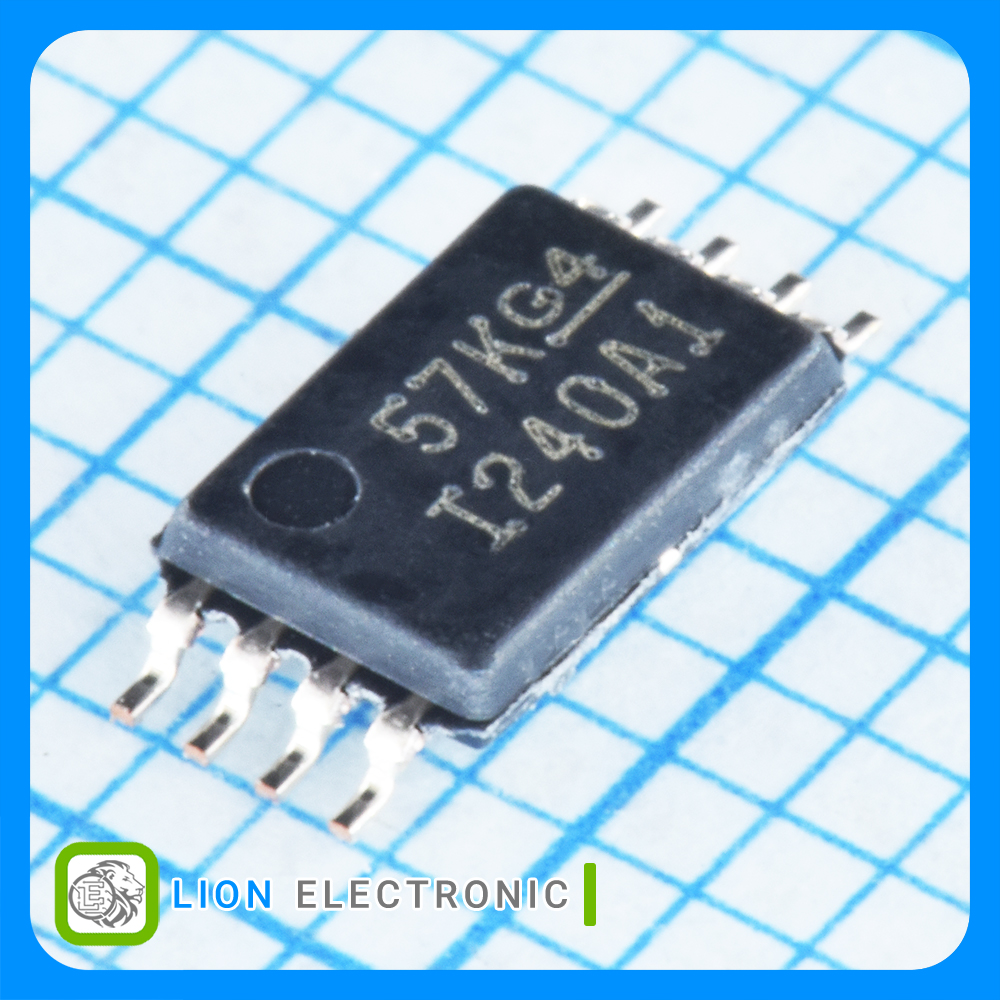

INA240A1PWR
INA240A1PWR
Part Number
5353
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی تقویتکننده سنس جریان تک کاناله، بهره 20، دوطرفه فوقدقیق با حذف PWM بهبودیافته، با پکیج TSSOP-8
Current Sense Amplifier 1-Channel Gain 20, -4V to 80V Bidirectional Ultra-Precise with Enhanced PWM Rejection, with TSSOP-8 Package
معرفی
آیسی تقویتکننده سنس جریان تک کاناله، بهره 20، دوطرفه فوقدقیق با حذف PWM بهبودیافته، با پکیج TSSOP-8
Current Sense Amplifier 1-Channel Gain 20, -4V to 80V Bidirectional Ultra-Precise with Enhanced PWM Rejection, with TSSOP-8 Package
Specifications
- Number of Channels: 1
- Gain: 20
- Vcm - Common Mode Voltage: -4 - 80V
- Vos - Input Offset Voltage: 5uV
- CMRR - Common Mode Rejection Ratio: 132dB
- Ib - Input Bias Current: 90uA
- GBP - Gain Bandwidth Product: 400KHz
- Supply Voltage - Min: 2.7V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 1.8mA
- Gain Error: 0.05%
- Mounting Style: SMD/SMT
- Package/Case: TSSOP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آیسی سنس جریان INA240A1PWR
آیسی سنس جریان INA240A1PWR
Part Number
1
Number of Channels
-4 - 80V
Vcm - Common Mode Voltage
0.05%
Gain Error
Reel
Packaging
-40C
Minimum Operating Temperature
5uV
Vos - Input Offset Voltage
SMD/SMT
Mounting Style
20
Gain
400KHz
GBP - Gain Bandwidth Product
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
2.7V
Supply Voltage - Min
132dB
CMRR - Common Mode Rejection Ratio
90uA
Ib - Input Bias Current
1.8mA
Operating Supply Current
TSSOP-8
Package-Case
