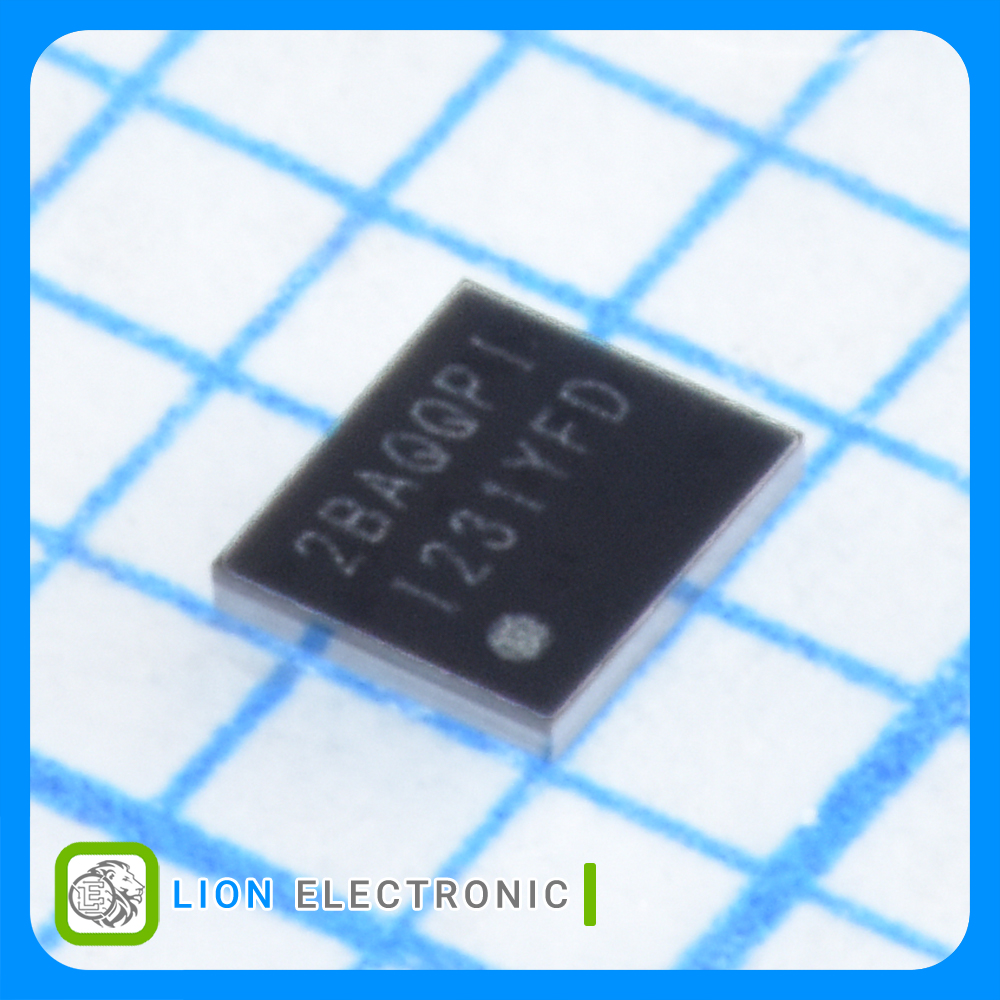

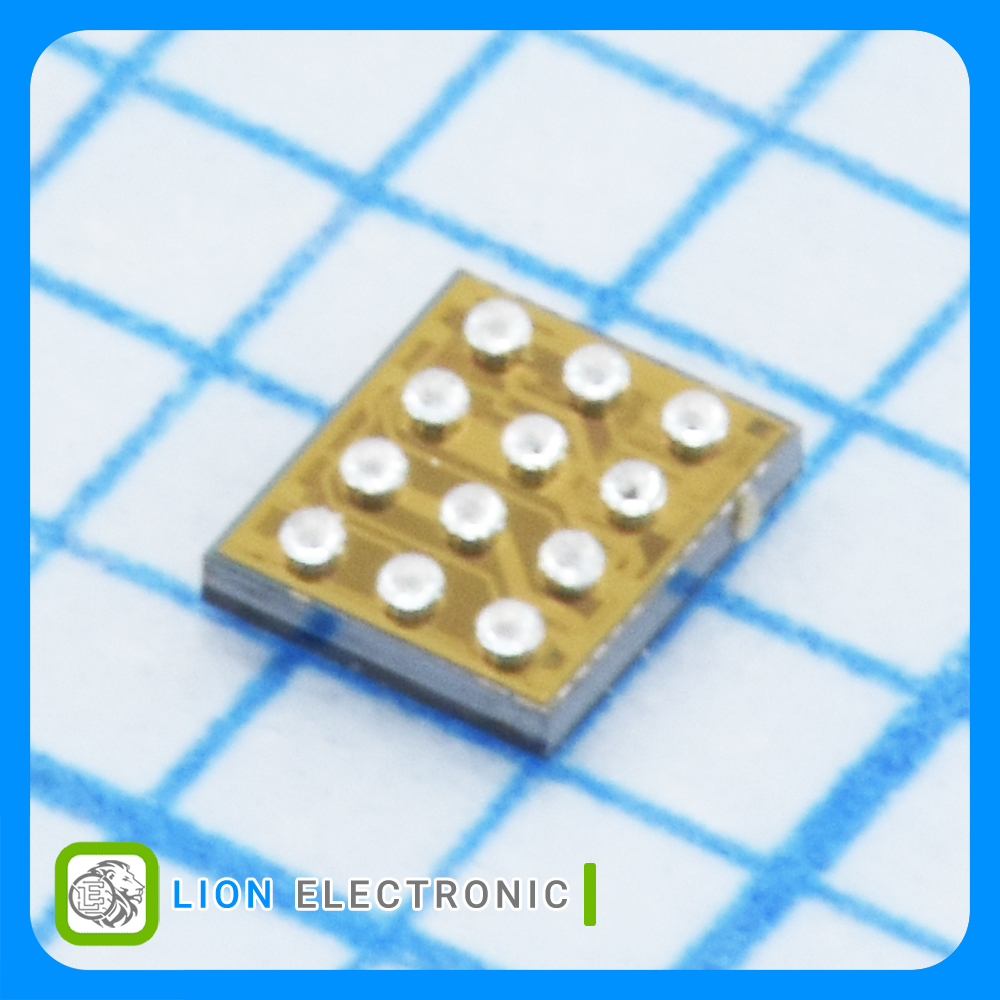

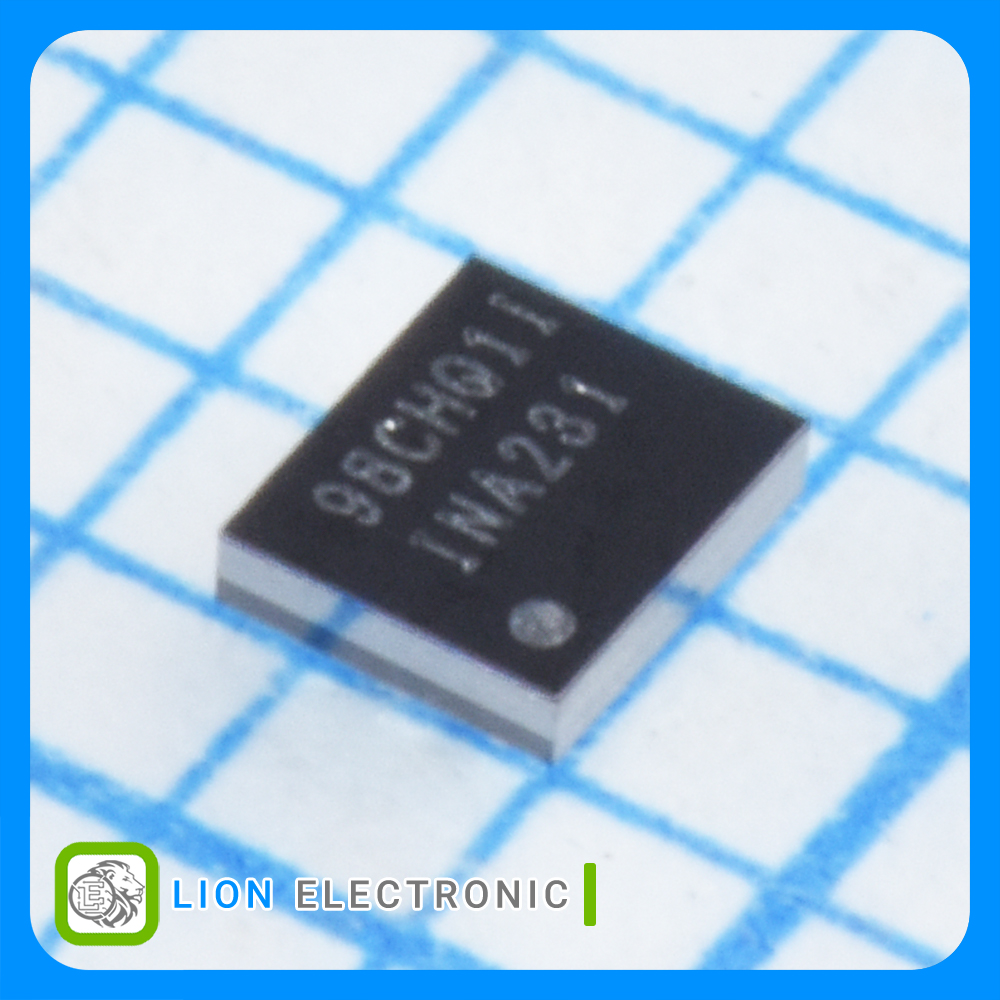

INA231AIYFDR
INA231AIYFDR
Part Number
6547
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی تقویتکننده سنس جریان 2 کاناله 28 ولت با آفست 10 میکروولت و جریان بایاس 10 میکروآمپر با پکیج DSBGA-12
INA231 2-Channel Current Sense Amplifier 0-28V, 10uV Offset, 10uA with DSBGA-12 Package
معرفی
آیسی تقویتکننده سنس جریان 2 کاناله 28 ولت با آفست 10 میکروولت و جریان بایاس 10 میکروآمپر با پکیج DSBGA-12
INA231 2-Channel Current Sense Amplifier 0-28V, 10uV Offset, 10uA with DSBGA-12 Package
Specifications
- Number of Channels: 2
- Vcm - Common Mode Voltage: 0 - 28V
- Vos - Input Offset Voltage: 10uV
- CMRR - Common Mode Rejection Ratio: 120dB
- Ib - Input Bias Current: 10uA
- Supply Voltage - Min: 2.7V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 330µA
- Gain Error: 0.2%
- Mounting Style: SMD/SMT
- Package/Case: DSBGA-12
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات INA231AIYFDR
INA231AIYFDR
Part Number
2
Number of Channels
0.2%
Gain Error
0 - 28V
Vcm - Common Mode Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
10uV
Vos - Input Offset Voltage
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
-
Gain
2.7V
Supply Voltage - Min
120dB
CMRR - Common Mode Rejection Ratio
10uA
Ib - Input Bias Current
330µA
Operating Supply Current
DSBGA-12
Package-Case
