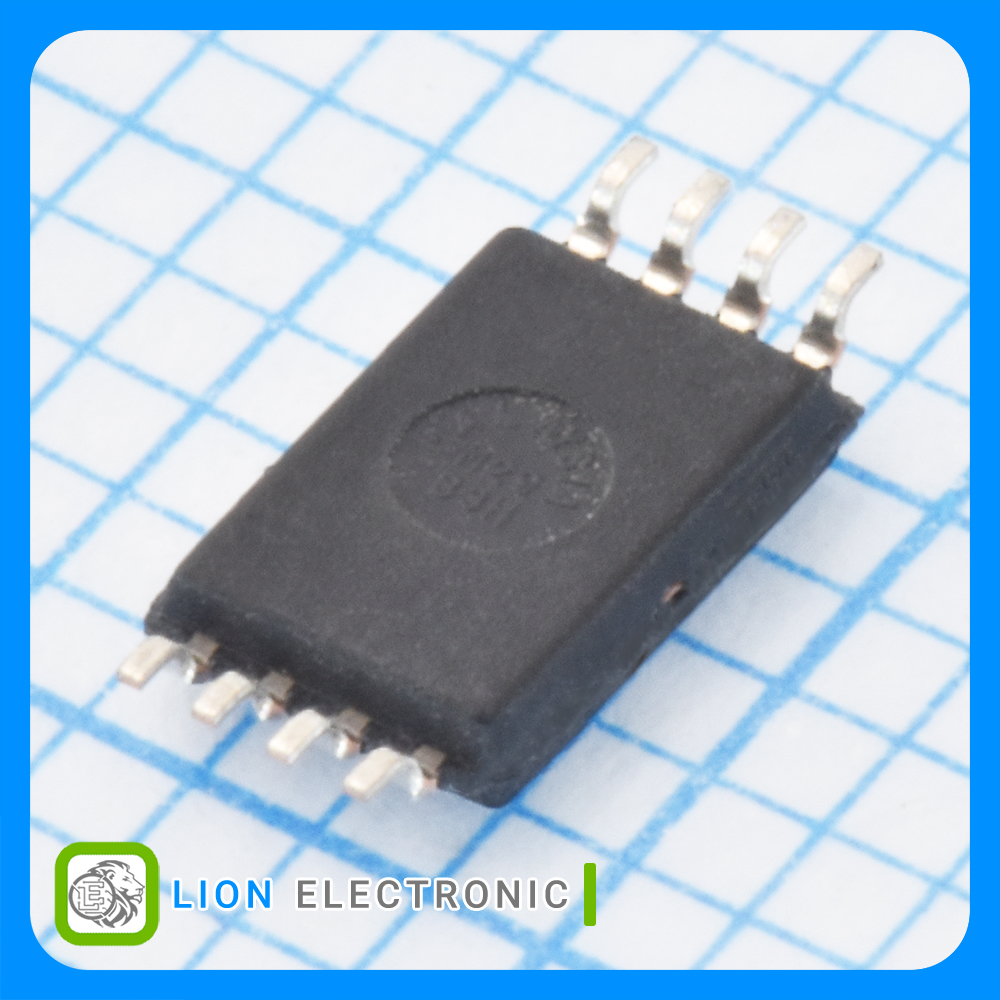

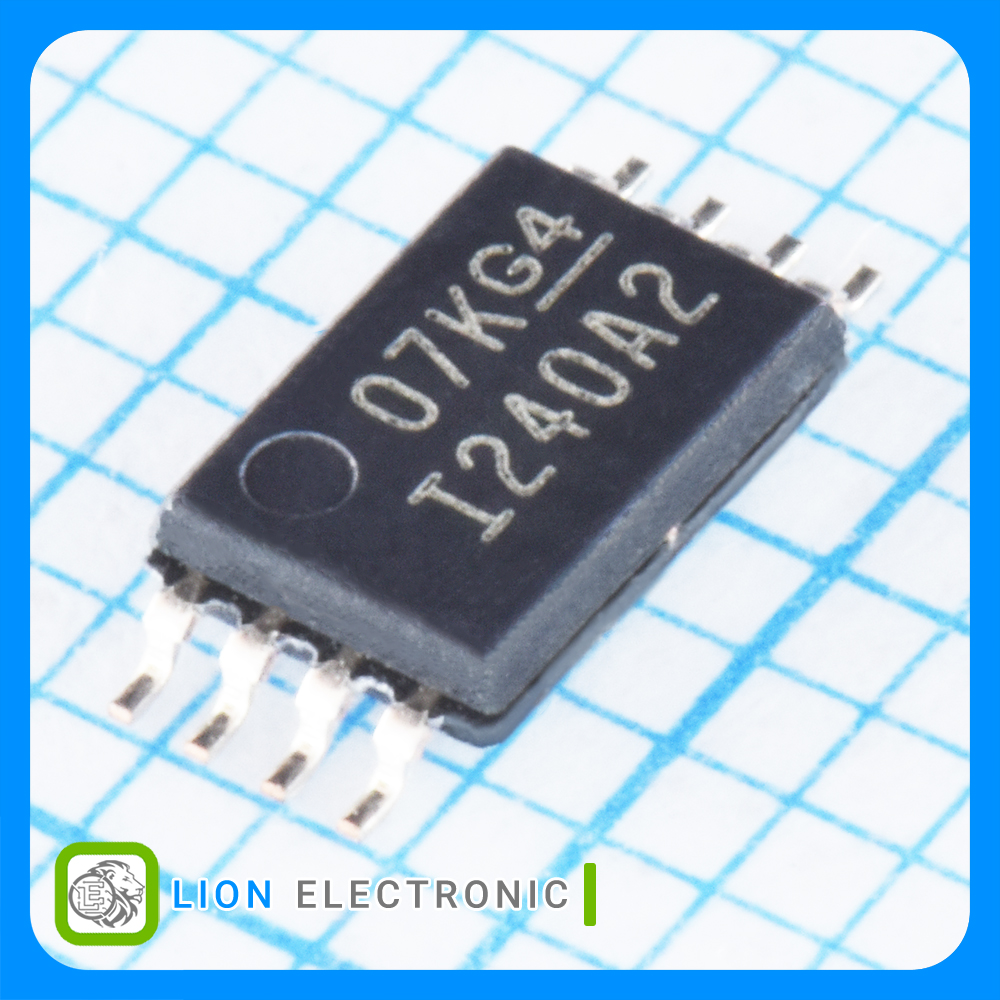

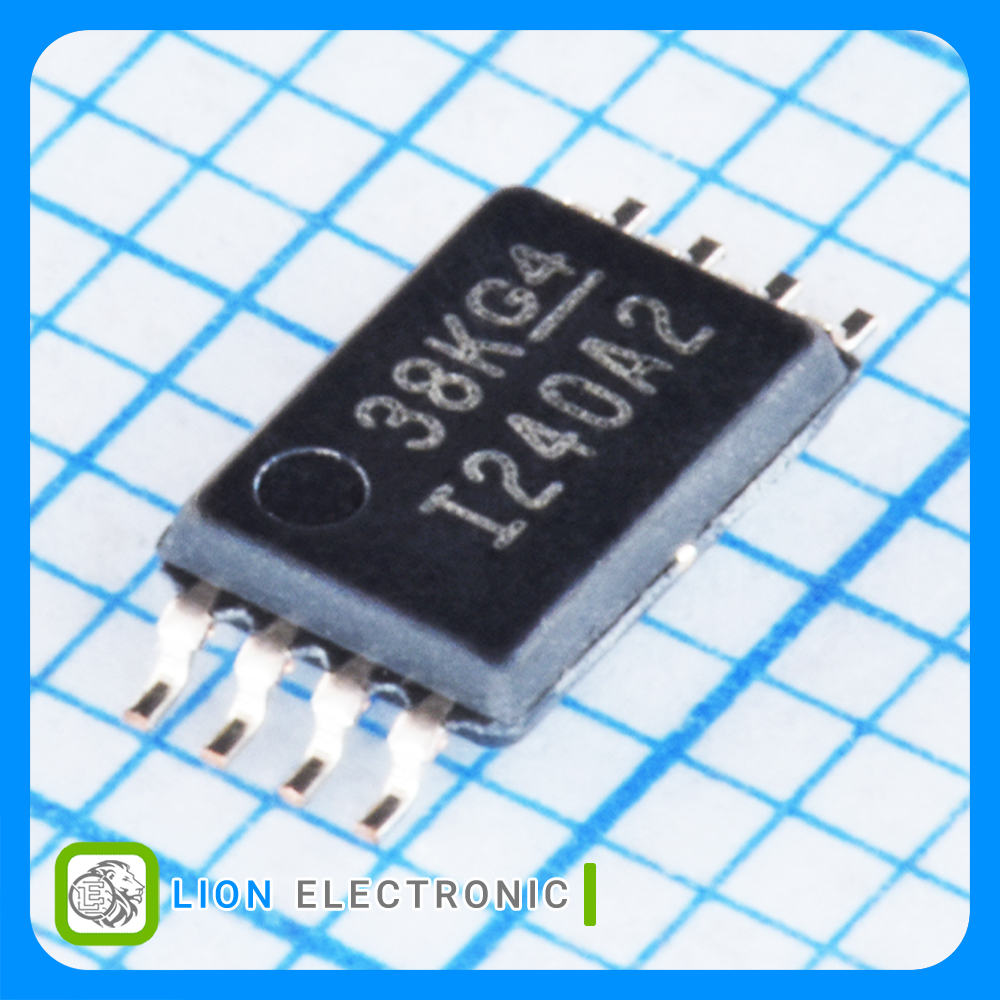

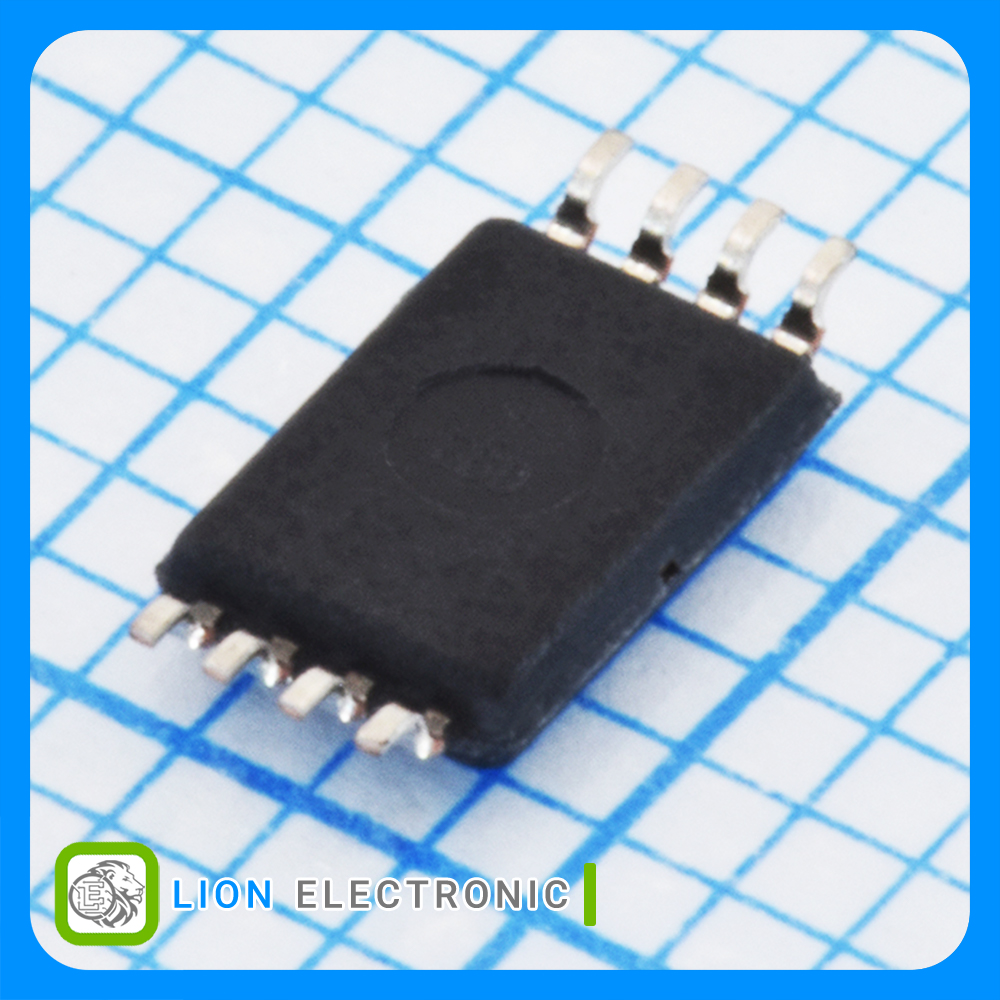

INA240A2PWR
INA240A2PWR
Part Number
5486
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی تقویتکننده سنس جریان INA240 تک کاناله گین 50 فوقدقیق با حذف PWM بهبودیافته، ولتاژ مد مشترک 4- تا 80 ولت، با پکیج TSSOP-8
INA240 Ultra-Precise Current Sense Amplifier 1-Channel Gain 50, Bidirectional, with Enhanced PWM Rejection, -4V to 80V, with TSSOP-8 Package
معرفی
آیسی تقویتکننده سنس جریان INA240 تک کاناله گین 50 فوقدقیق با حذف PWM بهبودیافته، ولتاژ مد مشترک 4- تا 80 ولت، با پکیج TSSOP-8
INA240 Ultra-Precise Current Sense Amplifier 1-Channel Gain 50, Bidirectional, with Enhanced PWM Rejection, -4V to 80V, with TSSOP-8 Package
Specifications
- Number of Channels: 1
- Gain: 50
- Vcm - Common Mode Voltage: -4 - 80V
- Vos - Input Offset Voltage: ±5µV
- CMRR - Common Mode Rejection Ratio: 132dB
- Ib - Input Bias Current: 90uA
- GBP - Gain Bandwidth Product: 400KHz
- Supply Voltage - Min: 2.7V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 2.4mA
- Gain Error: 0.05%
- Mounting Style: SMD/SMT
- Package/Case: TSSOP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات INA240A2PWR
INA240A2PWR
Part Number
-4 - 80V
Vcm - Common Mode Voltage
1
Number of Channels
0.05%
Gain Error
Reel
Packaging
-40C
Minimum Operating Temperature
±5µV
Vos - Input Offset Voltage
SMD/SMT
Mounting Style
400KHz
GBP - Gain Bandwidth Product
50
Gain
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
2.7V
Supply Voltage - Min
132dB
CMRR - Common Mode Rejection Ratio
90uA
Ib - Input Bias Current
2.4mA
Operating Supply Current
TSSOP-8
Package-Case
